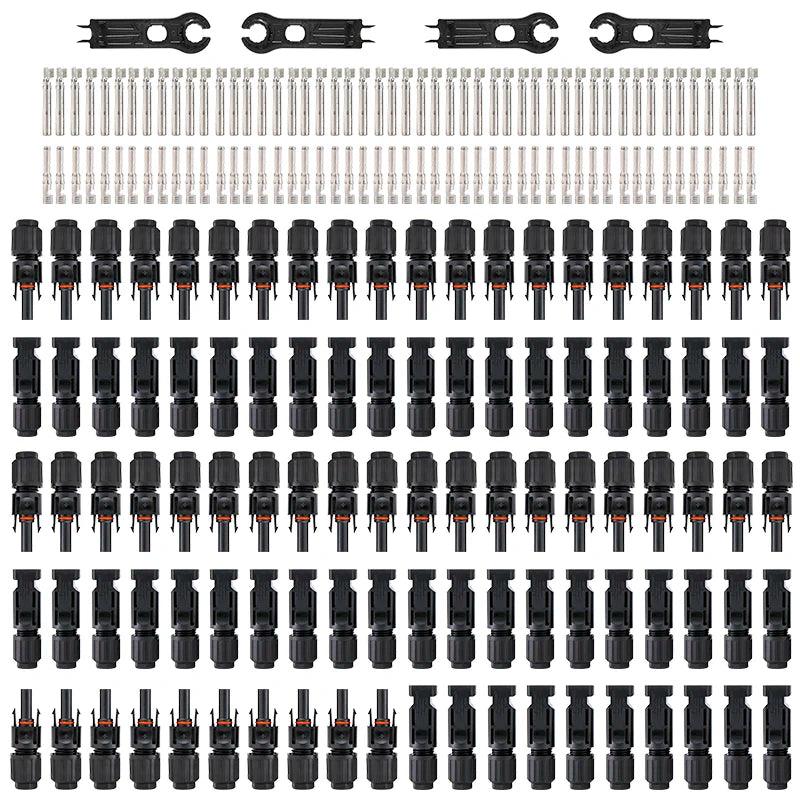

Free shipping DC Solar Connector 1000V30A Photovoltaic PV Panel Stecker Connectors Kit for PV/MC Cable 2.5/4/6mm2 Wholesale

Regular price $22.00 NZD
Regular price $20.00 NZD Sale price $22.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Free shipping DC Solar Connector 1000V30A Photovoltaic PV Panel Stecker Connectors Kit for PV/MC Cable 2.5/4/6mm2 Wholesale

Brand Name: PVMC

Origin: Mainland China

Model Number: DC Solar Connector

Voltage: 1000V

Certification: CE

Rated voltage: 1000V(DC Solar Connector)

Rated current: 30A(Photovoltaic PV Panel Stecker Connectors)

Degree of waterproof: IP67

Adapter Wire: OD 5mm-7mm

Connector Insulation material: PPO/PPE

Flammability rating: UL94-V0

Connector contact resistance: ≤0.5mΩ

Choice: yes

Free shipping DC Solar Connector 1000V30A Photovoltaic PV Panel Stecker Connectors Kit for PV/MC Cable 2.5/4/6mm2 Wholesale

High quality Material】WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!

【Widely Compatible With Solar Cable】Compatible with PV cables with different insulation diameters (2.5m㎡--6m㎡).

【Easy installing】Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

【IP67 Professional Waterproof】Good waterproof performance for outdoors usage.

Specifications

* Rated current: 30A (2.5m㎡--6m㎡)

* Rated voltage: 1000V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP67

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )

* Adapter Wire: OD 5mm-7mm

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃~ +85℃

* Connection: Clamp
