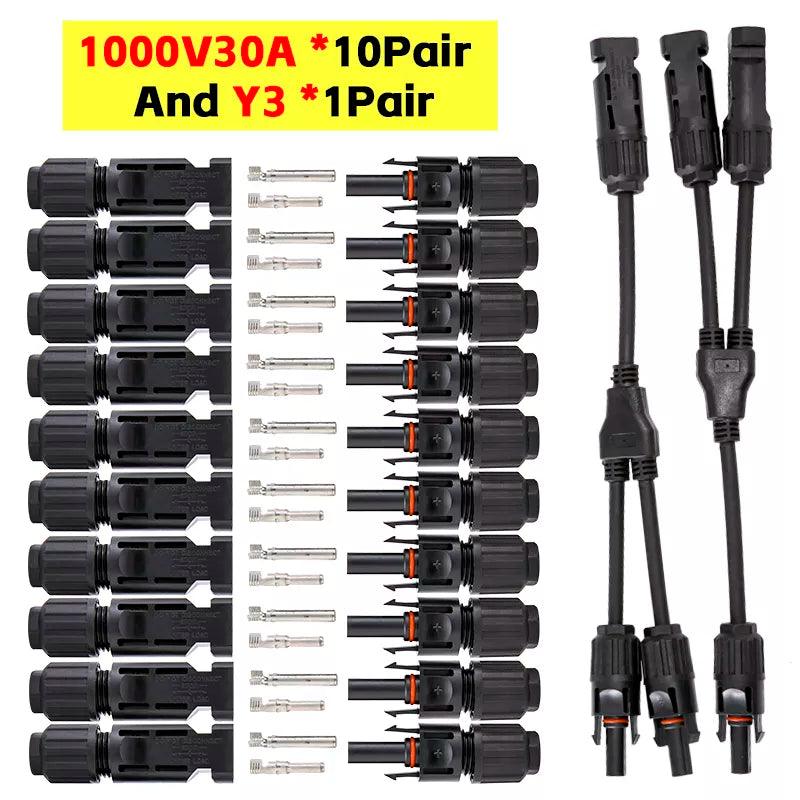

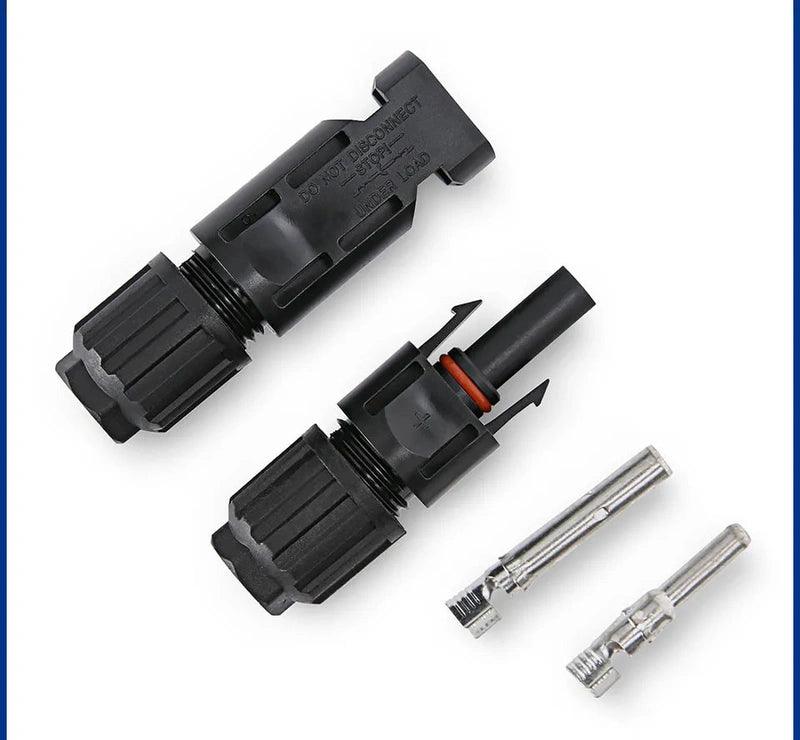

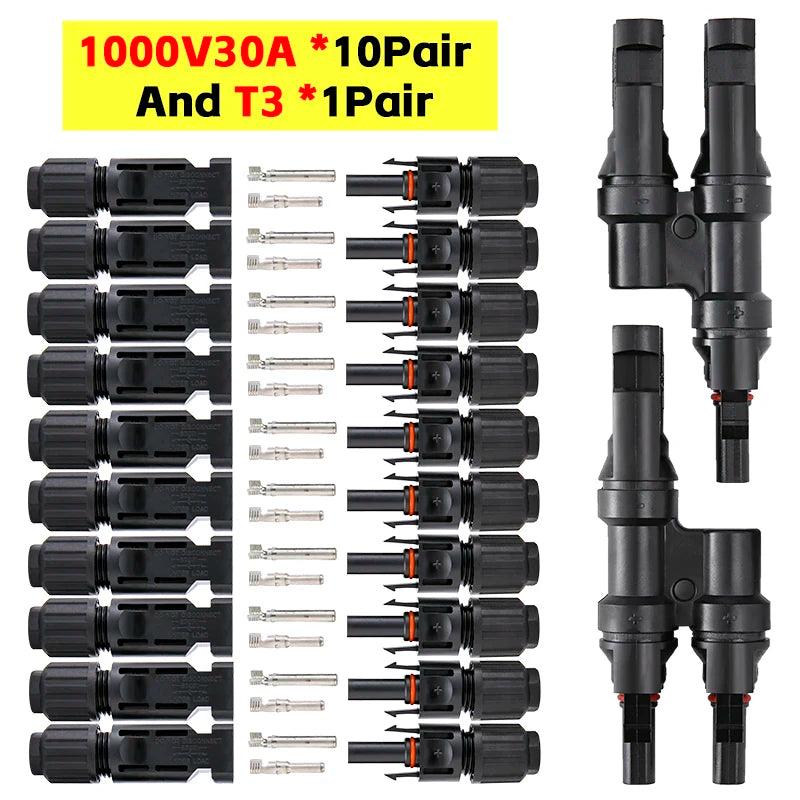

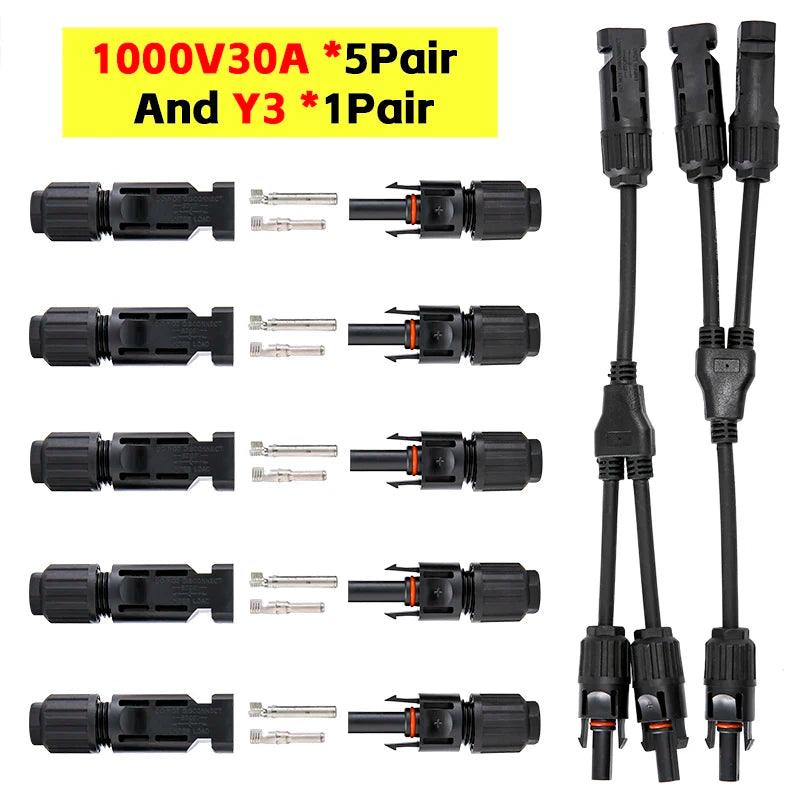

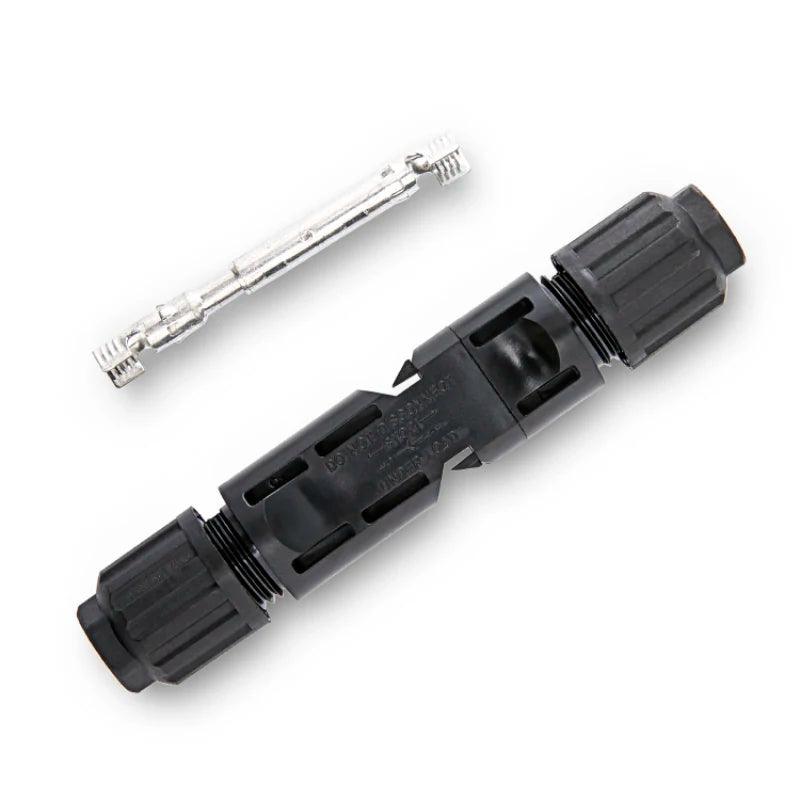

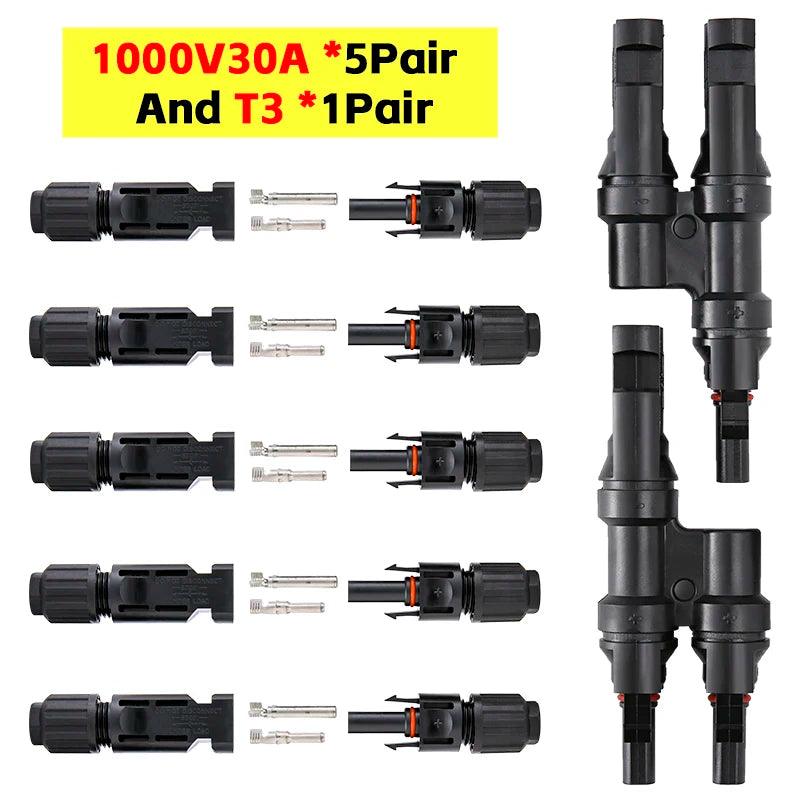

Free Shipping 2 To 1 PV Branch Connector With 4mm2 1000V 30A Solar Cable PV combiner box Solar Panel cable 2.5/ 4/6mm2

Regular price $43.00 NZD
Regular price $53.00 NZD Sale price $43.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Brand Name: PVMC

Origin: Mainland China

Model Number: Connector-Y3

Certification: CE

Rated current: : 30A

Rated voltage: : 1000V DC

Degree of waterproof: : IP67

Flammability rating: : UL94-V0

Safety: : Class II

High quality Material】WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!

【Widely Compatible With Solar Cable】Compatible with PV cables with different insulation diameters (2.5m㎡--6m㎡).

【Easy installing】Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

【IP67 Professional Waterproof】Good waterproof performance for outdoors usage.

Specifications

* Rated current: 30A (2.5m㎡--6m㎡)

* Rated voltage: 1000V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP67

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )

* Adapter Wire: OD 5mm-7mm

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃~ +85℃

* Connection: Clamp
