Fluke 381 Remote Display True-rms Clamp Meter iFlex Detachable Jaw & iFlex probe multimetro

Regular price $947.00 NZD
Regular price $1,063.00 NZD Sale price $947.00 NZD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Fluke 381 Remote Display True-rms Clamp Meter iFlex Detachable Jaw & iFlex probe multimeter

Weight: 350 g

Operating Temperature: -10 °C-40 °C

Model Number: Fluke 381

Measuring Voltage Range: 600.0 V /1000 V

Measuring Resistance Range: 600 Ω/6 kΩ/60 kΩ

Measuring Inductance Range: /

Measuring Current Range: 999.9A/2500A

Measuring Capacitance Range: 500 Hz

Display Type: Digital Only

Dimensions: 277 x 88 x 43 mm

DIY Supplies: ELECTRICAL

Certification: CE

Brand Name: FLUKE

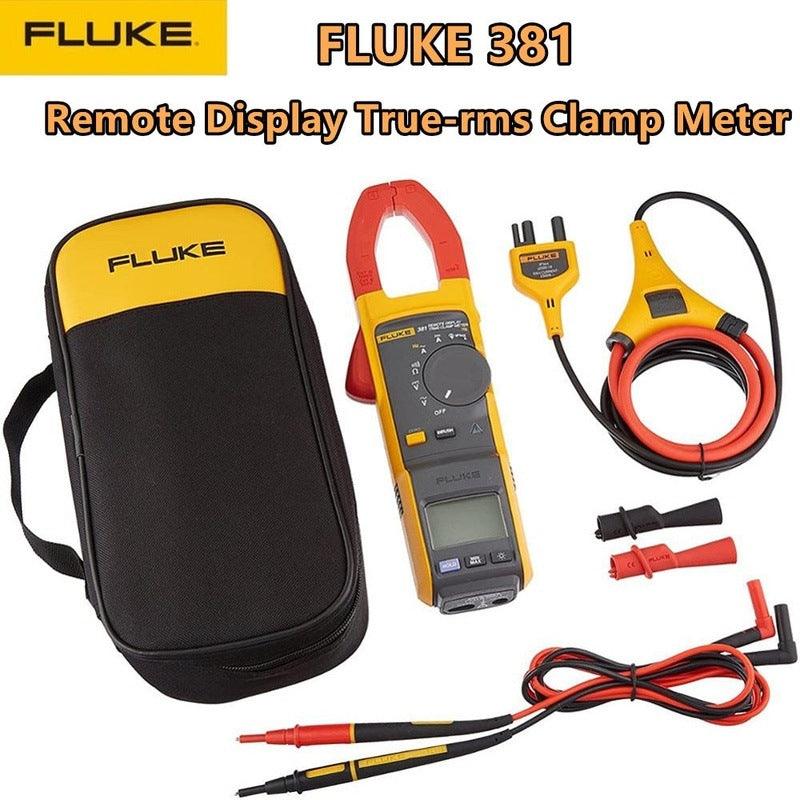

The Fluke 381 is the first clamp meter with a detachable, remote display and iFlex™ flexible current probe for easier, faster, safer measurements.

Specification:

  • 1000 A AC/DC current measurement with fixed jaw

  • 2500 A AC current measurement with iFlex flexible current probe

  • 1000 V ac and dc voltage measurement

  • True-RMS AC voltage and current for accurate measurements on non-linear signals

  • Frequency measurement to 500 Hz with both jaw and iFlex

  • 60 kΩ resistance measurement with continuity detection

  • Min, max, average and inrush recording to capture variations automatically

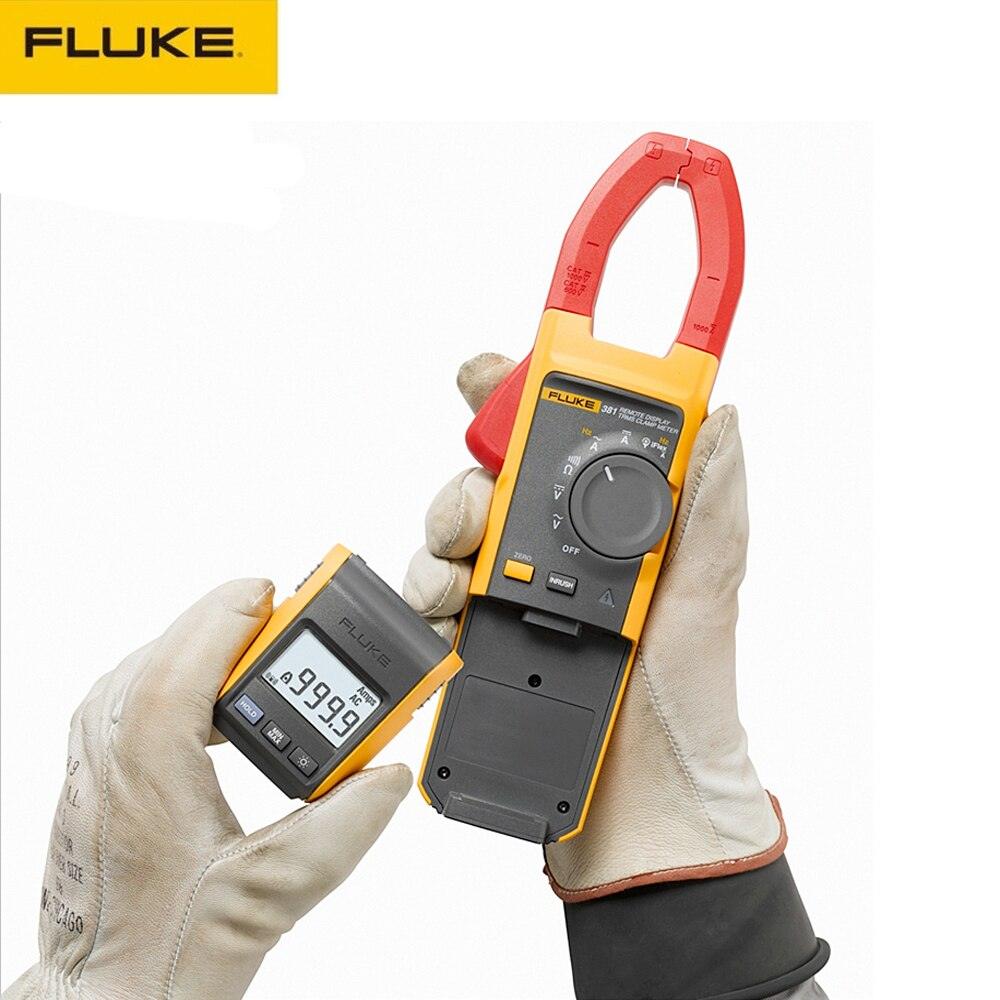

  • Wireless technology allows the display to be carried up to 30 ft away from the point of measurement for added flexibility without interference with measurement accuracy

  • iFlex flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access

  • CAT IV 600V, CAT III 1000 V safety rating

  • Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings

  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it

  • Ergonomic design fits in your hand and can be used while wearing personal protective equipment

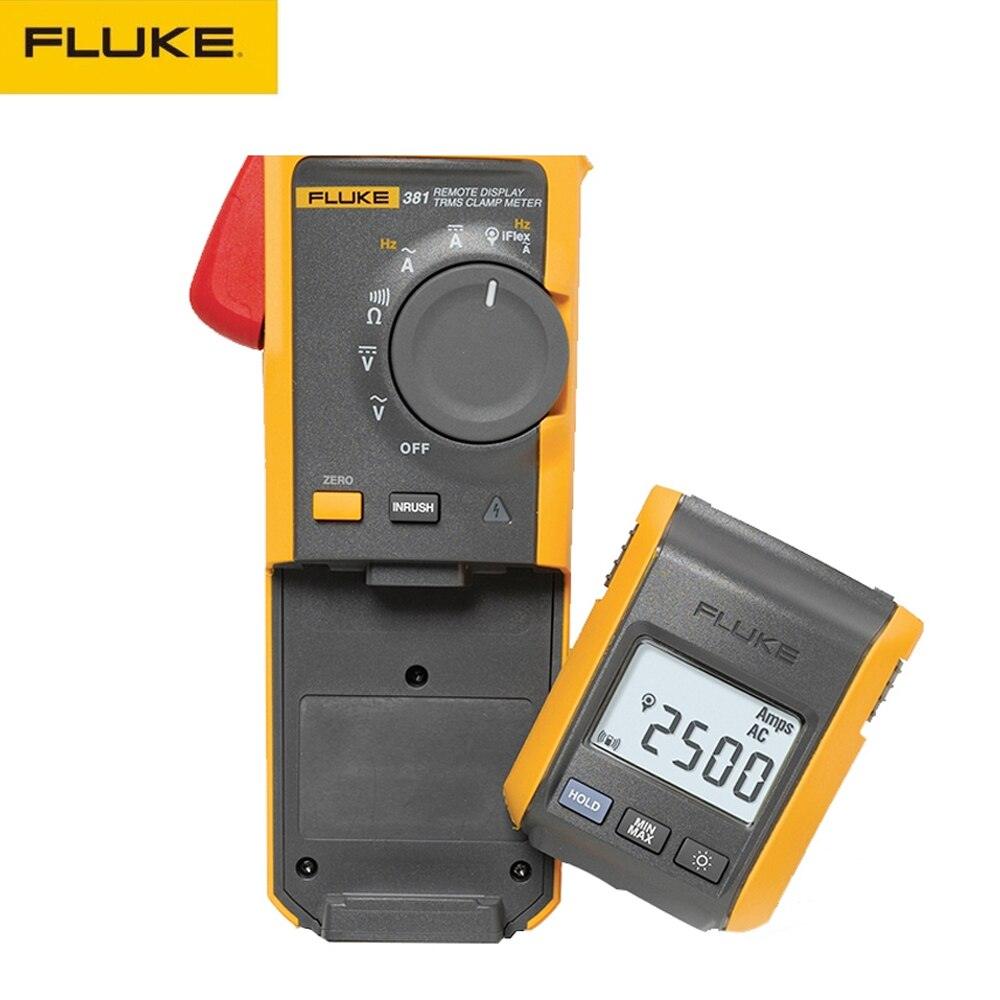

  • Removable magnetic display

  • Radio transmitter automatically turns off when the display is connected to the meter

  • Large, easy to read, backlight display
