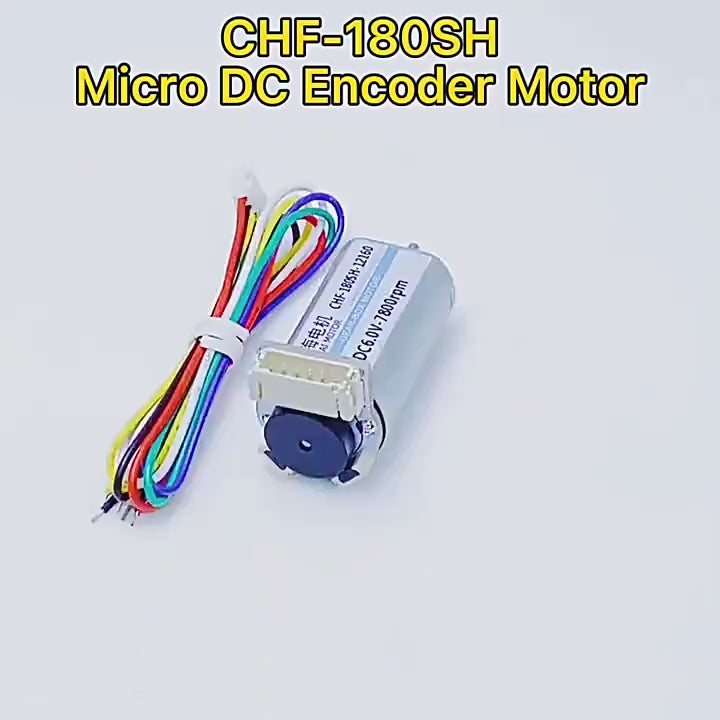

FK180SH Magnetic Encoder DC Motor| 6V/12V

$45.00 NZD
$45.00 NZD
Sale Sold out
Shipping calculated at checkout.
Model NO.

6V 7800rpm：6V 7800rpm Encoder Motor, 11-Line AB Phase, for Smart Car Speed Control

12V 16000rpm：12V 16000rpm High-Speed Encoder Motor, with 3.3V/5V Signal Output

Product Overview

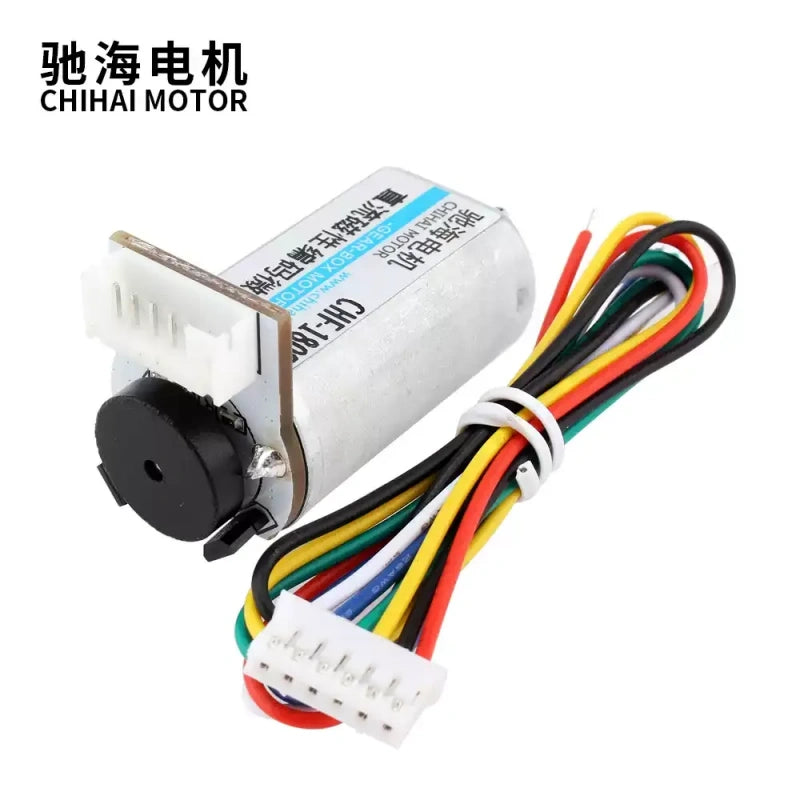

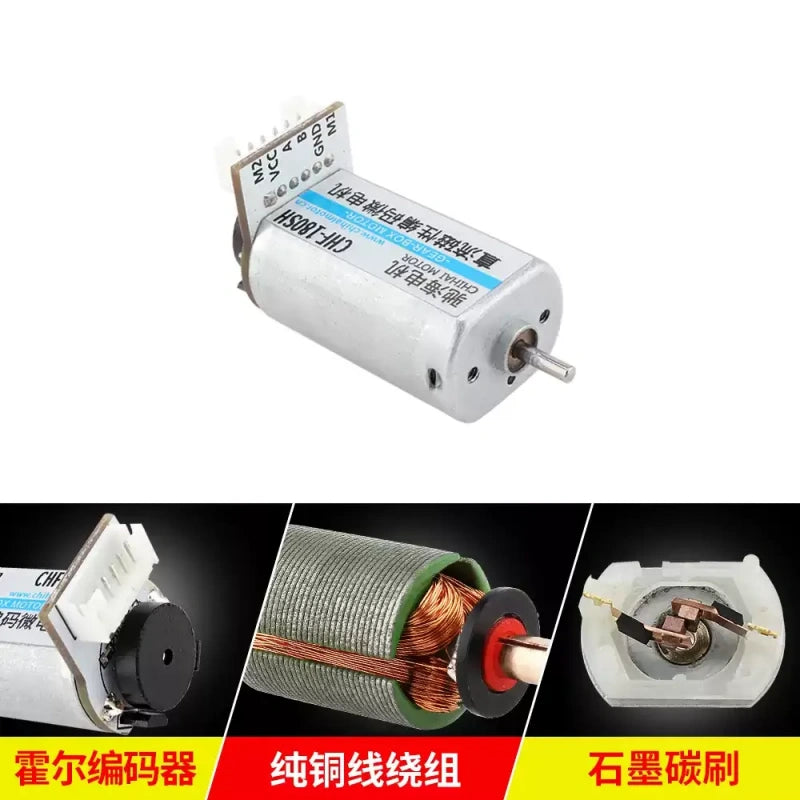

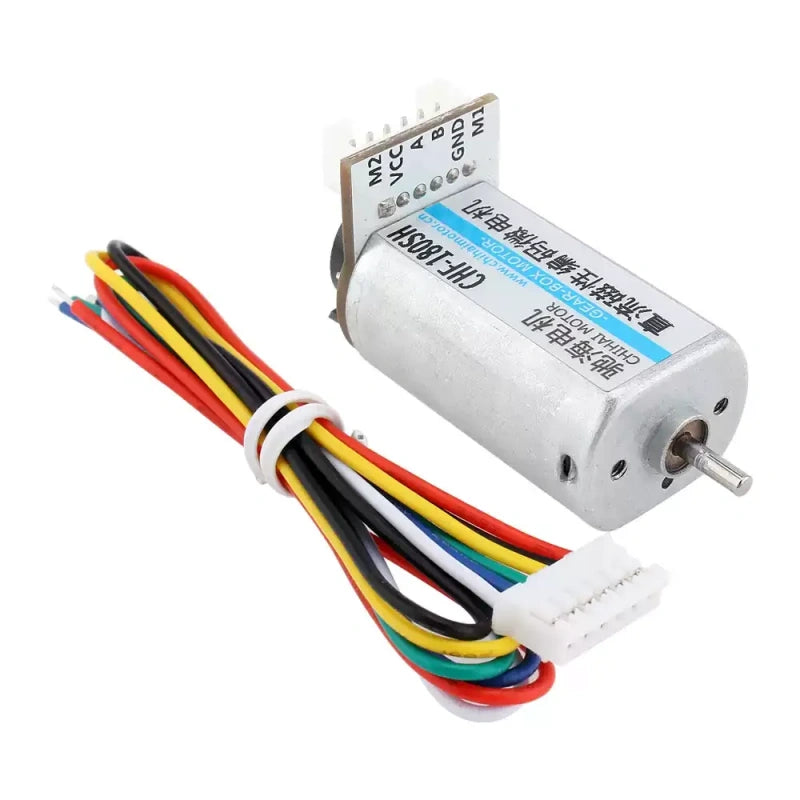

The CHF-FK180SH ABHL magnetic encoder DC motor is a compact, high-performance motor designed for smart cars, robotics, and automation projects. Featuring an 11-line AB-phase encoder for precise speed/position feedback, it’s ideal for applications requiring accurate motion control.

Key Features

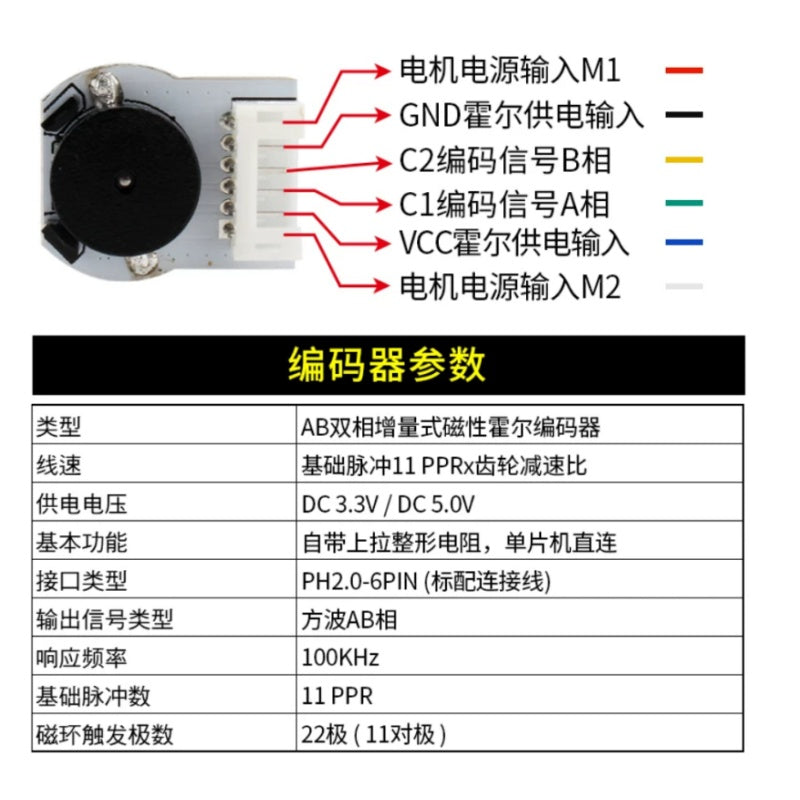

  • Built-in Magnetic Encoder: 11-line AB dual-phase encoder provides real-time speed and position feedback (compatible with 3.3V or 5.0V signal systems).
  • Dual-Voltage Operation: Available in 6V (7800rpm) and 12V (16000rpm) versions to match different project requirements.
  • Compact & Lightweight: 2mm diameter round shaft (8.5mm length) and only ~40g weight, perfect for small smart car kits.
  • High Efficiency: Optimized design delivers up to 58.73% efficiency at maximum output.

Specifications (CHF-FK180SH ABHL)

  • Model: CHF-FK180SH ABHL
  • Brand: ChiHai Motor
  • Rated Voltage: DC 6V / 12V (6.0-12.0V compatible)
  • Motor Type: Magnetic Encoder DC Motor
  • Encoder Type: 11-Line AB Dual-Phase Encoder (3.3V/5.0V signal)
  • Output Shaft: 2mm diameter round shaft, 8.5mm length
  • Connector Type: PH2.0-6PIN Terminal
  • Weight: ~40g

Applications

Perfect for smart cars, robotics kits, line-tracking robots, and other projects requiring speed control and feedback.

DATA SHEET

Attribute Value
Product Type Magnetic Encoder DC Motor
Model CHF-FK180SH ABHL
Brand ChiHai Motor
Rated Voltage DC 6V / 12V
Encoder Type 11-Line AB Dual-Phase (3.3V/5.0V)

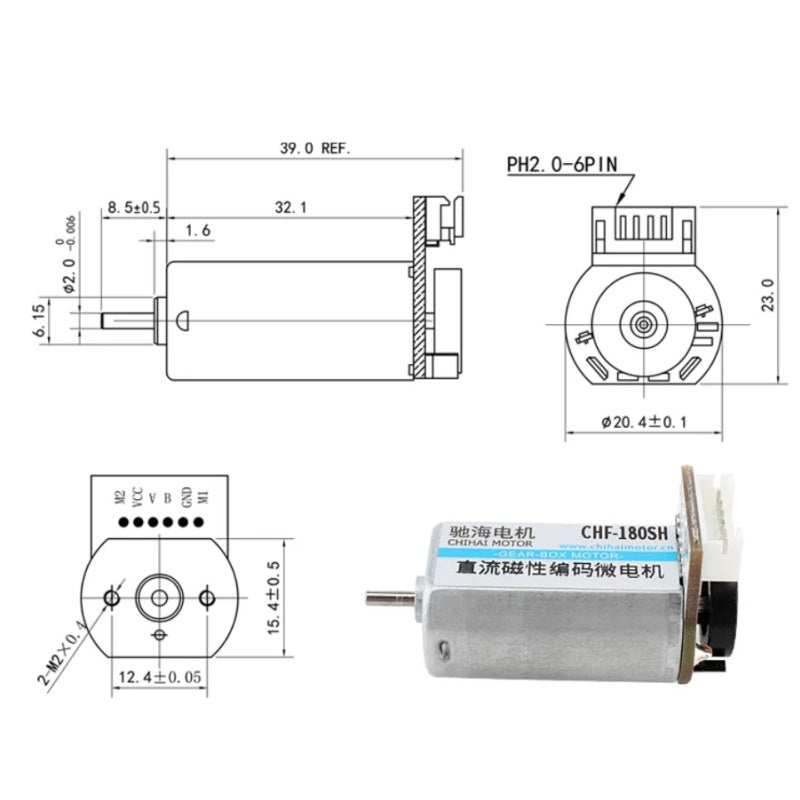

Output Shaft 2mm round shaft, 8.5mm length
Connector PH2.0-6PIN
Applications Smart Cars, Robotics Kits, Automation

Detailed Performance Data


DC 6.0V (7800rpm)

Parameter Value
No-Load Speed 7800 rpm
No-Load Current 0.10 A
Stall Torque 10.55 mN·m
Stall Current ≥2.1 A
Max Efficiency (Speed/Current/Torque) 6282 rpm / 0.41 A / 2.05 mN·m
Max Output Power (Speed/Current/Torque) 3900 rpm / 0.91 A / 5.27 mN·m



DC 12.0V (16000rpm)

Parameter Value
No-Load Speed 16000 rpm
No-Load Current 0.14 A
Stall Torque 20.92 mN·m
Stall Current ≥4.0 A
Max Efficiency (Speed/Current/Torque) 13316 rpm / 0.69 A / 3.51 mN·m
Max Output Power (Speed/Current/Torque) 8000 rpm / 1.79 A / 10.46 mN·m
