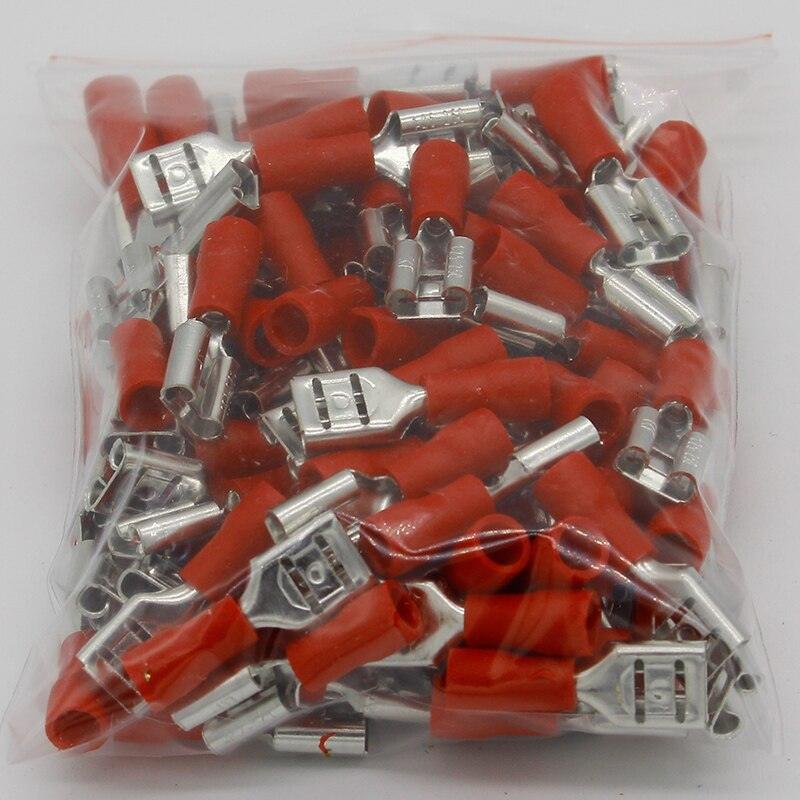

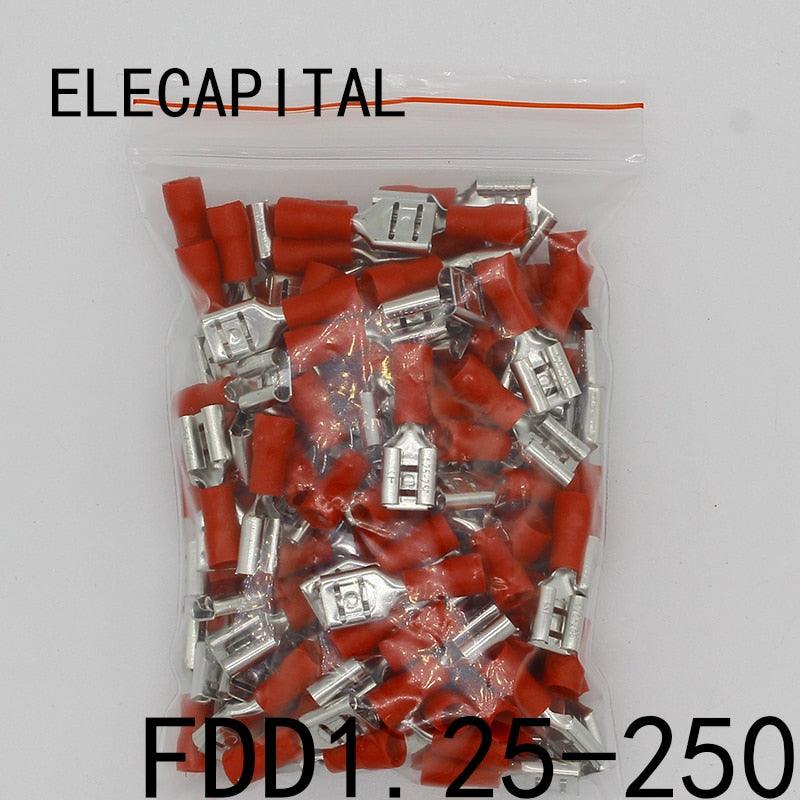

FDD1.25-250 insulating Female Insulated Electrical Crimp Terminal Connectors Cable Wire Connector 100PCS/Pack FDD1-250 FDD

Regular price $8.00 NZD
Regular price $10.00 NZD Sale price $8.00 NZD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

FDD1.25-250 insulating Female Insulated Electrical Crimp Terminal Connectors Cable Wire Connector 100PCS/Pack FDD1-250 FDD

Model Number: FDD1.25-250

Certification: CE

Brand Name: ELECAPITAL

Conductor cross section:0.5-1.5 mm⊃2;(American Wire Gauge 22-16)Maximum current:Imax=10A

Material:Brass  Color:Red

  ITEMNO Nema TAB  Thickness of material  Dimension
B L H
mm mm mm mm mm mm mm
FDD 1.25-110(5) 0.5*2.8 0.3 3.8 1.7 3.8 19.0 10.0
FDD 1.25-110(8) 0.8*2.8 0.3 3.8 1.7 3.8 19.0
FDD 1.25-187(5) 0.5*4.75 0.35 5.6 1.7 3.8 19.0
FDD 1.25-187(8) 0.8*4.75 0.35 5.6 1.7 3.8 19.0
FDD 1.25-205 0.5*5.2 0.35 6.5 1.7 3.8 20.0
FDD 1.25-250 0.8*6.35 0.4 7.4 1.7 3.8 21.0
