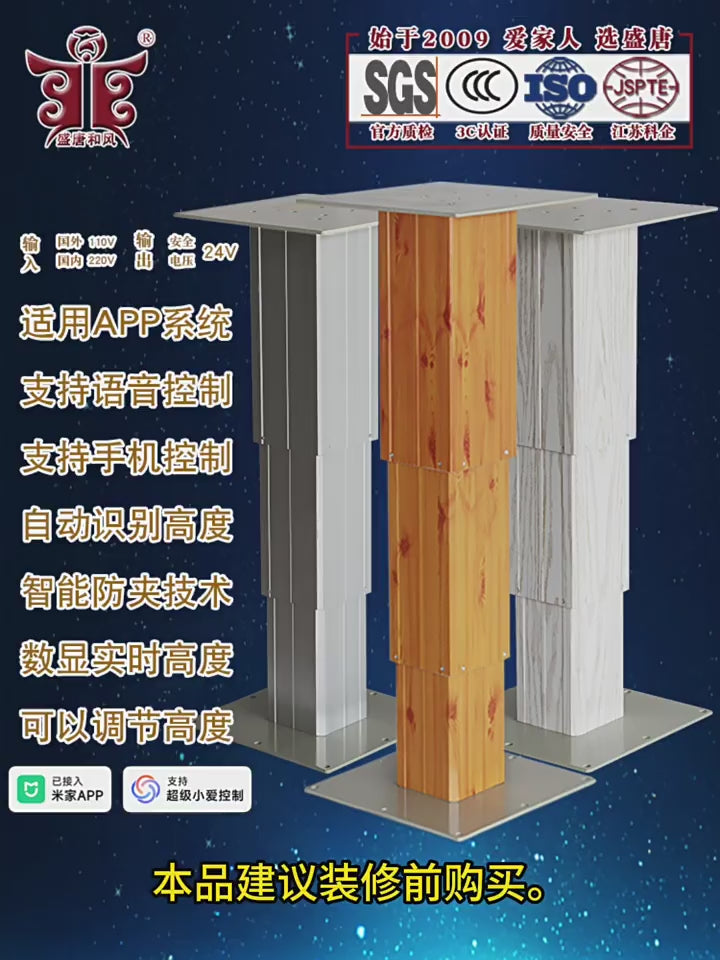

Electric Tatami Lift Column

Name: Electric Tatami Lift Column
Brand: electrical center b2c
SKU: D25 Type Electric Lifting Stroke (25cm~56cm)/60kg
Price: 449.0 NZD
Availability: InStock

$449.00 NZD

Sale Sold out

Shipping calculated at checkout.

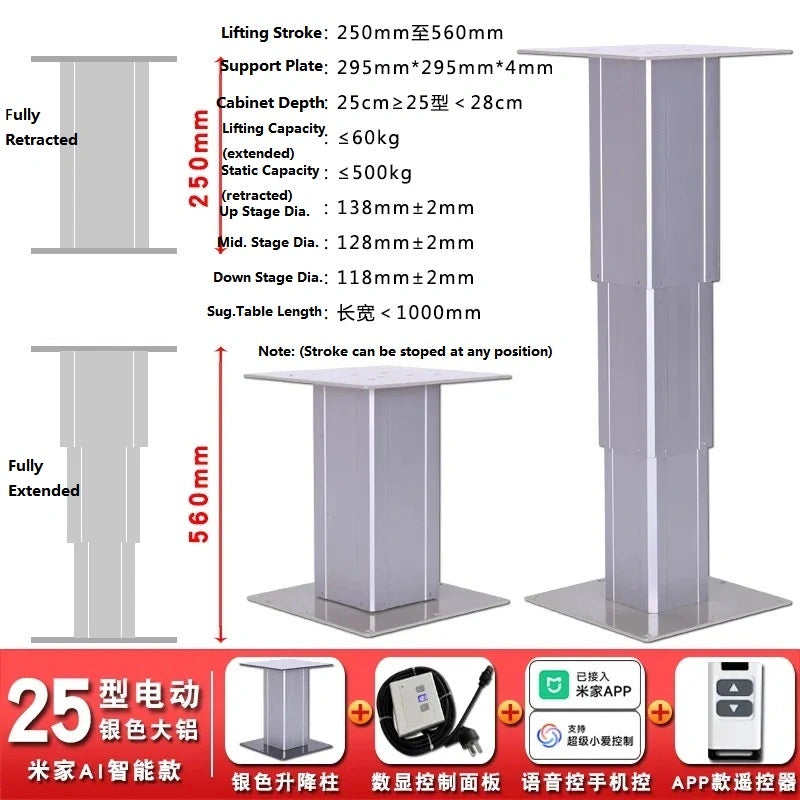

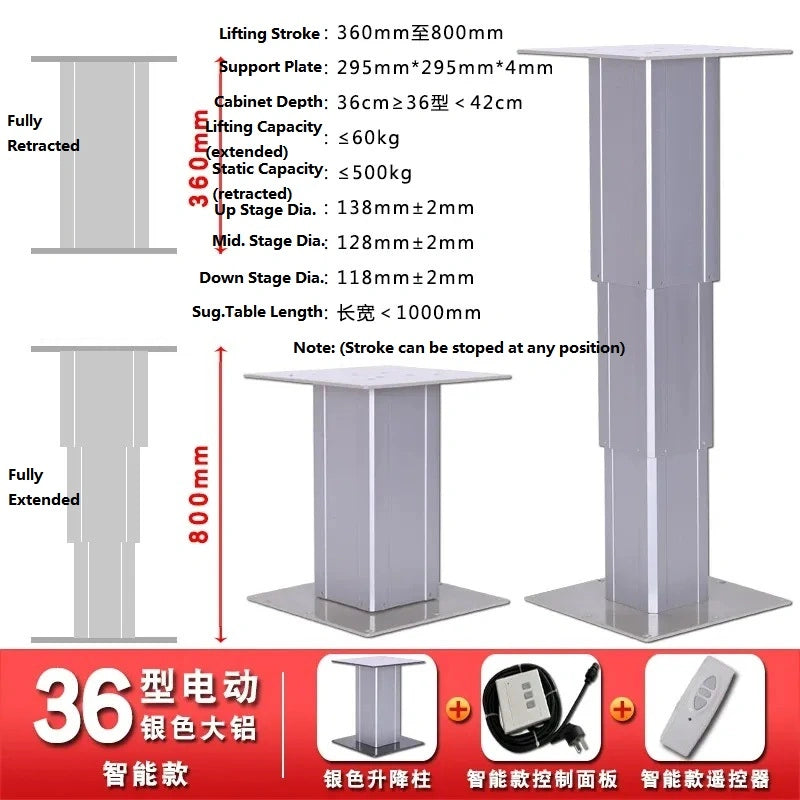

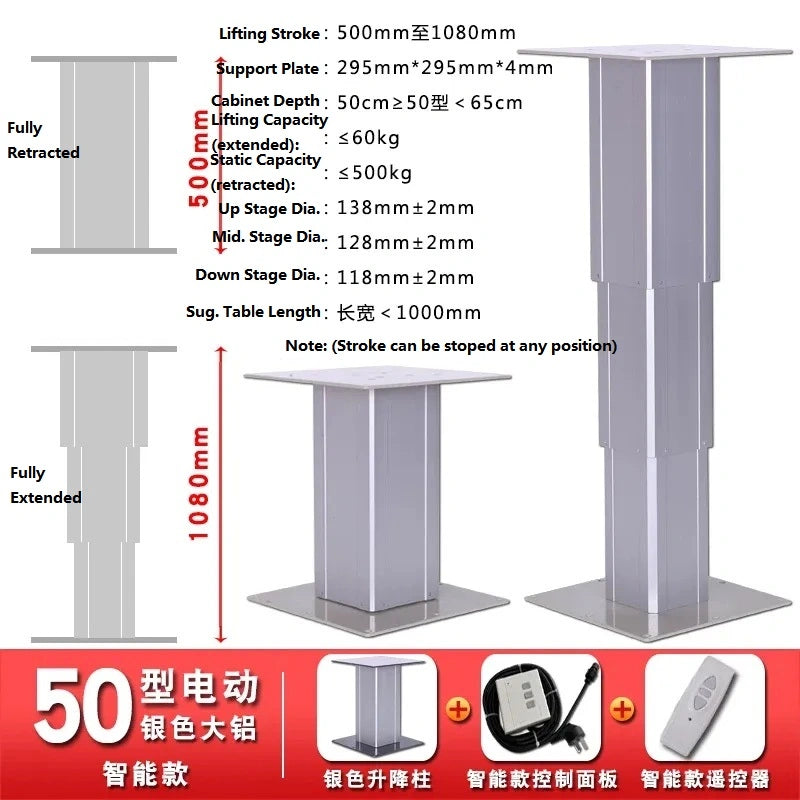

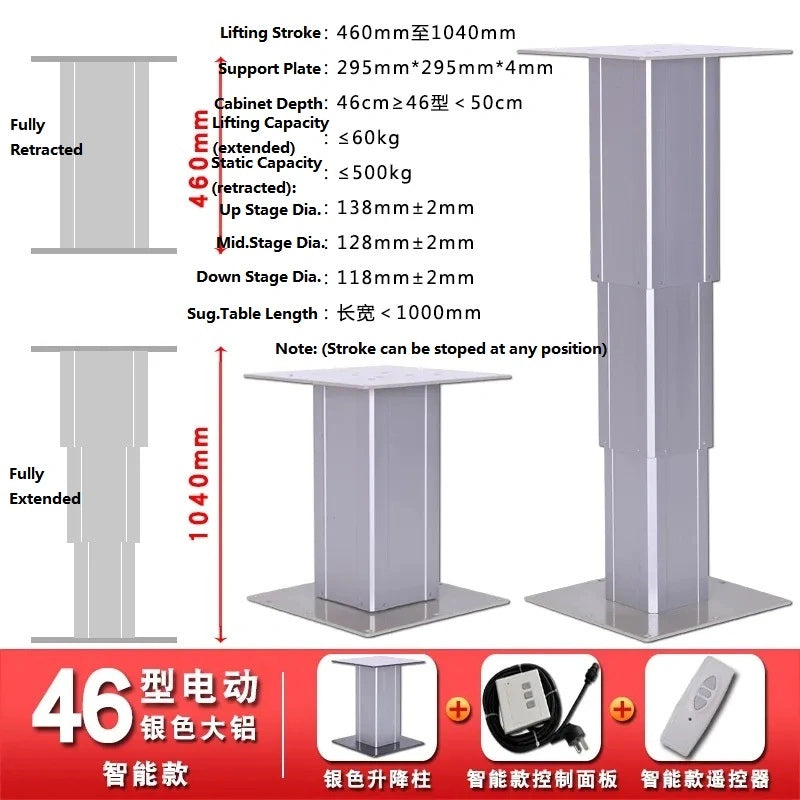

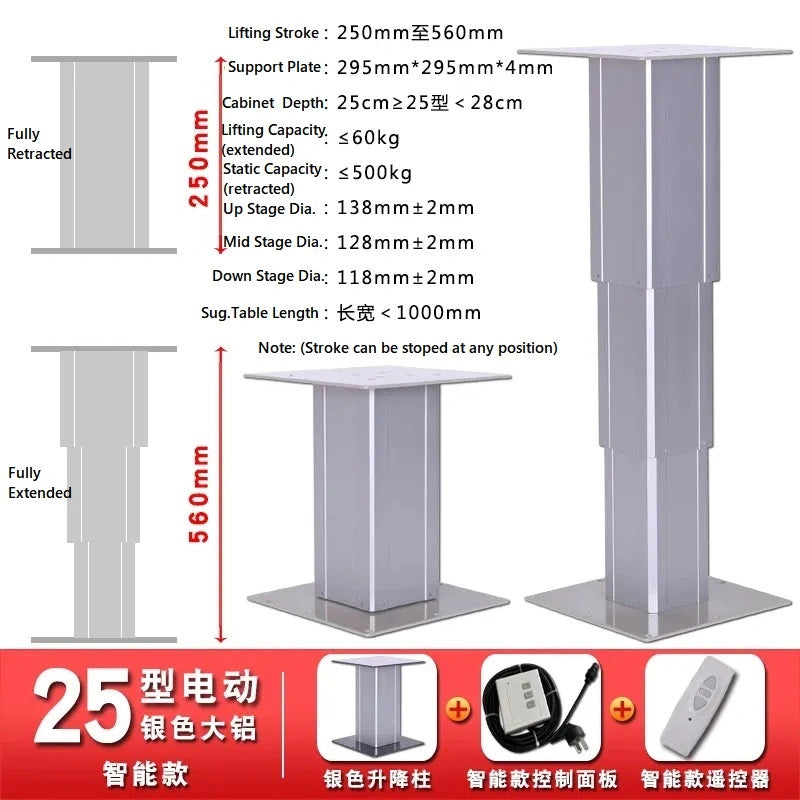

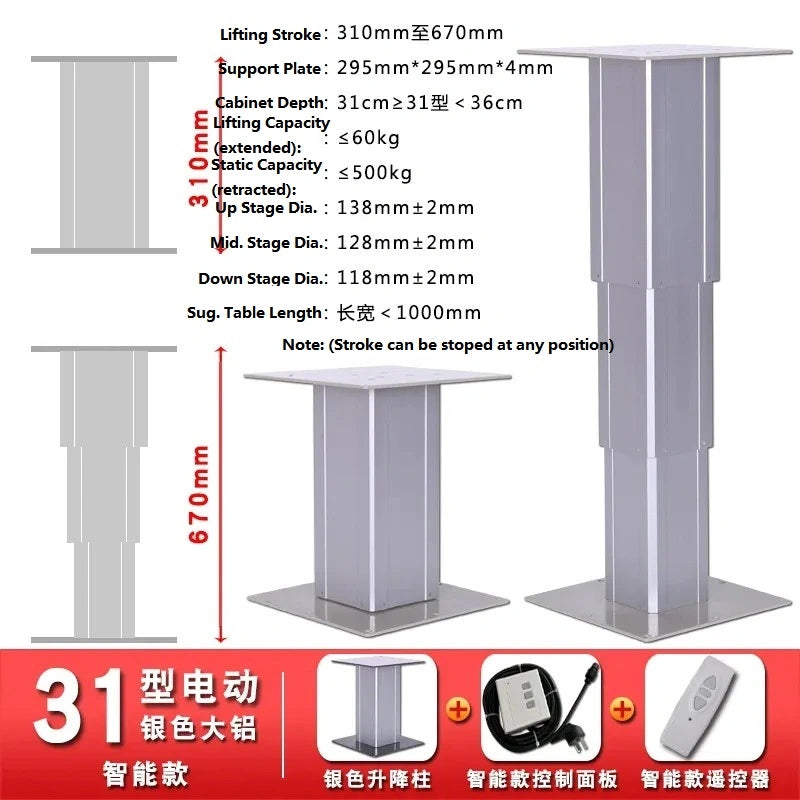

Model NO. D25 Type Electric Lifting Stroke (25cm~56cm)/60kg D28 Type Electric Lifting Stroke (28cm~66cm)/60kg D31 Type Electric Lifting Stroke (31cm~67cm)/60kg D36 Type Electric Lifting Stroke (36cm~80cm)/60kg D42 Type Electric Lifting Stroke (42cm~98cm)/60kg D46 Type Electric Lifting Stroke (46cm~104cm)/60kg D50 Type Electric Lifting Stroke (50cm~108cm)/60kg

Product variants

Quantity

Electric Tatami Lift Column, Remote Control, 25/28/31/36/42/46/50 Type, 24V DC Motor, 60kg Load, Automatic Desk Leg with Anti-Pinch Function

Product Description

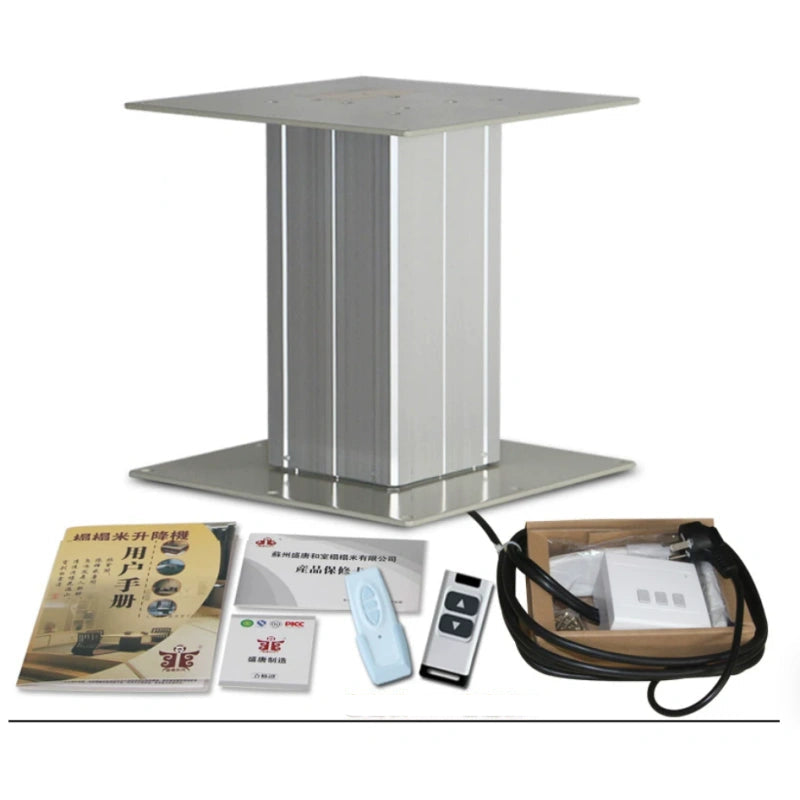

Product Name: Automatic Electric Tatami Lift Column / Remote Control Desk Leg

Brand/Series: 盛唐和风 Smart Recognition Height Series

Models: 25 / 28 / 31 / 36 / 42 / 46 / 50 Type (select by cabinet depth)

Working Voltage: Input: 12V/110V/220V, Output: 24V DC, 80W, 50/60Hz

Max Working Load: ≤60kg / 600N

Max Static Load: ≤500kg

Speed: 5mm/s

Noise Level: 55±2 dB

Protection Rating: IP54

Operating Temperature: -35°C ~ +65°C

Materials:

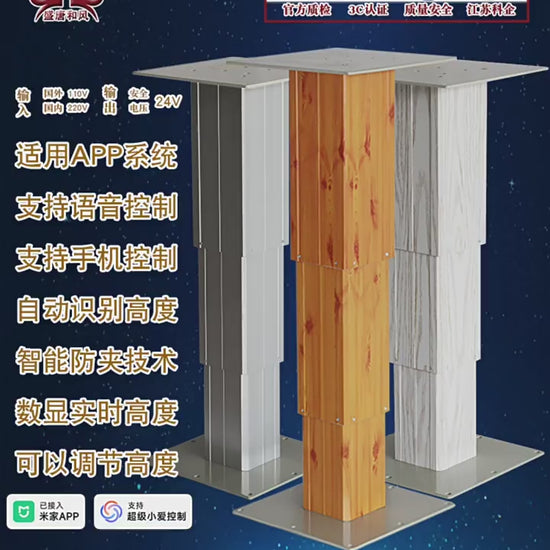

Column: 6061 Aluminum Alloy, 3-stage telescopic structure, 9 optional colors
Motor: 24V DC silent motor, full copper coil, overheat/overload/leakage protection
Upper/Lower Plate: Q305 steel, 295×295×4mm, Germany baked paint anti-rust
Screw: High-precision trapezoidal mold steel screw
Controller: ABS 86-type housing, built-in smart chip
Remote: ABS material, IR capacitive technology, 30m control range, 23A 12V battery

Key Features:

Smart Height Memory: Set minimum/maximum positions with auto calibration, stops at any position within the stroke.
Anti-Pinch Protection: Mechanical anti-jam function, reverses when encountering resistance ≥10N during descent.
Multiple Safety Protections: Overload, overheat, overvoltage, leakage, and temperature compensation protection.
Low Noise Operation: 24V DC motor with full copper coil, low noise, energy-saving, and long service life.
Remote Control: 30m effective range, supports child lock and re-pairing functions.
Energy Saving: Auto standby mode after 1 minute of inactivity.

Applications:

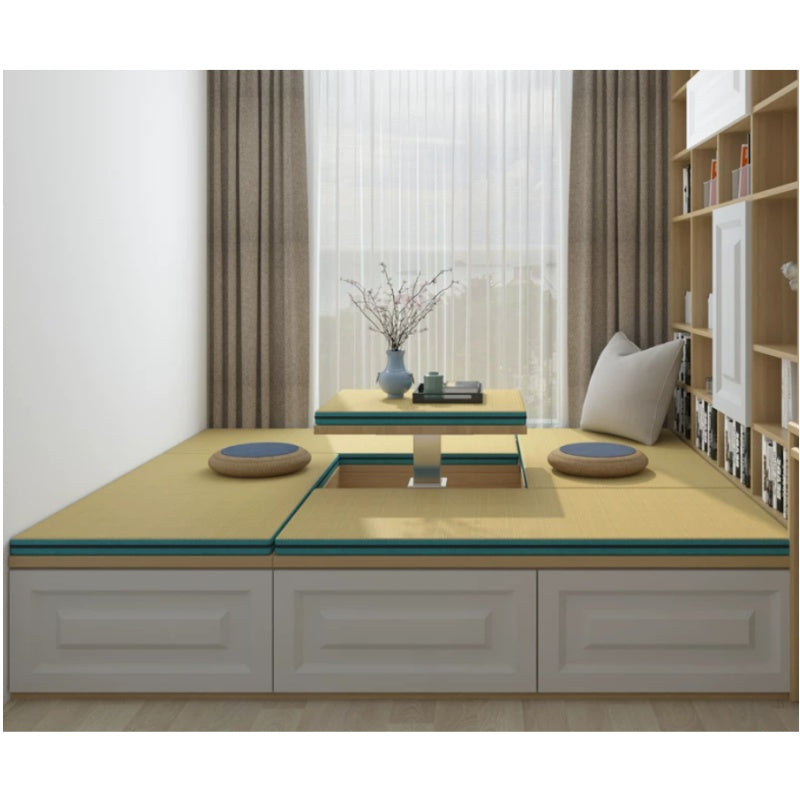

Tatami bed lift, adjustable RV table leg, hidden desk mechanism, low cabinet lift, and multi-functional furniture.

DATA SHEET

Attribute	English
Product Type	Electric Lift Column / Automatic Desk Leg
Control Type	Remote Control / APP Control
Series	Tatami Smart Lift Column
Models	25/28/31/36/42/46/50 Type
Motor Type	24V DC Silent Motor
Working Load	≤60kg / 600N
Static Load	≤500kg
Speed	5mm/s
Noise Level	55±2 dB
Protection Rating	IP54
Features	Anti-Pinch, Overload/Overheat Protection, Height Memory
Material	6061 Aluminum Alloy Column, Q305 Steel Plates
Applications	Tatami Bed, RV Desk, Hidden Furniture, Adjustable Table
