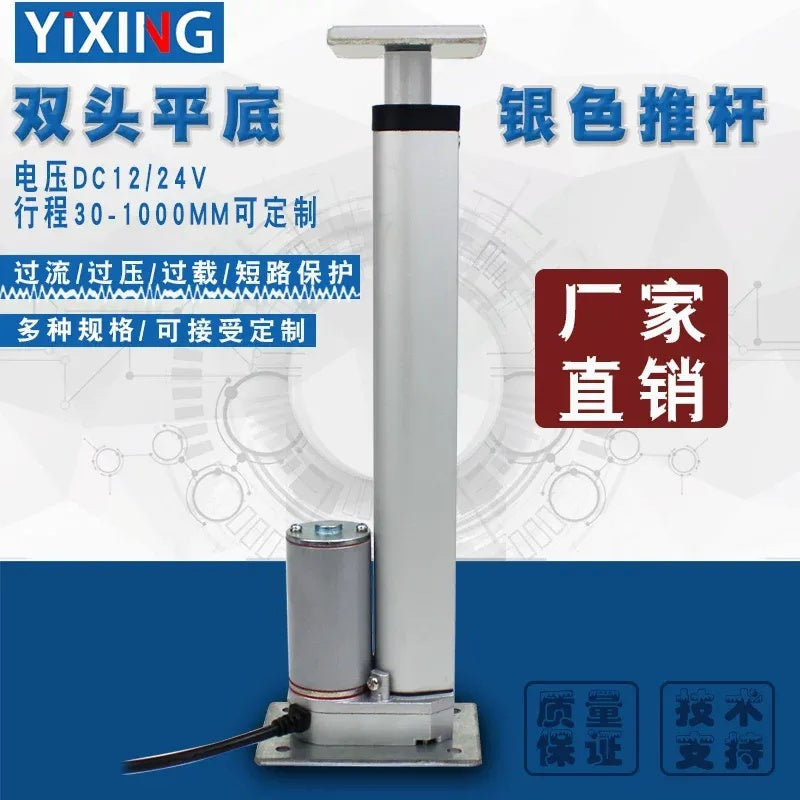

Dual Flat Base Linear Actuator 1000N Max Thrust
Regular price
$82.00 NZD
Regular price
Sale price
$82.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Industrial Electric Linear Actuator, Dual Flat Base Design, 1000N Force, 12/24V DC, 20-650mm Stroke, Aluminum Alloy Telescopic Rod
DC Linear Actuator Motor with Dual End Mounting Bases, 100kg Max Load, 20mm~650mm Stroke, Low Noise for Automation Projects
Product Description

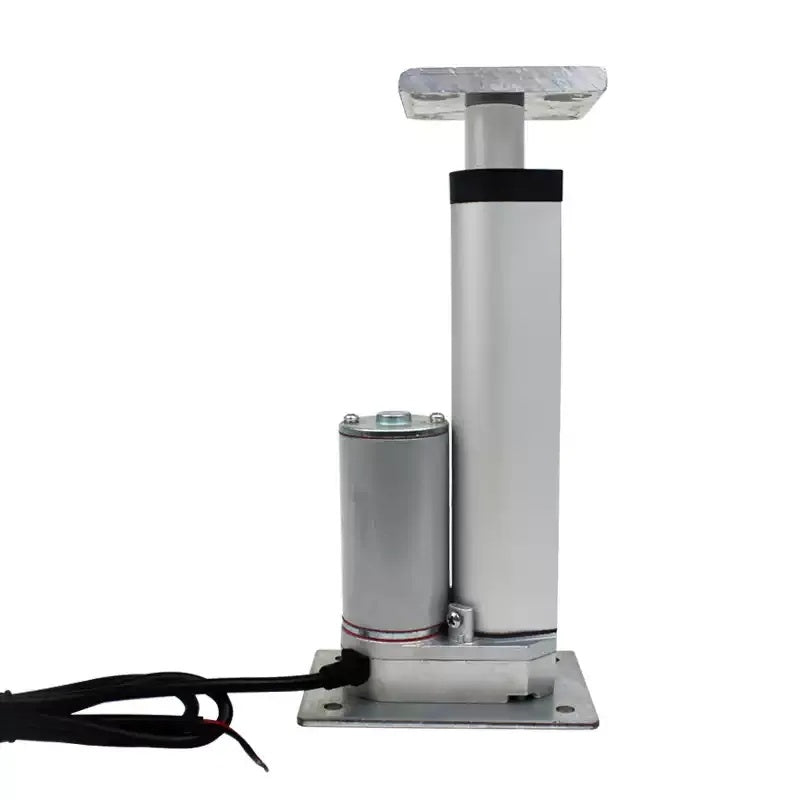

This industrial-grade linear actuator features a dual flat base design for stable installation and reliable reciprocating motion. With a max thrust of 1000N (100kg) and wide voltage compatibility (12V/24V/36V DC), it’s ideal for lifting, pushing, and positioning tasks in automation, furniture, and industrial applications.
Key Features
- ✅ Dual Flat Base Design: Mounted with flat bases on both ends for easy, secure installation and compatibility with standard mounting brackets.
- ✅ Adjustable Stroke: Available in stroke lengths from 20mm to 650mm, customizable to fit your project’s specific needs.
- ✅ Triple Voltage Compatibility: Works with 12V, 24V, or 36V DC power systems, offering flexible integration with different power sources.

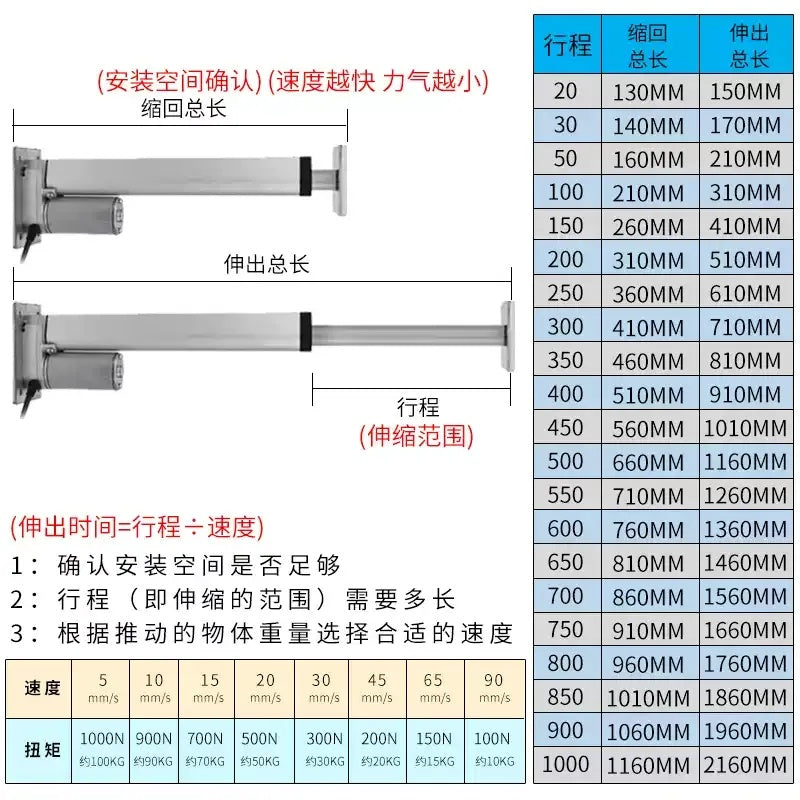

- ✅ Speed-Thrust Options: Multiple speed/force combinations available (5mm/s to 90mm/s), with the tradeoff: slower speed = higher thrust, faster speed = lower thrust.
- ✅ Built-In Safety Features:
- Dual limit switches (top and bottom) automatically stop the actuator at full extension/retraction to prevent motor burnout.
- Mechanical locking function allows the actuator to stop at any position, holding its load securely.
- ✅ Durable Construction:
- Aluminum alloy housing with a high-polish finish for corrosion resistance and long-term use.
- Powder metallurgy metal gears for enhanced strength, toughness, and quiet operation (≤42dB).
- Oxygen-free pure copper wires with low resistance for efficient power transfer and energy savings.
- ✅ Wide Operating Temperature: Rated for use between -20℃ to +75℃, suitable for diverse indoor and controlled industrial environments.
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Linear Actuator / Electric Telescopic Rod |
| Rated Voltage | 12V DC / 24V DC / 36V DC |
| Max Thrust | 1000N (100kg) |

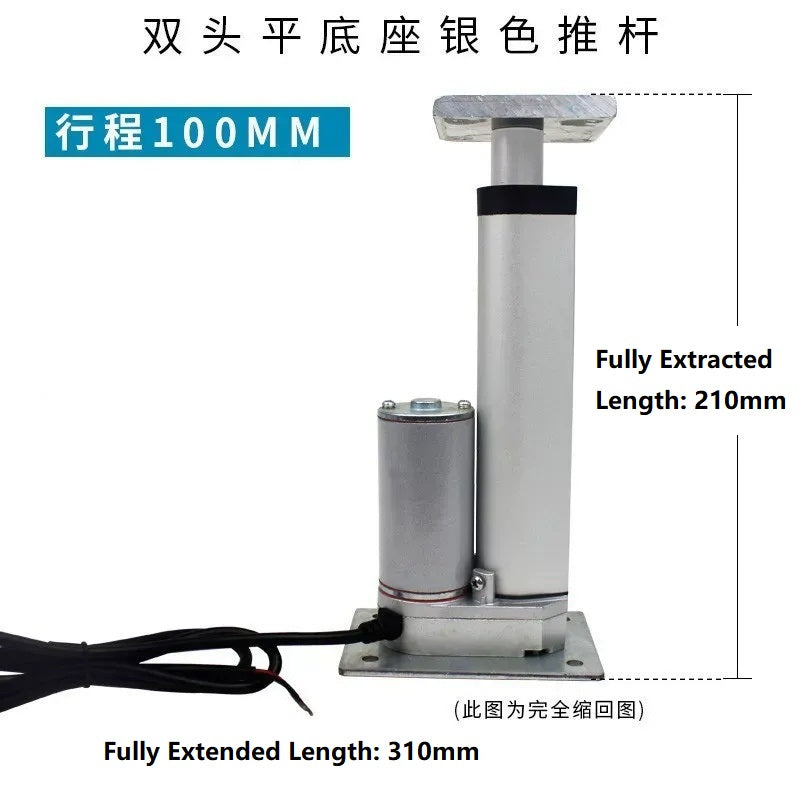

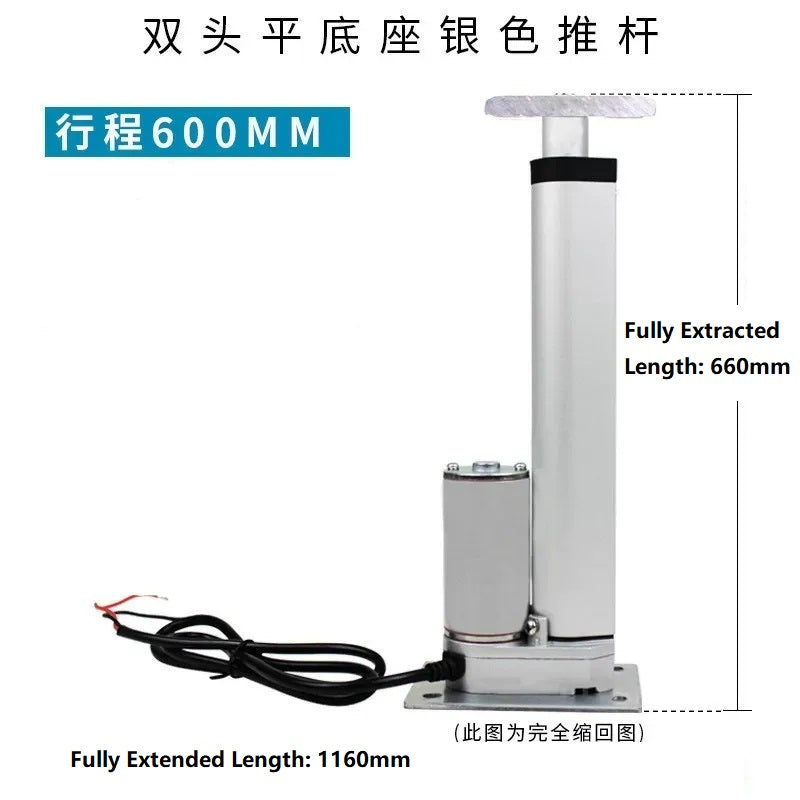

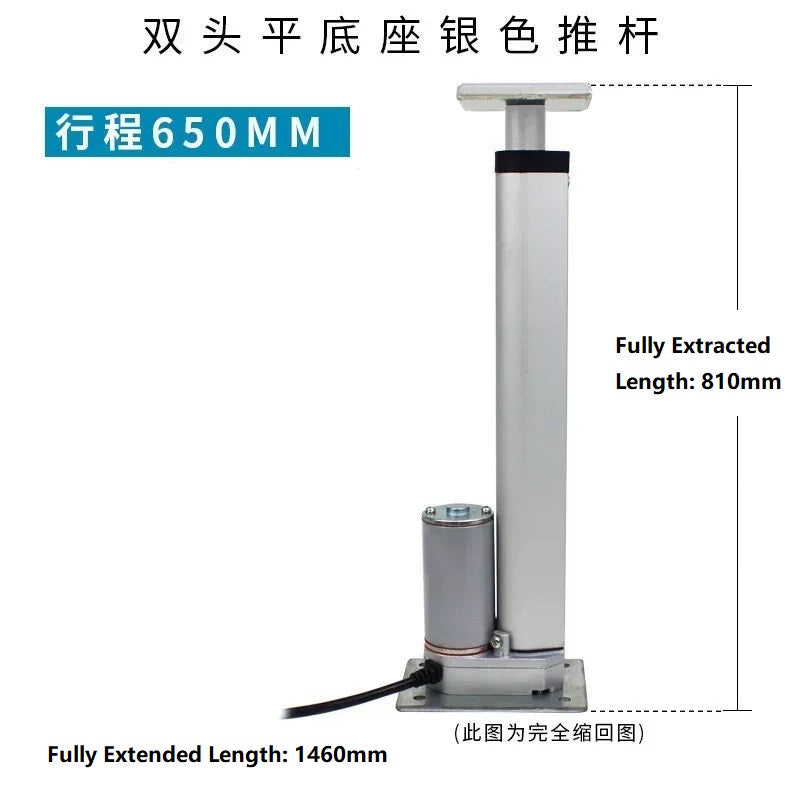

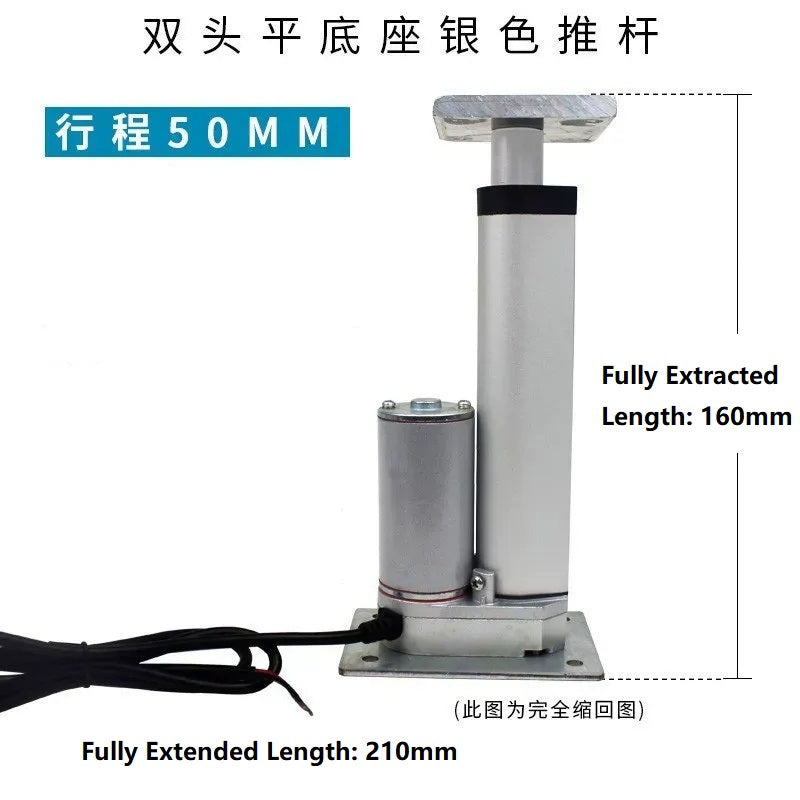

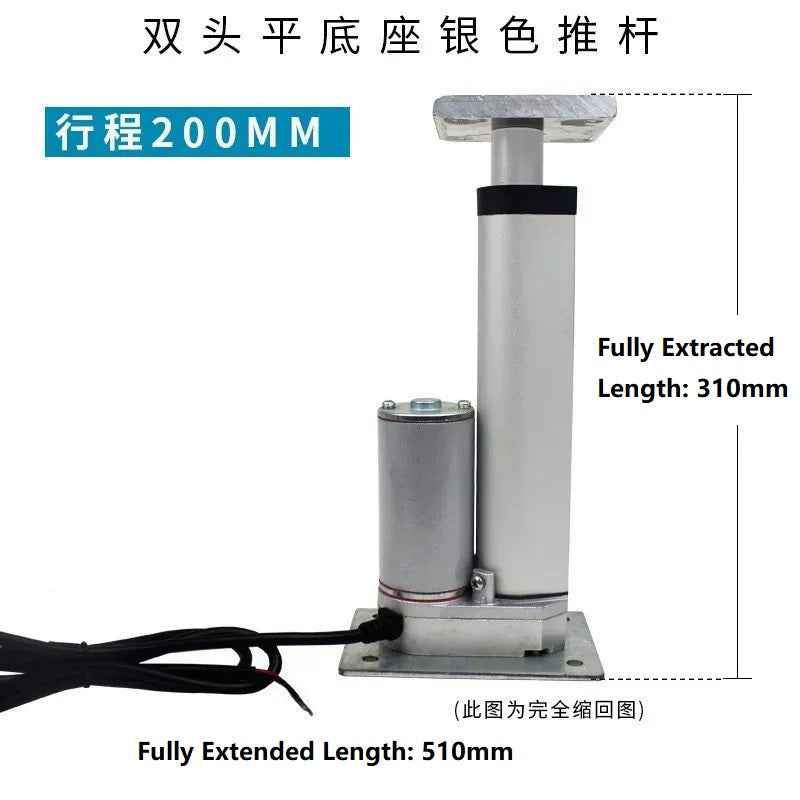

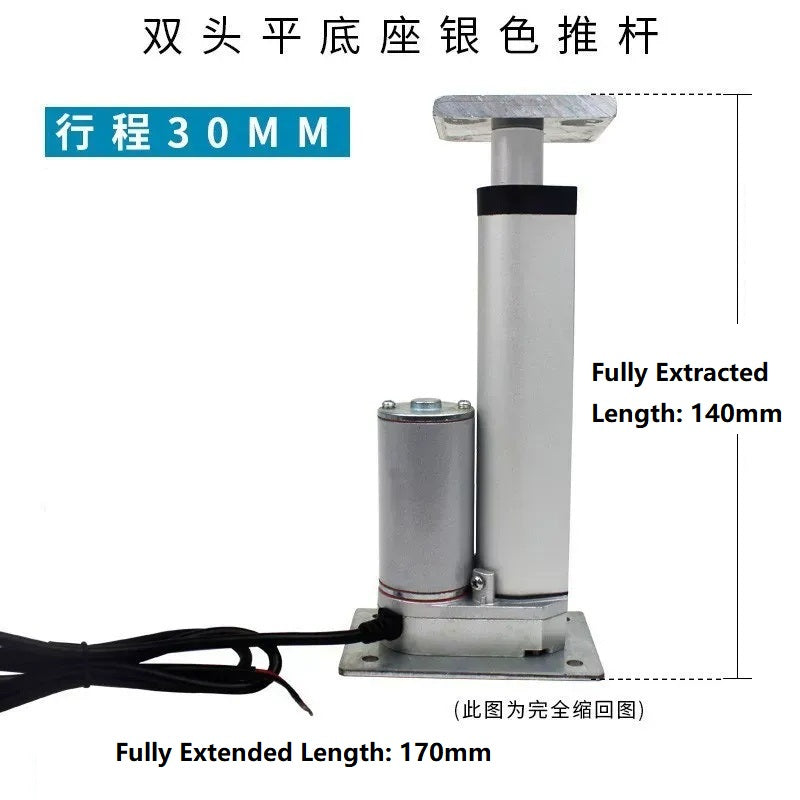

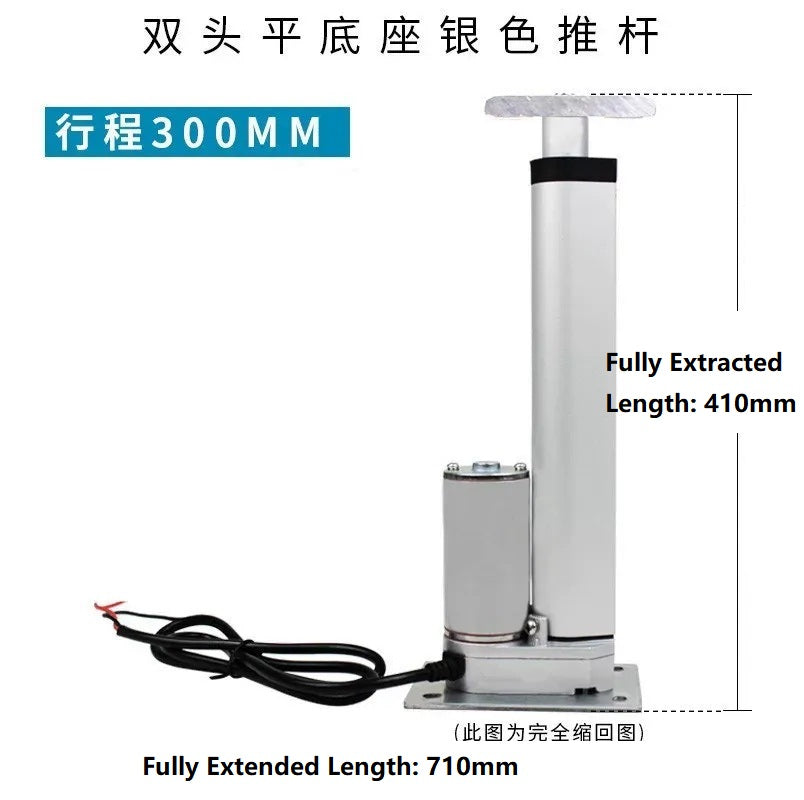

| Stroke Length | 20mm~650mm (Customizable) |

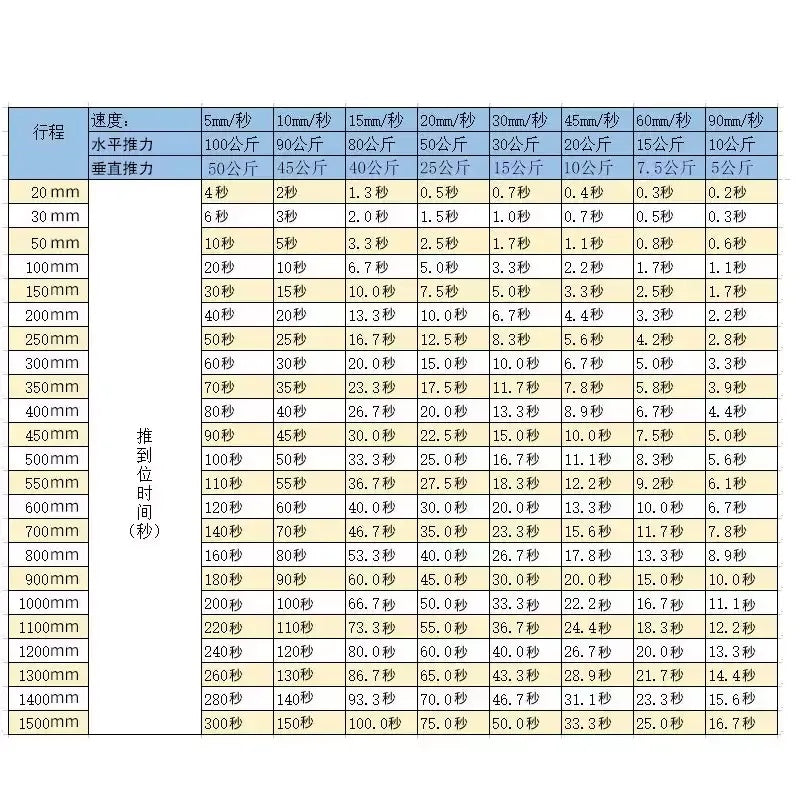

| Speed Options | 5mm/s, 10mm/s, 15mm/s, 20mm/s, 30mm/s, 45mm/s, 65mm/s, 90mm/s |
| Motor Type | Brushed DC Motor |
| Housing Material | Aluminum Alloy (High-Polish Finish) |
| Mounting Type | Dual Flat Bases (Top & Bottom) |
| Safety Features | Built-in Dual Limit Switches, Mechanical Position Lock |
| Gear Type | Powder Metallurgy Metal Gears |
| Rated Power | 20W~30W |
| Noise Level | ≤42dB |
| Operating Temperature | -20℃ ~ +75℃ |
| Applications | Industrial Automation, Adjustable Furniture, Medical Beds, Smart Home Equipment |

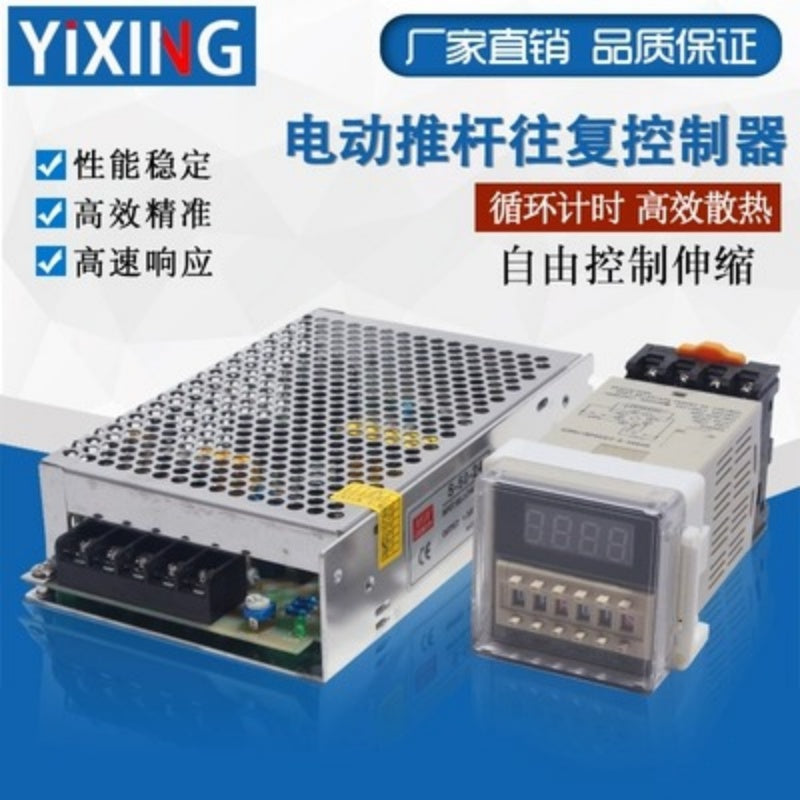

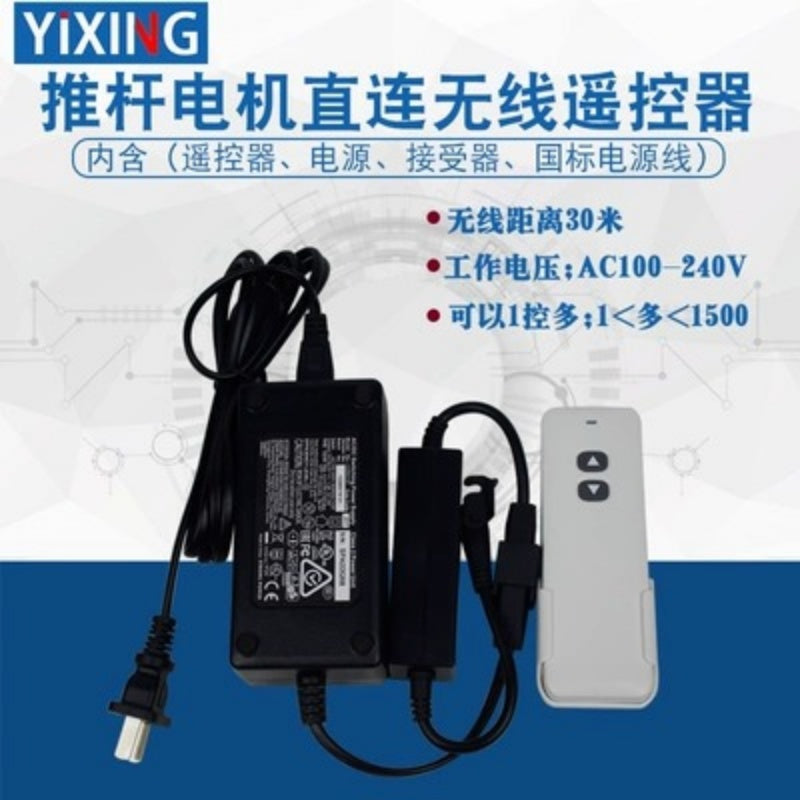

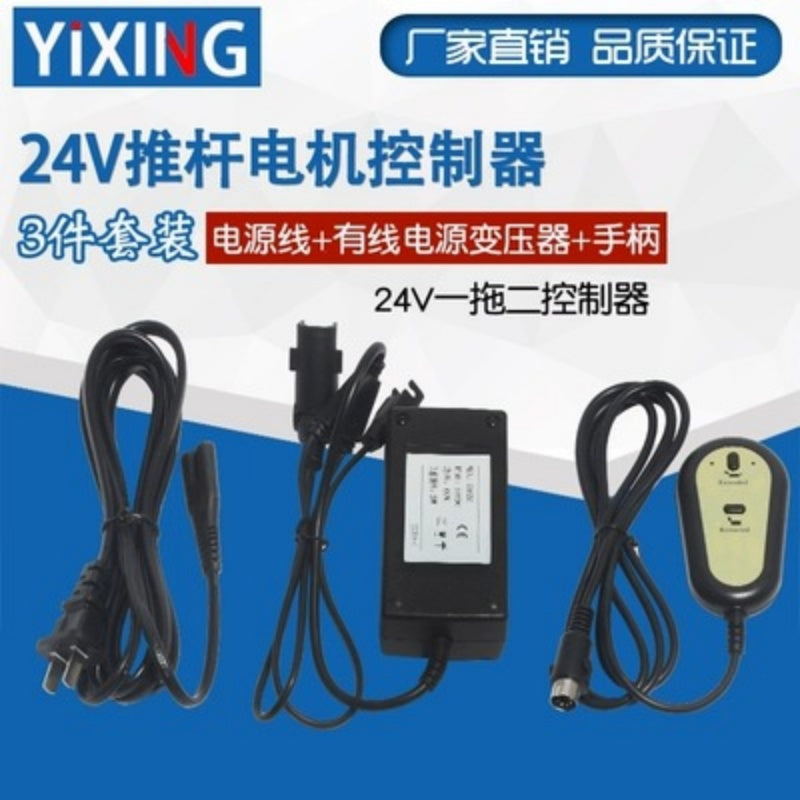

| Accessories | Wired/Wireless Remote Control, Power Supply, Mounting Brackets (Sold Separately) |
Applications
- Industrial Automation: Lifting platforms, reciprocating machinery, automated equipment
- Furniture & Office: Adjustable desks, standing workstations, electric sofas, TV lift stands
- Healthcare: Nursing beds, medical chairs, rehabilitation equipment
- Smart Home: Motorized cabinets, automatic window openers, adjustable fixtures
- Photography: Camera rigs, motorized camera sliders
Wiring & Control Notes

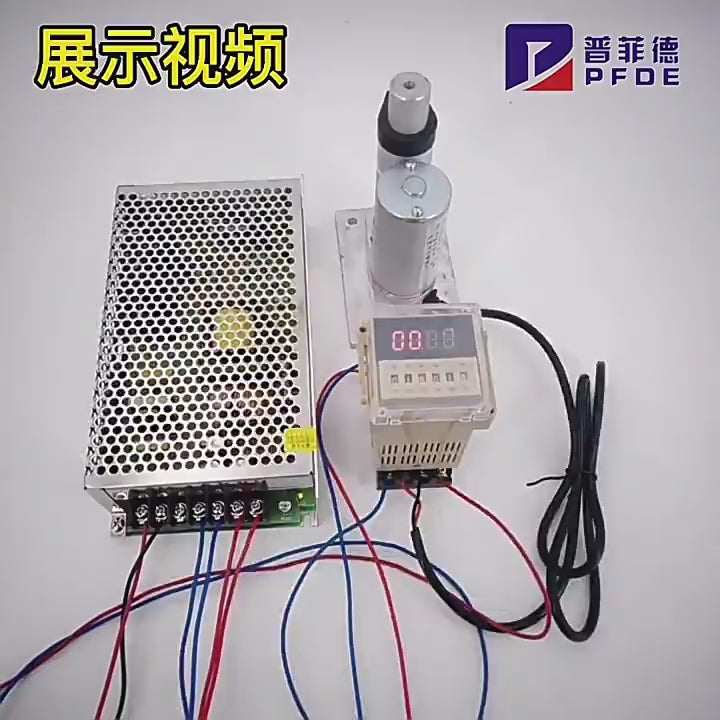

- The actuator is controlled by reversing the polarity of the two main power wires (positive/negative).
- Adding a forward/reverse switch or controller (wired/wireless) allows convenient control of extension/retraction.

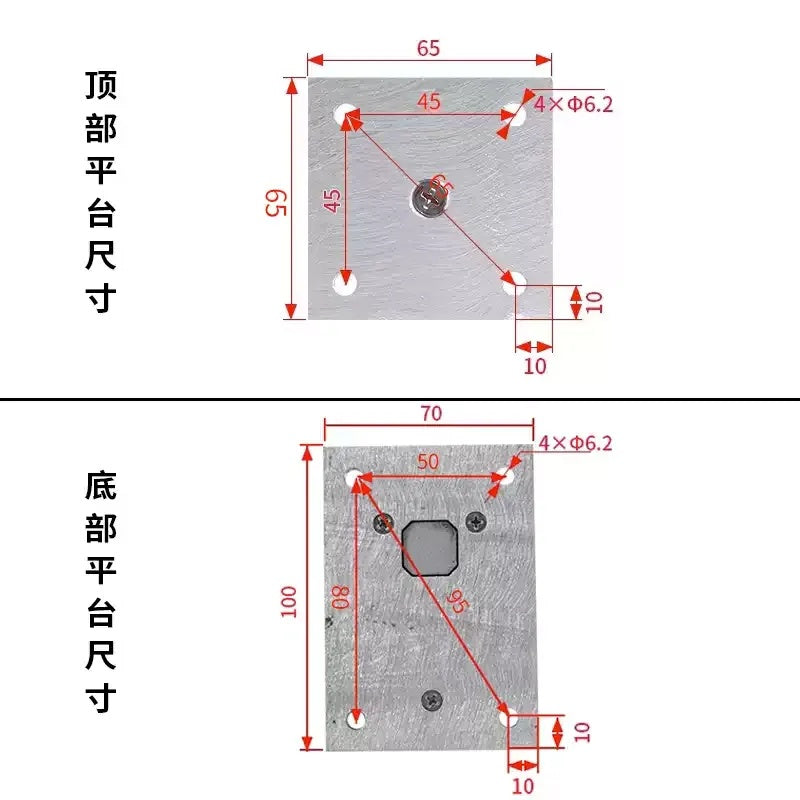

- The dual flat bases support standard screw mounting for quick installation in most applications.
