DC12V Linear Actuator 50mm-1000mm Stroke
Regular price
$83.00 NZD
Regular price
Sale price
$83.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

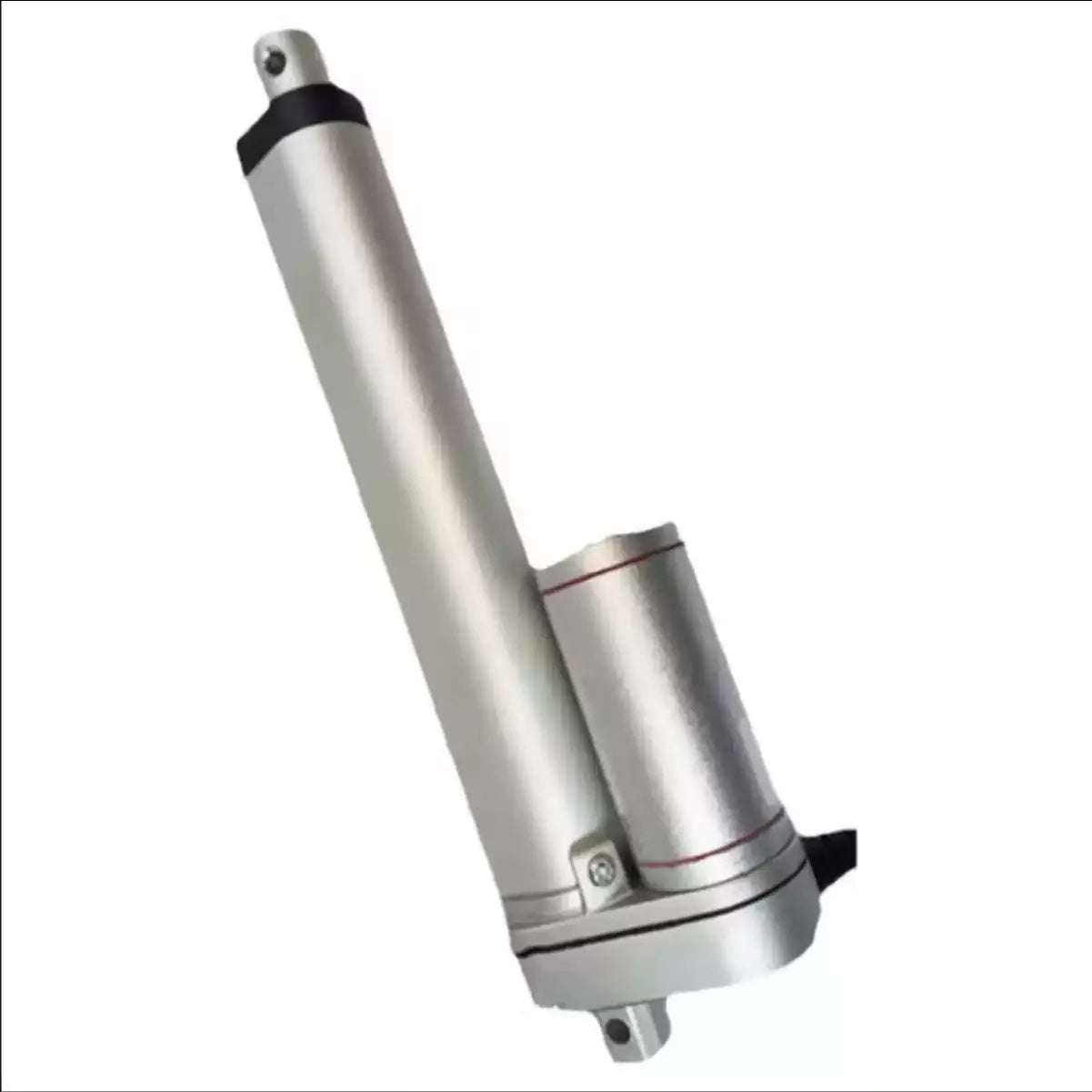

High Thrust Linear Actuator DC12V, 50-1000mm Stroke, Heavy-Duty Electric Telescopic Motor for Doors, Lifts & Projects
🔹 Overview 产品概述
This DC linear actuator is a heavy-duty, customizable telescopic motor designed for linear motion applications. Available in strokes from 50mm to 1000mm, with multiple speed and force options, it operates on 12V or 24V DC power. Built for durability and precision, it’s ideal for home automation, robotics, industrial equipment, and DIY projects like TV lifts, electric sofas, and smart furniture.
🔹 Key Features 核心特性
- Wide Stroke Range: Customizable stroke from 50mm to 1000mm to fit different application needs.
- Dual Voltage Compatibility: Works with DC 12V or 24V power supplies for flexible installation.
- High Thrust & Variable Speed: Multiple force-speed combinations (up to 1000N/100kg max thrust, speeds from 5mm/s to 90mm/s) to match your load requirements.
- Built-In Safety Limit Switches: Automatically stops at full extension/retraction to prevent over-travel damage.
- Reversible Control: Extend/retract by switching positive/negative polarity for easy bidirectional operation.
- Durable Construction: High-precision metal gears for low noise, long service life, and IP54 protection rating for indoor use.
- Customizable: Supports custom stroke, speed, and force configurations for OEM/ODM projects.
🔹 Technical Specifications 技术参数
| Name | Parameter |
|---|---|
| Brand | Generic / Customizable (Tianhong-style) |
| Type | DC Linear Actuator / Electric Telescopic Motor |
| Voltage | DC 12V / 24V |

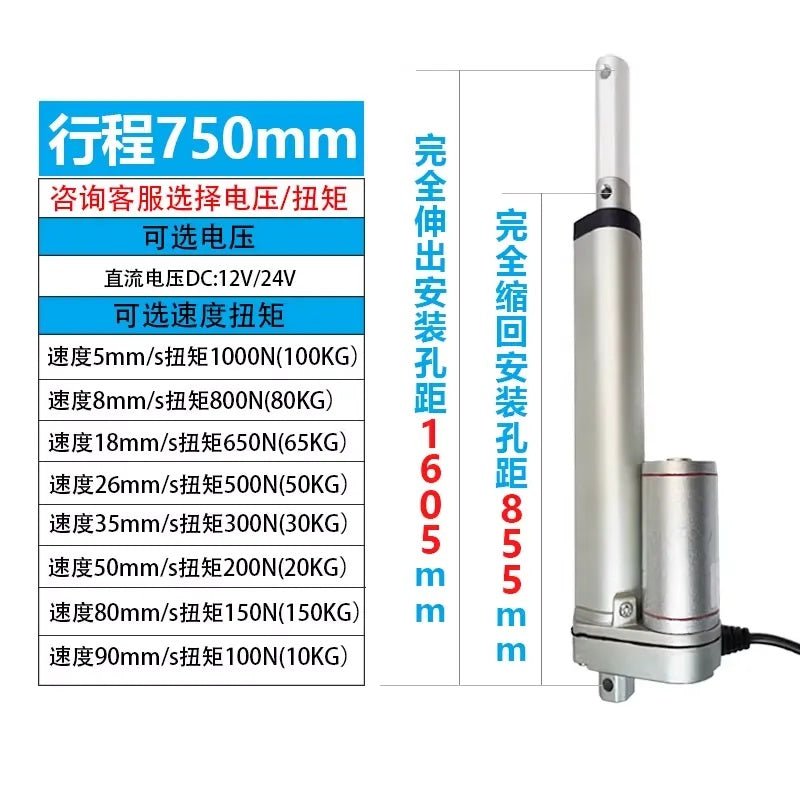

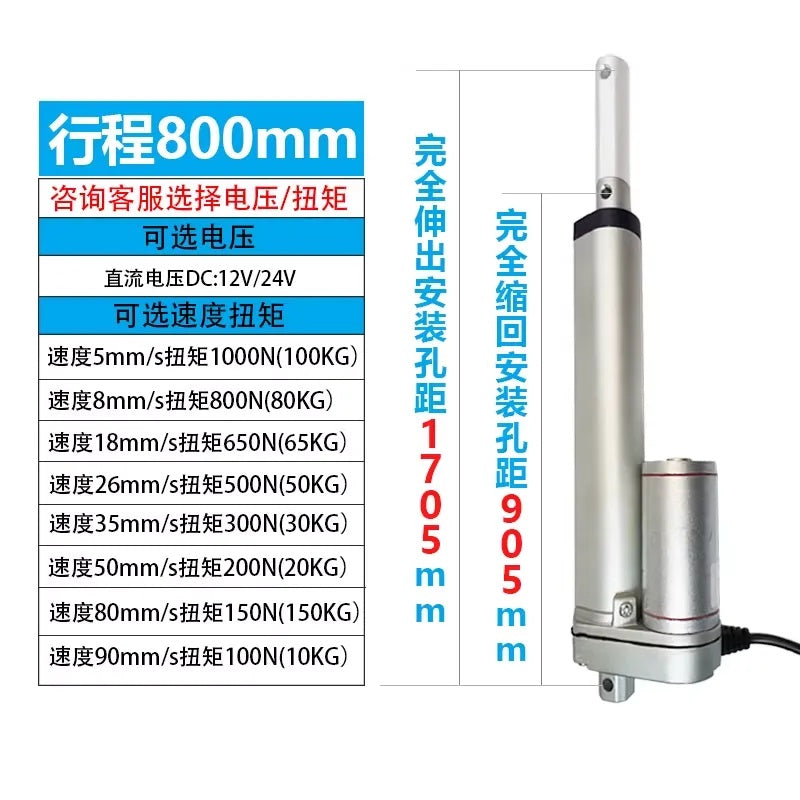

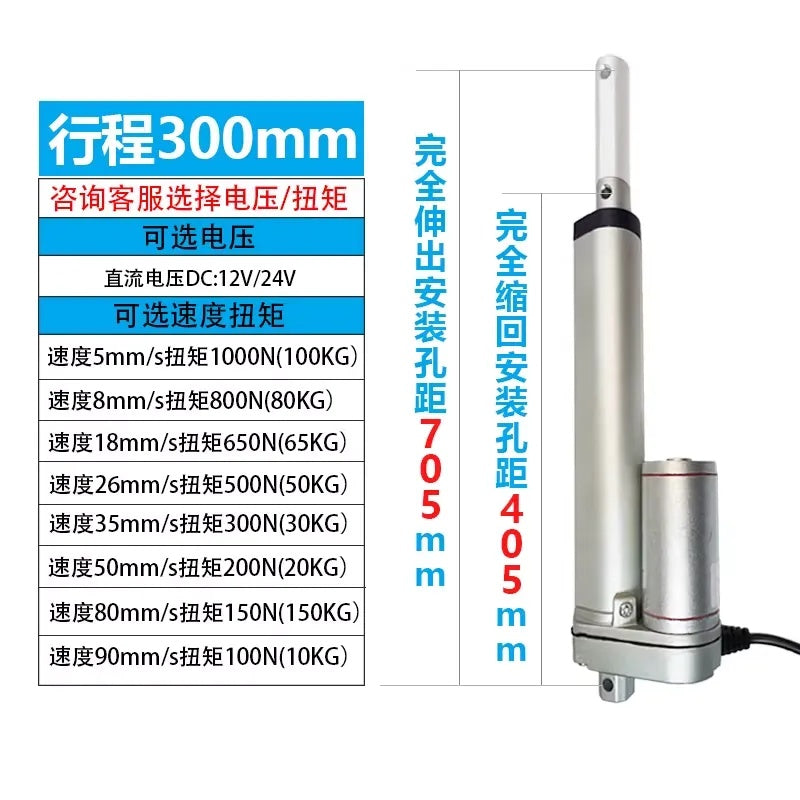

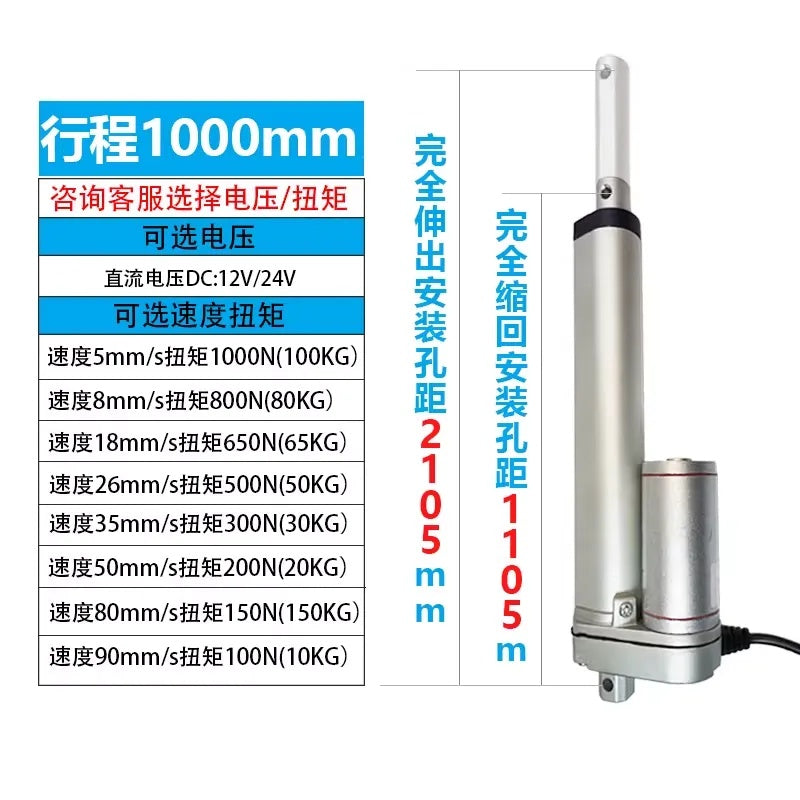

| Stroke Length | 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm |
| Force (Thrust) | 100N, 150N, 200N, 300N, 500N, 650N, 800N, 1000N |
| Speed | 5mm/s, 8mm/s, 18mm/s, 26mm/s, 35mm/s, 50mm/s, 80mm/s, 90mm/s |
| Control Method | Polarity Reversal (Extend/Retract) |
| Safety Features | Built-in Limit Switches, Overload Protection |
| Protection Rating | IP54 |
| Duty Cycle | 20% (10min ON / 2min OFF) |
| Operating Temperature | -20℃ ~ +75℃ |
| Material | Aluminum Alloy, Metal Gears |
| Application | TV Lift, Electric Sofa, Medical Bed, Automation Equipment, DIY Projects |
| Customization | Custom Stroke, Speed, and Force Available |
| Warranty | 1 Year |
🔹 Applications 应用场景
- TV lifts, electric sofas, massage chairs, and smart furniture
- Medical beds, rehabilitation equipment, and assistive devices
- Automotive parts, robotics, and automation machinery
- Industrial lifting equipment, gate openers, and agricultural tools
- DIY projects, home automation, and prototype development
