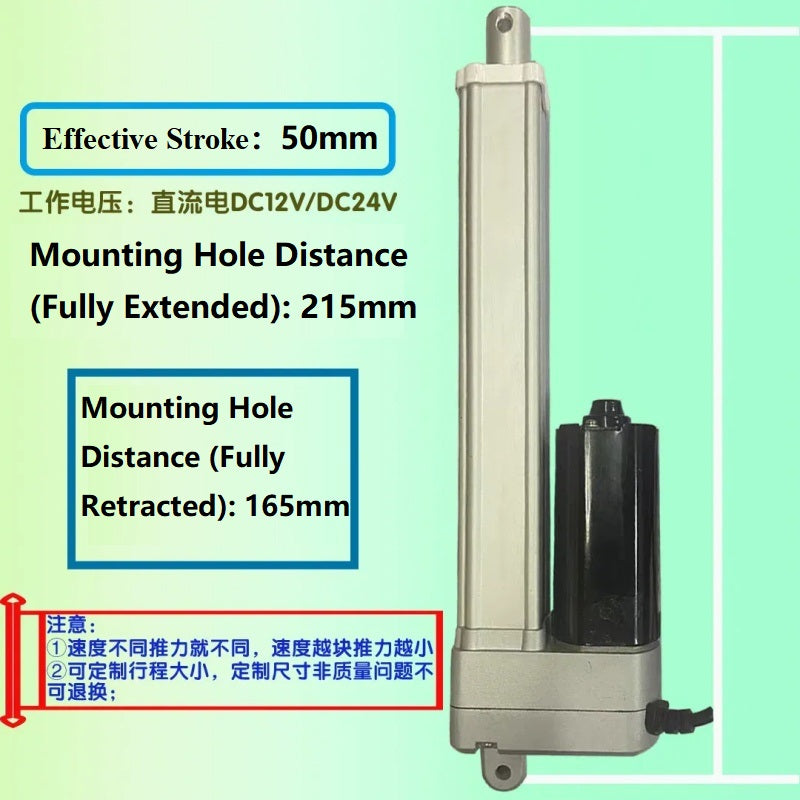

SKU: Linear Actuator Stroke 50mm / 12V / 3mm/s 2500N(250kg)
Price: 103.0 NZD
Availability: InStock

High Force Silent Linear Actuator 12V/24V, 50-1000mm Stroke, 500N-2500N Heavy-Duty Aluminum Telescopic Motor for Escape Rooms & Industrial Automation

Customizable Silent Linear Actuator 12V/24V, 50-1000mm Stroke, 500N-2500N High Thrust DC Motor for DIY & Escape Room Projects

🔹 Overview 产品概述

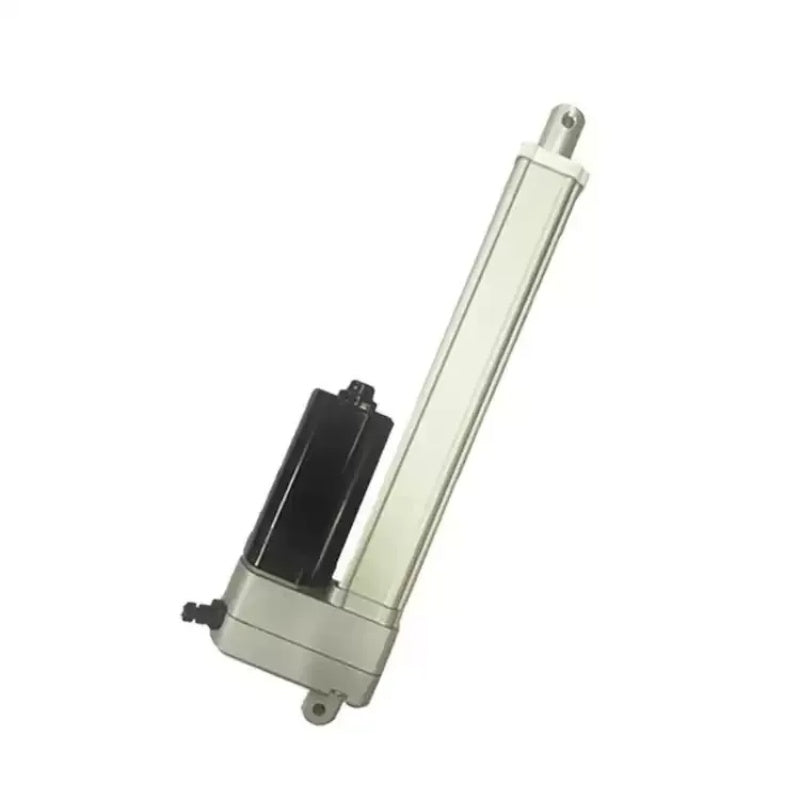

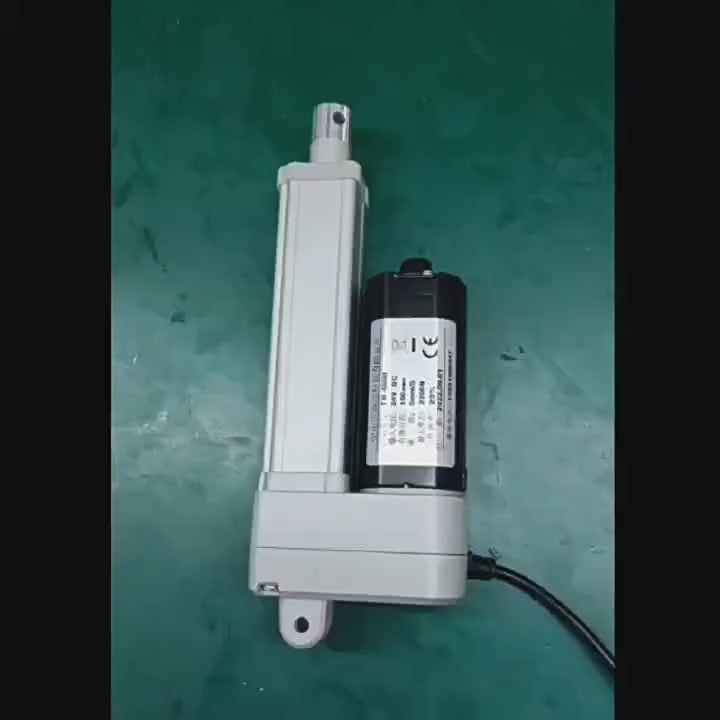

This high-thrust silent aluminum linear actuator is a heavy-duty, customizable telescopic motor designed for demanding applications like escape room puzzles, industrial automation, and DIY projects. Operating on 12V or 24V DC power, it offers strokes from 50mm to 1000mm and thrust options from 500N to 2500N. Built with precision metal gears for quiet operation (<45dB) and durable aluminum housing, it delivers reliable performance for push, pull, lift, and drop tasks.

🔹 Key Features 核心特性

Customizable Stroke: Available in standard and custom strokes from 50mm to 1000mm (up to 1200mm on request).
High Thrust Range: Multiple force-speed combinations up to 2500N (250kg) max thrust, with speeds from 3mm/s to 33mm/s.
Silent Operation: Precision metal gear design ensures noise levels <45dB, ideal for quiet environments like escape rooms.
Robust Aluminum Construction: Durable aluminum alloy housing for light weight, corrosion resistance, and long service life.
Built-In Safety Limit Switches: Automatically stops at full extension/retraction to prevent over-travel damage.
Reversible Control: Extend/retract by switching positive/negative polarity, or use an external control switch (sold separately).
High Locking Force: Maintains position securely even under load, with self-locking force matching max thrust (for high-force models).

🔹 Technical Specifications 技术参数

Parameter	Specification
Model Series	TH-468H
Rated Voltage	DC 12V / 24V

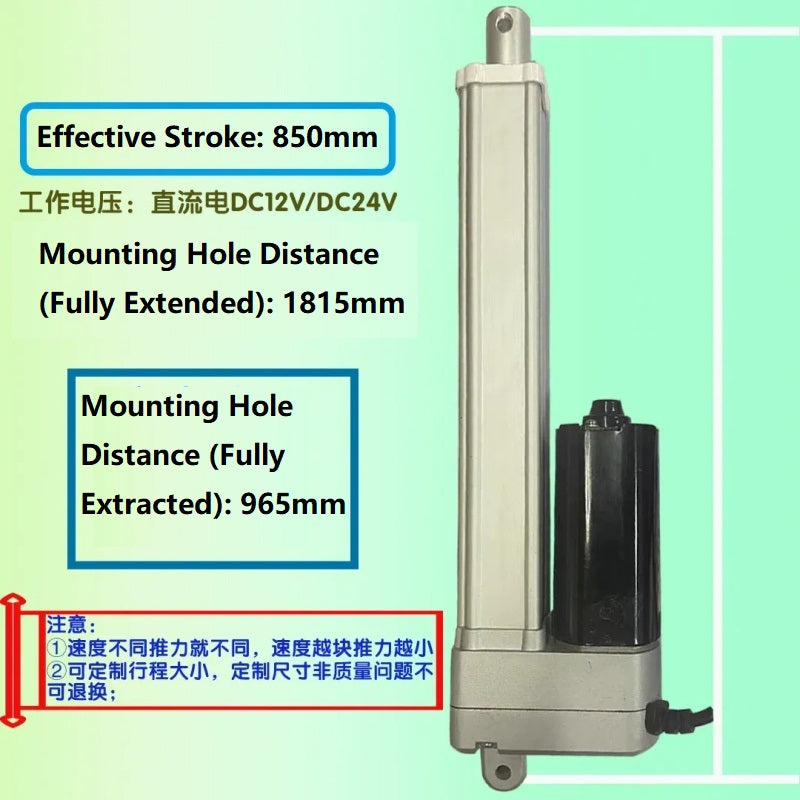

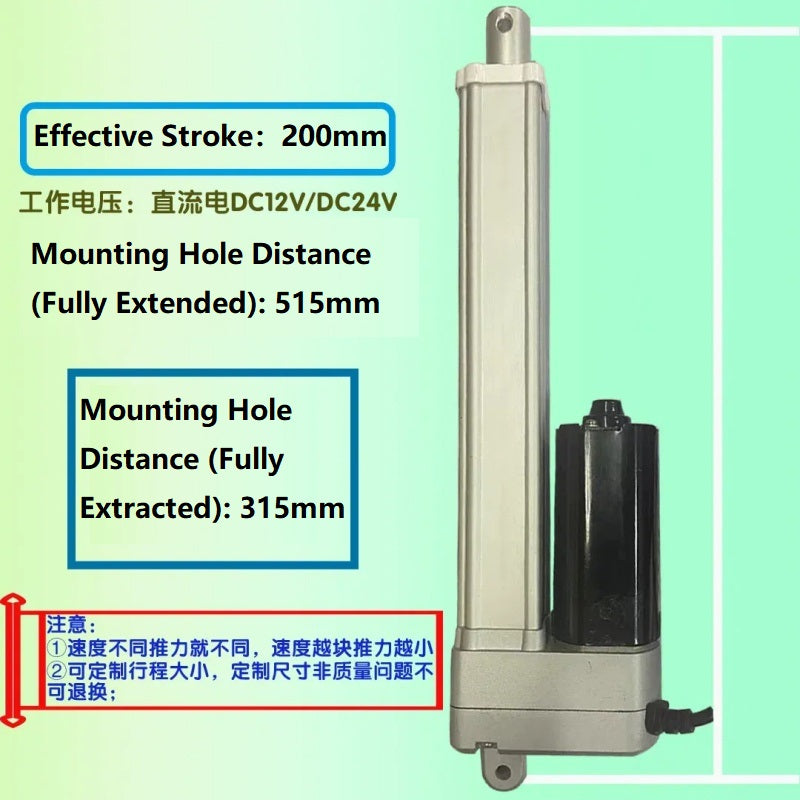

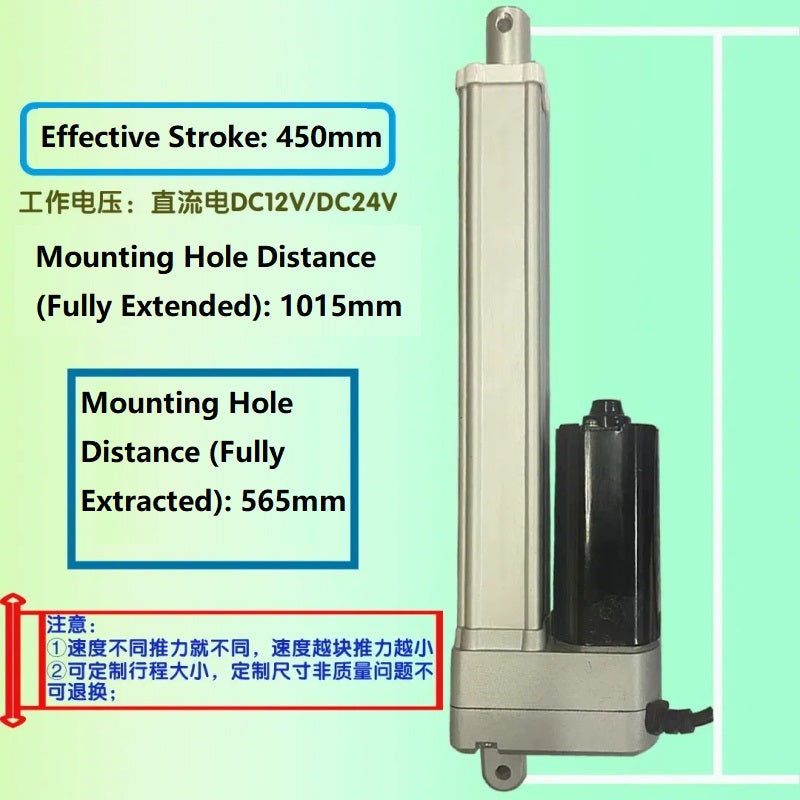

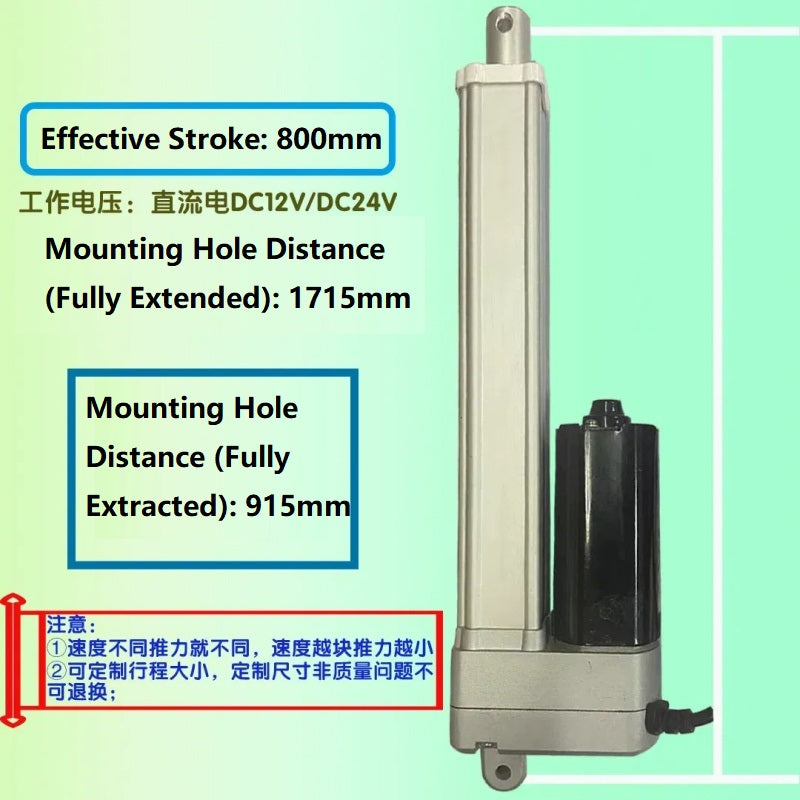

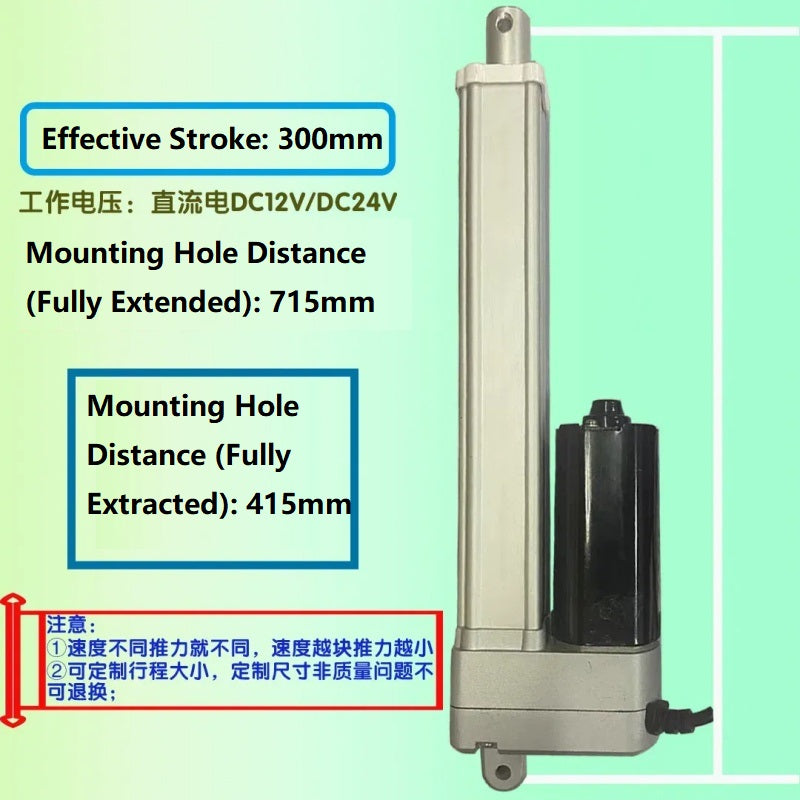

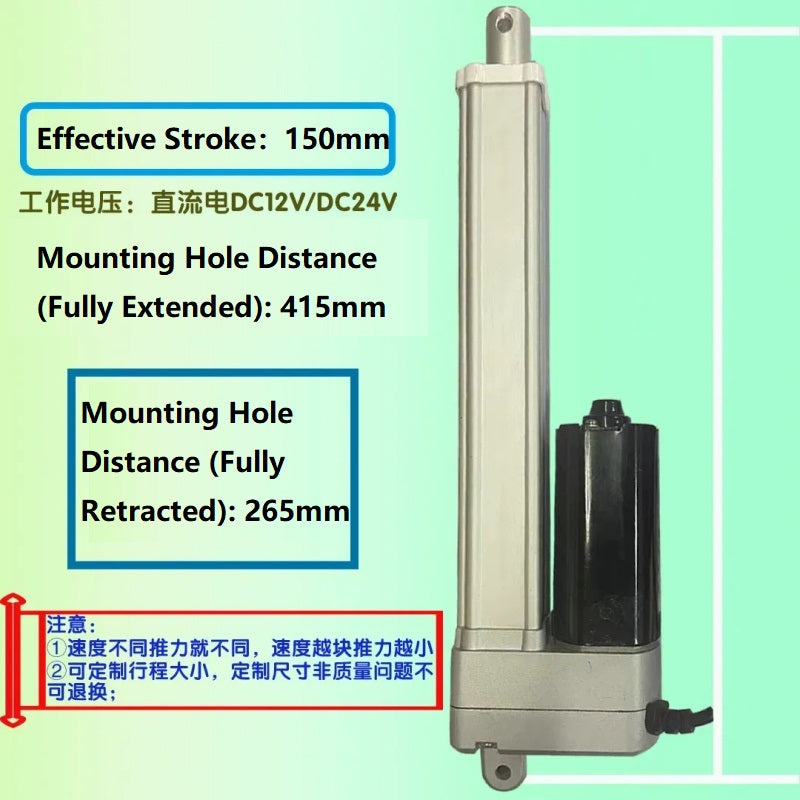

Stroke Length	50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm (custom up to 1200mm)
Max Thrust Options	500N(50kg), 1200N(120kg), 1400N(140kg), 1800N(180kg), 2200N(220kg), 2500N(250kg)
Speed Options	3mm/s, 5mm/s, 10mm/s, 15mm/s, 20mm/s, 33mm/s
Self-Locking Force	Up to 2500N (varies by model)
Noise Level	<45dB
Power Rating	30W-60W
Protection Rating	IP54 (standard)
Operating Temperature	-20℃ ~ +75℃
Duty Cycle	20% (10min ON / 2min OFF minimum)
Material	Aluminum alloy housing, high-precision metal gears
Control Method	Polarity reversal or external control switch (sold separately)
Safety Features	Built-in non-adjustable limit switches at both ends
Warranty	1 year (excluding misuse damage)

🔹 Important Notes

Power Supply: This actuator requires a DC 12V/24V power source and cannot be connected directly to 220V household AC power. An AC/DC adapter is sold separately.

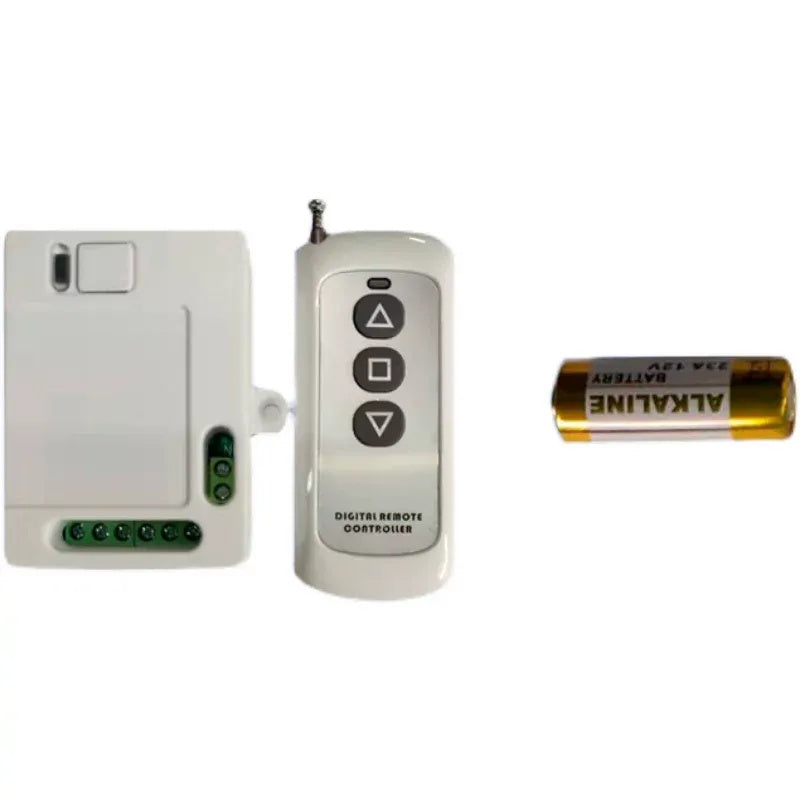

Control: The actuator does not include a control switch or remote by default. These accessories must be purchased separately.
Operation: The actuator is not fully automatic; it requires momentary control (via a switch or polarity reversal) to extend/retract. It will stop automatically at the limit switches.
