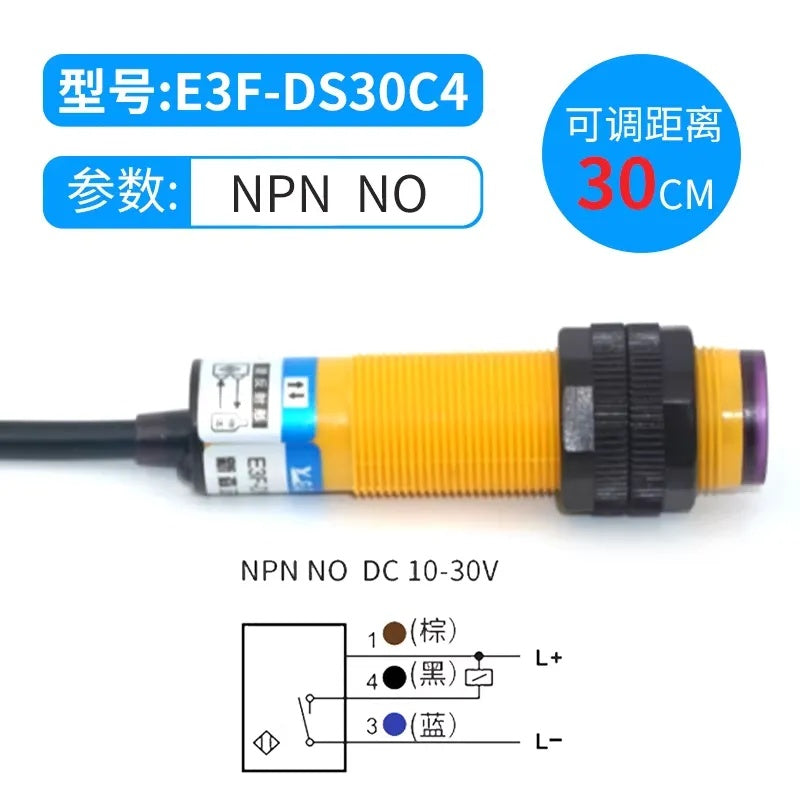

• E3F-DS30C4 NPN NO Sensing distance 30CM(adjust)-Yellow
  • E3F-DS30C4 Diffuse Reflective Photoelectric Switch Infrared Sensor NPN NO/NC Proximity Sensor
  • E3F-DS30C4 Diffuse Reflective Photoelectric Switch Infrared Sensor NPN NO/NC Proximity Sensor
  • E3F-DS30C4 Proximity Switch Photoelectric sensor switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1.
  • E3F-DS30C4 Proximity Switch Photoelectric sensor switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1.
  • E3F-DS30C4 Proximity Switch Photoelectric sensor switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1.
  • E3F-DS30C4 Proximity Switch Photoelectric sensor switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1.
  • E3F-DS30C4 Proximity Switch Photoelectric sensor switch NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1.

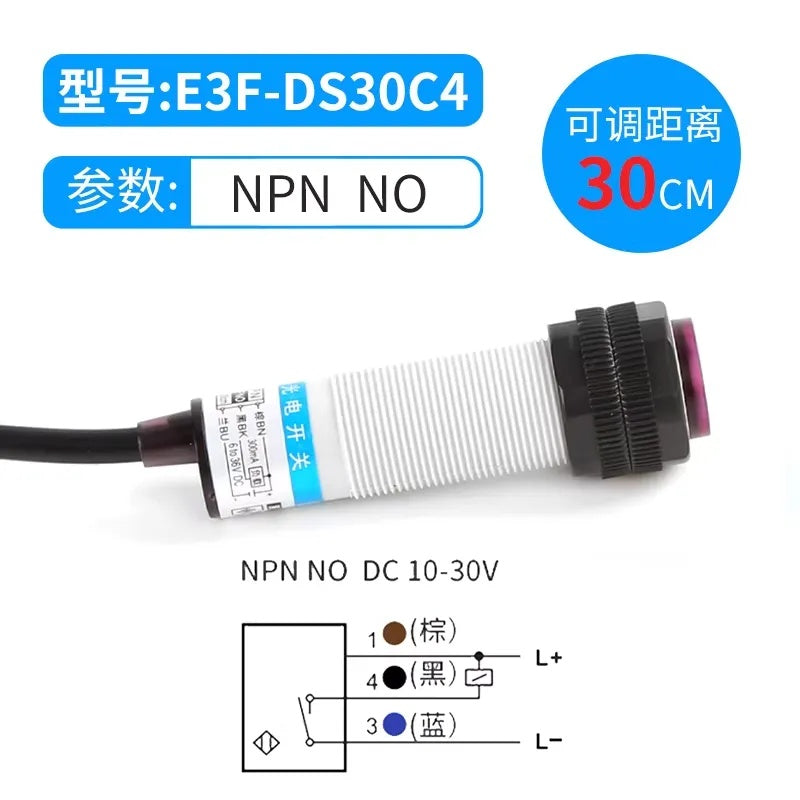

  • E3F-DS30C4 NPN NO Sensing distance 30CM(adjust)-
  • E3F-DS30B2 NPN NC Sensing distance 30CM(adjust)

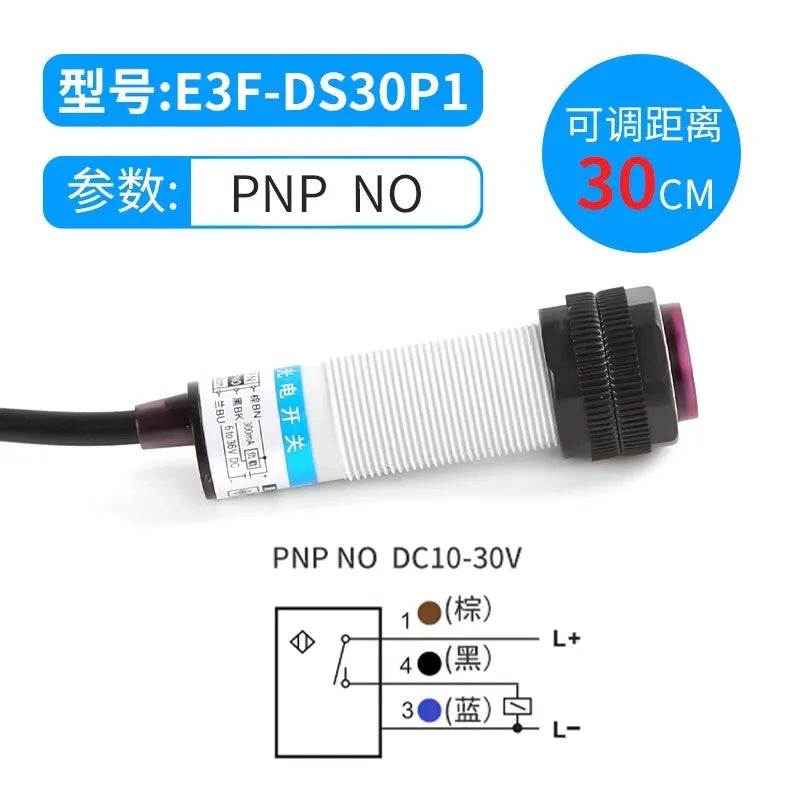

  • E3F-DS30P1 PNP NO Sensing distance 30CM(adjust)
  • E3F-DS30P2 PNP NC Sensing distance 30CM(adjust)
  • E3F-DS10C4 NPN NO Sensing distance 10CM
  • E3F-DS10B2 NPN NC Sensing distance 10CM

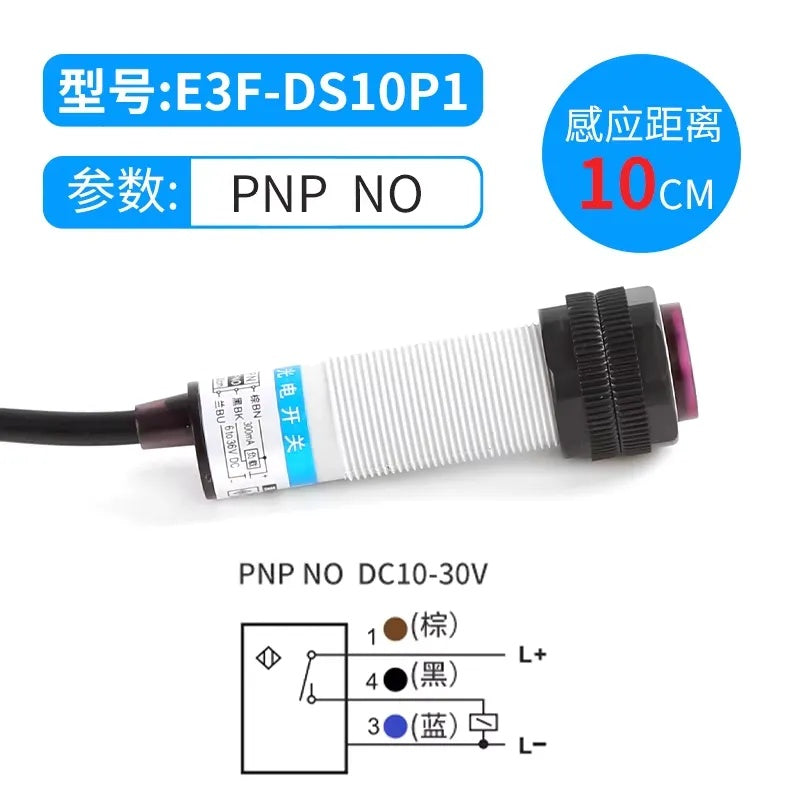

  • E3F-DS10P1 PNP NO Sensing distance 10CM

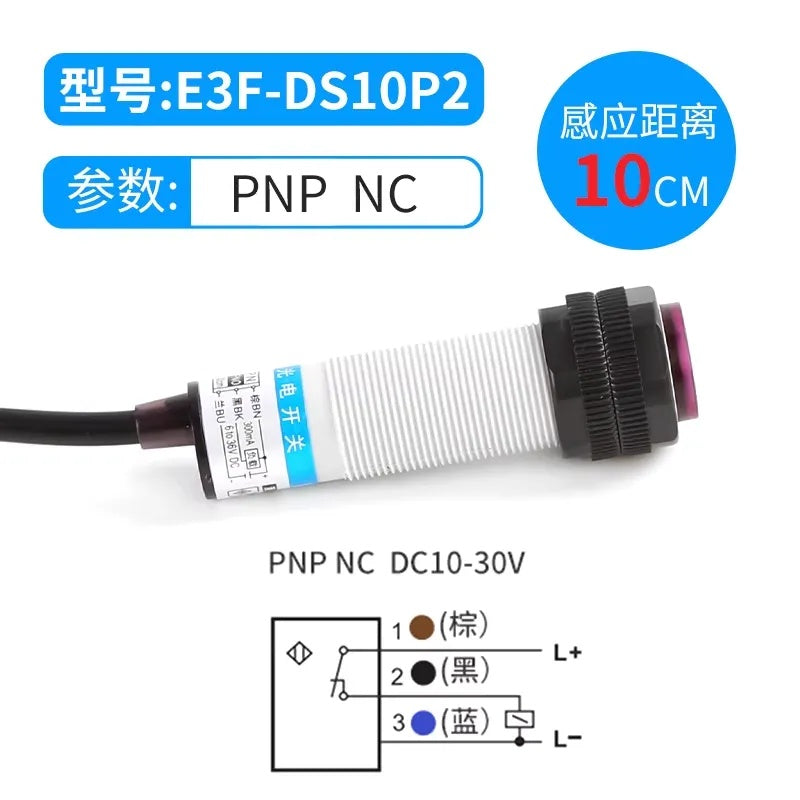

  • E3F-DS10P2 PNP NC Sensing distance 10CM
  • SZ-GY-50MFS1 NPN NO Sensing distance 10-60cm(adjust) DC 3-Wire

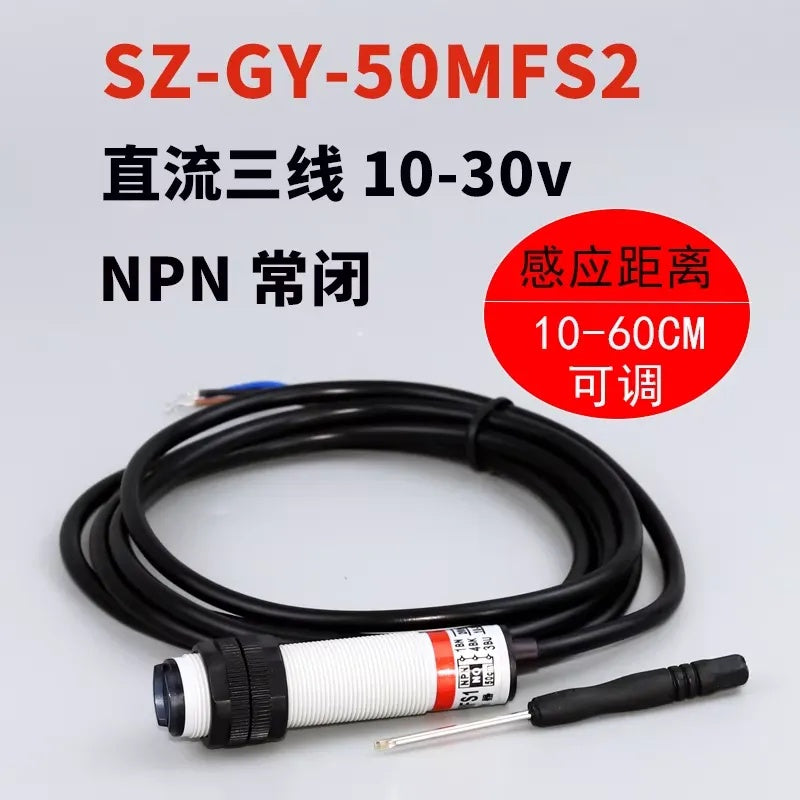

  • SZ-GY-50MFS2 NPN NC Sensing distance 10-60cm(adjust) DC 3-Wire

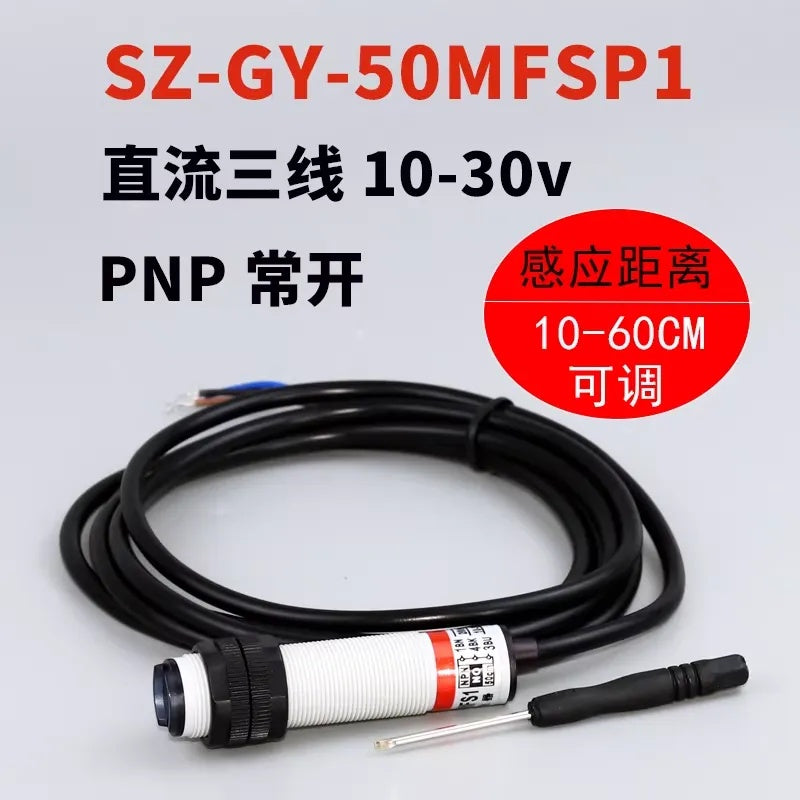

  • SZ-GY-50MFSP1 PNP NO Sensing distance 10-60cm(adjust) DC 3-Wire
  • SZ-GY-50MFSP2 PNP NC Sensing distance 10-60cm(adjust) DC 3-Wire

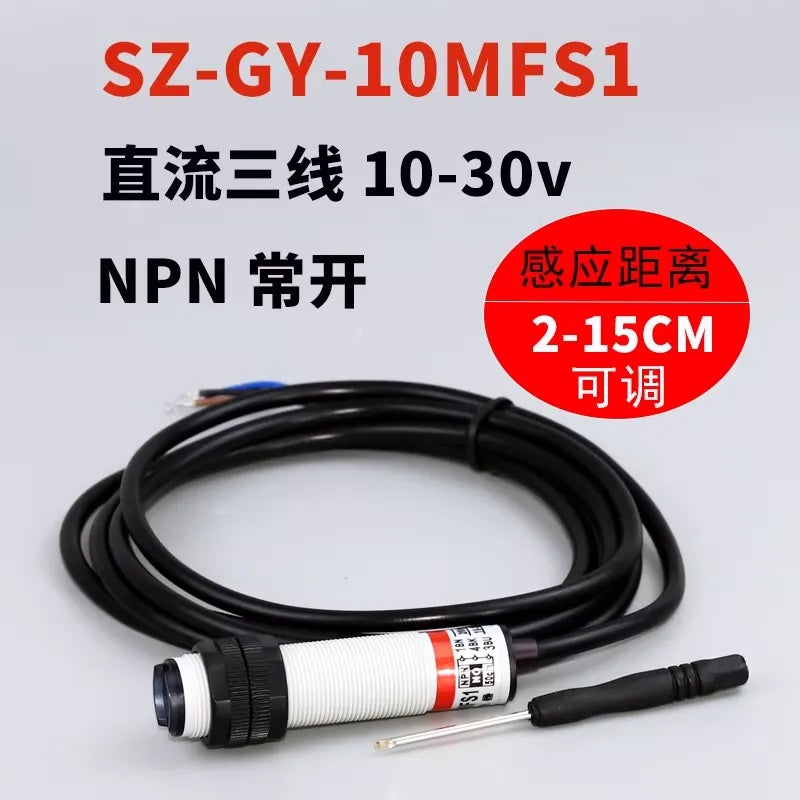

  • SZ-GY-10MFS1 NPN NO Sensing distance 2-15cm(adjust) DC 3-Wire
  • SZ-GY-10MFS2 NPN NC Sensing distance 2-15cm(adjust) DC 3-Wire
  • SZ-GY-10MFSP1 PNP NO Sensing distance 2-15cm(adjust) DC 3-Wire
  • SZ-GY-10MFSP2 PNP NC Sensing distance 2-15cm(adjust) DC 3-Wire
1 8

electrical center b2c

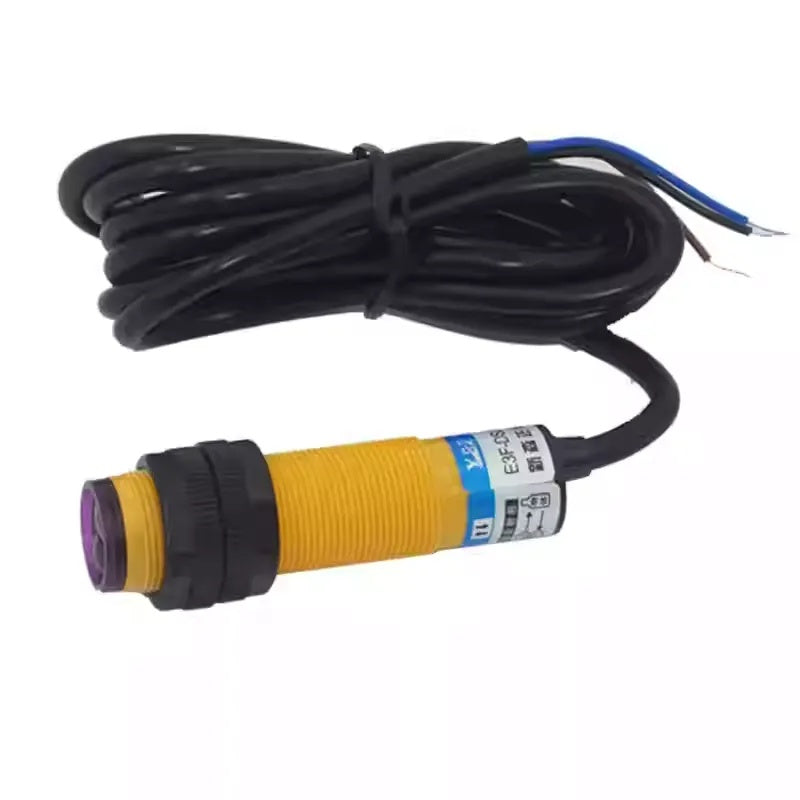

E3F-DS30C4 Diffuse Reflective Photoelectric Switch Infrared Sensor NPN NO/NC Proximity Sensor

$23.00 NZD
$23.00 NZD
Sale Sold out
Shipping calculated at checkout.
Sensor Model

SPECIFICATIONS

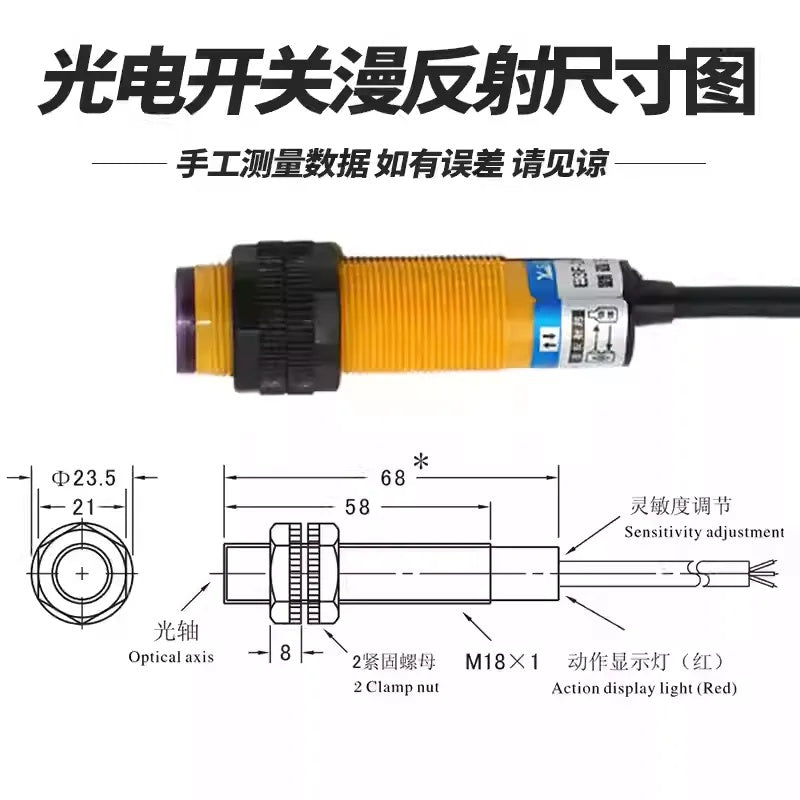

E3F-DS30C4 Proximity Switch Photoelectric sensor switch M18 NPN PNP DC5-36V 30cm Detection Range Adjustable E3F-DS30P1/P2/C2/Y1

Product Description


The E3F-DS30C4 is a high-performance diffuse reflective photoelectric switch using infrared detection technology. It features stable sensing, strong anti-interference ability, and long service life, widely used in industrial automation, assembly lines, security devices, packaging machinery, and automatic control systems.

Key Features

  • Detection Mode: Diffuse reflective photoelectric sensor
  • Sensing Distance: Adjustable up to 30cm
  • Output Type: NPN, supporting Normally Open (NO) and Normally Closed (NC)
  • Light Source: Infrared LED, high sensitivity and stable performance
  • Supply Voltage: DC 6V–36V wide voltage range
  • Protection Grade: IP67 waterproof and dustproof
  • Strong Anti-Interference: Resists external light and electromagnetic interference
  • Long Service Life: Stable operation under frequent switching
  • Easy Installation: Cylindrical design with mounting bracket

Applications

  • Industrial automation assembly lines
  • Automatic door control systems
  • Packaging and printing machinery
  • Object detection and counting
  • Security and position detection
  • Conveyor belt positioning and material detection

Product Parameter

Parameter Specification
Turn-on Delay 1.5ms
Light Source Infrared Ray 660nm
Power Voltage DC: DC12-24V Pulse (P-P) Below 10%

AC: AC110-220V (90-250V) 50/60Hz

AC/DC: DC12-240V/AC24-240V, 50/60Hz
Power Consumption Below 3VA
Control Output 2A (Contact Life: 100,000 times)
Shock & Vibration Resistance Bs30g, Ts11ms, fs55Hz, as1mm
Ambient Temperature During Operation/Storage: -30°C ~ +65°C (No Freezing, No Condensation)
Ambient Humidity During Operation/Storage: 35% ~ 95% RH
Insulation Resistance Above 50MΩ (Between DC500 Megohm Charging Part & Housing)
Withstand Voltage AC1000V 50/60Hz for 1min (Between Charging Part & Housing)
Temperature Influence Temperature Range: -30°C ~ +65°C, +23°C ±15% Within Detection Distance

Temperature Range: -25°C ~ +60°C, +23°C ±10% Within Detection Distance
Voltage Influence Within Rated Voltage Range ±15% and Rated Voltage Value ±10% Within Detection Distance
Protection Structure IP67 (IEC Standard)
Material (Housing: ABS) (Detection Lens: PMMA)
