DC Wireless Remote Controller 12V 24V 10A 60W Control Switch Motor Reversed Pause Start Electric Doors Windows Linear Actuator

Regular price $46.00 NZD
Regular price $50.00 NZD Sale price $46.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

DC Wireless Remote Controller 12V 24V 10A 60W Control Switch Motor Reversed Pause Start Electric Doors Windows Linear Actuator

Motor Type: DC Motor

Origin: Mainland China

1) This product is a wireless transmission signal, non-directional, can pass through the wall

2) Working voltage : DC 12V/24V
3) Working frequency: 433MHz-315MHZ
4) Remote control distance: open space without interference load test 100 meters (radio products practical application vary depending on the environment from the remote control, the gap is very large, which have strict requirements careful to buy!)
5) Load types: for electric burglar alarm, remote control electric windows, signal control, industrial control, motor reversing, lifting equipment and other control circuitry. Remote control switch module relay contact Independent output, Very suitable for direct control of various types of load
6) Receiving sensitivity:> - 105dB
7)The relay contact capacity: 10A 250VAC | 10A 30VDC
8) Control mode: Work mode: M4 (Jog: Press grimdeath outputs, let go to stop output), L4 (interlock: Road at the same time there can be only one output), T4 (self-locking: Road mutual independent output, independently of each other, click the output and click stops output)
Tips: Remote control buttons Press only one button can not hold down two or more keys simultaneously, otherwise it will affect the normal work interfere with each other.

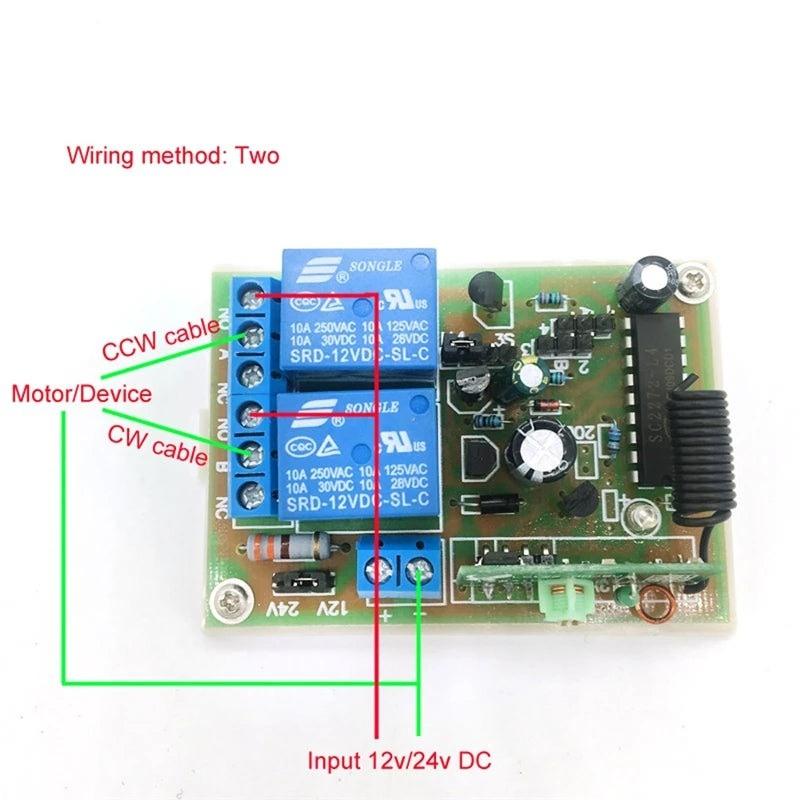

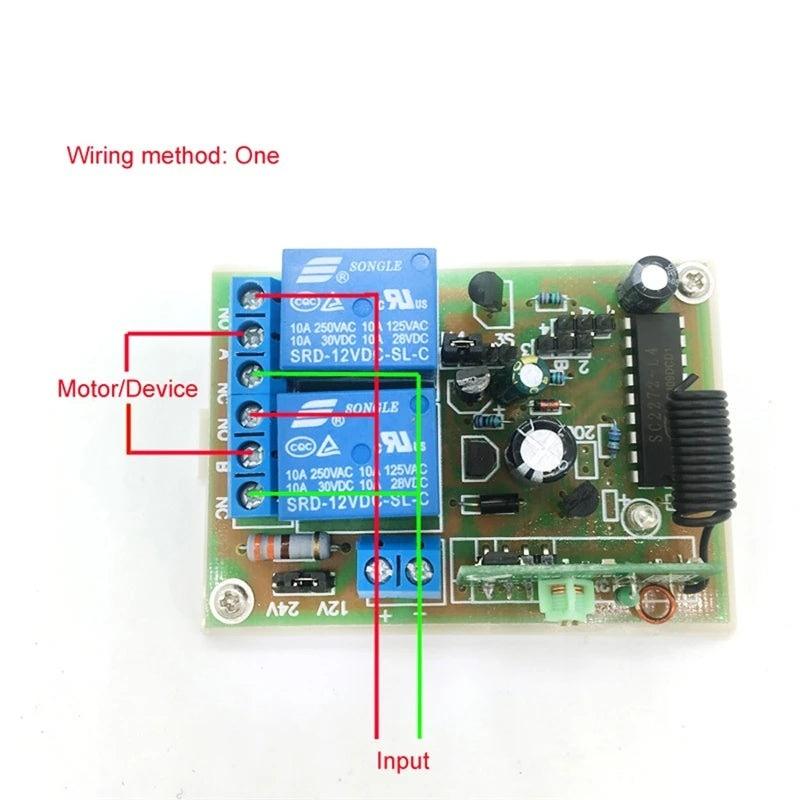

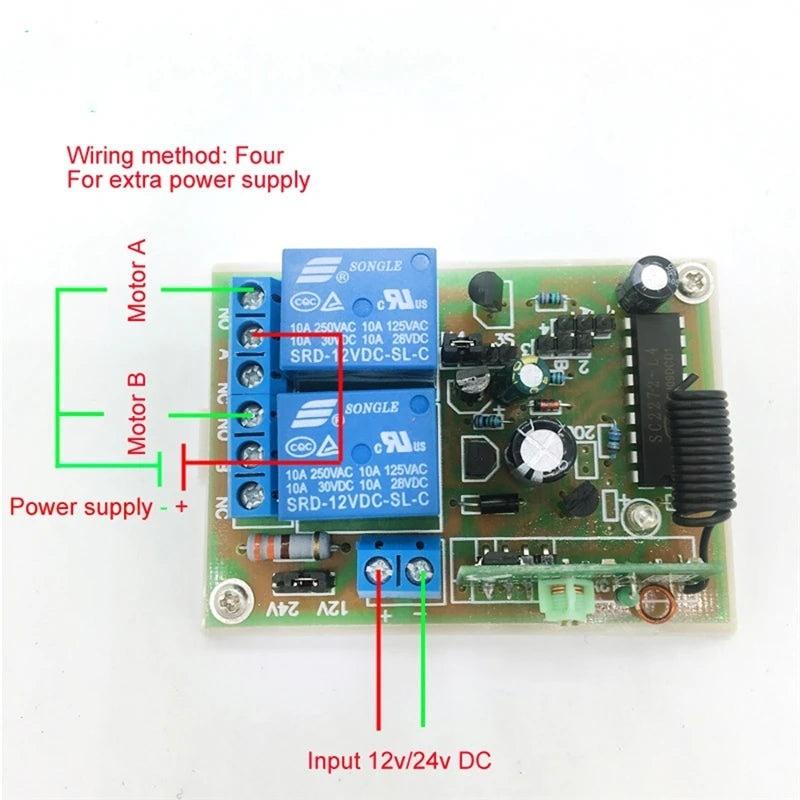

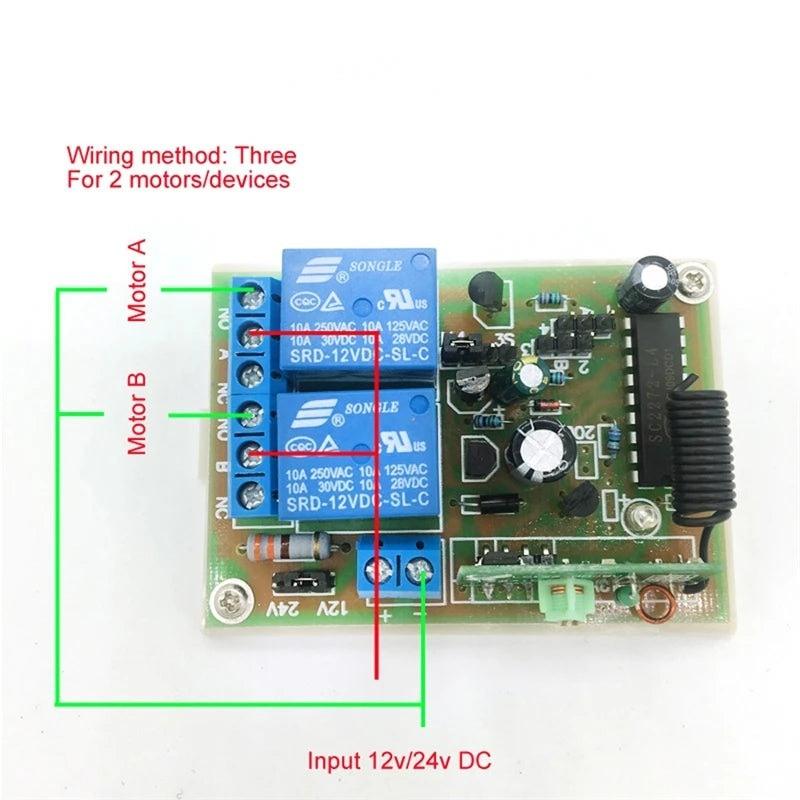

9) Output: relay common / normally open / normally closed (flexible application can control a variety of load voltage)
10) Encoding: fixed code (welding yards) motherboard and pin remote control codes need to correspond to the state are: high, low, left floating.

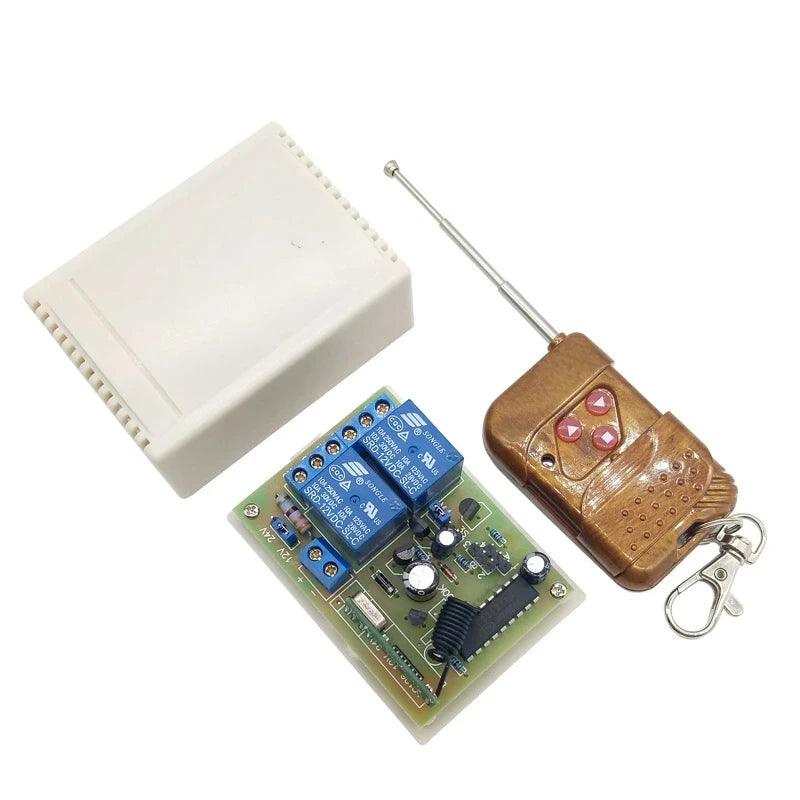

11) Configure Explanation: Remote Control +  Receiver  + shell (1set)
