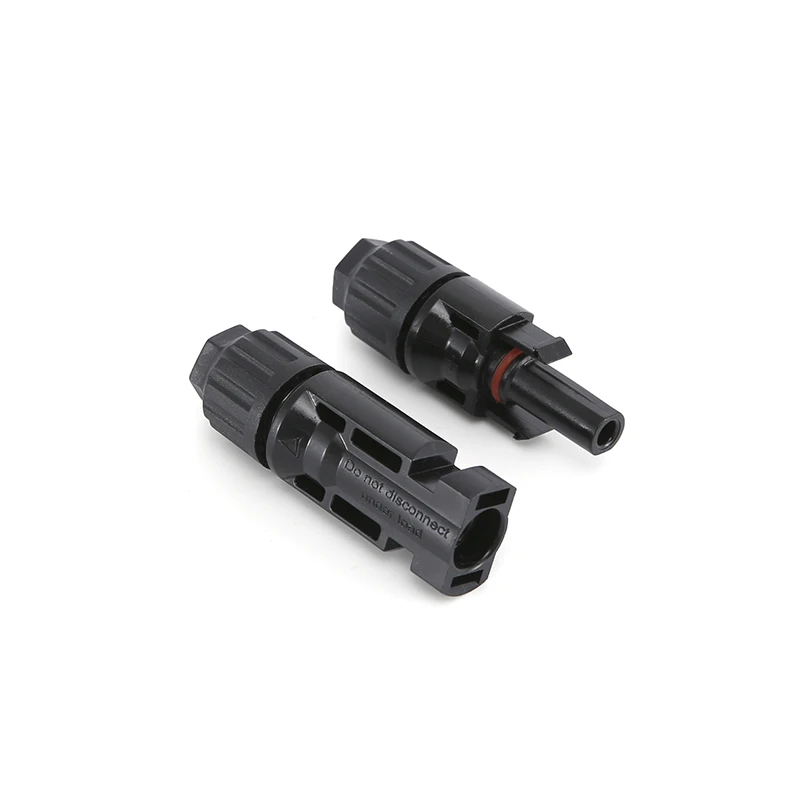

DC Solar Connector 1000V30A Solar Panel Stecker Connectors Kit for PV/MC Cable 2.5/4/6mm2

Regular price $19.00 NZD
Regular price $3.00 NZD Sale price $19.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

DC Solar Connector 1000V30A Solar Panel  Stecker Connectors Kit for PV/MC Cable 2.5/4/6mm2

Brand Name: PVMC

Origin: Mainland China

Model Number: 1000v

Certification: CE

Rated voltage: 1000V(Solar Connectors Rated voltage)

Rated current: 30A(Connector Rated current)

Degree of waterproof: IP67

Adapter Wire: OD 5mm-7mm

Connector Insulation material: PPO/PPE

Flammability rating: UL94-V0

Connector contact resistance: ≤0.5mΩ

DC Solar Connector 1000V30A Solar Panel Branch Stecker Connectors for PV/MC Cable 2.5/4/6mm2


【High quality Material】WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!

【Widely Compatible With Solar Cable】Compatible with PV cables with different insulation diameters (2.5m㎡--6m㎡).

【Easy installing】Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

【IP67 Professional Waterproof】Good waterproof performance for outdoors usage.

Specifications

* Rated current: 30A (2.5m㎡--6m㎡)

* Rated voltage: 1000V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP67

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 2.5m㎡--6m㎡( include AWG13,AWG12, AWG11,AWG10 )

* Adapter Wire: OD 5mm-7mm

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃~ +85℃

* Connection: Clamp
