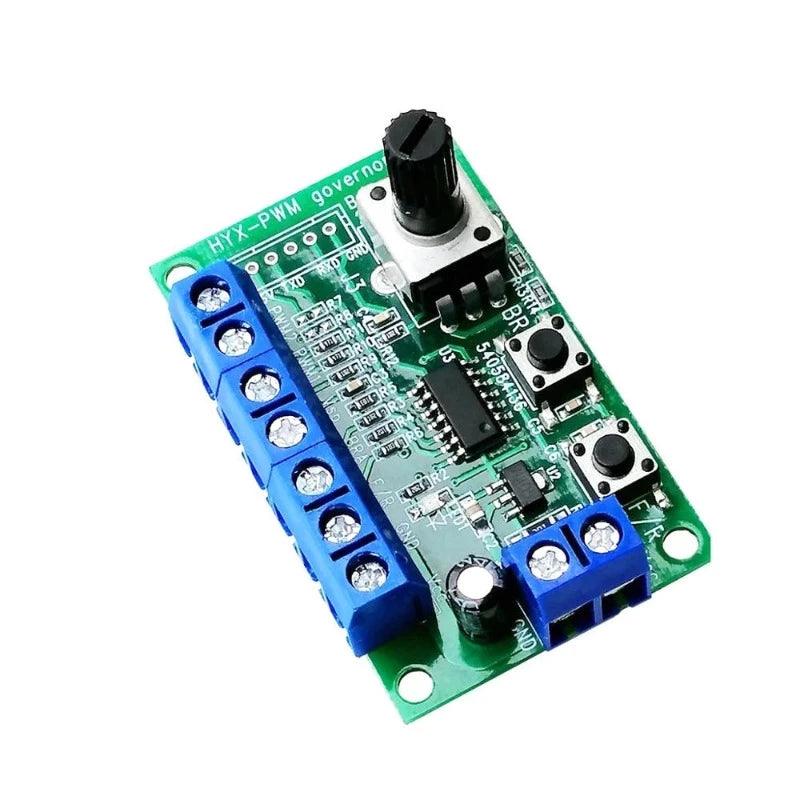

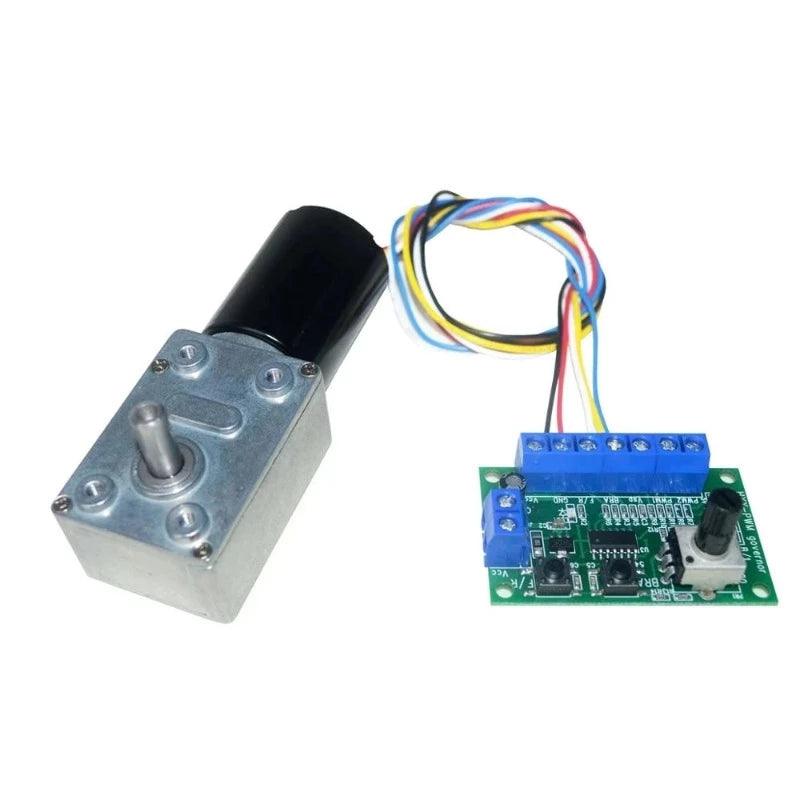

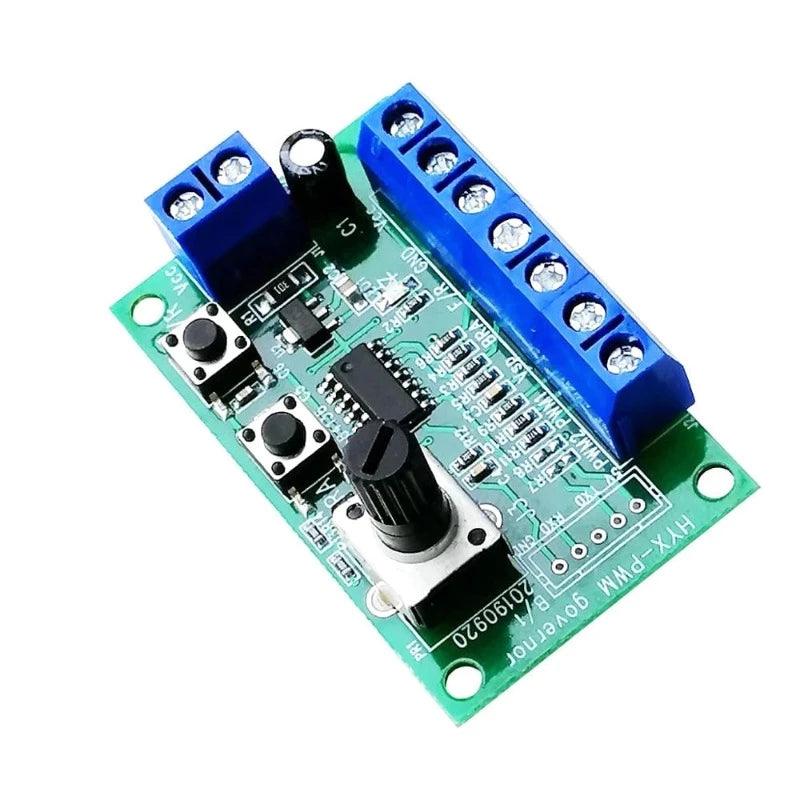

DC 5V-28V 2A Brushless Motor Controller PWM Speed BLDC 6v 12v 24v Adjustable Brake Forward Reversed CW CCW Electric

Regular price $38.00 NZD
Regular price $40.00 NZD Sale price $38.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

DC 5V-28V 2A Brushless Motor Controller PWM Speed BLDC 6v 12v 24v Adjustable Brake Forward Reversed CW CCW Electric

Motor Type: DC Motor

Origin: Mainland China

Model Number: DC BLDC Controller 12V 24V

Certification: RoHS

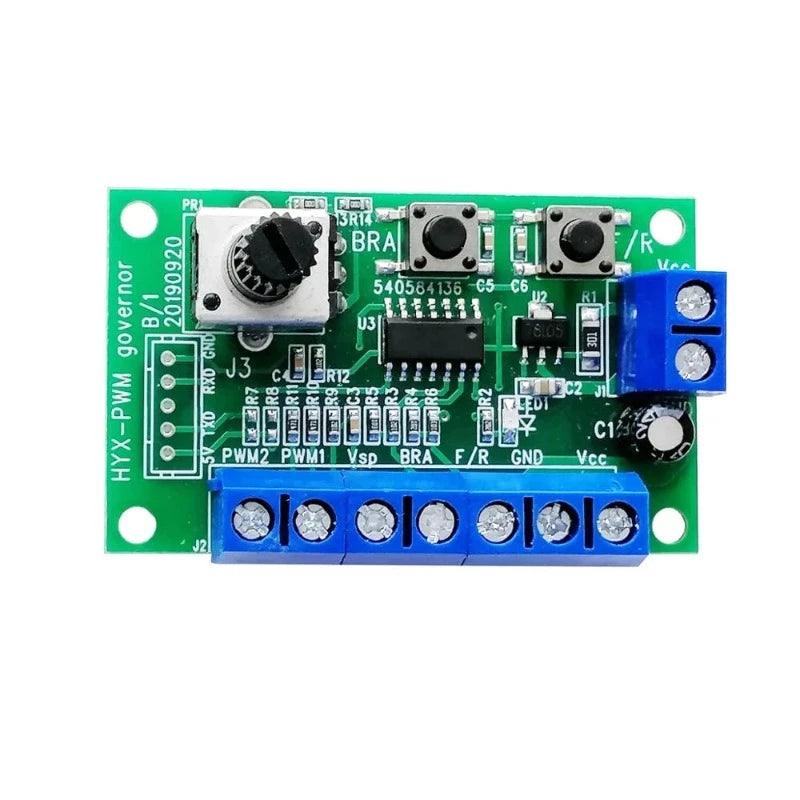

1.Governor, positive power input of the motor
2.Governor, motor power negative input
3.Motor power positive output
4.Motor power negative output
5.High and low level output of forward and reverse control, high level 5V, low level 0V, controlled by F / R touch switch, the default is high level when power on
6.High and low level output of brake control, high level 5V, low level 0V, controlled by BRA touch switch, the default is high level when power on
7.Analog voltage output, this interface is suitable for motors that accept analog voltage speed regulation
8.PWM reverse output, this interface is suitable for motors that accept PWM speed regulation, the speed is inversely proportional to the duty cycle
9.PWM positive output, this interface is suitable for motors that accept PWM speed regulation, the speed is inversely proportional to the duty cycle
1.Voltage range: DC5-28V
2.Rated current: MAX2A, when you want to control a more current motor, connect the motor power cable directly to the power supply, and do not need to pass through the governor.
3.PWM output frequency: 10-15KHz
4.Analog voltage output: 0-5V
5.Two independent manual control high and low level outputs
6.Operating temperature: -10 degrees Celsius -70 degrees Celsius Storage temperature: -30 degrees Celsius -125 degrees Celsius
7.Drive size::Drive size: length 31mm * width 51mm
