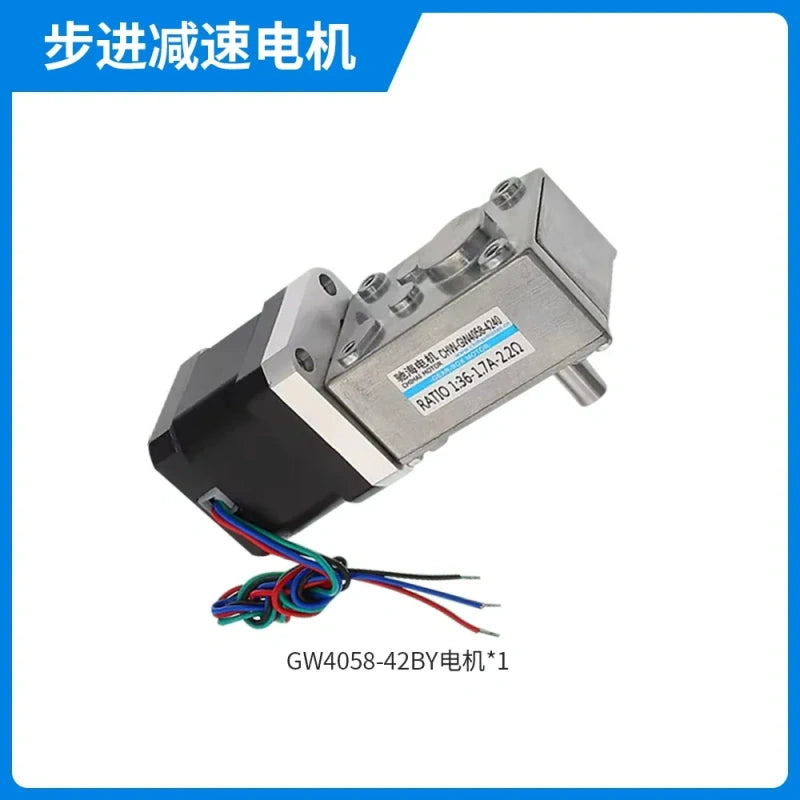

DC 3-24V 42mm Worm Gear Reducer Stepper Motor
Regular price
$127.00 NZD
Regular price
Sale price
$127.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

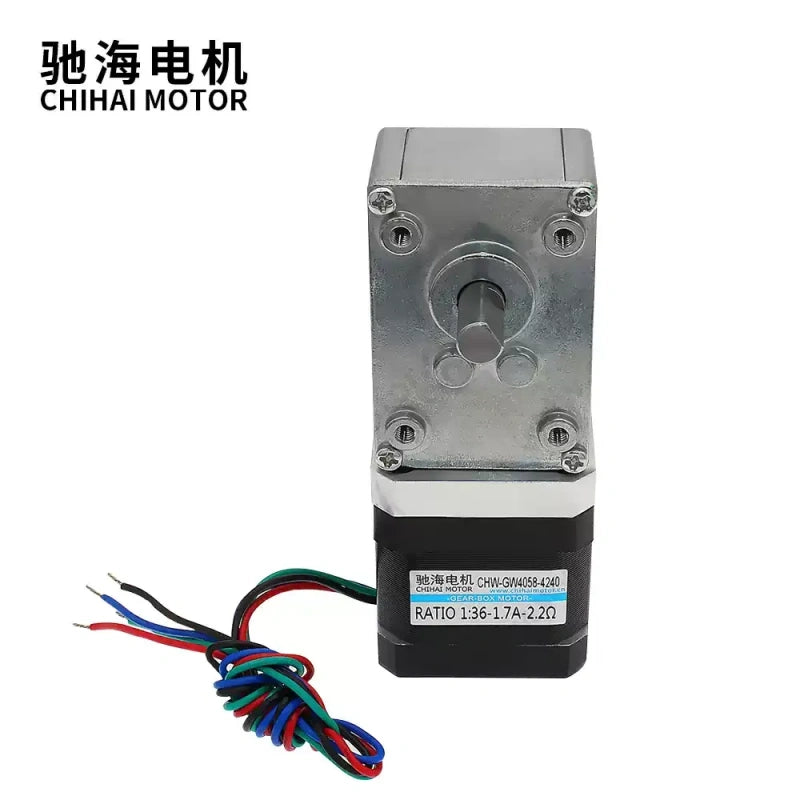

CHW4058-42 Worm Gear Stepper Motor 2-Phase 4-Wire, 3-24V DC, 1:17/1:36/1:54 Ratio, with Bracket & Pulse Driver Options
Product Description
Meet the Chihai CHW4058-42 Worm Gear Stepper Motor, a high-torque 2-phase 4-wire stepper motor designed for precision positioning in demanding automation projects. With a rugged worm gear design, it delivers exceptional holding torque (up to 50 kg·cm with reduction) and zero-backlash performance, making it ideal for camera sliders, smart home devices, and 3D printers.
Available in multiple reduction ratios (1:17, 1:36, 1:54, and custom ratios starting at 5 units), this motor lets you fine-tune speed and torque for your project. Choose from standalone motor, motor + mounting bracket, motor + pulse driver, or a full kit for plug-and-play integration. The 8mm D-shaped shaft (customizable) and compact 42×42×106mm body fit tight spaces, while the wide 3-24V input range ensures compatibility with most stepper drivers.
Key Features & Benefits
✅ High Torque Worm Gear Design: 3.5 kg·cm base holding torque (up to 50 kg·cm with reduction) for heavy-load applications.
✅ Precision Control: 1.8° step angle (down to 0.00345° with high reduction ratios) for ultra-fine positioning.
✅ Flexible Configuration: Choose reduction ratios, mounting brackets, and pulse drivers to match your project needs.
✅ Wide Voltage Compatibility: Works with 3-24V DC, compatible with most 2-phase 4-wire stepper motor drivers.
✅ Durable Build: Insulation Class B (130°C) and robust construction for long-term use in automation setups.
Full Specifications

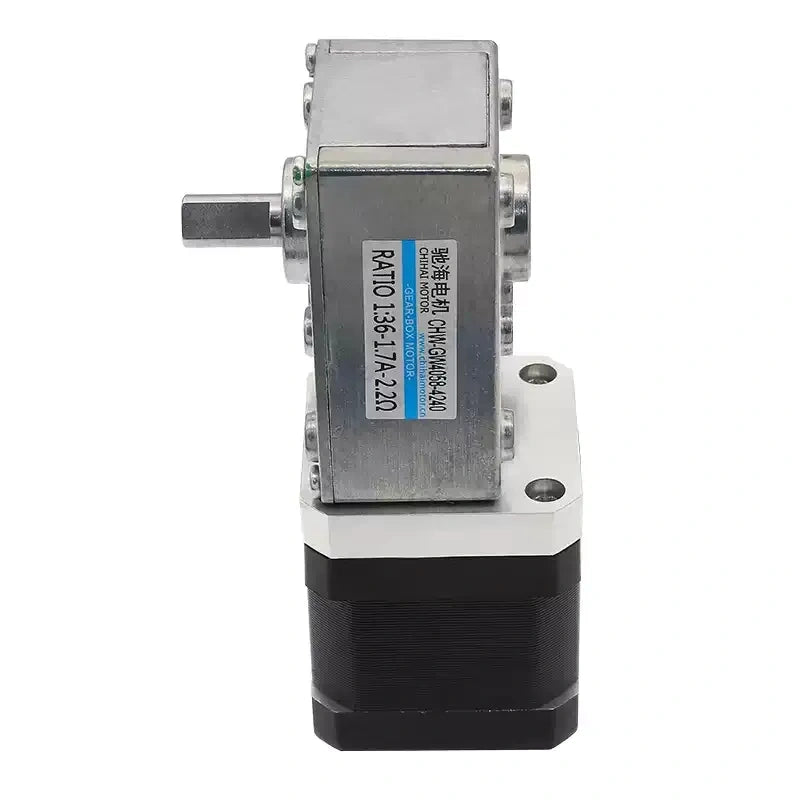

| Parameter | Details |
|---|---|
| Brand | Chihai Motor |
| Model | CHW4058-42 |
| Type | 2-Phase 4-Wire Worm Gear Stepper Motor |
| Rated Voltage | 3.7V (3-24V wide range, driver-dependent) |
| Rated Current | 1.7-1.9A / Phase |
| Phase Resistance | 2.2 ±15% Ω / Phase |
| Phase Inductance | 3.8 ±20% mH / Phase |
| Base Step Angle | 1.8° / Step |
| Reduction Ratios | 1:17, 1:36, 1:54, Custom (min. 5 units) |
| Holding Torque (Base) | 3.5 kg·cm |
| Max Holding Torque (With Reduction) | ≥50 kg·cm (do not exceed 50 kg·cm or stall repeatedly) |
| Shaft Specs | 8mm D-shaped shaft (customizable), single-side shaft length 15mm |

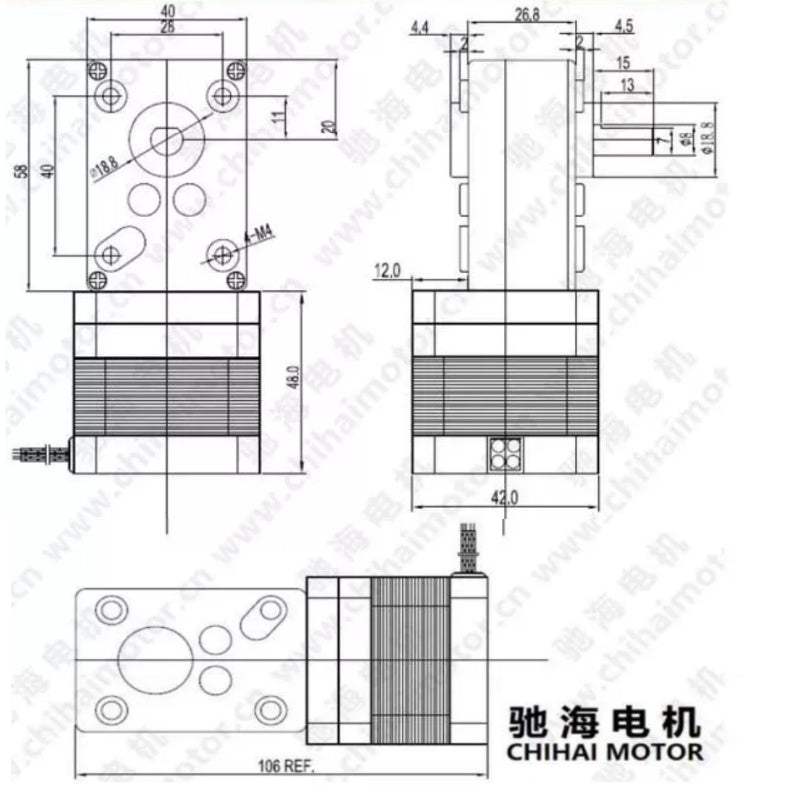

| Dimensions | 42×42×106mm |
| Weight | ~500g (varies by ratio) |
| Insulation Class | B (130°C) |

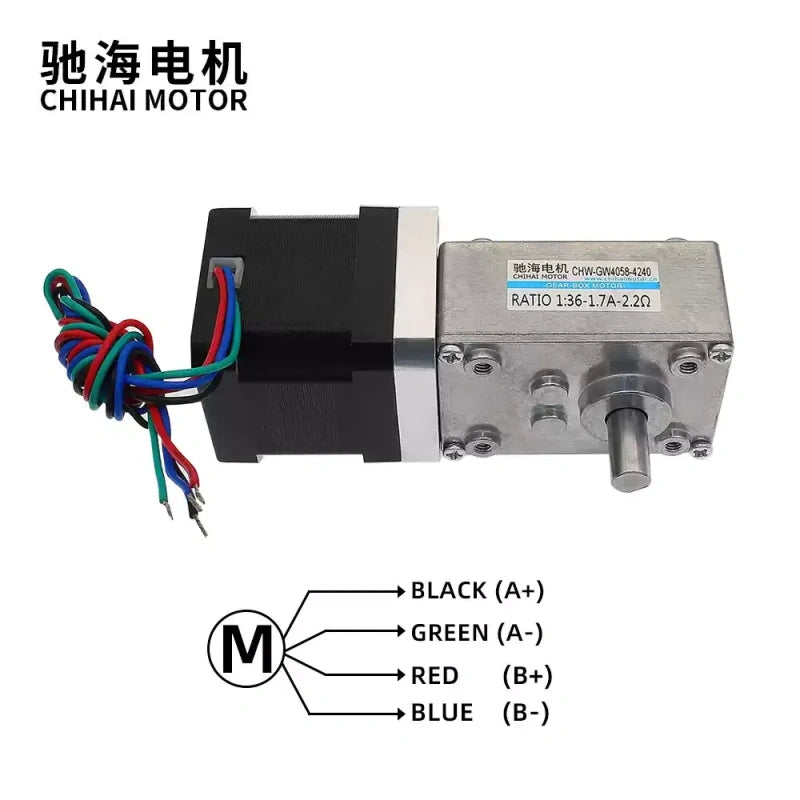

| Wiring Order | Black A+, Green A-, Red B+, Blue B- |

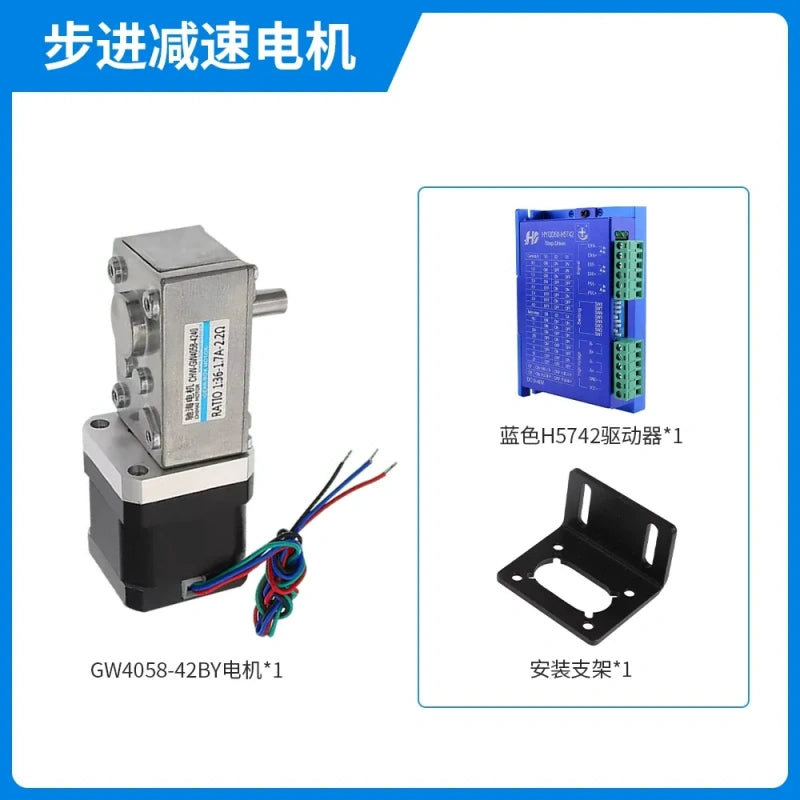

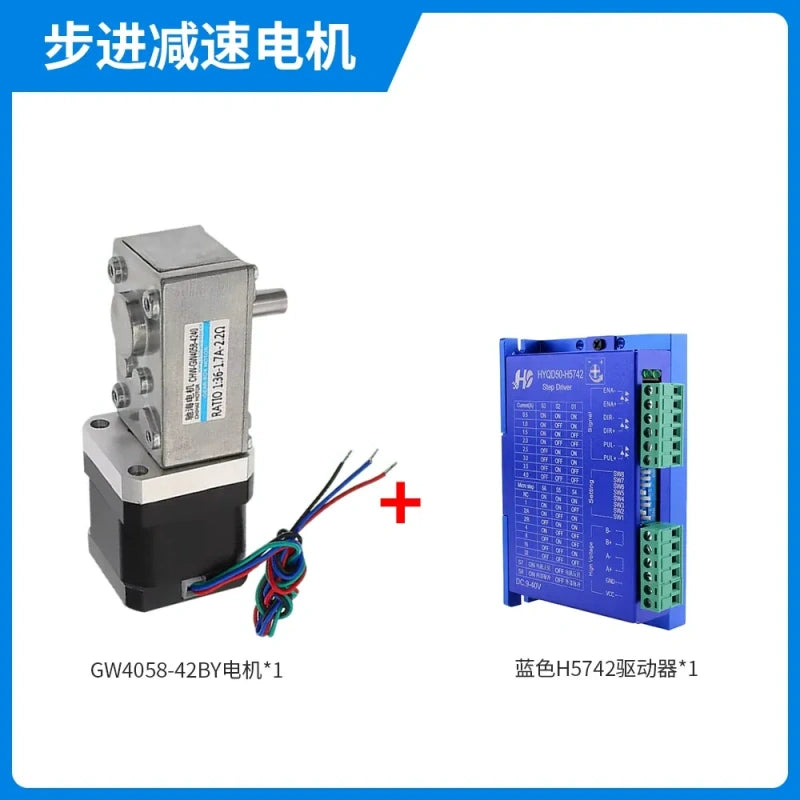

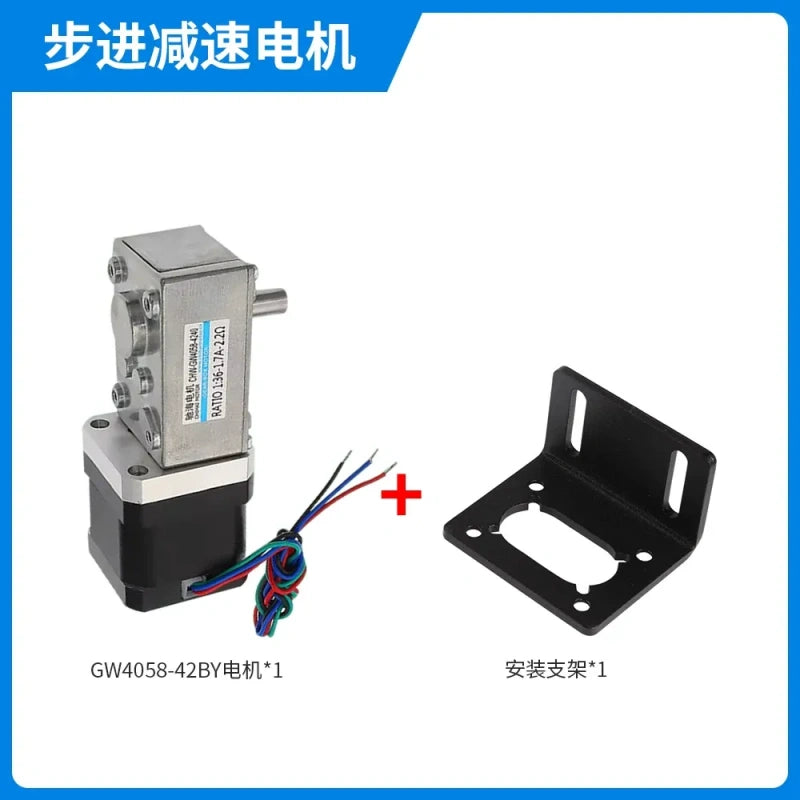

| Optional Accessories | Mounting Bracket, Pulse Driver |
Common Applications
- Camera sliders and film/photography positioning systems
- Smart home appliances and automation equipment
- 3D printers, CNC machines, and robotics projects
- Conveyors, linear actuators, and precision positioning equipment
Matching Deceleration Ratio (English Version)
| Gear Reduction Ratio | Torque | Step Angle |
|---|---|---|
| 1:36 | ≥ 50 kg·cm (Do NOT exceed 50 kg·cm during use, and avoid repeated stalling) | 0.05°/step |
| 1:54 | ≥ 50 kg·cm (Do NOT exceed 50 kg·cm during use, and avoid repeated stalling) | 0.033°/step |
| 1:72 | ≥ 50 kg·cm (Do NOT exceed 50 kg·cm during use, and avoid repeated stalling) | 0.025°/step |
| 1:108 | ≥ 50 kg·cm (Do NOT exceed 50 kg·cm during use, and avoid repeated stalling) | 0.0167°/step |
| 1:140 | ≥ 50 kg·cm (Do NOT exceed 50 kg·cm during use, and avoid repeated stalling) | 0.0129°/step |
| 1:280 | ≥ 50 kg·cm (Do NOT exceed 50 kg·cm during use, and avoid repeated stalling) | 0.0064°/step |
| 1:522 | ≥ 50 kg·cm (Do NOT exceed 50 kg·cm during use, and avoid repeated stalling) | 0.00345°/step |
Notes :
Important Safety & Usage Warning:
- The motor's maximum allowable torque is 50 kg·cm. Do not operate it above this value.
- Do NOT subject the motor to repeated stalling, as this can cause permanent damage to the gears and motor windings.
