Current/Voltage Controlled SSR Regulator

Name: Current/Voltage Controlled SSR Regulator
Brand: electrical center b2c
Availability: OutOfStock

$0.00 NZD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

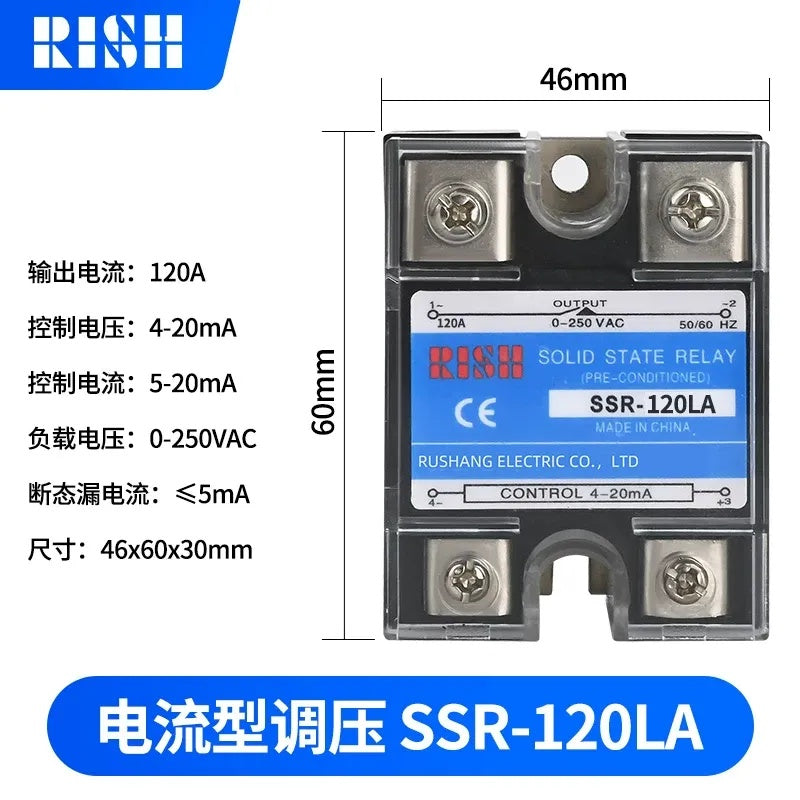

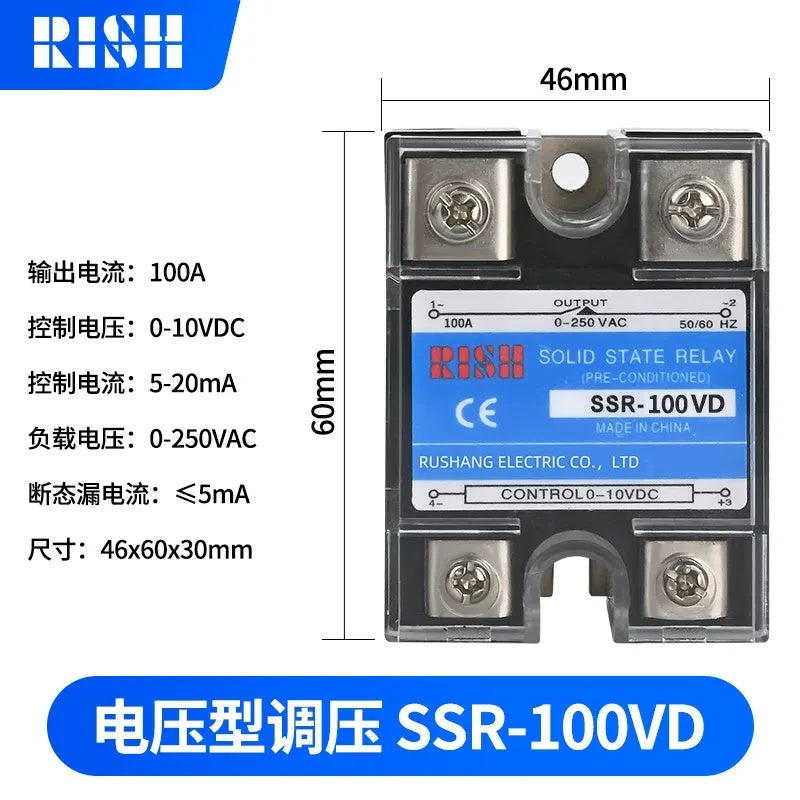

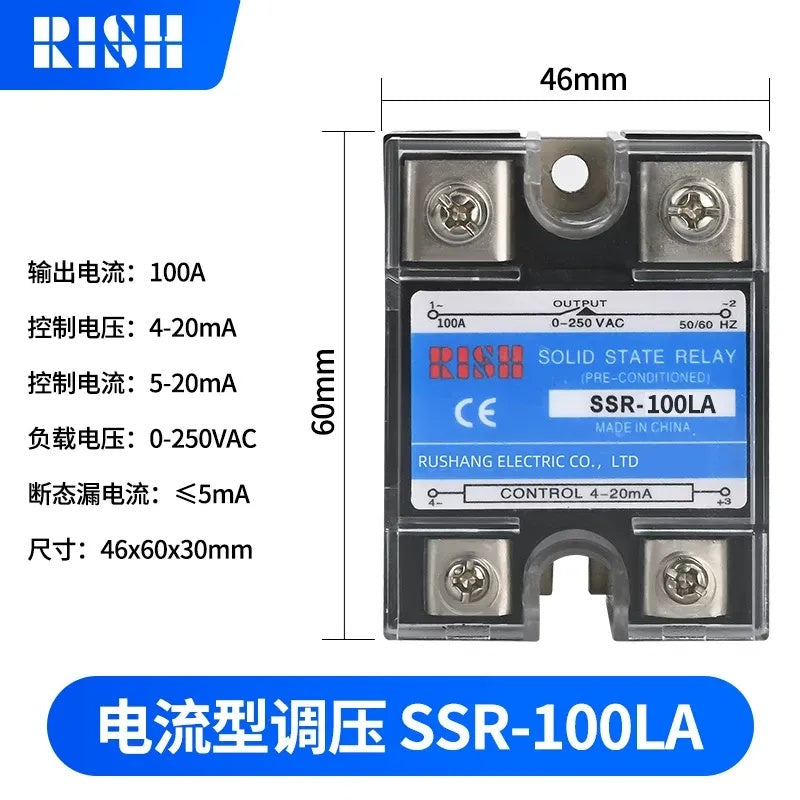

Single Phase SSR Voltage Regulator Current/Voltage Type 10-120A, 380VAC Control Module

规格型号	英文标题
SSR-10LA	`10A SSR-10LA Current Controlled AC Voltage Regulator`

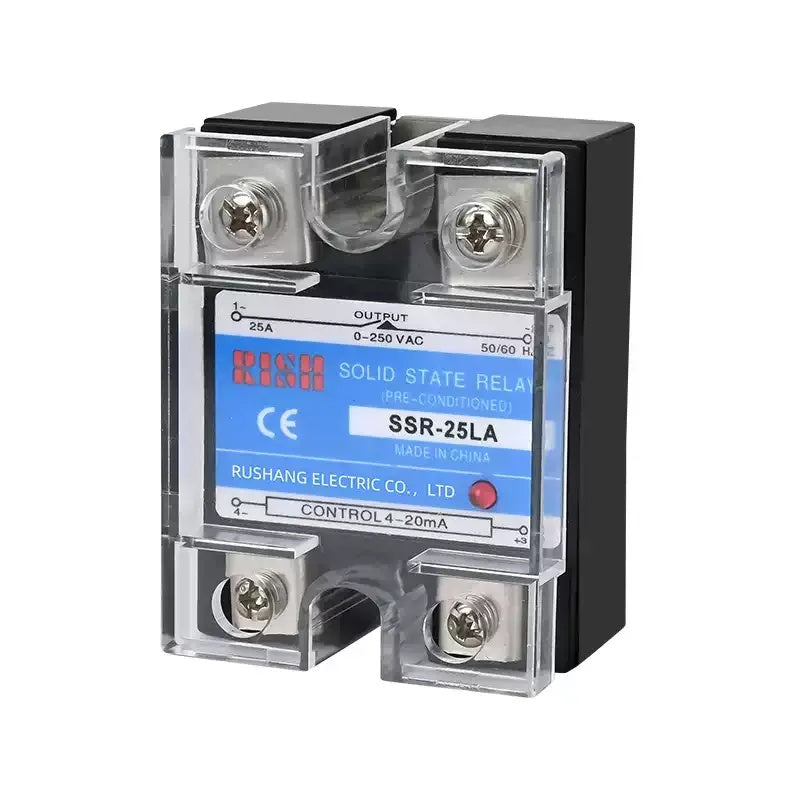

SSR-25LA	`25A SSR-25LA Current Type Solid State Voltage Regulator`
SSR-40LA	`40A SSR-40LA Current Controlled SSR Regulator 380VAC`
SSR-80LA	`80A SSR-80LA Current Type Voltage Regulator SSR Module`

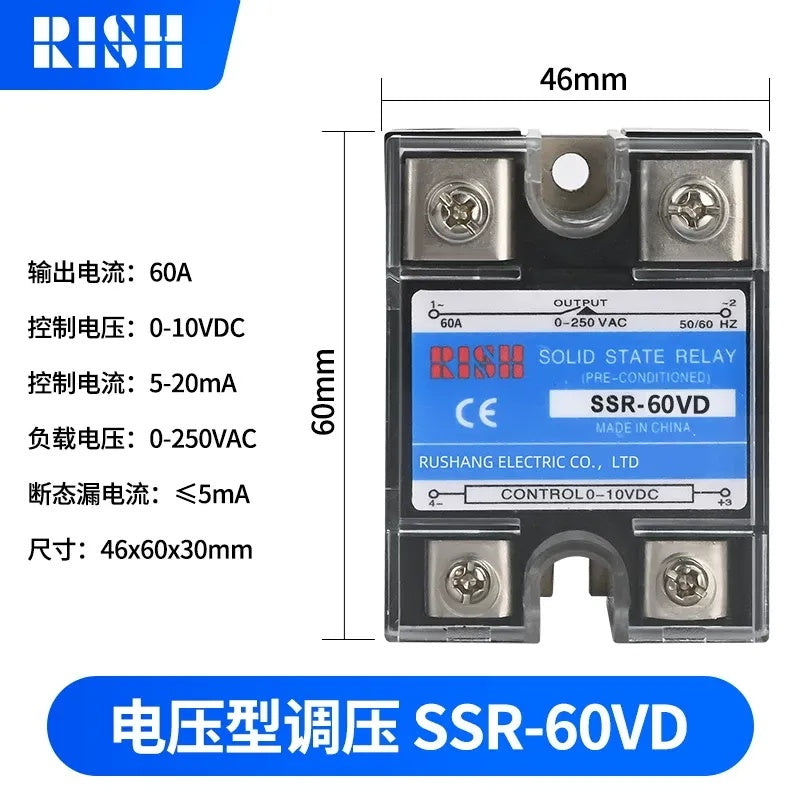

SSR-25VD	`25A SSR-25VD Voltage Controlled AC Voltage Regulator`
SSR-40VD	`40A SSR-40VD Voltage Type Solid State Regulator 380VAC`

This Single Phase SSR Voltage Regulator is an industrial-grade control module available in Current (LA) and Voltage (VD) controlled versions, with current ratings from 10A to 120A. Designed for precise AC voltage regulation (0-380VAC) in resistive load applications like heating and lighting.

关键特性

✅ Two Control Options: Current-controlled (LA) and Voltage-controlled (VD) versions available
✅ High Precision Regulation: Smooth, linear voltage adjustment for resistive loads
✅ No Mechanical Contacts: Silent, spark-free operation with high shock/vibration resistance
✅ Low Power Loss: ≤1.6V on-state voltage drop and ≤5mA leakage current
✅ Fast Response: ≤10ms turn-off time for quick and stable control
✅ LED Indicator: Built-in LED for real-time working status feedback
✅ Wide Operating Temp: -30°C to +75°C, suitable for harsh industrial environments
✅ Secure Mounting: Bolt-on design for stable installation in control panels

规格说明（

可按产品替换）ct Name: Single Phase SSR Voltage Regulator (Current/Voltage Type)

Produ
del: SSR-XXLA / SSR-XXVD (XX=10/25/40/60/80/100/120)

Control Type: Current-controlled (LA) / Voltage-controlled (VD)
Rated Current: 10A / 25A / 40A / 60A / 80A / 100A / 120A
Load Voltage: 0-380VAC
On-State Voltage Drop: ≤1.6V
Off-State Leakage Current: ≤5mA
Turn-Off Time: ≤10ms
Working Indicator: LED
Operating Temperature: -30°C ~ +75°C
Mounting Type: Bolt-on
Application: Industrial Heating Control, Temperature Regulation, Lighting Dimming, Power Control
