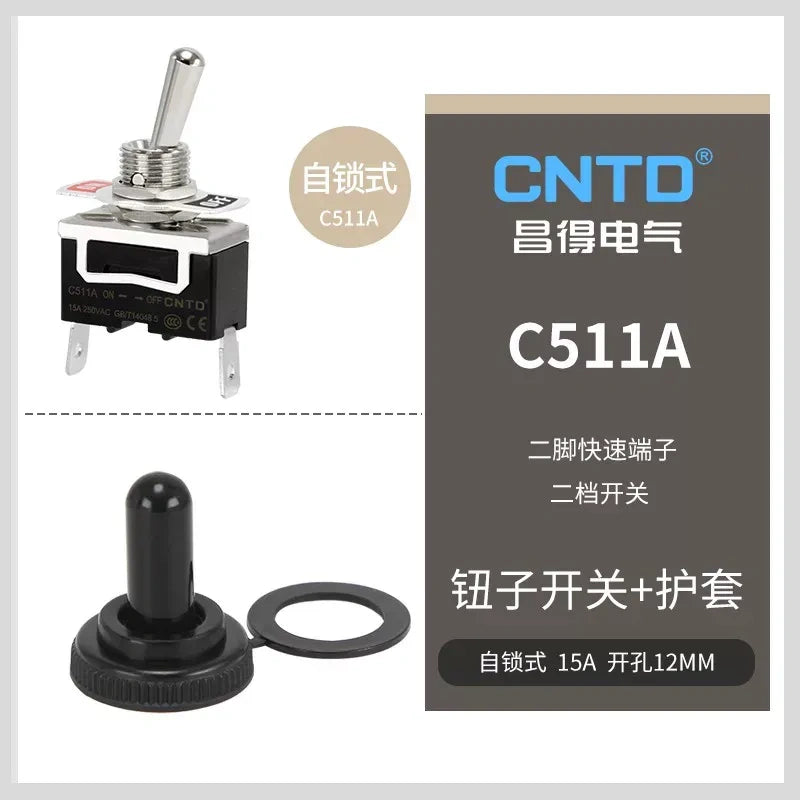

• C511A SPST 2Pin 2Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal

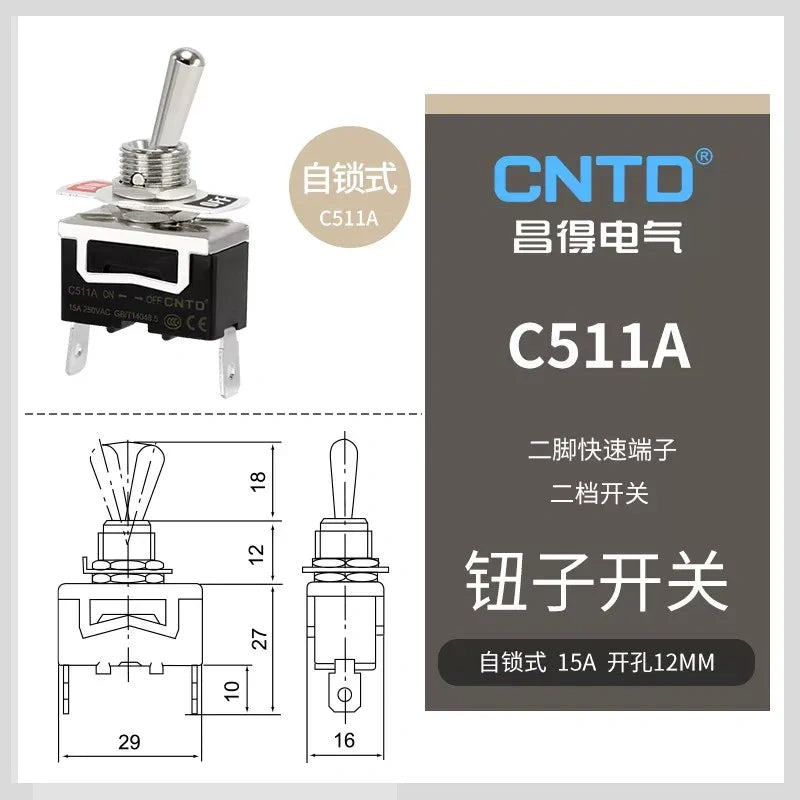

  • C511A SPST 2Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal

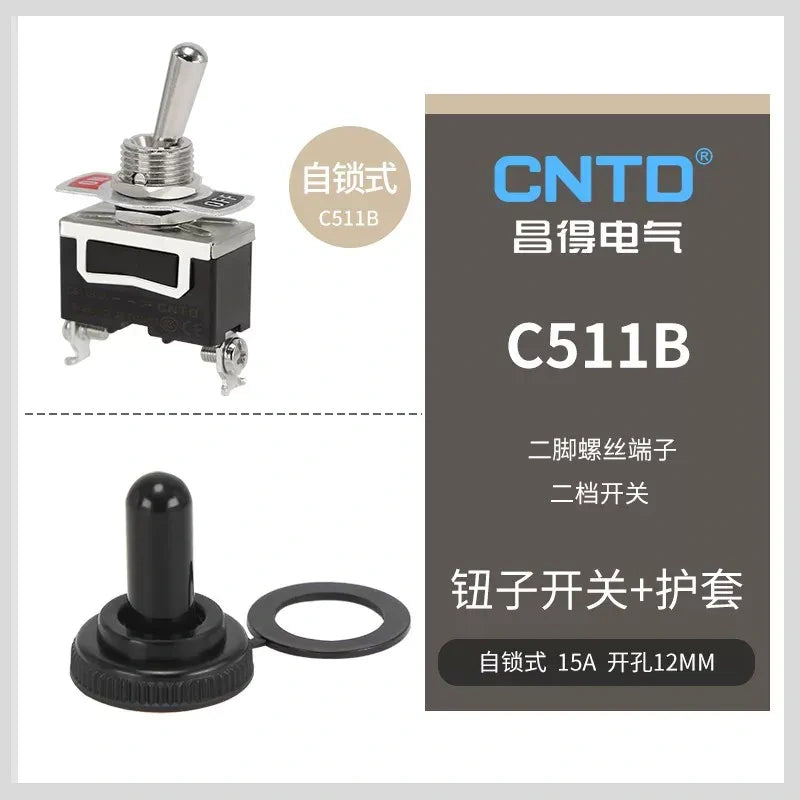

  • C511B SPST 2Pin 2Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

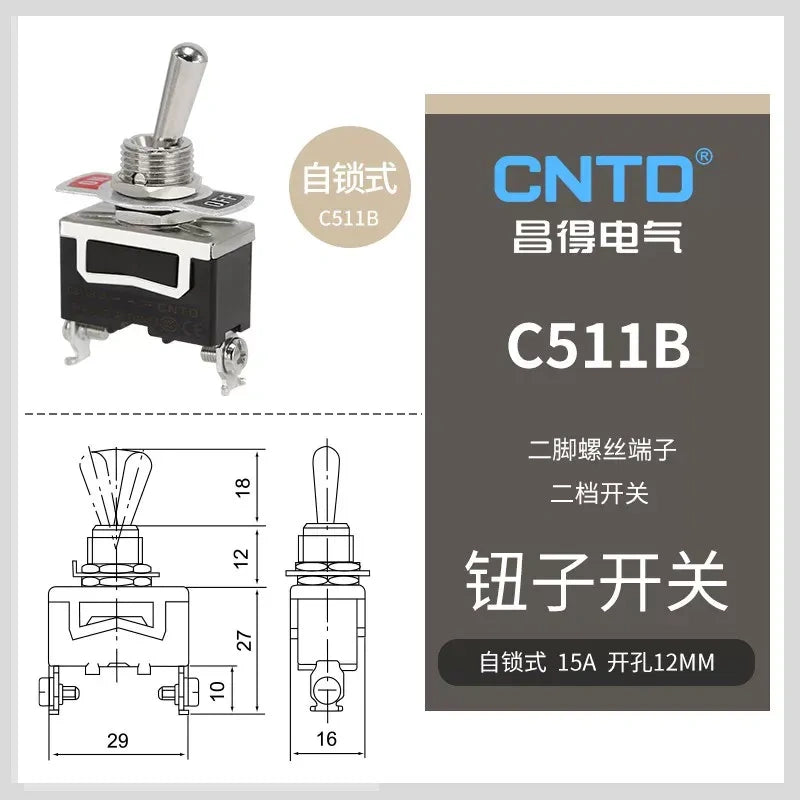

  • C511B SPST 2Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCERW terminal

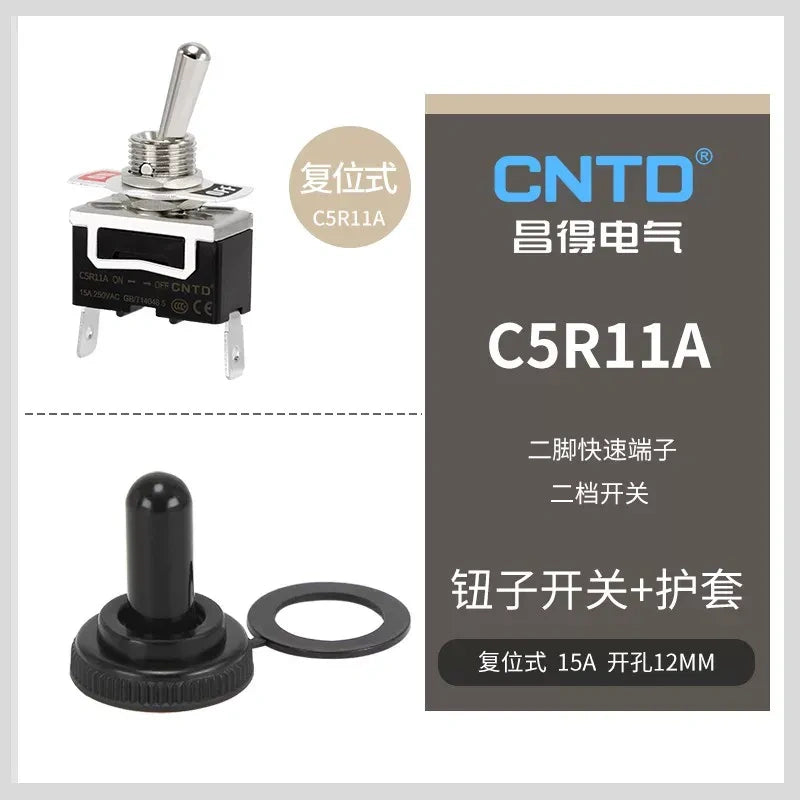

  • C5R11A SPST 2Pin 2Position Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal

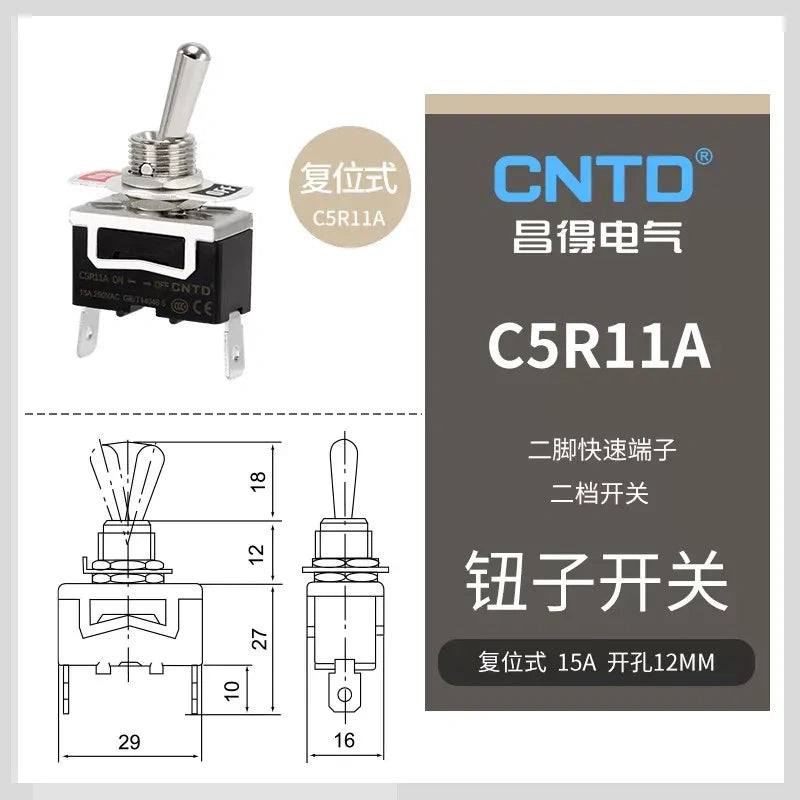

  • C5R11A SPST 2Pin 2Position Momentary Toggle Switch, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal
  • C5R11A SPST 2Pin 2Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal

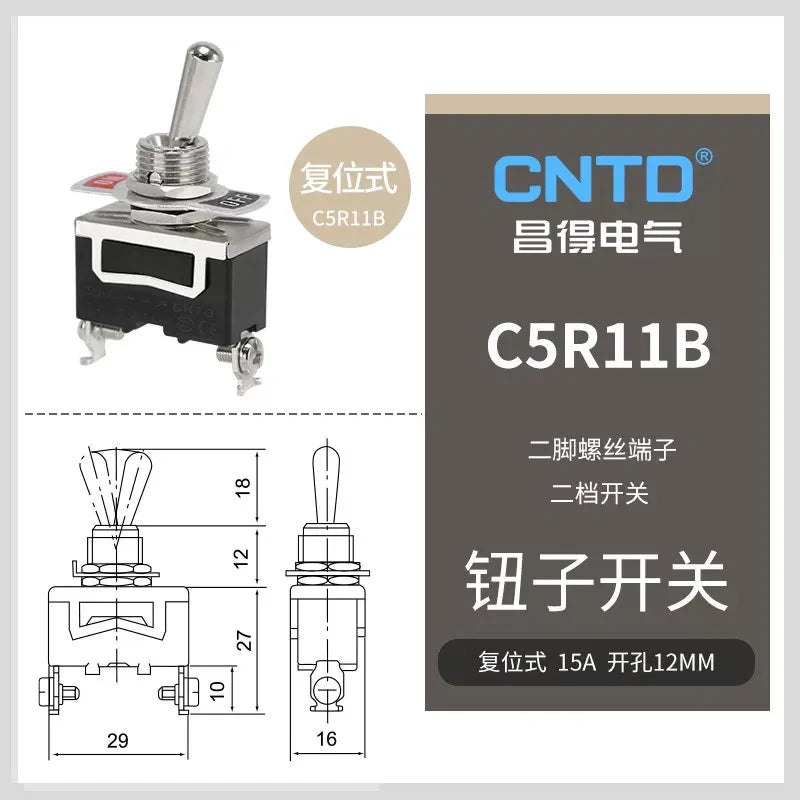

  • C5R11B SPST 2Pin 2Position Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

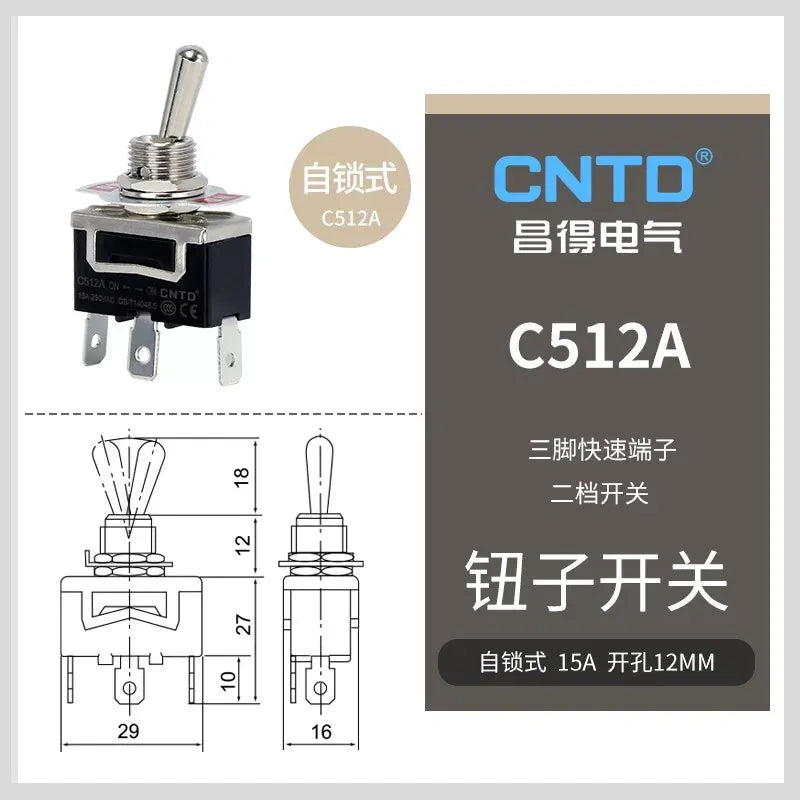

  • C512A SPDT 3Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal
  • C512A SPDT 3Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal

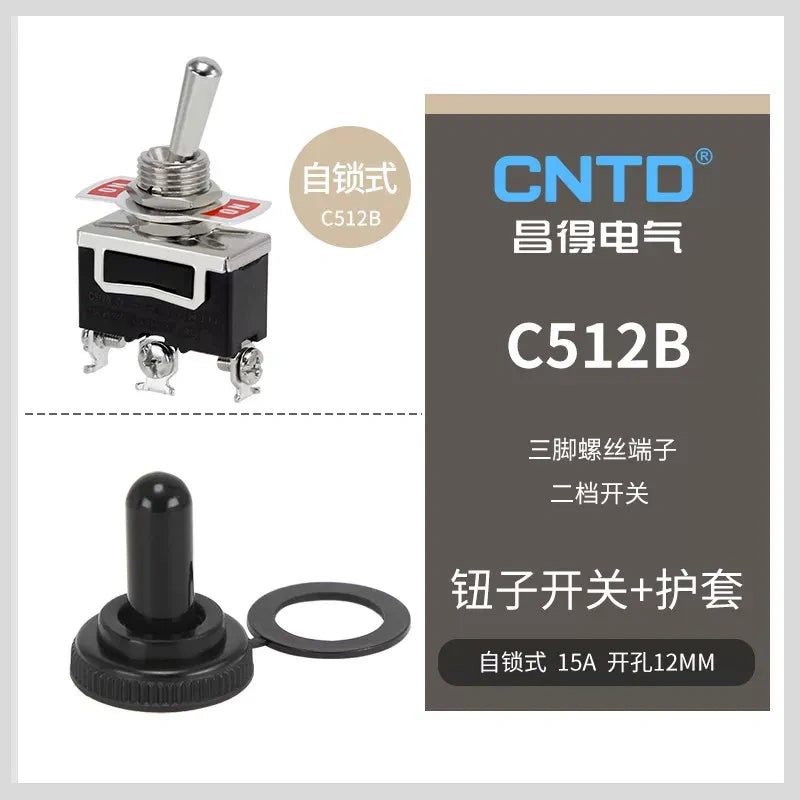

  • C512B SPDT 3Pin 2Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
  • C512B SPDT 3Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

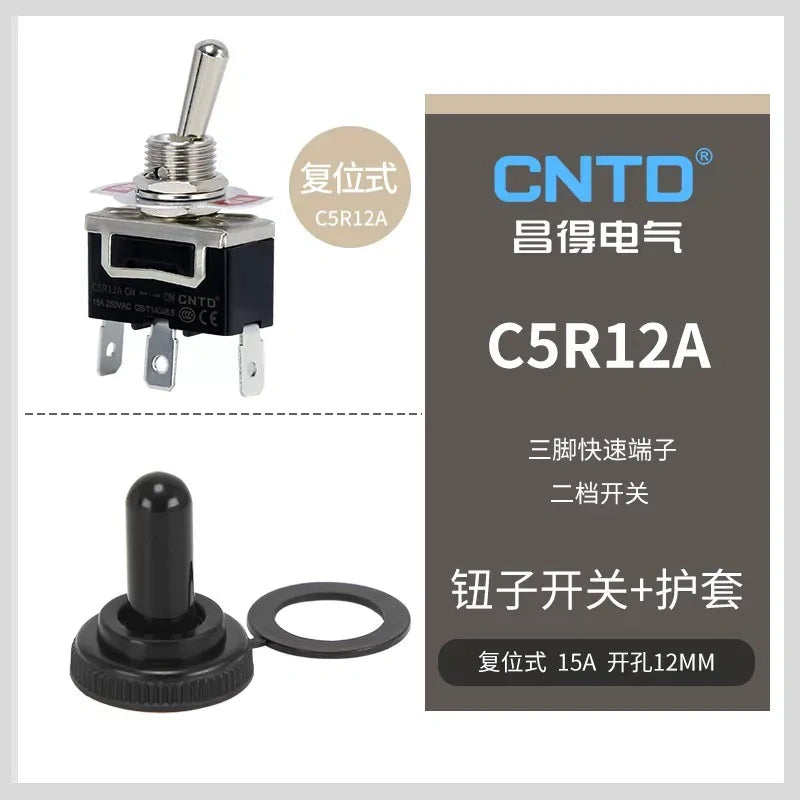

  • C5R12A SPDT 2Pin 2Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal

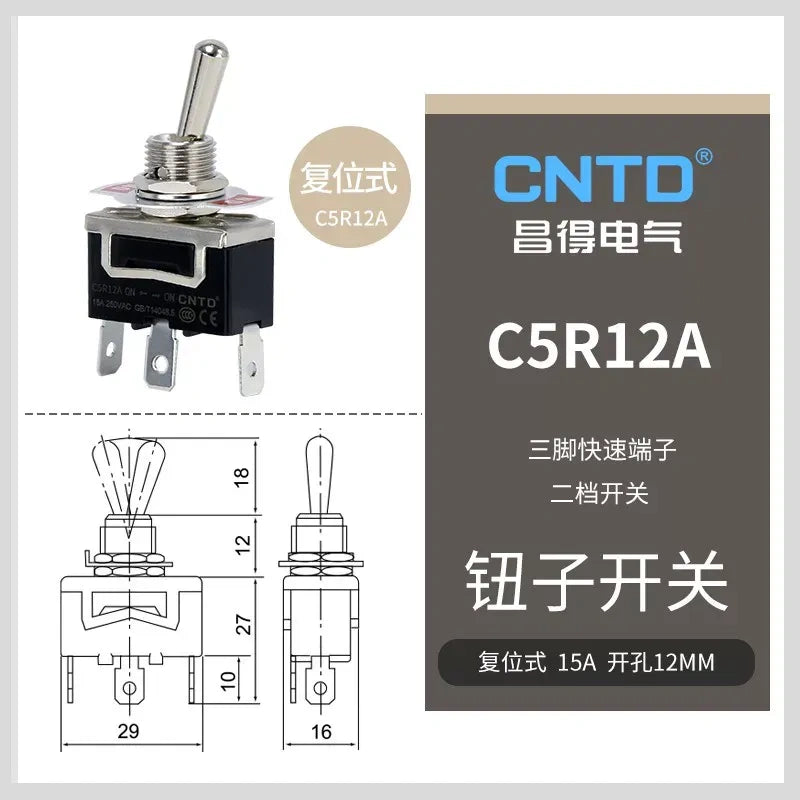

  • C5R12A SPDT 2Pin 2Position Momentary Toggle Switch, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal

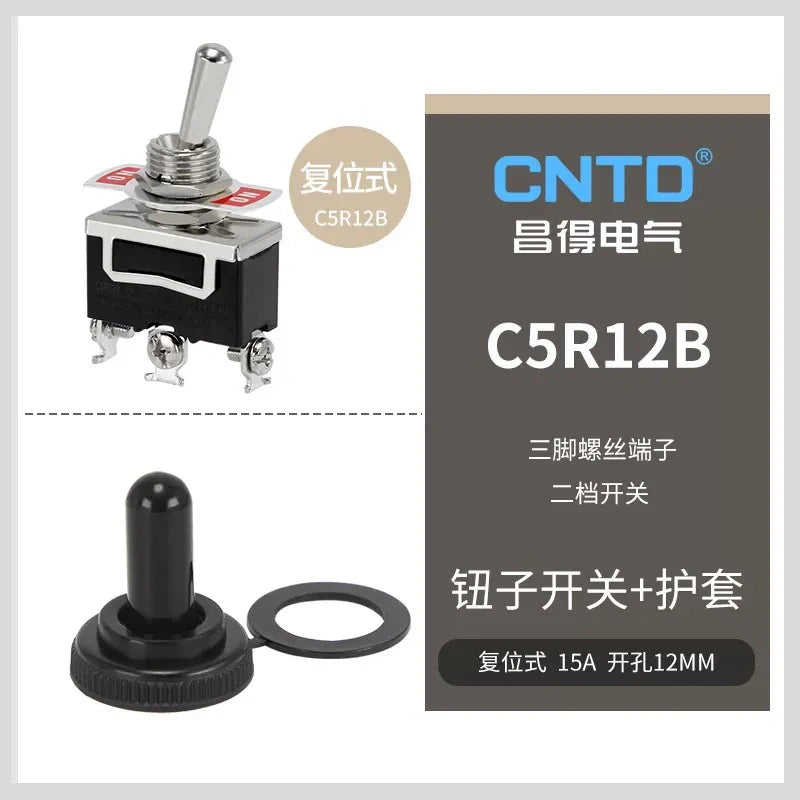

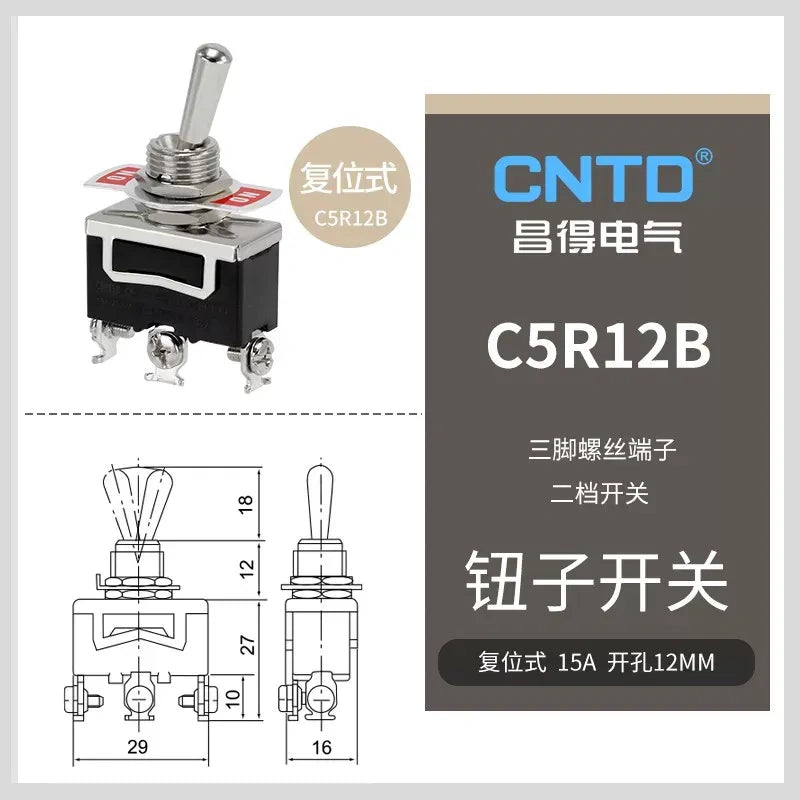

  • C5R12B SPDT 2Pin 2Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
  • C5R12B SPDT 2Pin 2Position Momentary Toggle Switch , 15A 250VAC 12mm Panel Mount toggle switch with quick terminal

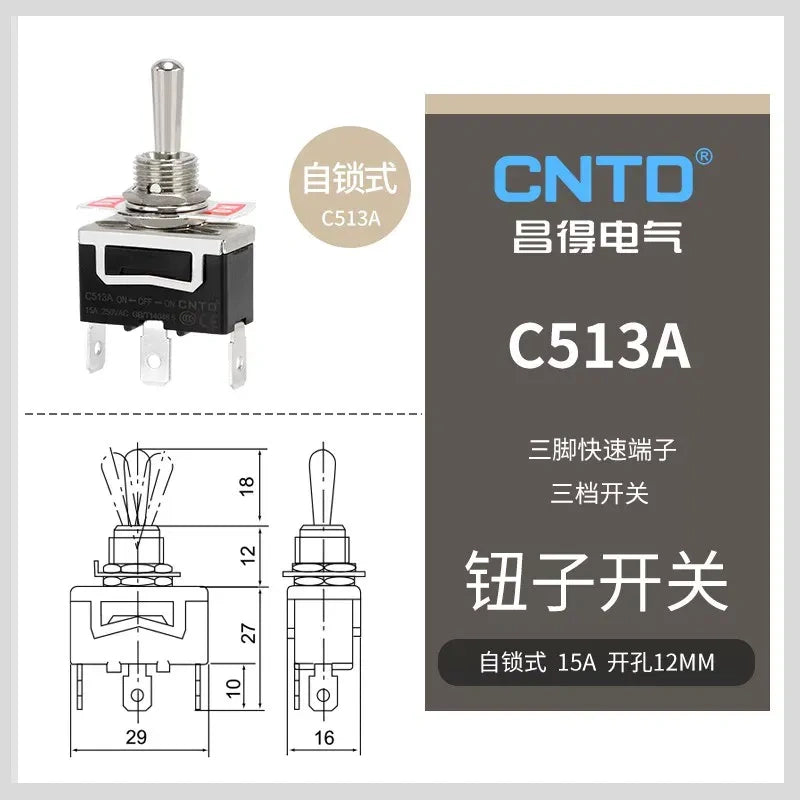

  • C513A SPDT 3Pin 3Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal
  • C513A SPDT 3Pin 3Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal

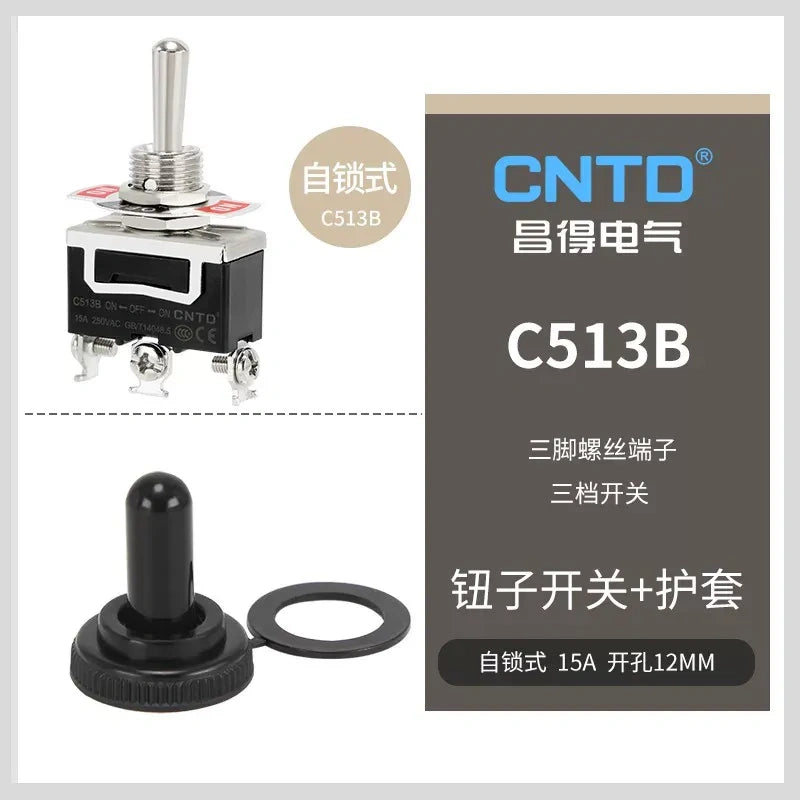

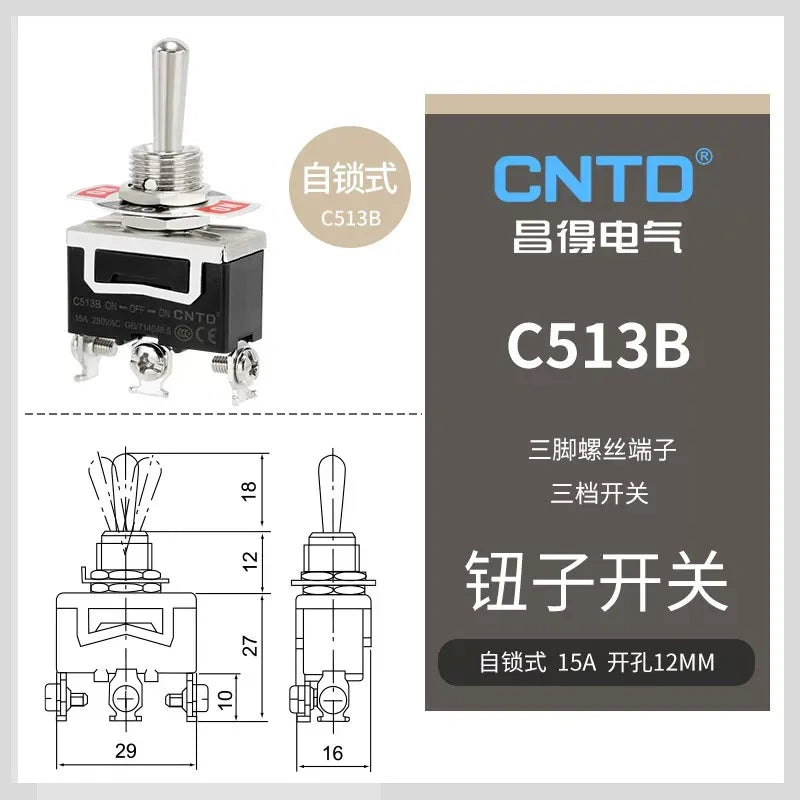

  • C513B SPDT 3Pin 3Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
  • C513B SPDT 3Pin 3Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

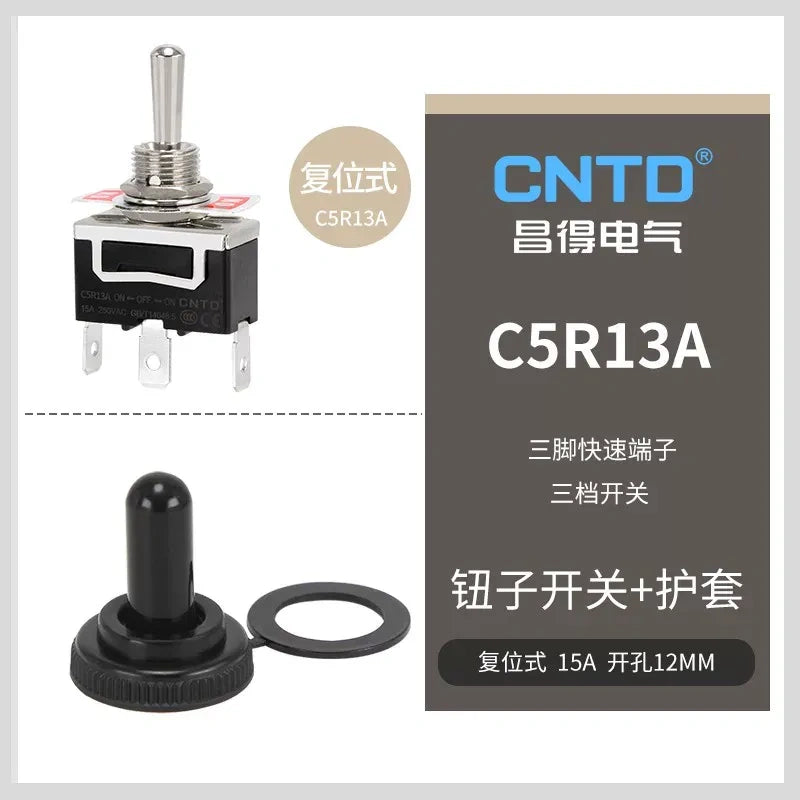

  • C5R13A SPDT 3Pin 3Position ON-OFF-ON Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal

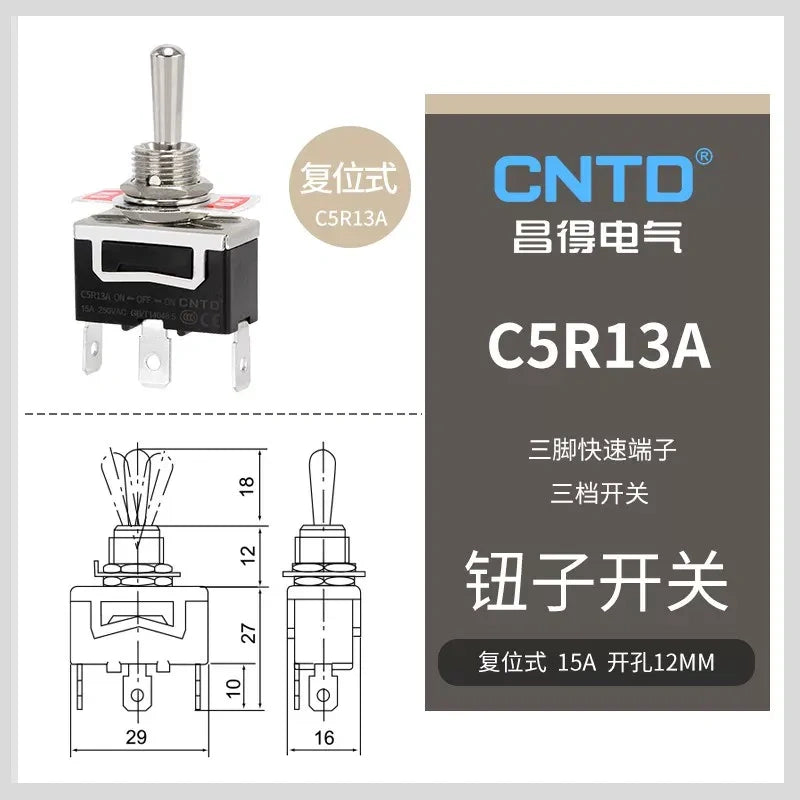

  • C5R13A SPDT 3Pin 3Position Momentary Toggle Switch , 15A 250VAC 12mm Panel Mount toggle switch with quick terminal
  • C5R13B SPDT 3Pin 3Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

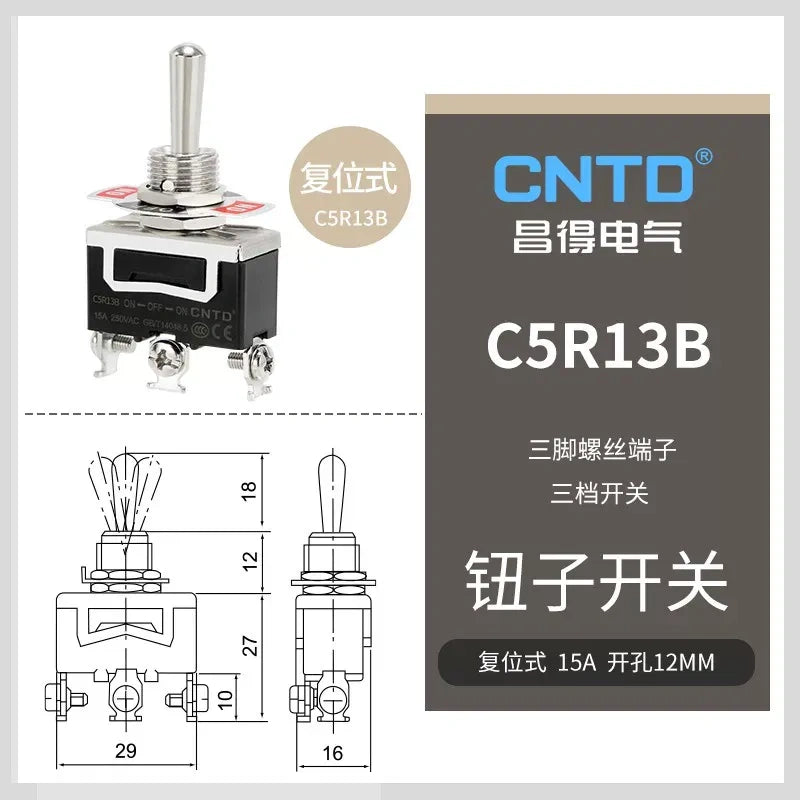

  • C5R13B SPDT DPin DPosition ON-OFF-ON Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

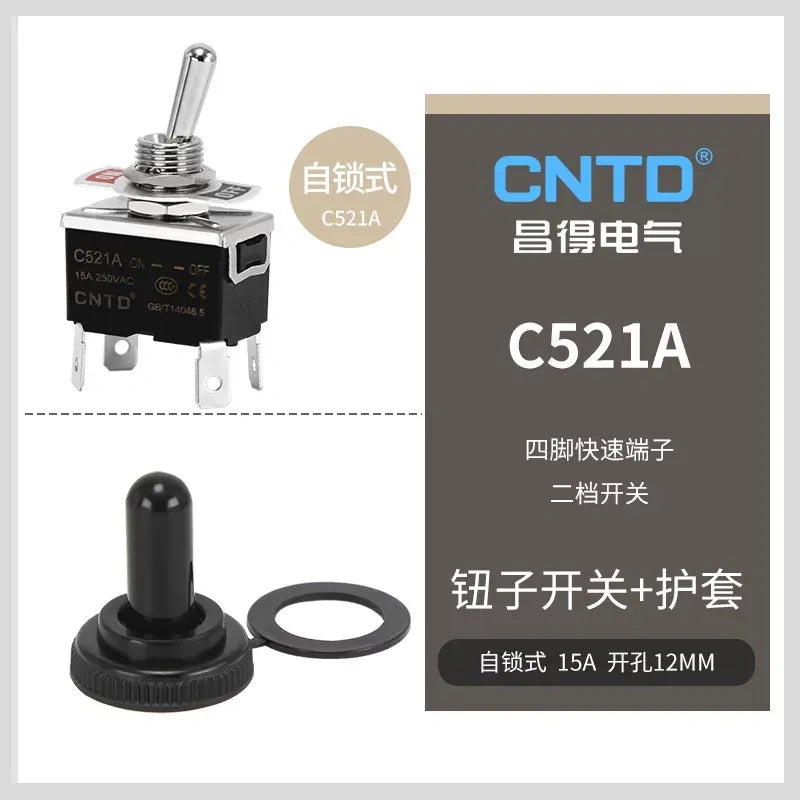

  • C521A DPST 4Pin 2Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal
  • C521A DPST 4Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal
  • C521B DPST 4Pin 2Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

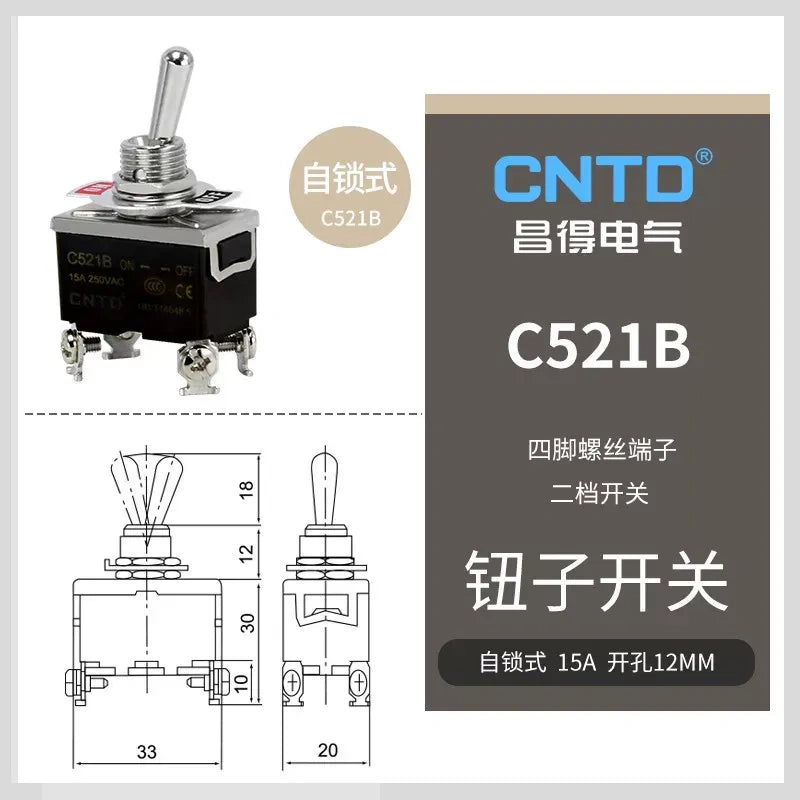

  • C521B DPST 4Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

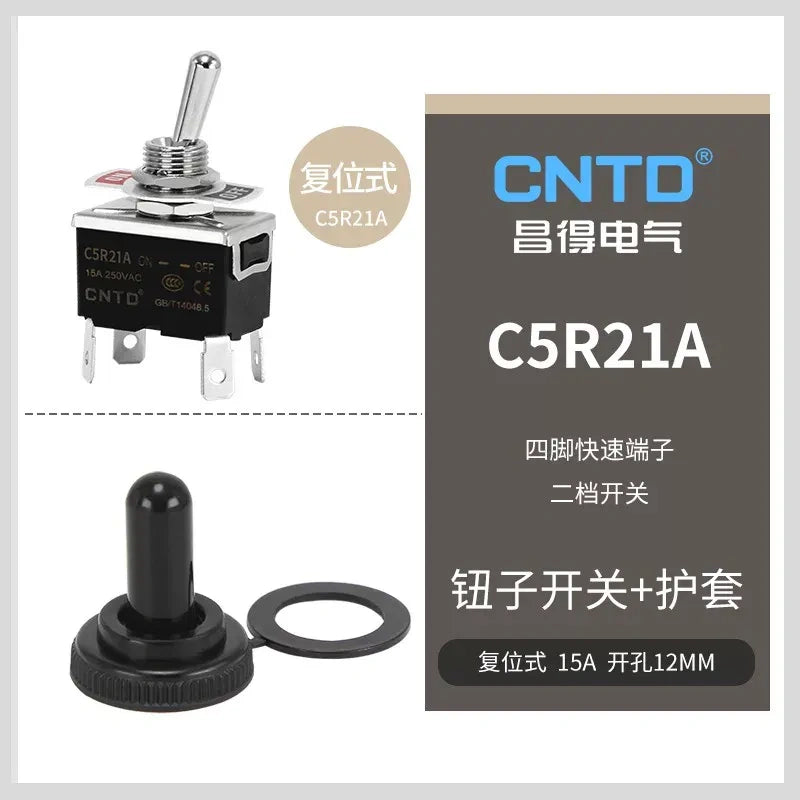

  • C5R21A DPST 4Pin 2Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal
  • C5R21A DPST 4Pin 2Position Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal

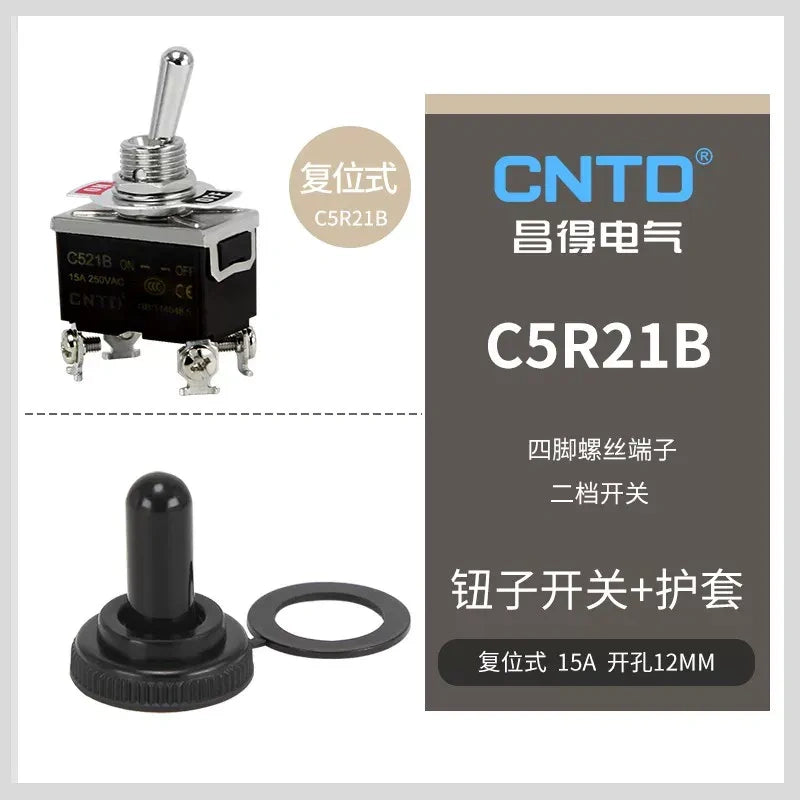

  • C5R21B DPST 4Pin 2Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
  • C5R21B DPST 4Pin 2Position Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

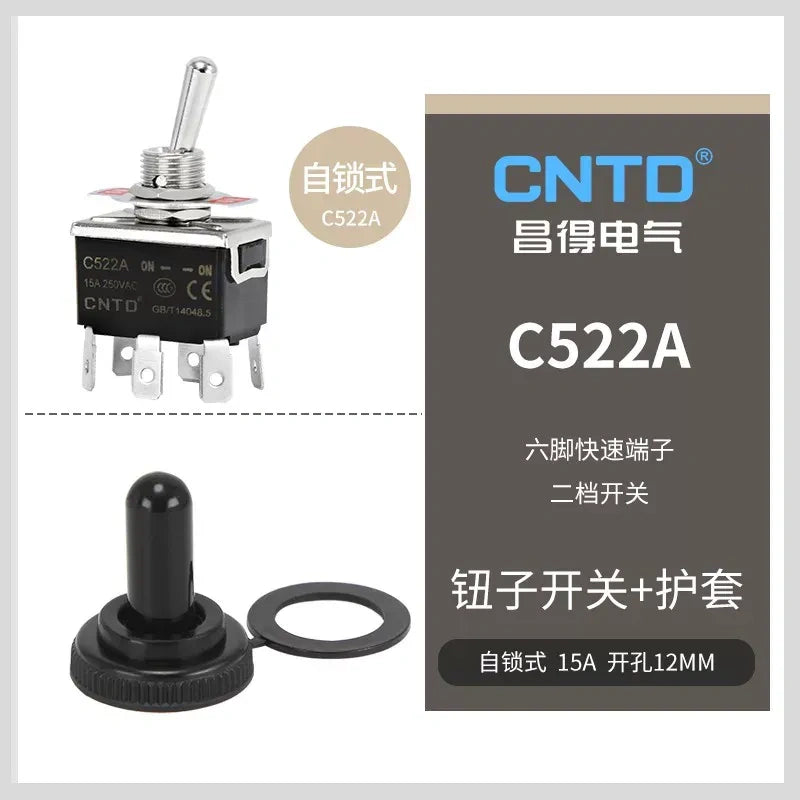

  • C522A DPDT 6Pin 2Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal
  • C522A DPDT 6Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal

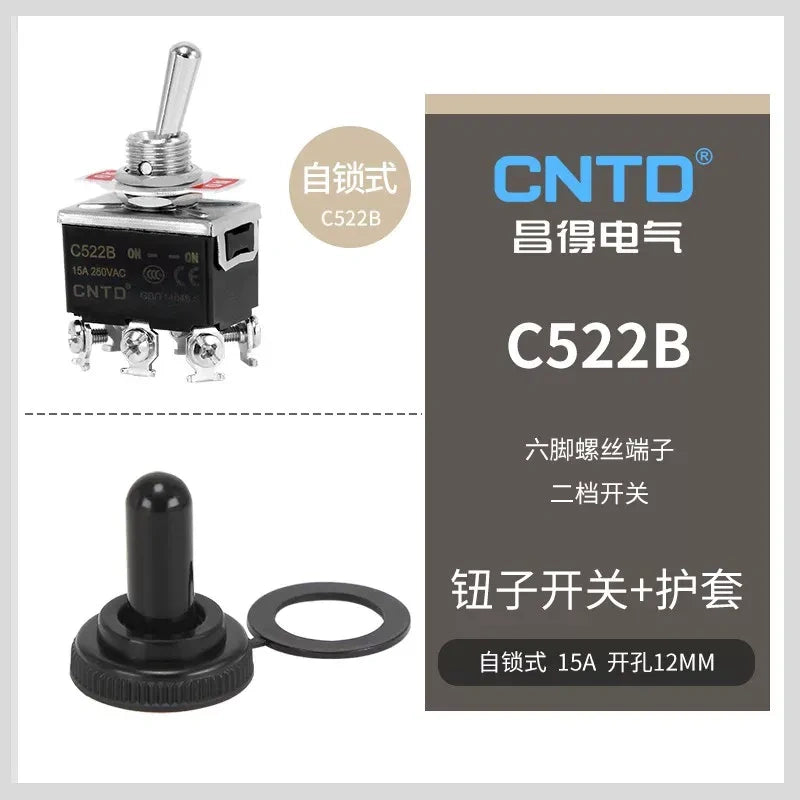

  • C522B DPDT 6Pin 2Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
  • C522B DPDT 6Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

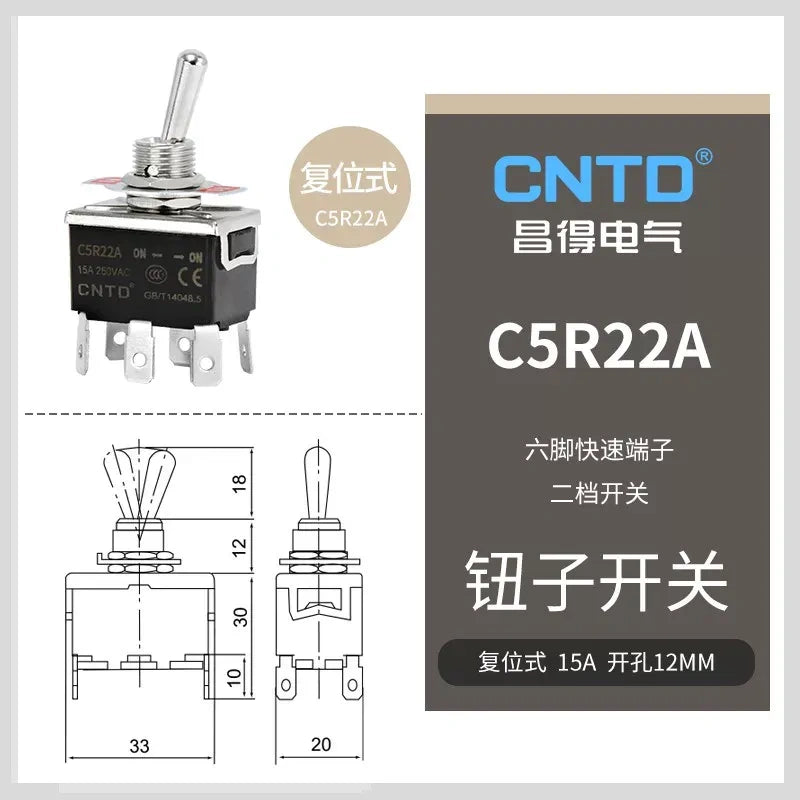

  • C5R22A DPDT 6Pin 2Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal
  • C5R22A DPDT 6Pin 2Position Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal

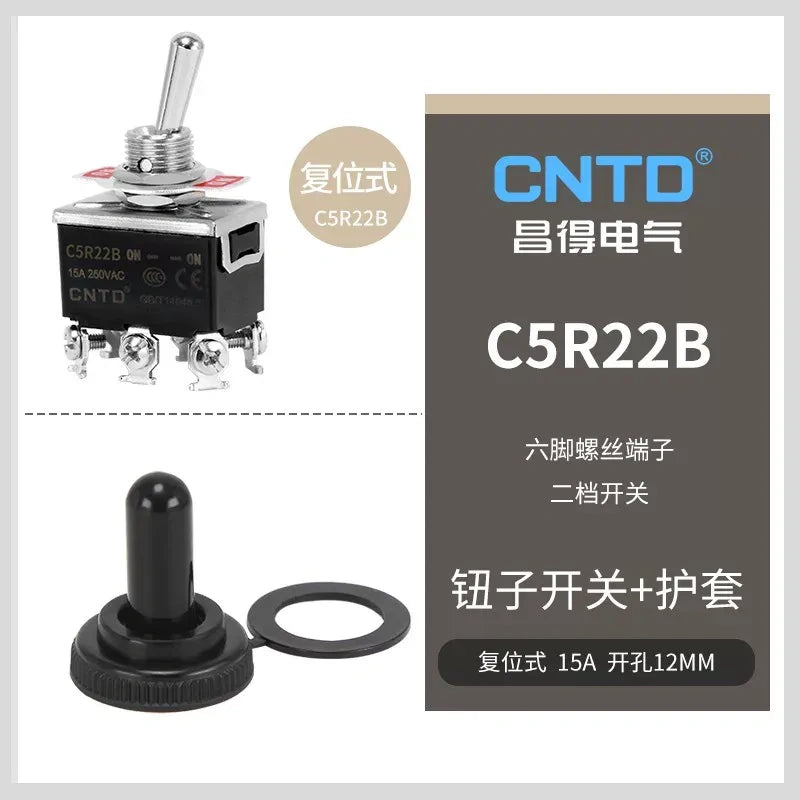

  • C5R22B DPDT 6Pin 2Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
  • C523A DPDT 6Pin 3Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal

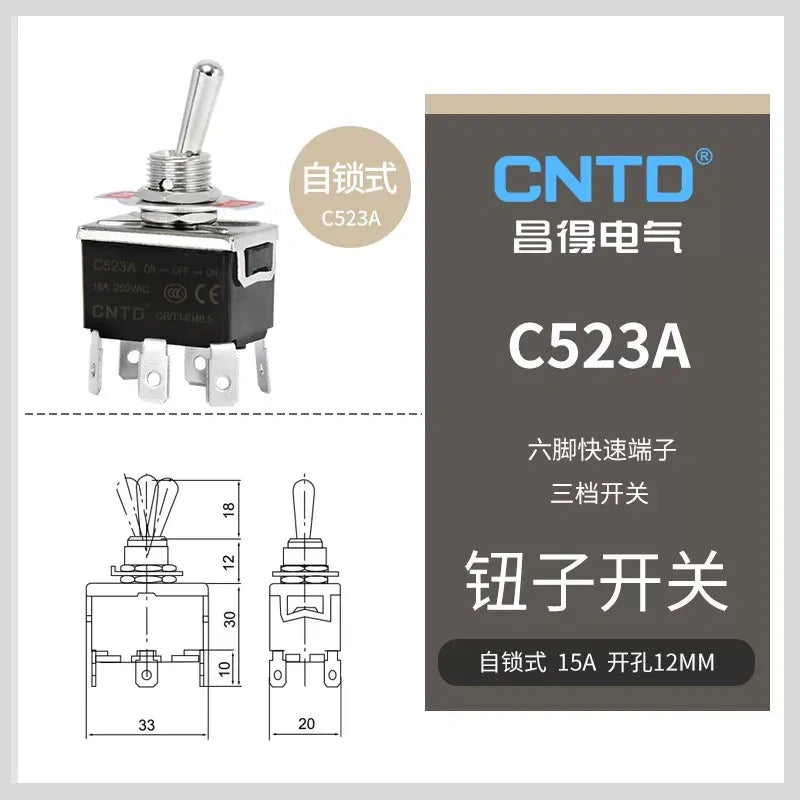

  • C523A DPDT 6Pin 3Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick pin terminal

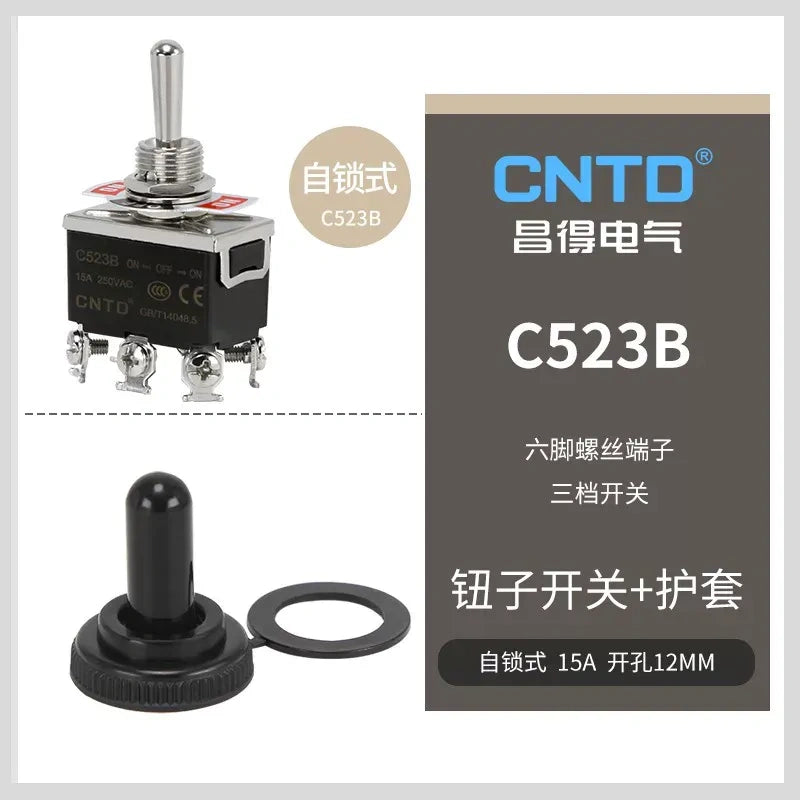

  • C523B DPDT 6Pin 3Position Latching Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
  • C523B DPDT 6Pin 3Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

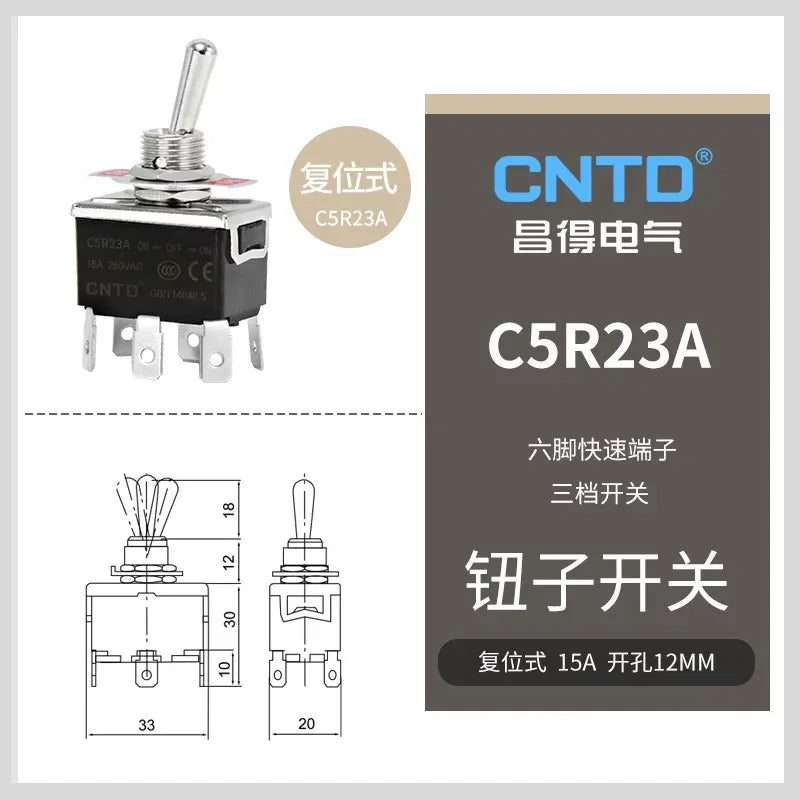

  • C5R23A DPDT 6Pin 3Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal
  • C5R23A DPDT 6Pin 3Position Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with quick terminal
  • C5R23B DPDT 6Pin 3Position Momentary Toggle Switch with protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
  • C5R23B DPDT 6Pin 3Position Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal

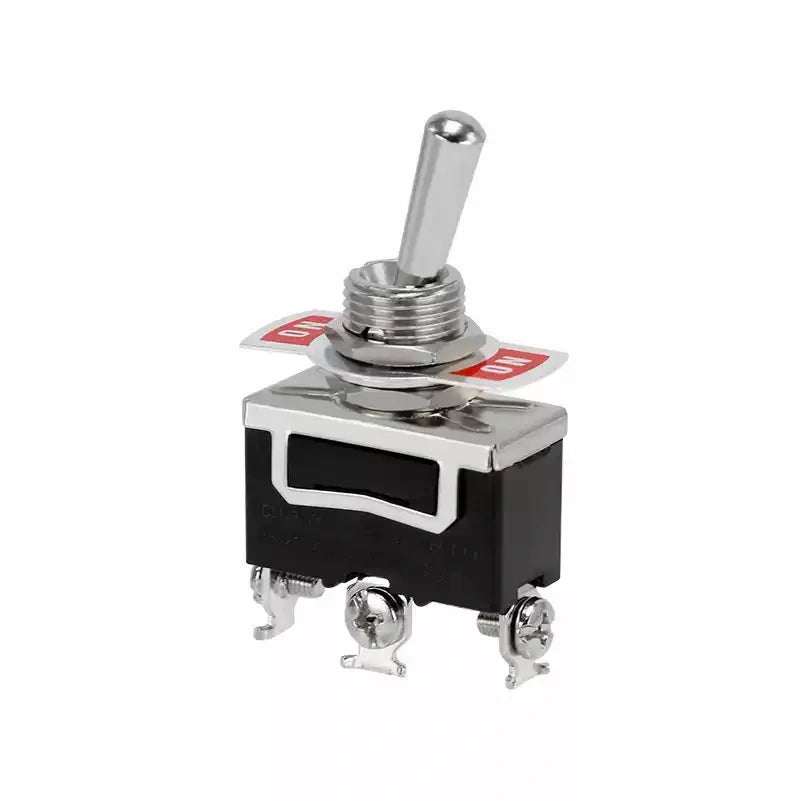

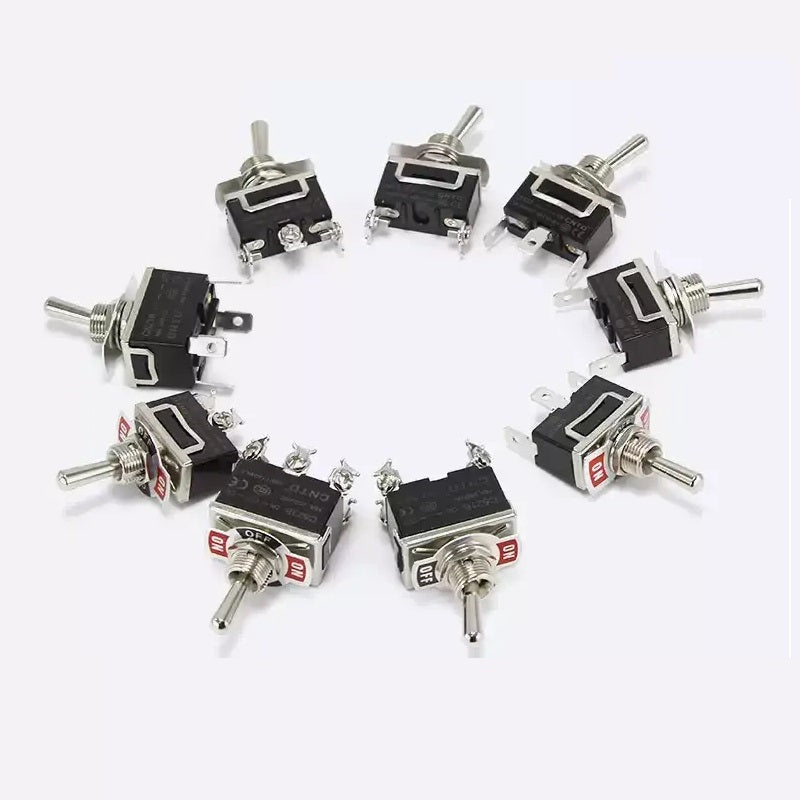

  • CNTD C5 Toggle Switch ,15A Toggle Switch ,SPDT Toggle Switch ,Momentary Toggle Switch, C522A ,C5R12A ,12mm Toggle Switch, On On Switch ,Latching Toggle Switch,
  • CNTD C5 Toggle Switch ,15A Toggle Switch ,SPDT Toggle Switch ,Momentary Toggle Switch, C522A ,C5R12A ,12mm Toggle Switch, On On Switch ,Latching Toggle Switch,
  • CNTD C5 Toggle Switch ,15A Toggle Switch ,SPDT Toggle Switch ,Momentary Toggle Switch, C522A ,C5R12A ,12mm Toggle Switch, On On Switch ,Latching Toggle Switch,
  • C522B DPDT 6Pin 2Position Momentary Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with screw terminal

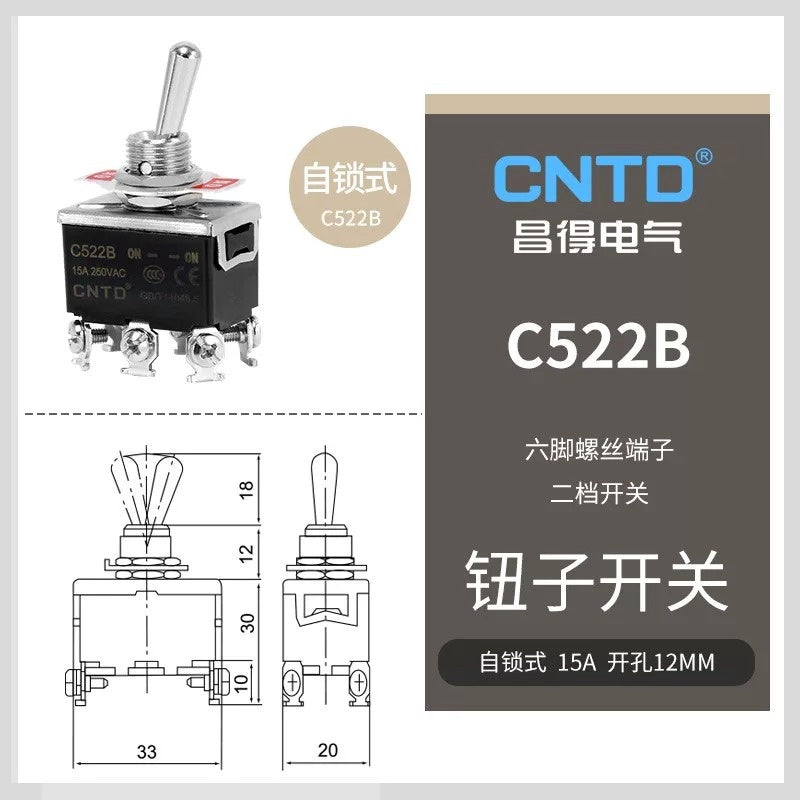

  • C522B DPDT 6Pin 2Position Latching Toggle Switch without protective boots, 15A 250VAC 12mm Panel Mount toggle switch with SCREW terminal
1 9

electrical center b2c

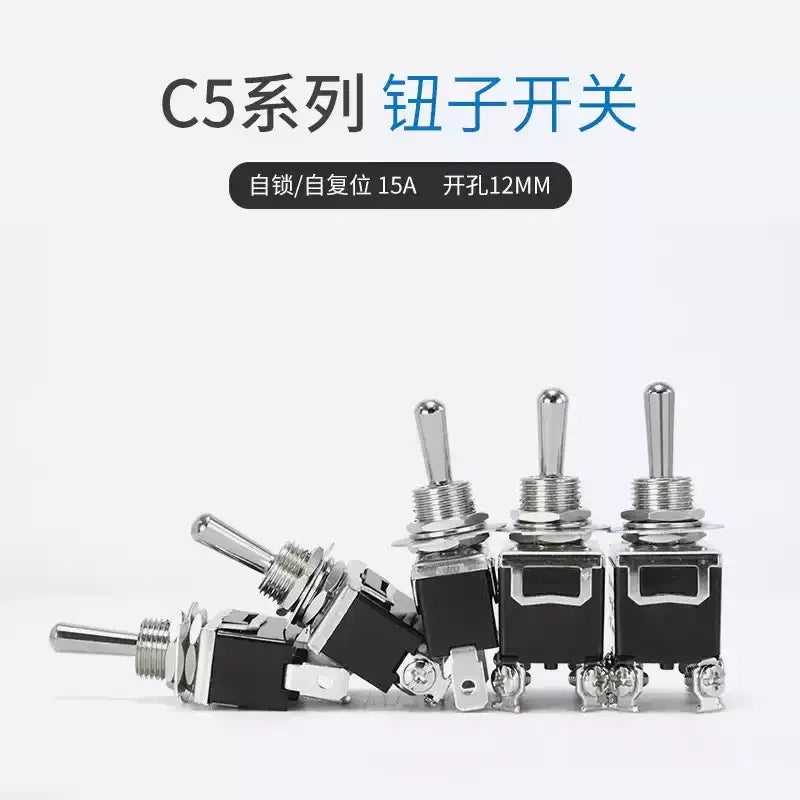

CNTD C5 Series Toggle Switch 15A 250VAC SPDT/DPDT SPST

$16.00 NZD
$16.00 NZD
Sale Sold out
Shipping calculated at checkout.
Model NO.
Switch Config.

CNTD C5 Series Toggle Switch C511A/C5R11A/C512A/C5R12A/C521A/C5R21A/C522A/C5R22A, 15A 250VAC SPDT/DPDT SPST On-On/On-Momentary Rocker Switch with 12mm Mounting Hole

Product Description

Original CNTD C5 series toggle switches, including popular models C511A, C5R11A, C512A, C5R12A, C521A, C5R21A, C522A, C5R22A, and more. These switches are available in two-position (On-On) and three-position configurations, with both self-locking (latching) and self-resetting (momentary) versions. Rated at 15A 250VAC, they feature silver alloy contacts for reliable conductivity, with an initial contact resistance ≤15mΩ and insulation resistance ≥100MΩ. The standard 12mm mounting hole fits most control panels, and optional protective boots are available for enhanced durability. Widely used in industrial control panels, automotive equipment, electronic appliances, and DIY projects for circuit switching.

Specification

Attribute Parameter Details
Brand CNTD (昌得)
Model Series C511A/C5R11A/C512A/C5R12A/C513A/C5R13A/C521A/C5R21A/C522A/C5R22A/C523A/C5R23A (with/without protective boots)
Configuration SPST/SPDT/DPDT, 2-position (On-On) or 3-position
Action Type Self-locking (latching) / Self-resetting (momentary)
Rated Load 15A / 250VAC
Contact Resistance ≤15mΩ (initial)
Insulation Resistance ≥100MΩ (at 500VDC)
Mounting Hole Φ12mm standard
Operating Temperature -20°C ~ +70°C (no freezing)
Humidity Rating ≤85% RH
Features Optional protective boot, durable construction, reliable silver contacts
Application Control panels, automotive equipment, electronic appliances, DIY projects, industrial machinery
