CHS-15BY 2-Phase 4-Wire DC 5V Stepper Motor
Regular price
$31.00 NZD
Regular price
Sale price
$31.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

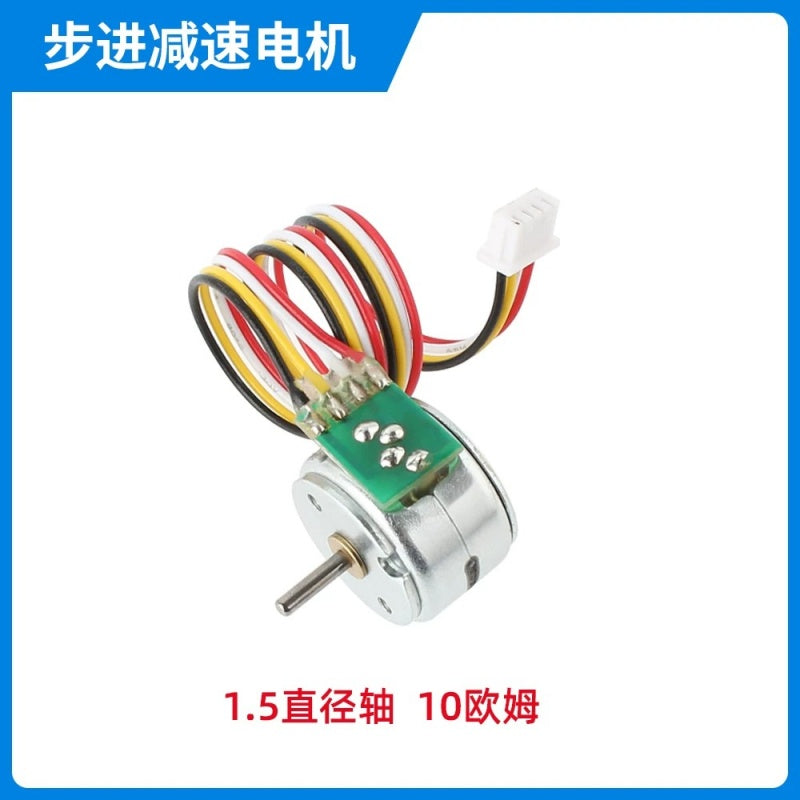

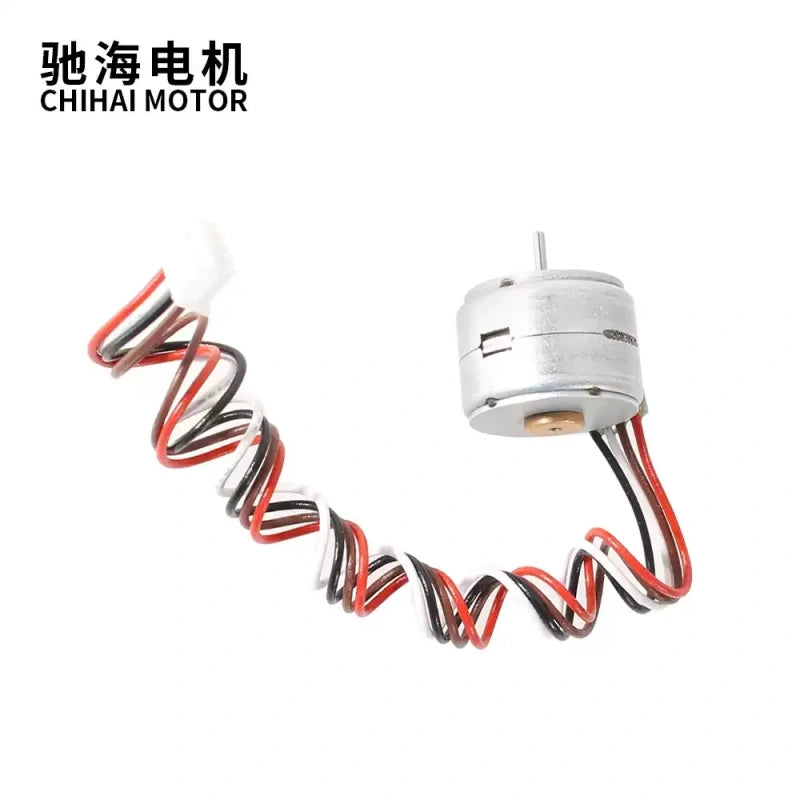

A 款版：CHS-15BY 10Ω 1.5mm Shaft Stepper Motor, 5V DC, 2-Phase 4-Wire

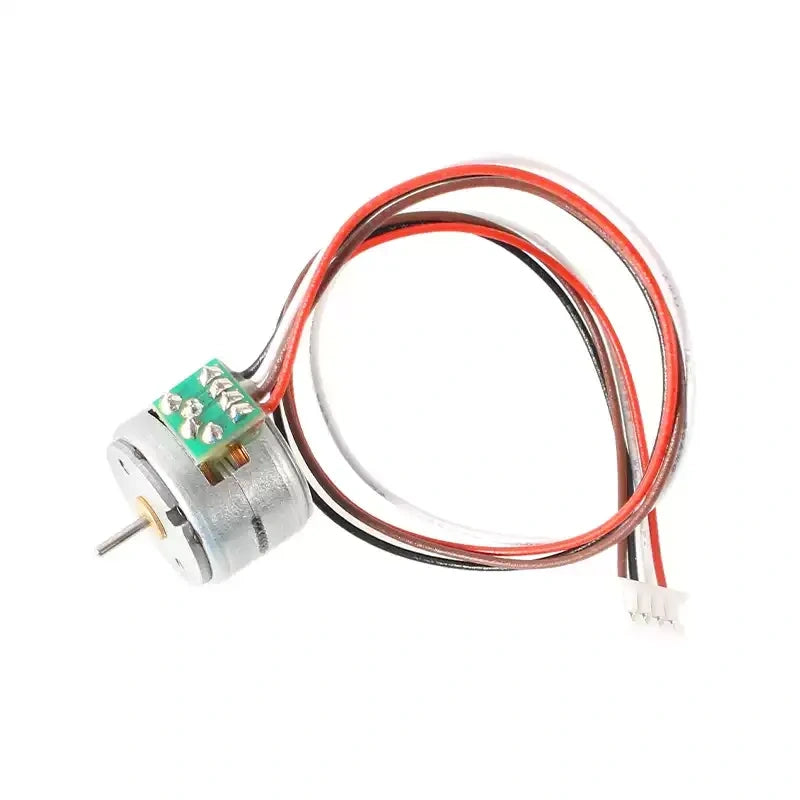

B 款版：CHS-15BY 30Ω 1mm Shaft Stepper Motor, 5V DC, for Camera PTZ

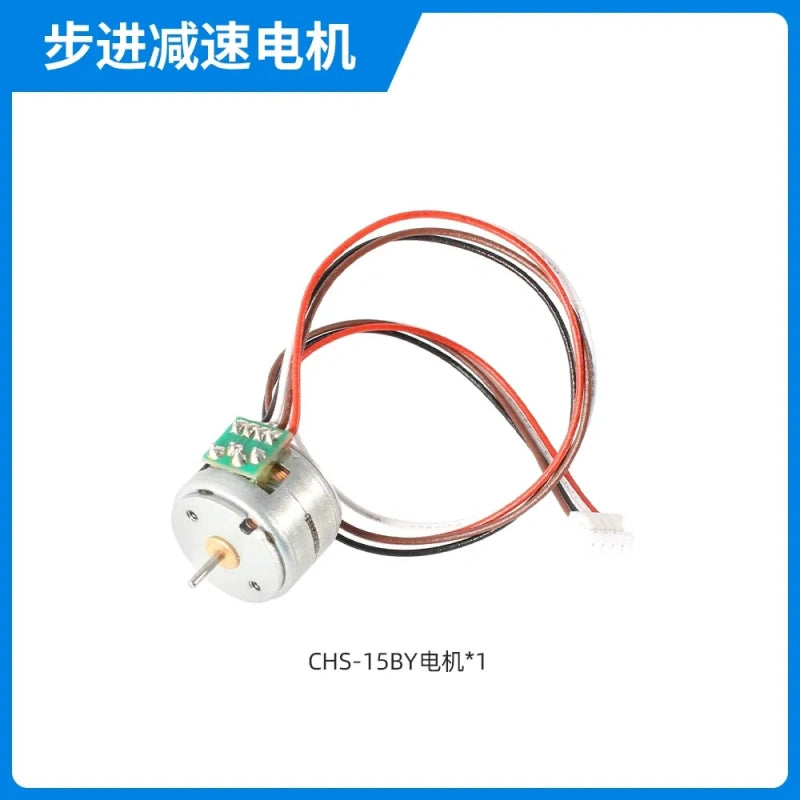

Product Overview
The CHS-15BY permanent magnet DC stepper motor is a compact, low-power 2-phase 4-wire motor designed for precision motion control in small applications. With two variants (A/B) offering different shaft sizes and resistance levels, it’s ideal for camera pan-tilt heads, smart home devices, and miniature robotics projects.

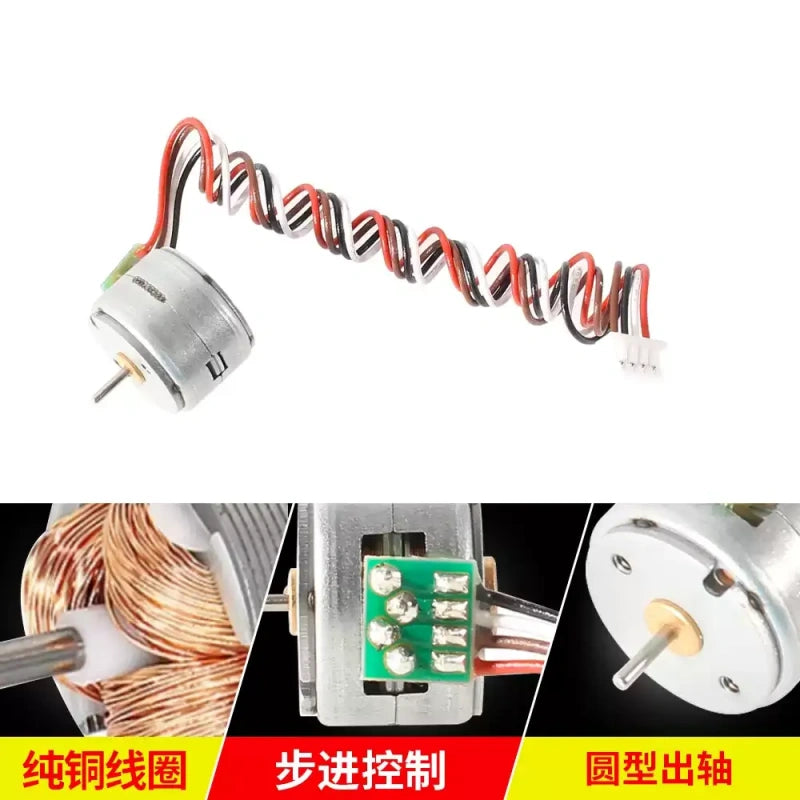

Key Features
- Dual Variants: Choose between A (1.5mm shaft, 10Ω) and B (1mm shaft, 30Ω) versions to match your project requirements.
- Low Voltage Operation: Rated for DC 5V use, with compatibility down to 3.7V (B variant) for flexible power options.
- Precision Stepper Control: 2-phase bipolar drive with a 18° step angle, compatible with common stepper drivers (e.g., L6219).
- Compact & Lightweight: Only 10g, with a small form factor perfect for space-constrained applications.
- Optimized for PTZ Use: Designed for camera pan-tilt heads, offering smooth, low-speed motion control.
Specifications (CHS-15BY)
- Model: CHS-15BY
- Brand: ChiHai Motor
- Rated Voltage: DC 5V (supports 3.7-12V, depending on variant)
- Motor Type: 2-Phase 4-Wire Bipolar Stepper Motor
- Step Angle: 18°/Step (B variant)
- Variants:
- A: 1.5mm shaft, 10Ω ±10% resistance, 12g·cm pull-out torque at 1000Hz
- B: 1mm shaft, 31±7%Ω resistance, 8gf·cm pull-out torque at 500pps
- Shaft Length: 5.3mm
- Weight: Approx. 10g
- Operating Temperature: -20 ~ +85℃ (B variant)
Applications
Perfect for smart robots, robotic arms, smart furniture, camera focus systems, miniature pan-tilt heads, and other small automation projects requiring precise, low-power motion control.
Important Notes: For continuous operation, monitor motor temperature and implement cooling measures if overheating occurs.
DATA SHEET
| Attribute | Value |
|---|---|
| Product Type | Permanent Magnet DC Stepper Motor |
| Model | CHS-15BY |
| Brand | ChiHai Motor |
| Rated Voltage | DC 5V |
| Motor Type | 2-Phase 4-Wire Bipolar Stepper Motor |
| Variants | A (1.5mm/10Ω), B (1mm/30Ω) |
| Step Angle | 18°/Step (B variant) |
| Output Shaft | 1.0mm/1.5mm round shaft, 5.3mm length |
| Weight | Approx. 10g |
| Applications | Camera PTZ Heads, Smart Furniture, Miniature Robotics |
Motor Dimension
A Type Dimension & Wiring
B Type Dimension & Wiring
