CHR-SP20-190 Mini DC Linear Actuator Motor, 6V/12V

Name: CHR-SP20-190 Mini DC Linear Actuator Motor, 6V/12V
Brand: electrical center b2c
SKU: only Motor linear actuator
Price: 48.0 NZD
Availability: InStock

$48.00 NZD

Sale Sold out

Shipping calculated at checkout.

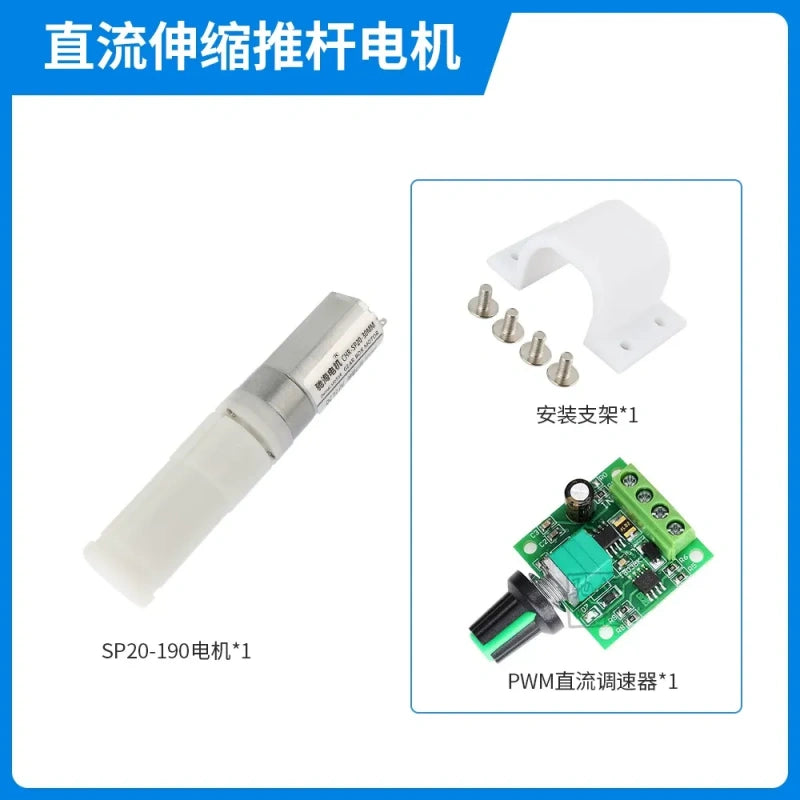

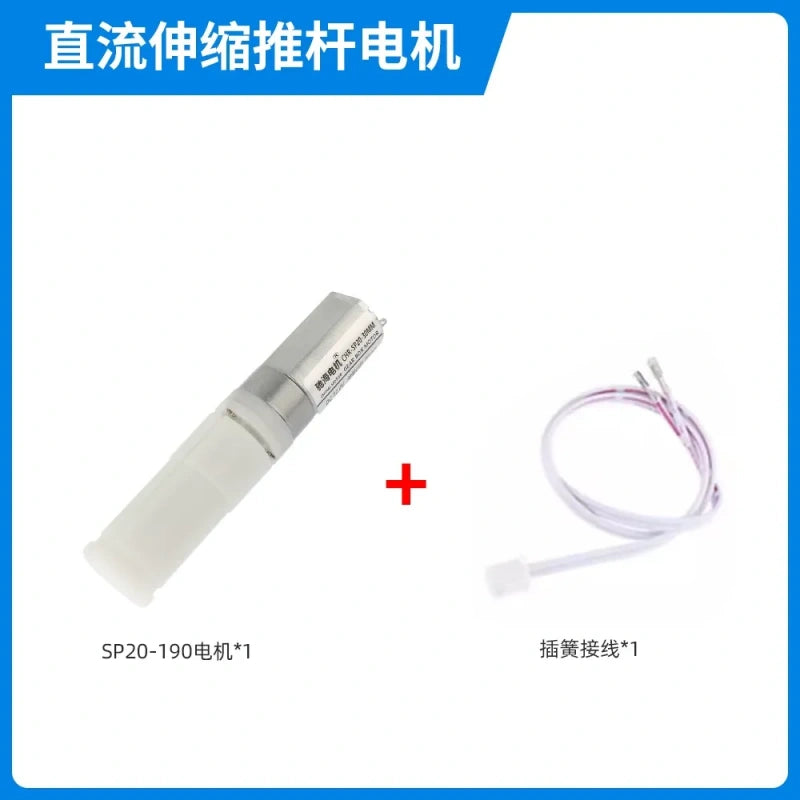

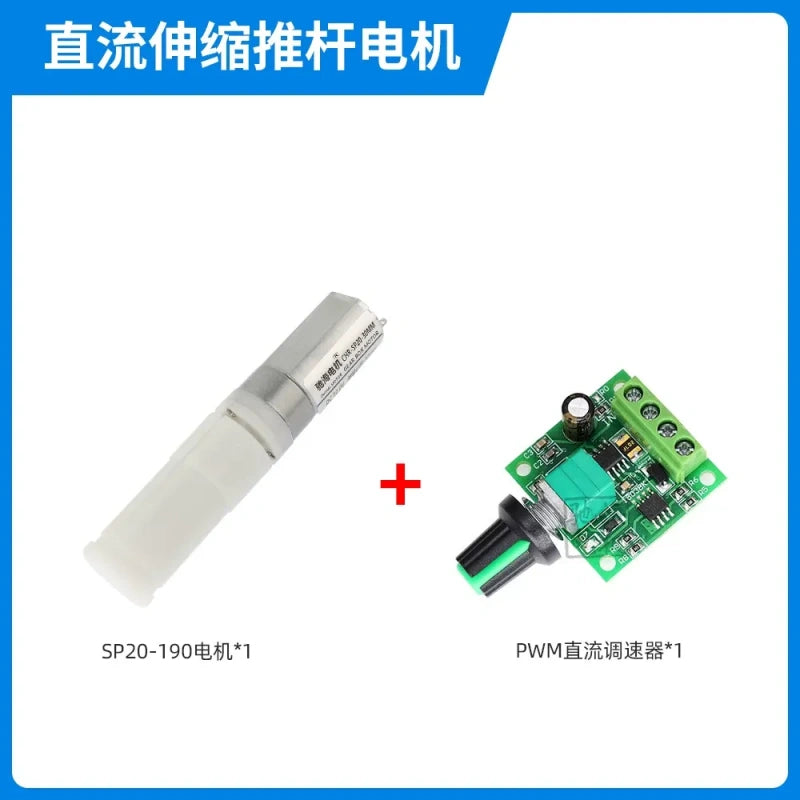

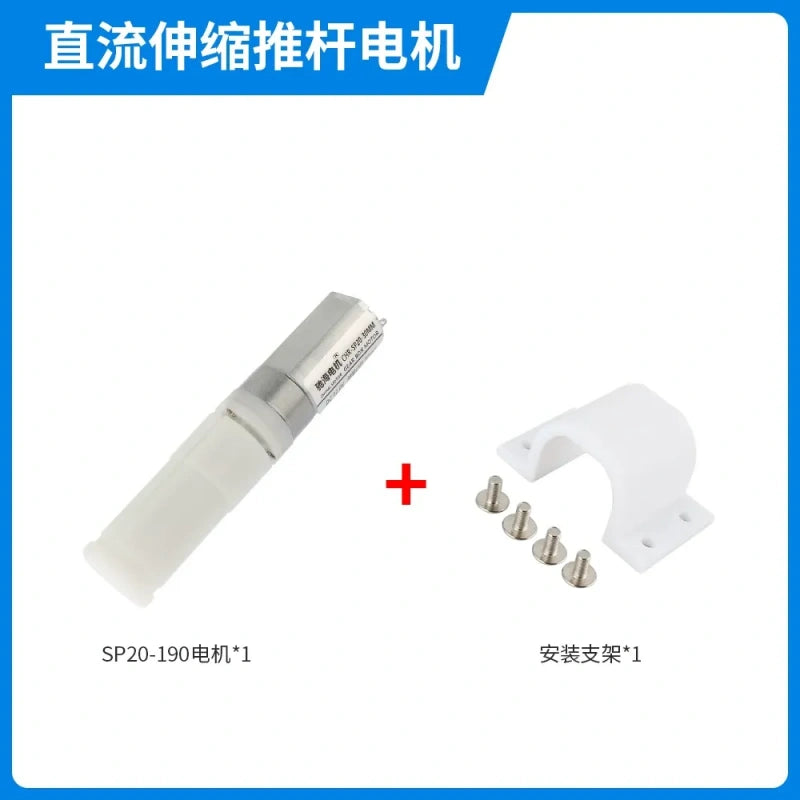

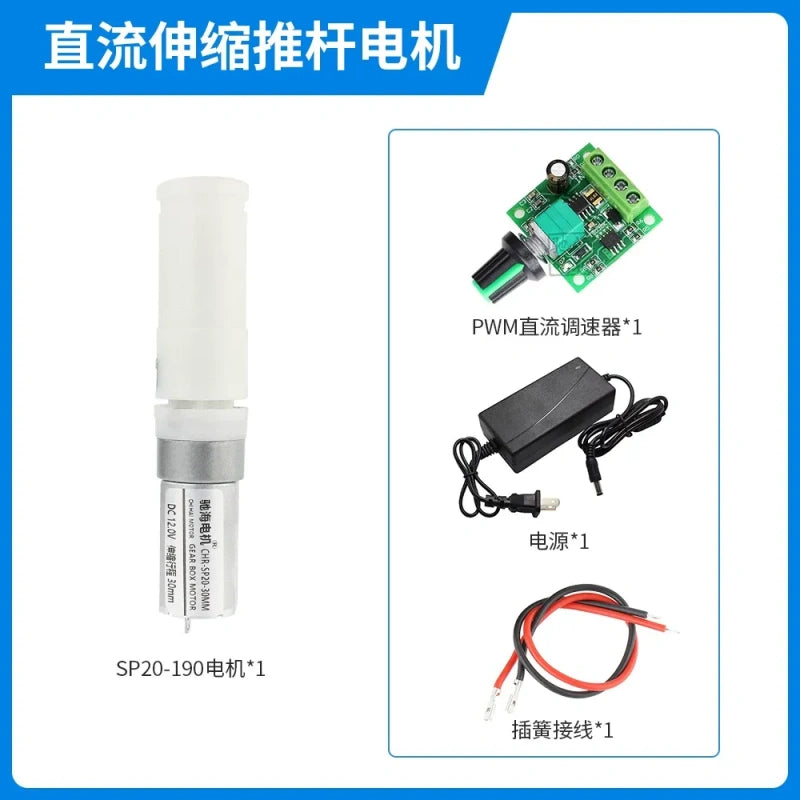

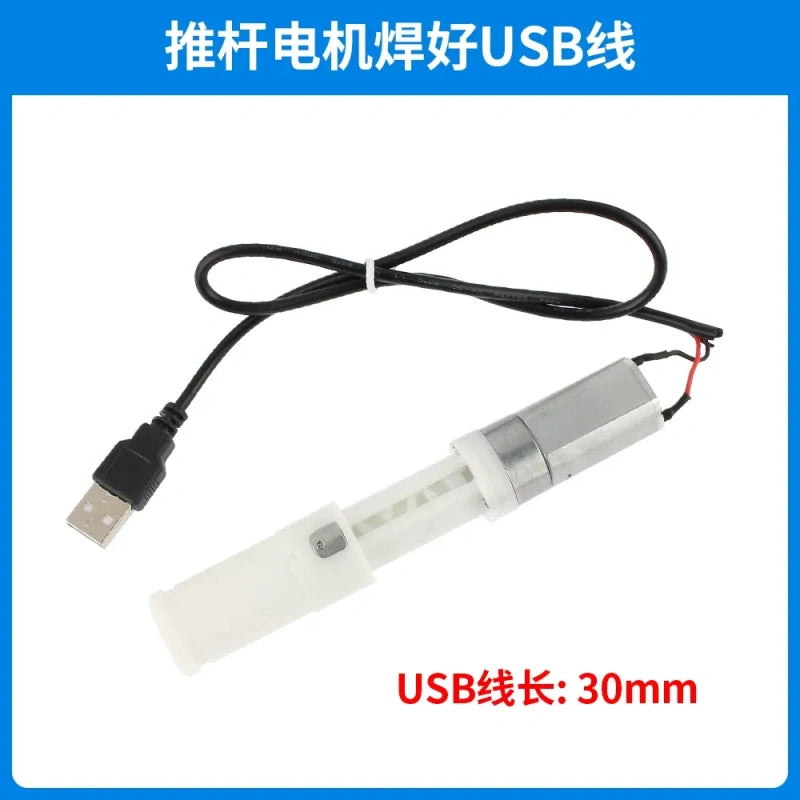

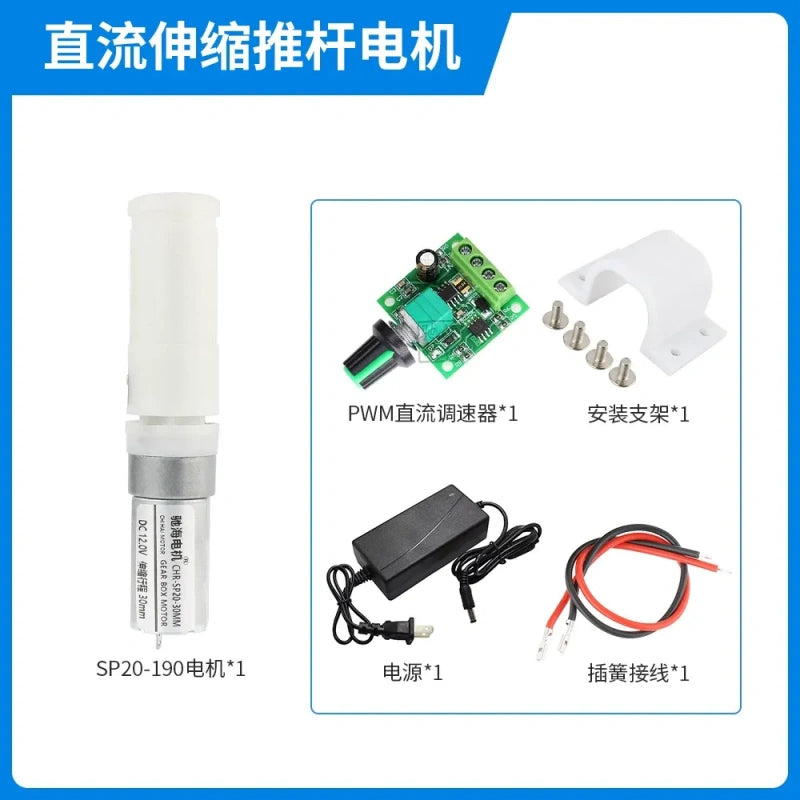

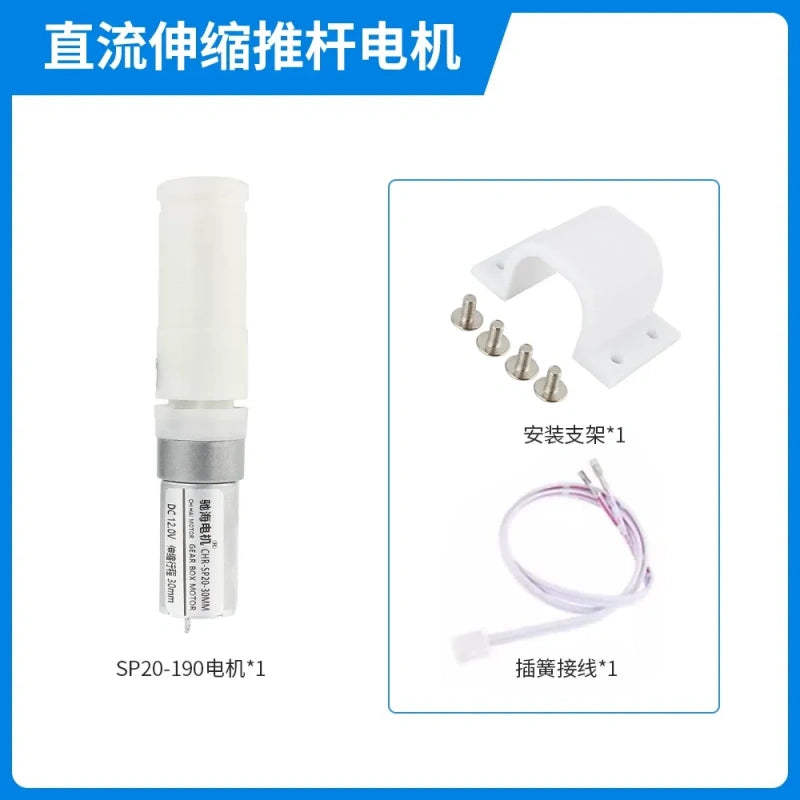

Motor Config. only Motor Motor+Female Terminal Wire Motor+Mounting Bracket Motor+USB Wire Motor+Bracket+Female Wire Motor+Speed Controller Motor+Speed Controller+Bracket Motor+Speed Controller+Power Adapter+Female Wire Motor+Speed Controller+Power Adapter+Female Wire+Bracket

Product variants

Quantity

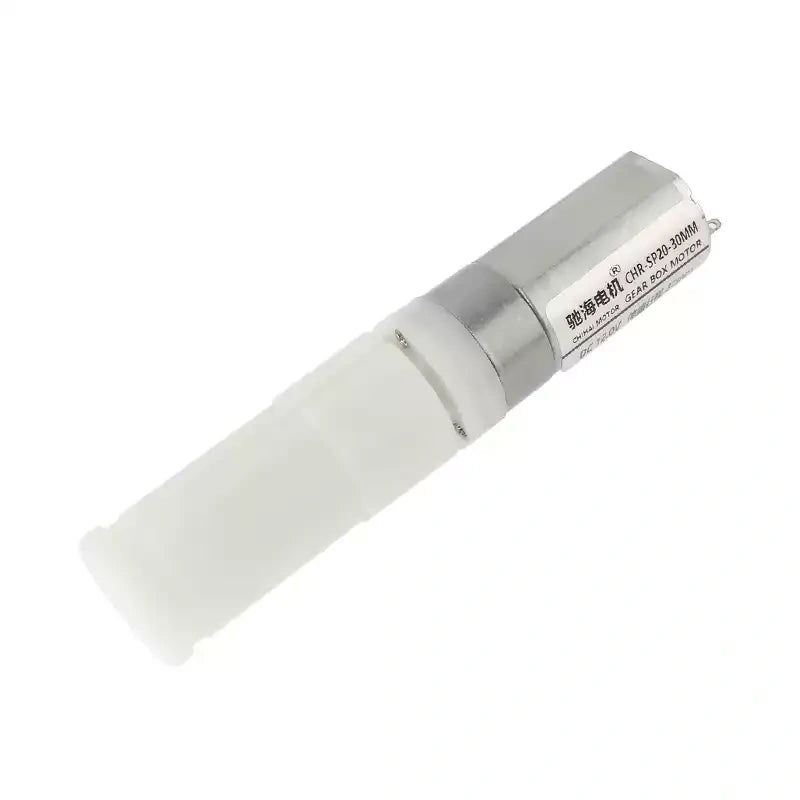

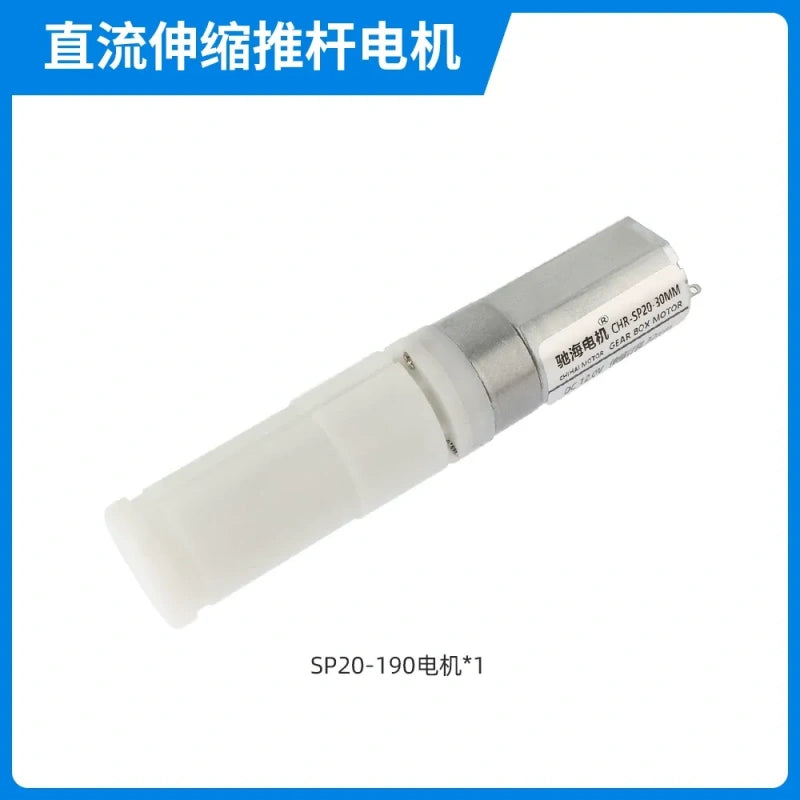

CHR-SP20-190 Micro DC Telescopic Push Rod Motor, 6V/12V, 5000/10000 RPM, 12N/9N Thrust, Gear Reduction Linear Actuator for Automation Projects

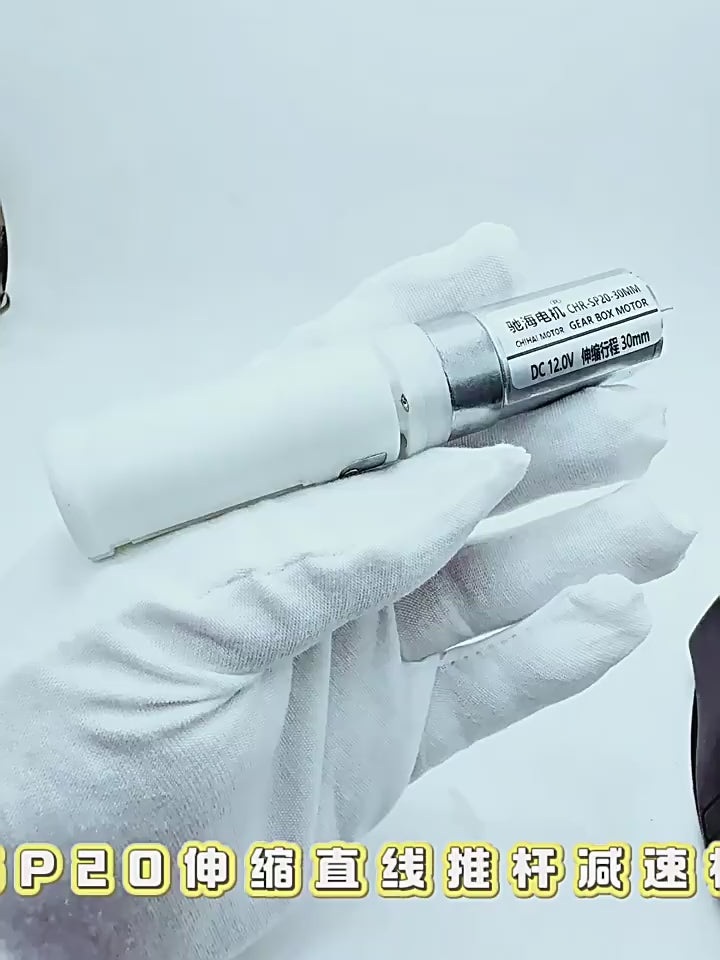

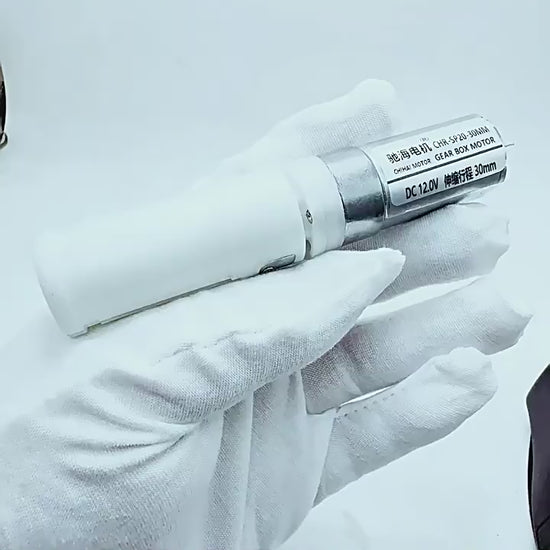

The CHR-SP20-190 miniature DC telescopic push rod motor is a compact linear actuator designed for small automation applications. With 1:20 gear reduction, dual 6V/12V voltage options, and 30mm stroke, it delivers reliable linear motion for smart home systems, educational toys, and more.

✨ Key Features

✅ Compact & Lightweight: φ22mm output structure, only ~70g weight, easy to integrate into small devices.

✅ Dual Voltage Options: 6V (5000 RPM, 9N thrust) and 12V (10000 RPM, 12N thrust) versions available.

✅ High Efficiency: Up to 52.08% efficiency at rated load, low power consumption (max 2.0W).

✅ Durable Construction: High-quality gear train for low noise and long life, stall torque 16.34mN·m.

✅ Complete Kit Options: Available as single motor, with mounting bracket, speed controller, power adapter, or full assembly.

📊 Technical Specifications

Parameter	6V Version	12V Version
Operating Voltage	DC 6V	DC 12V
Gear Ratio	1:20	1:20
No-Load Speed	5000 RPM	10000 RPM
No-Load Current	≤160mA	≤200mA
Stall Torque	-	16.34mN·m
Stall Current	-	2.05A
Linear Thrust	≥9N	≥12N
Telescopic Stroke	30mm	30mm
Output Structure	φ22mm	φ22mm
Weight	~70g	~70g
Operating Temperature	-30℃ ~ +70℃	-30℃ ~ +70℃
