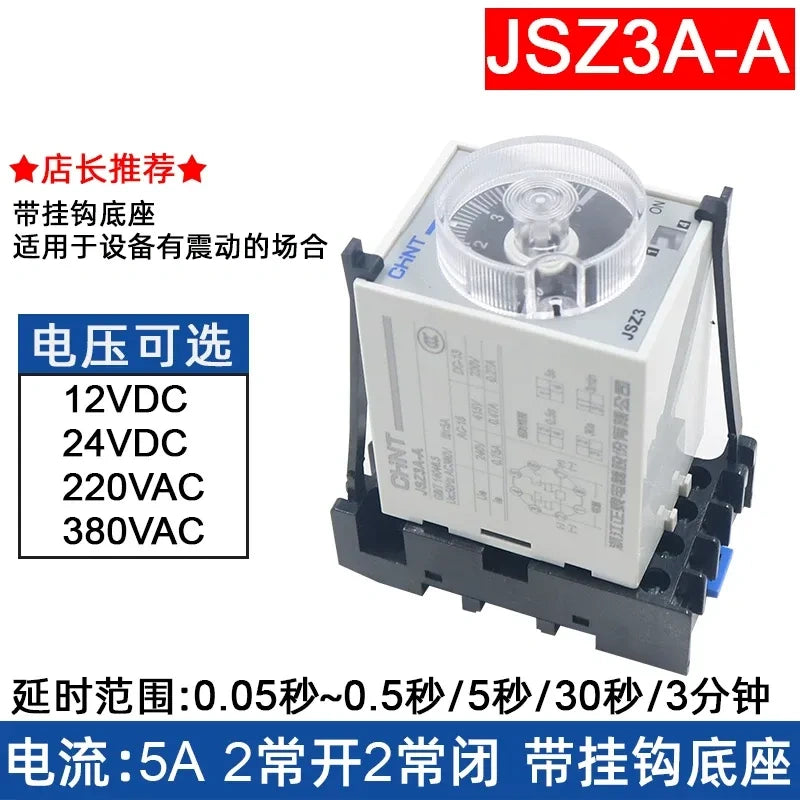

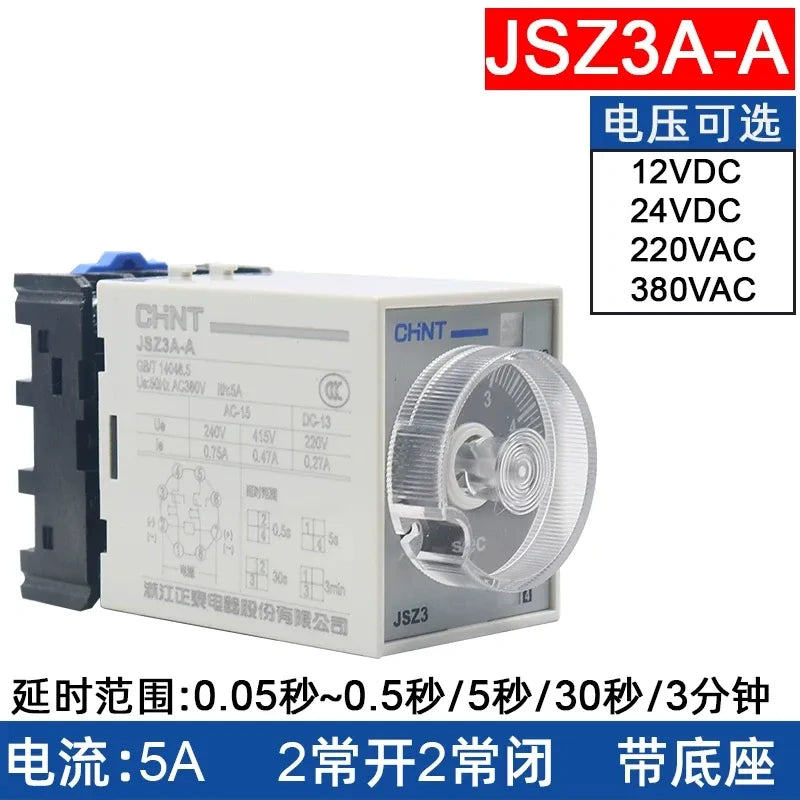

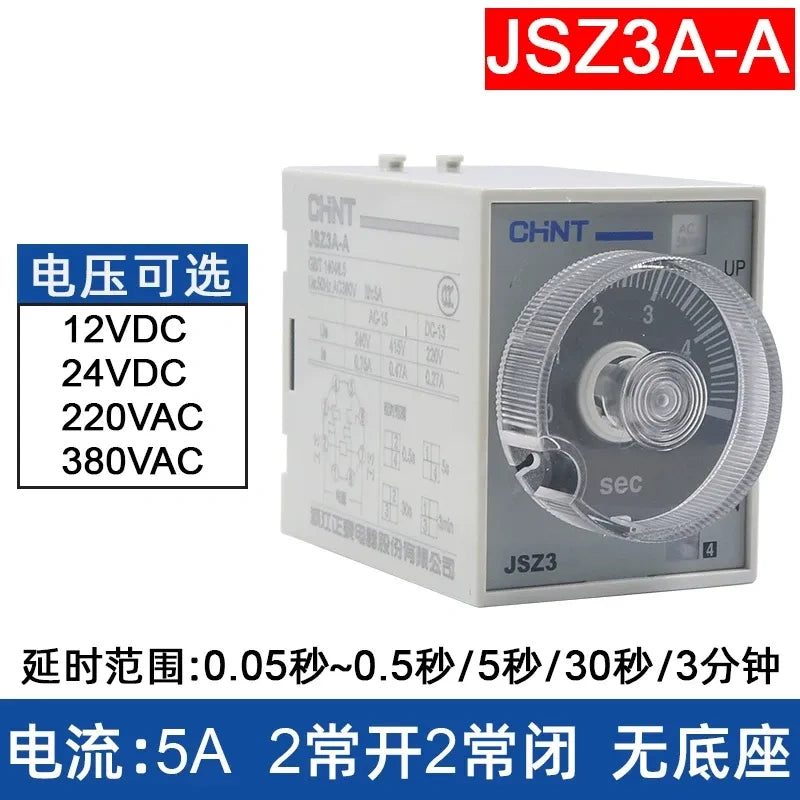

  • chint jsz3a-a time relay,on delay timer relay dc24v ac220v,Delay Range: 0.05s~0.5s / 5s / 30s / 3min Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base
  • chint jsz3a-a time relay,on delay timer relay dc24v ac220v,Delay Range: 0.05s~0.5s / 5s / 30s / 3min Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base and clip

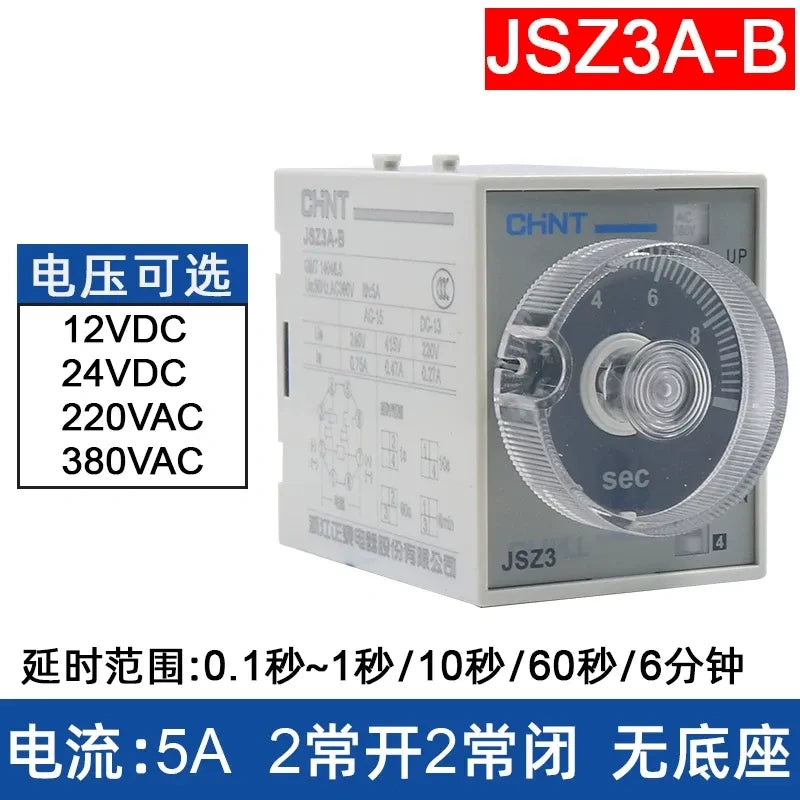

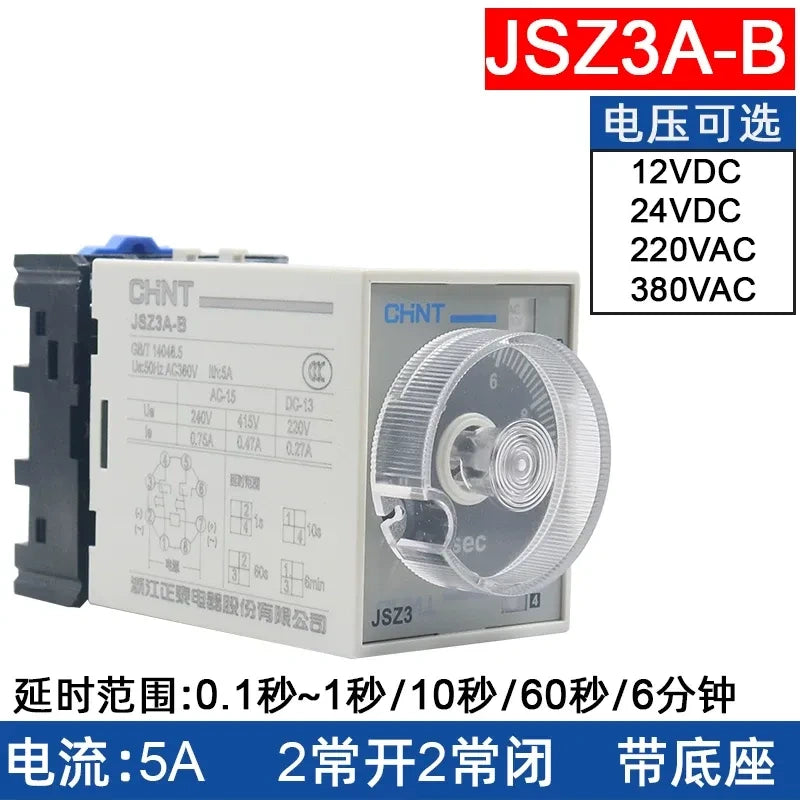

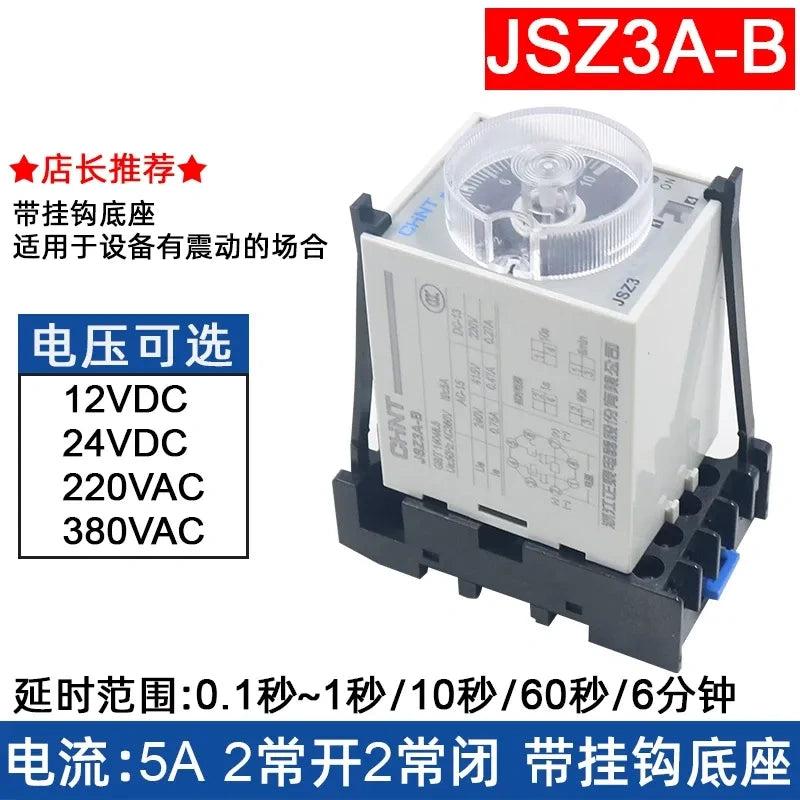

  • chint jsz3a-b time relay,on delay timer relay dc24v ac220v,Delay Range: 0.1s~0.1s / 10s / 60s / 6min Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base
  • chint jsz3a-b time relay,on delay timer relay dc24v ac220v,Delay Range: 0.1s~0.1s / 10s / 60s / 6min Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base and clip
  • chint jsz3a-b time relay,on delay timer relay dc24v ac220v,Delay Range: 0.1s~0.1s / 10s / 60s / 6min Rated Current: 5A | 2NO + 2NC Contacts

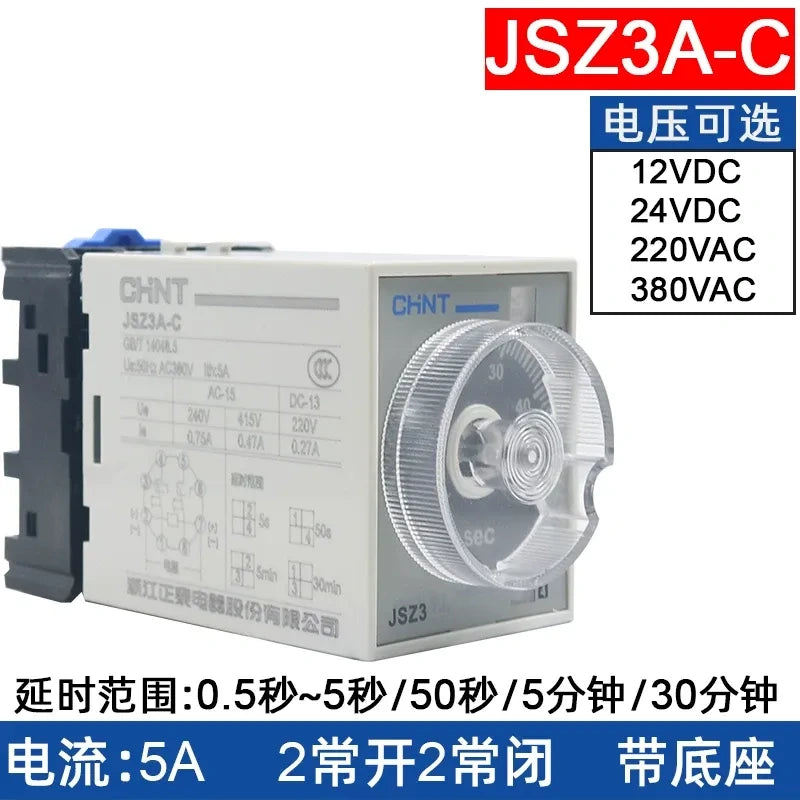

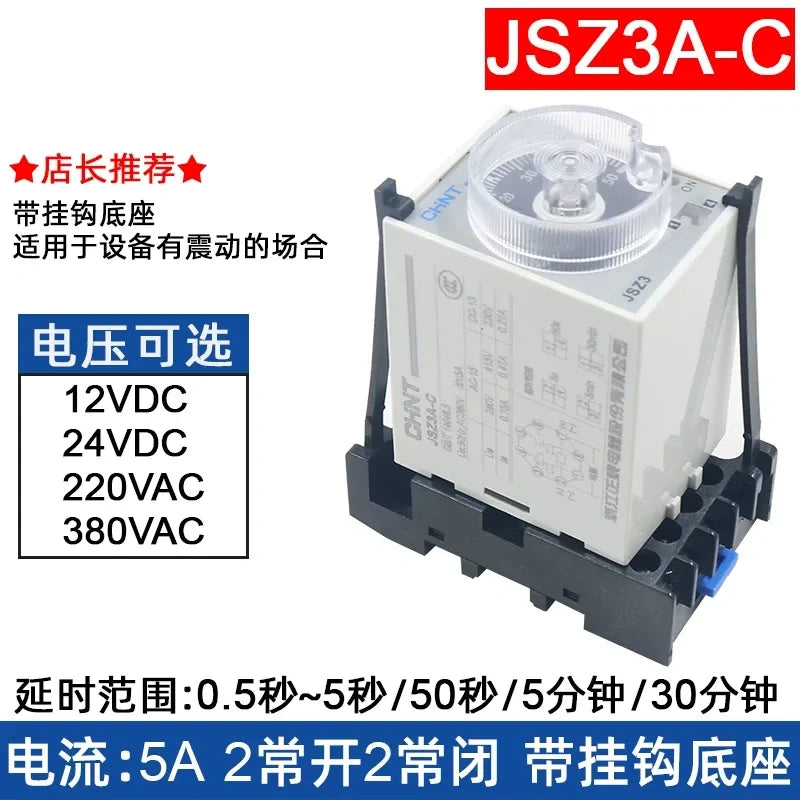

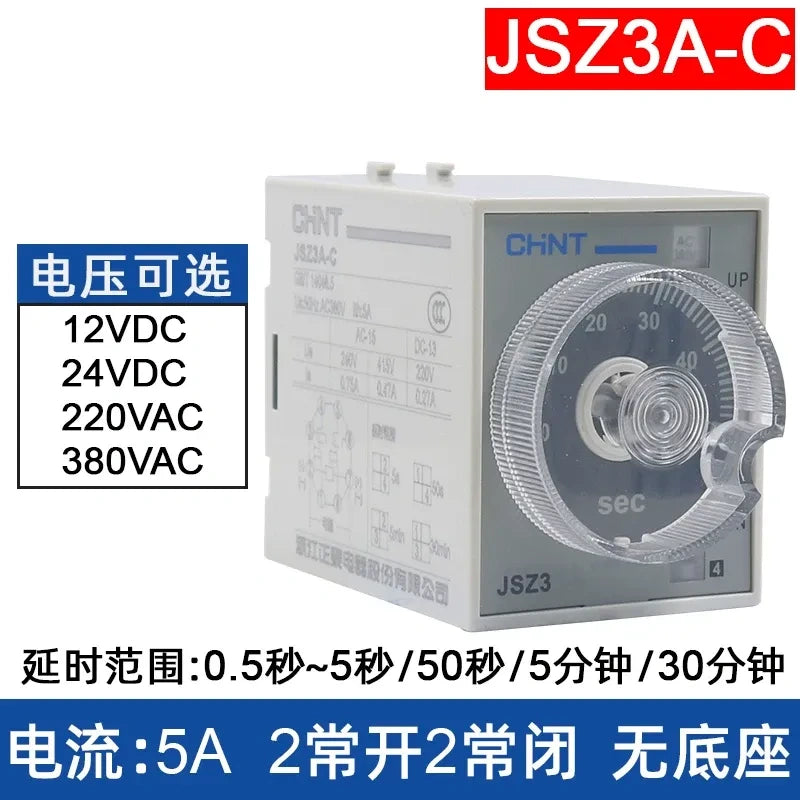

  • chint jsz3a-c time relay,on delay timer relay dc24v ac220v,Delay Range: 0.5s~5s / 50s /5min / 30min Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base
  • chint jsz3a-c time relay,on delay timer relay dc24v ac220v,Delay Range: 0.5s~5s / 50s /5min / 30min Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base and clip
  • chint jsz3a-c time relay,on delay timer relay dc24v ac220v,Delay Range: 0.5s~5s / 50s /5min / 30min Rated Current: 5A | 2NO + 2NC Contacts

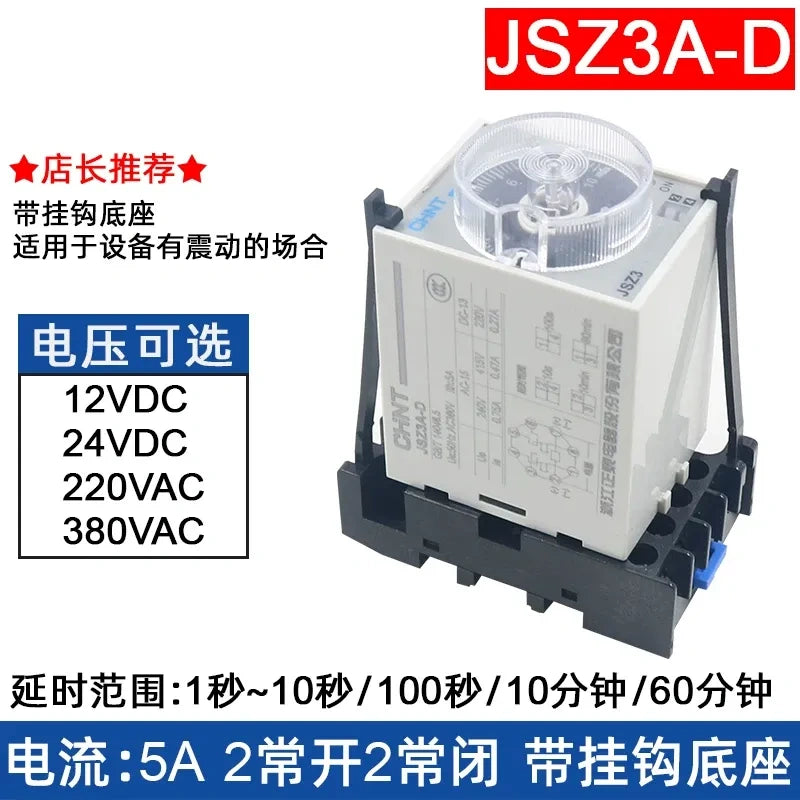

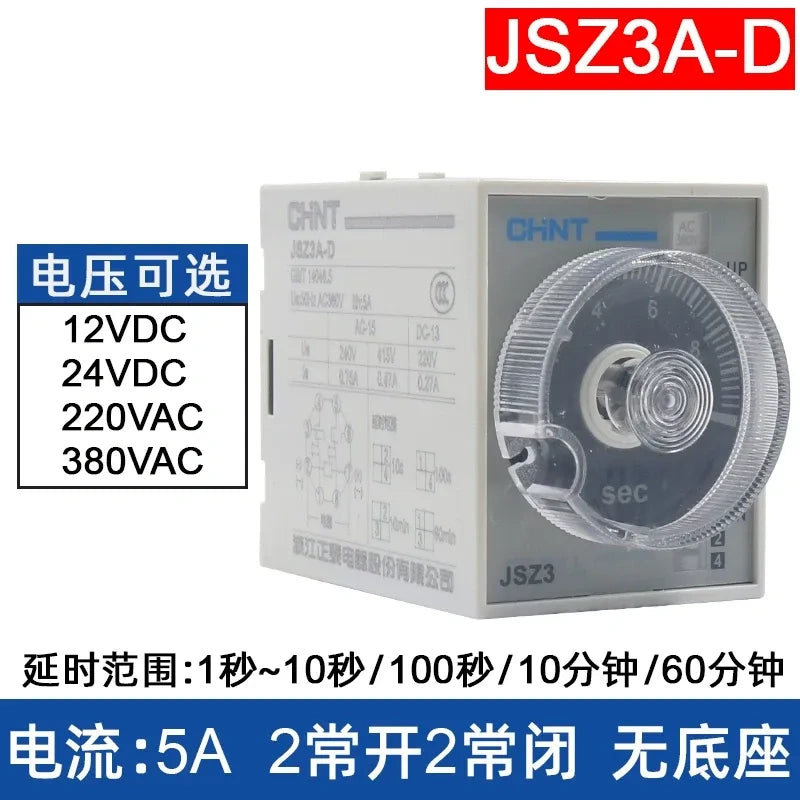

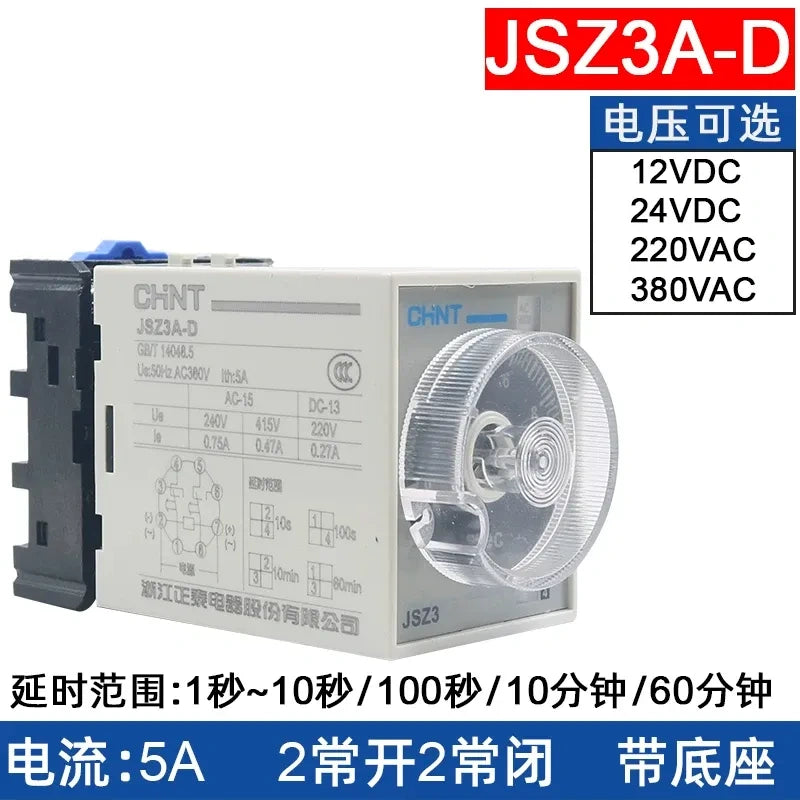

  • chint jsz3a-d time relay,on delay timer relay dc24v ac220v,Delay Range: 1s~10s /100s /10min / 60min Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base
  • chint jsz3a-d time relay,on delay timer relay dc24v ac220v,Delay Range: 1s~10s /100s /10min / 60min Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base and clip
  • chint jsz3a-d time relay,on delay timer relay dc24v ac220v,Delay Range: 1s~10s /100s /10min / 60min Rated Current: 5A | 2NO + 2NC Contacts

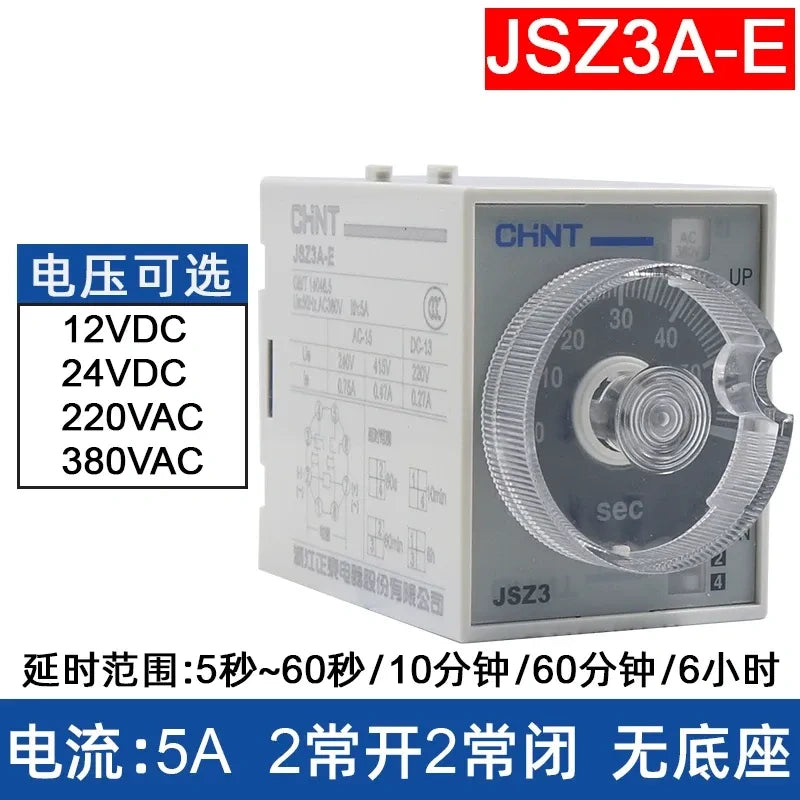

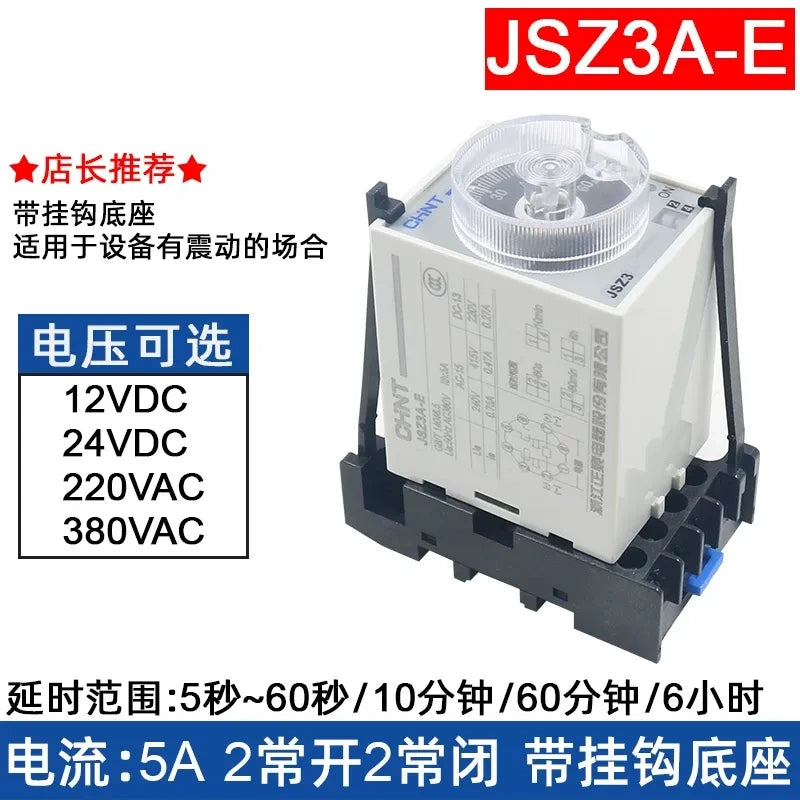

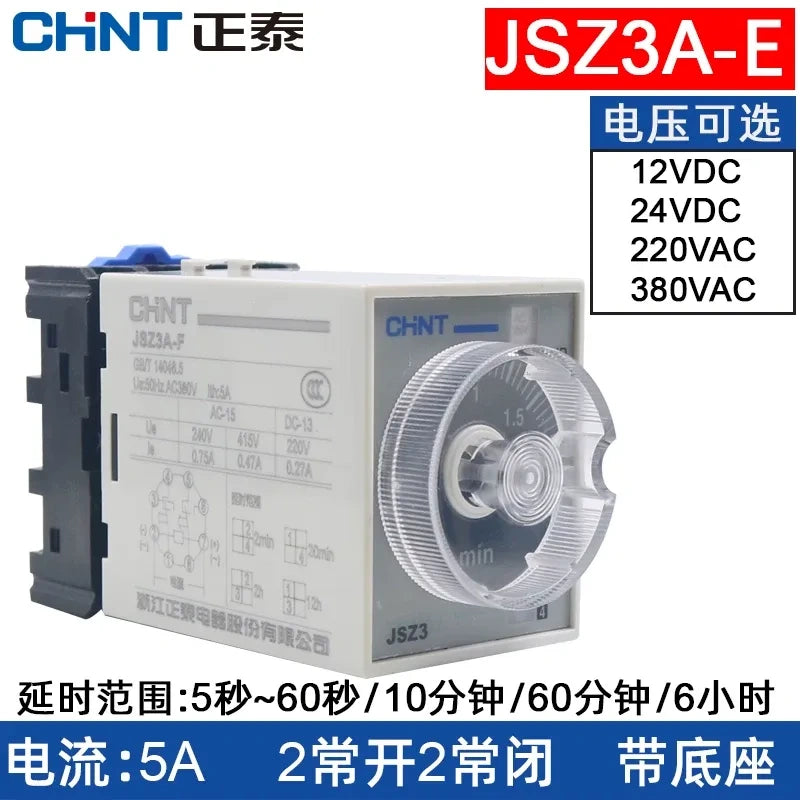

  • chint jsz3a-e time relay,on delay timer relay dc24v ac220v,Delay Range: 5s~60s /10min /60min / 6hour Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base
  • chint jsz3a-e time relay,on delay timer relay dc24v ac220v,Delay Range: 5s~60s /10min /60min / 6hour Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base and clip
  • chint jsz3a-e time relay,on delay timer relay dc24v ac220v,Delay Range: 5s~60s /10min /60min / 6hour Rated Current: 5A | 2NO + 2NC Contacts

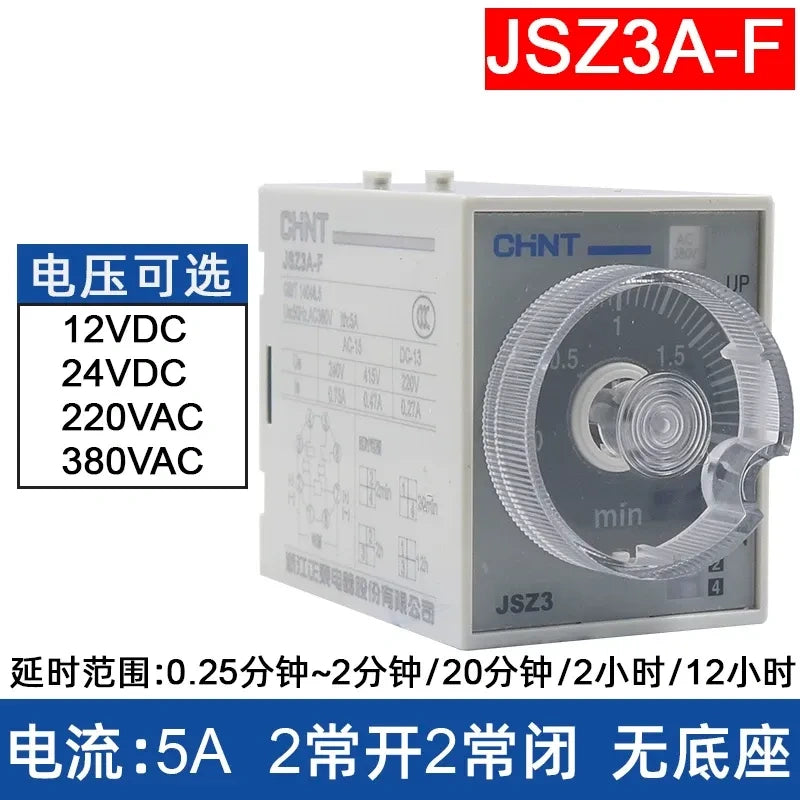

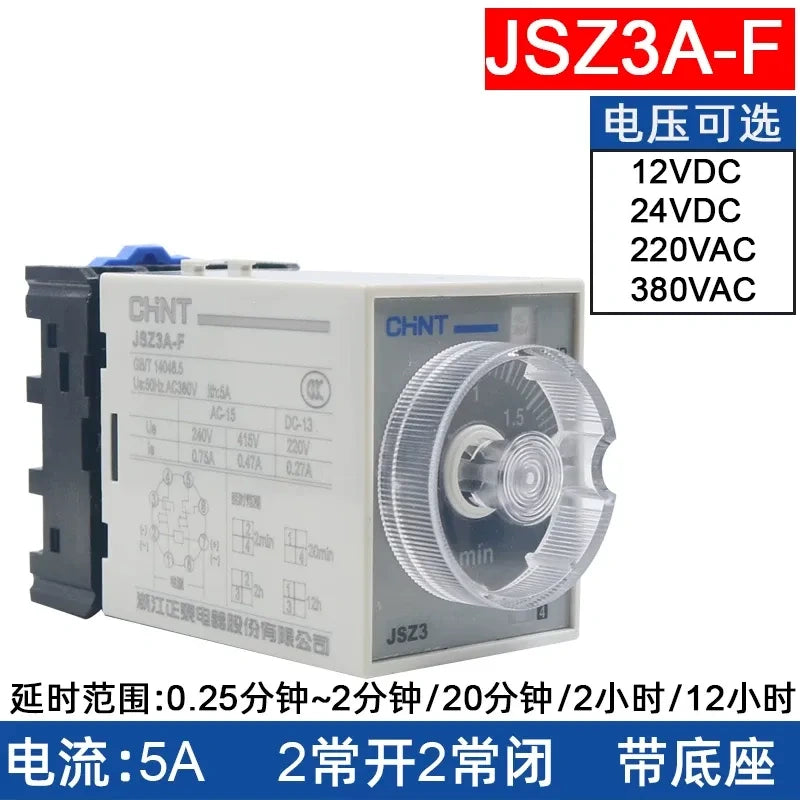

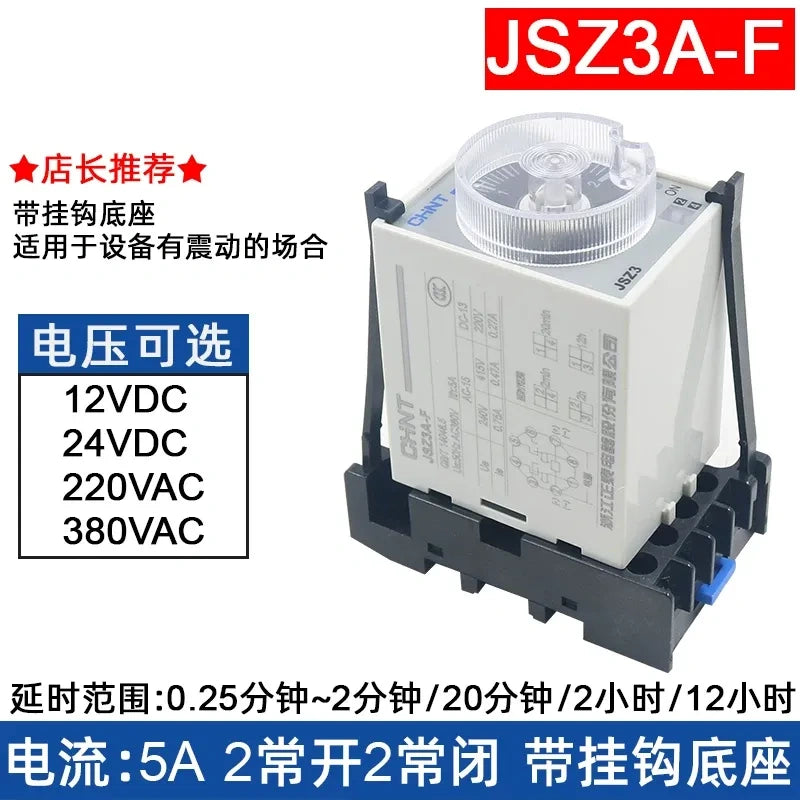

  • chint jsz3a-f time relay,on delay timer relay dc24v ac220v,Delay Range: 0.25min~2min /20min /2hour / 12hour Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base
  • chint jsz3a-f time relay,on delay timer relay dc24v ac220v,Delay Range: 0.25min~2min /20min /2hour / 12hour Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base and clip
  • chint jsz3a-f time relay,on delay timer relay dc24v ac220v,Delay Range: 0.25min~2min /20min /2hour / 12hour Rated Current: 5A | 2NO + 2NC Contacts

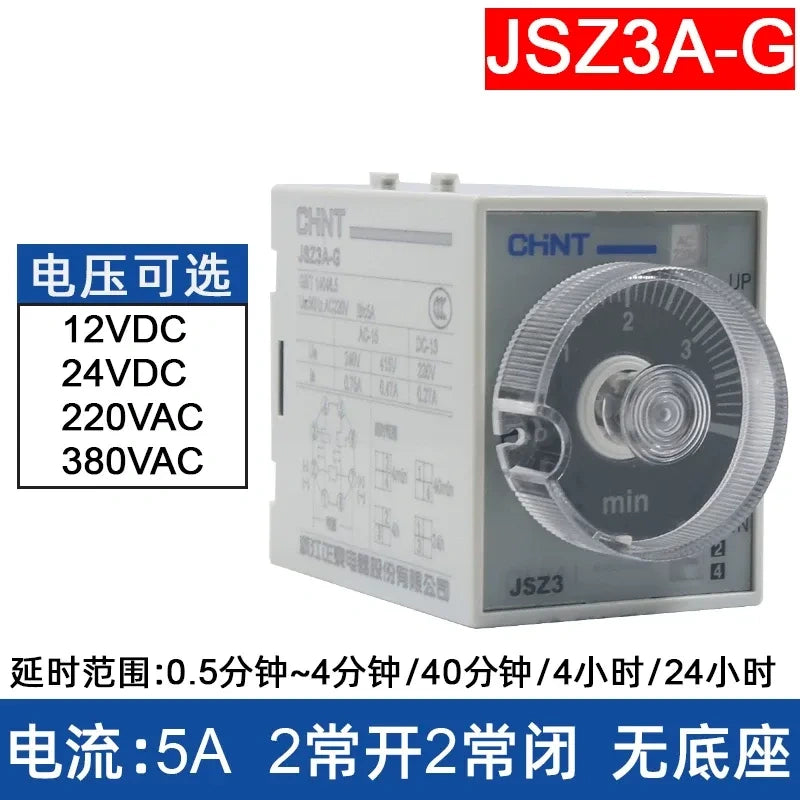

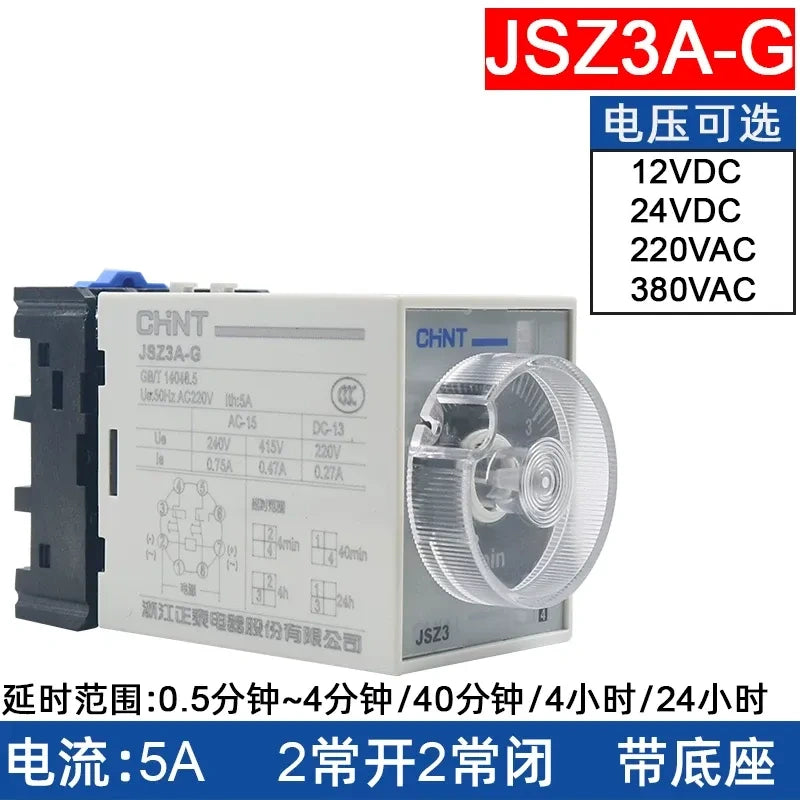

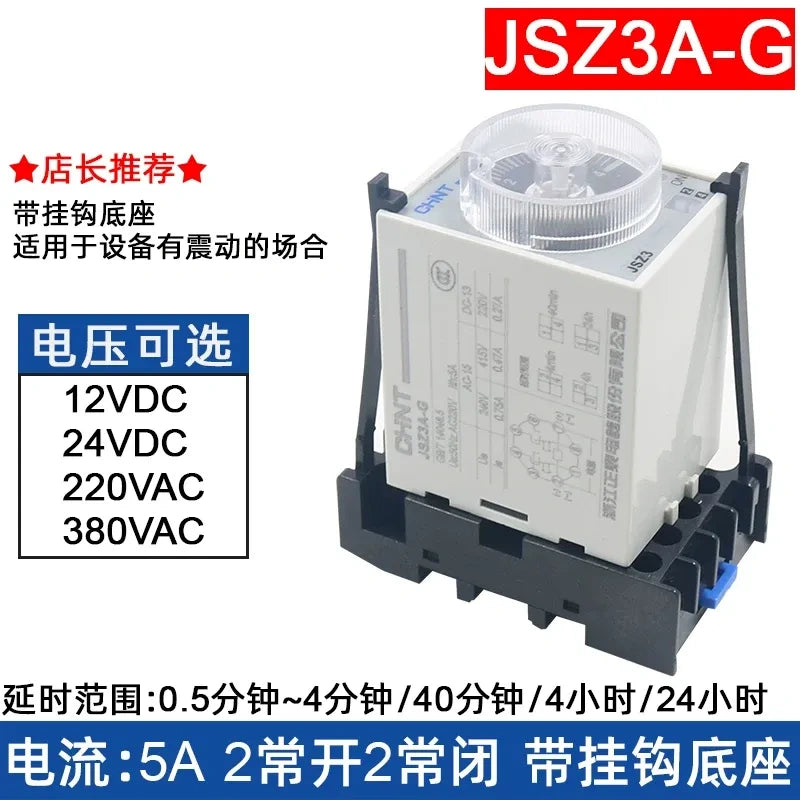

  • chint jsz3a-g time relay,on delay timer relay dc24v ac220v,Delay Range: 0.25min~4min /40min /4hour / 24hour Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base
  • chint jsz3a-g time relay,on delay timer relay dc24v ac220v,Delay Range: 0.25min~4min /40min /4hour / 24hour Rated Current: 5A | 2NO + 2NC Contacts | Comes with Matching Socket Base and clip
  • chint jsz3a-g time relay,on delay timer relay dc24v ac220v,Delay Range: 0.25min~4min /40min /4hour / 24hour Rated Current: 5A | 2NO + 2NC Contacts
1 10

electrical center b2c

CHINT JSZ3A On-delay Time Relay JSZ3 A/B/C/D/E/F/G 0.05s~24H

$30.00 NZD
$38.00 NZD $30.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color
Voltage
Size

CHINT JSZ3A On-delay Time Relay JSZ3 A/B/C/D/E/F/G 0.05s~24H AC220V DC24V AC380V 8Pin Timer Relay, Optional Socket Base & DIN Rail Hook Base

Product Overview

CHINT JSZ3A series is classic power-on delay electromagnetic time relay, widely used for automatic control circuit timing delay, motor star-delta startup, equipment sequential start-stop control.

7 delay range codes: A/B/C/D/E/F/G, adjustable timing from 0.05 second up to 24 hours; coil voltage options: DC24V, AC220V, AC380V; three installation choices: bare single relay / standard socket base / DIN rail hook base.

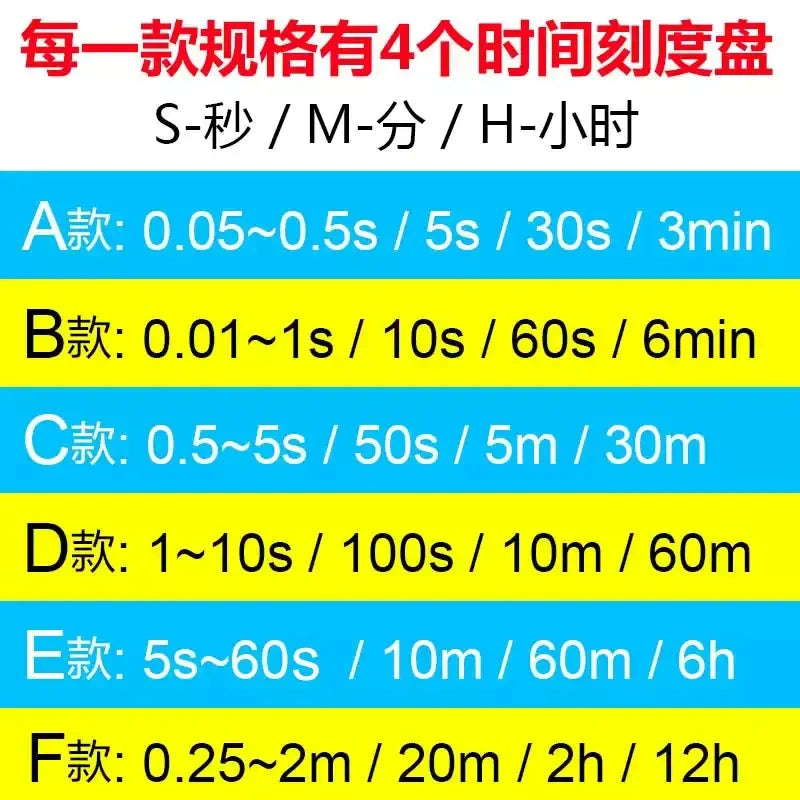

Full Delay Timing Table

Code Range1 Range2 Range3 Range4
A 0.05~0.5s 0.5~5s 5~30s 30s~3min
B 0.1~1s 1~10s 10~60s 60s~6min
C 0.5~5s 5~50s 50s~5min 5~30min
D 1~10s 10~100s 100s~10min 10~60min
E 6~60s 60s~10min 10~60min 60min~6h
F 0.2~2min 2~20min 20min~2h 2~12h
G 0.4~4min 4~40min 40min~4h 4~24h



Core Technical Parameter

Item Specification
Brand CHINT
Model JSZ3A(Power-on Delay)
Pin Layout 8 Pin
Rated Coil Voltage DC24V / AC220V / AC380V
Contact Capacity AC240V 5A, AC415V 0.47A
Delay Precision ≤±10% FS
Operation Type Power On Delay
Mounting Panel Mount / Socket Base / DIN Rail Hook Base
Ambient Temp -5℃ ~ +40℃
Single Net Weight ≈126g



Key Features

  1. Wide Adjustable Timing: 7 specifications covering from milliseconds to 24 hours, satisfy diverse automatic timing demands.
  2. Three Installation Forms: Bare relay for panel embed, standard socket for easy replacement, DIN hook base for 35mm rail cabinet mounting.
  3. High Stability Mechanical Structure: Stable timing accuracy, long mechanical & electrical service life for industrial continuous operation.
  4. Universal Industrial Voltage: Common DC24V control & AC220/380V mains voltage for domestic equipment.

Application

Water pump delayed startup, fan sequential control, star-delta motor soft start, packaging machine intermittent action, PLC auxiliary timing control.
