CHINT ELECRTIC

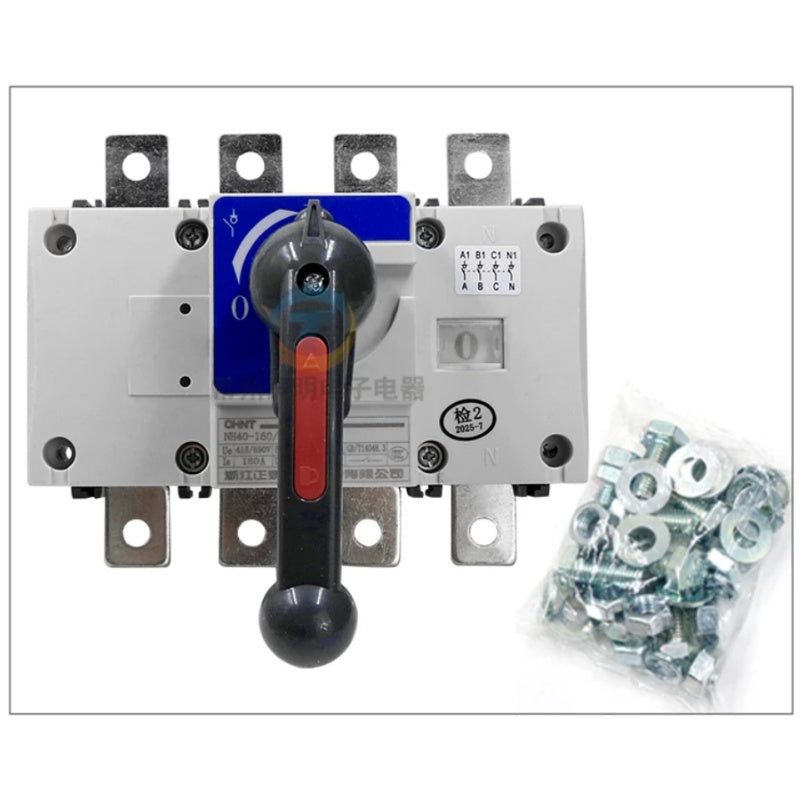

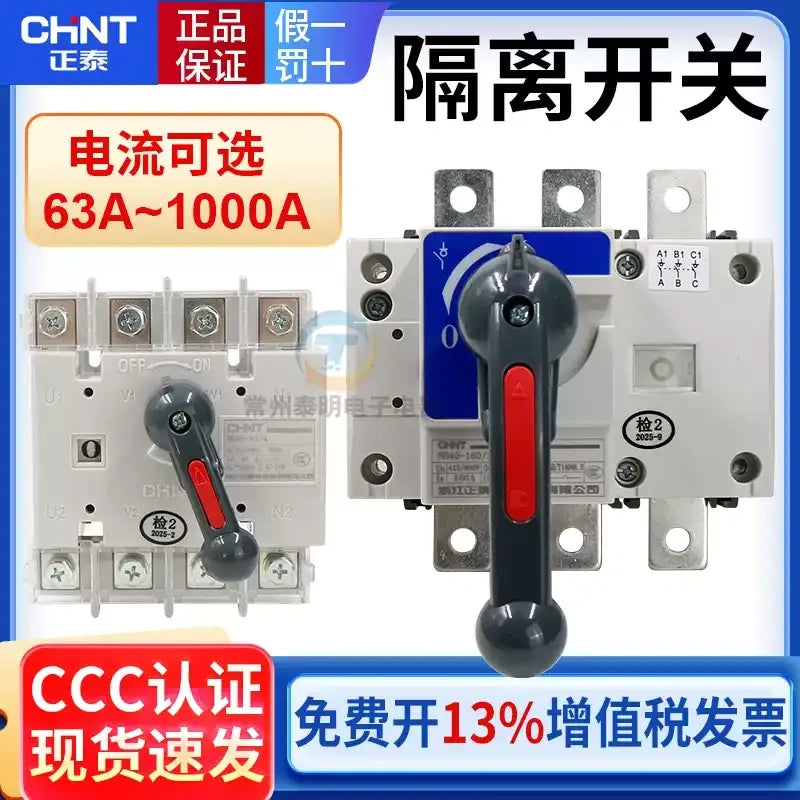

CHINT NH40 Series Isolator Switch NH40-63/100/160/250 3P 4P

$57.00 NZD
$57.00 NZD
Sale Sold out
Shipping calculated at checkout.
Model NO.

CHINT NH40 Series Isolator Switch NH40-63/100/160/250 3P 4P AC690V Load Disconnect Isolation Switch 63A~250A Low Voltage Main Isolator

Product Overview

CHINT NH40 series load isolation switch complies with GB/T14048.3 & IEC60947-3 international standards, applicable for AC 50Hz, rated voltage up to AC690V, rated current range from 63A to 3150A. Mainly used in industrial & civil power distribution cabinet for non-frequent manual circuit make/break and safe power isolation; specifications from 125A~630A allow frequent switching, NOT suitable for direct single motor startup. Available pole:3P/4P, current grades:63A/100A/160A/250A.

Full Model Selection（选型按钮英文）

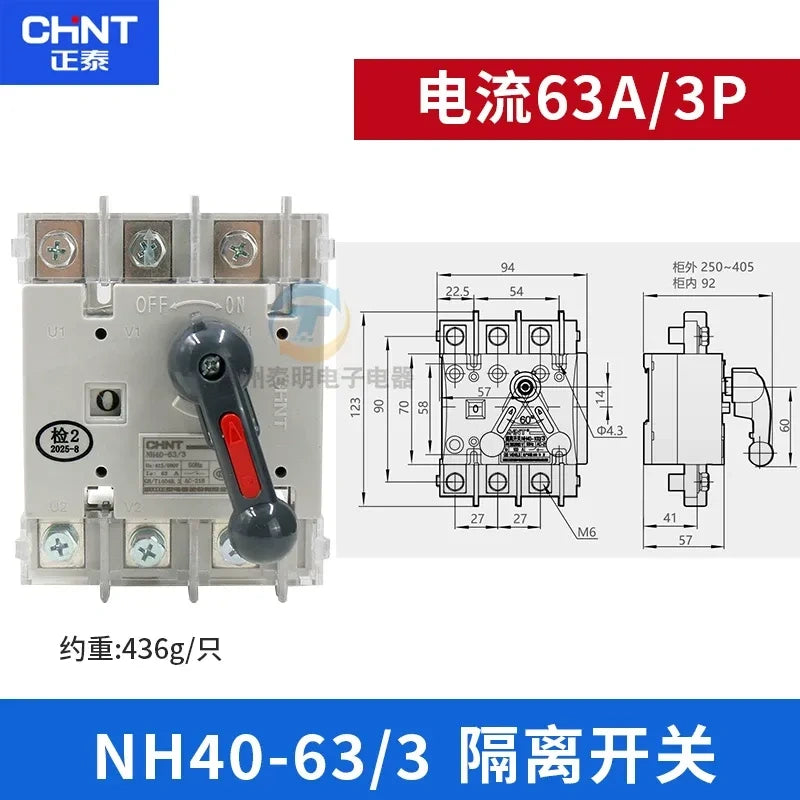

  1. NH40-63/3 63A 3P → NH40-63/3P 63A Isolation Switch

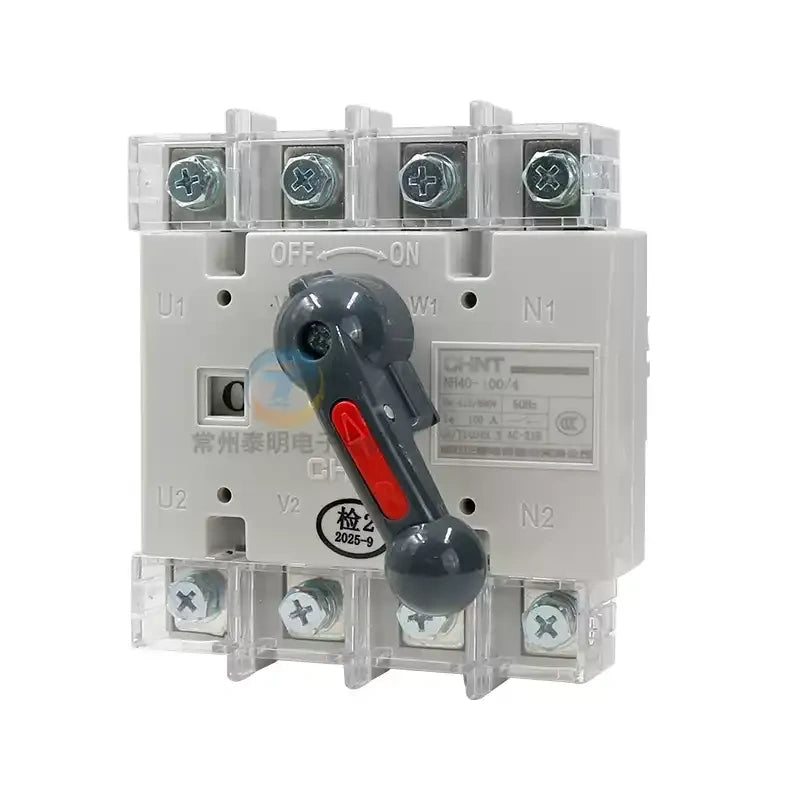

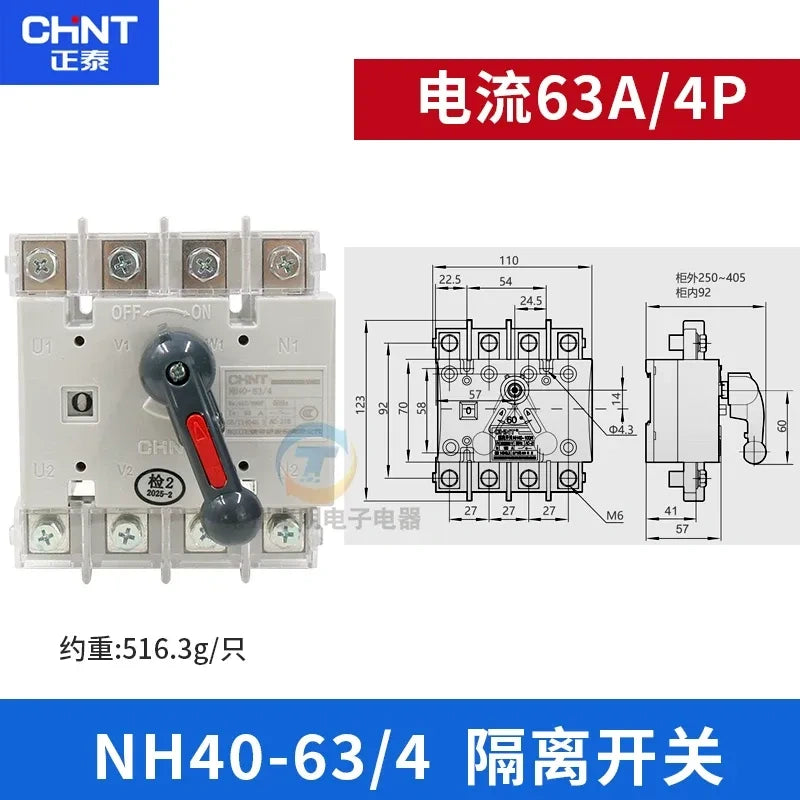

  2. NH40-63/4 63A 4P → NH40-63/4P 63A Isolation Switch

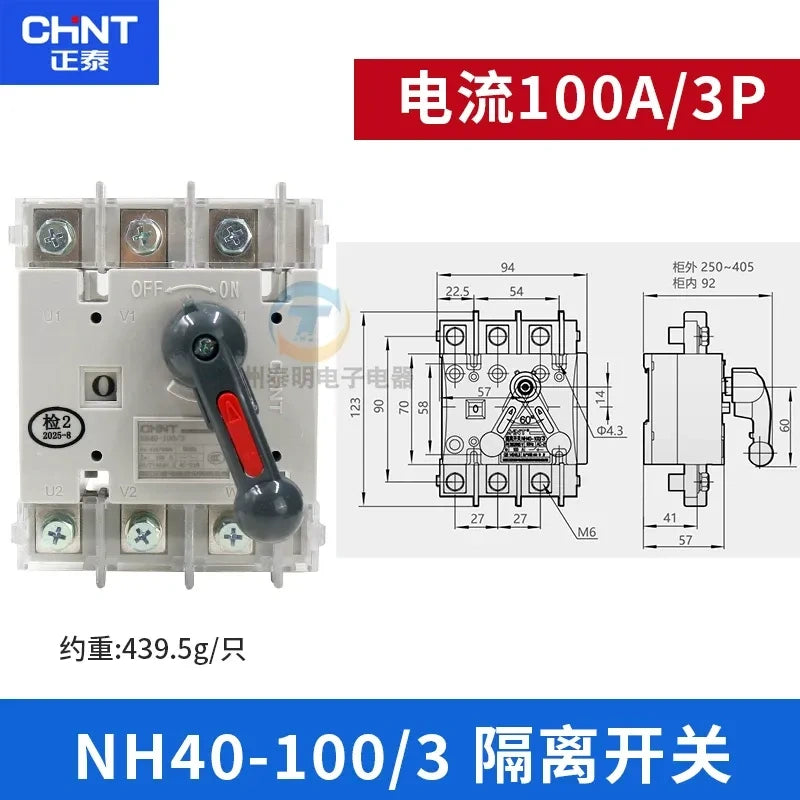

  3. NH40-100/3 100A 3P【Recommended】→ NH40-100/3P 100A(Recommended)

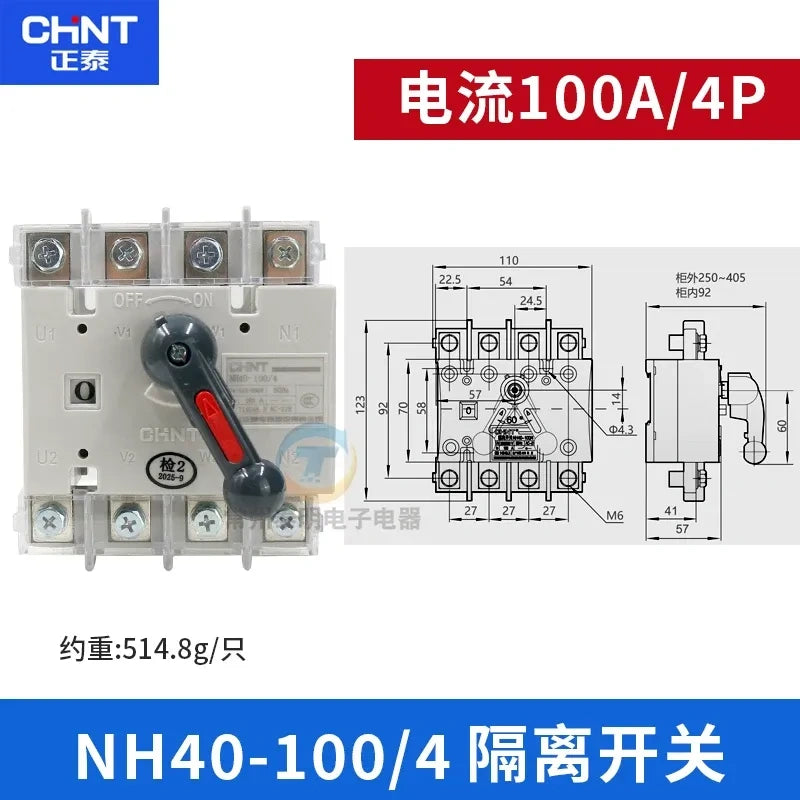

  4. NH40-100/4 100A 4P → NH40-100/4P 100A

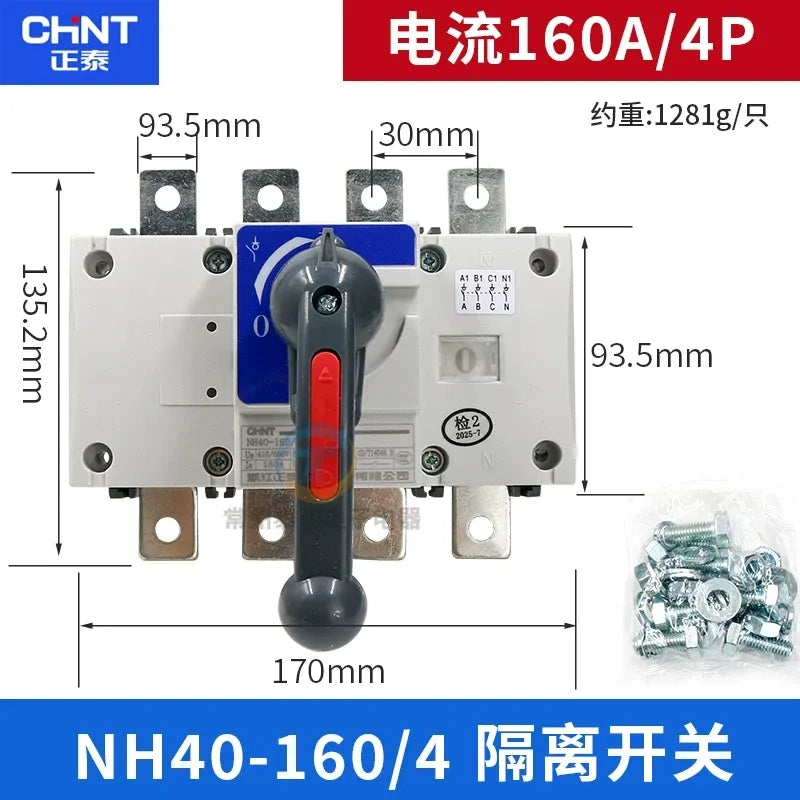

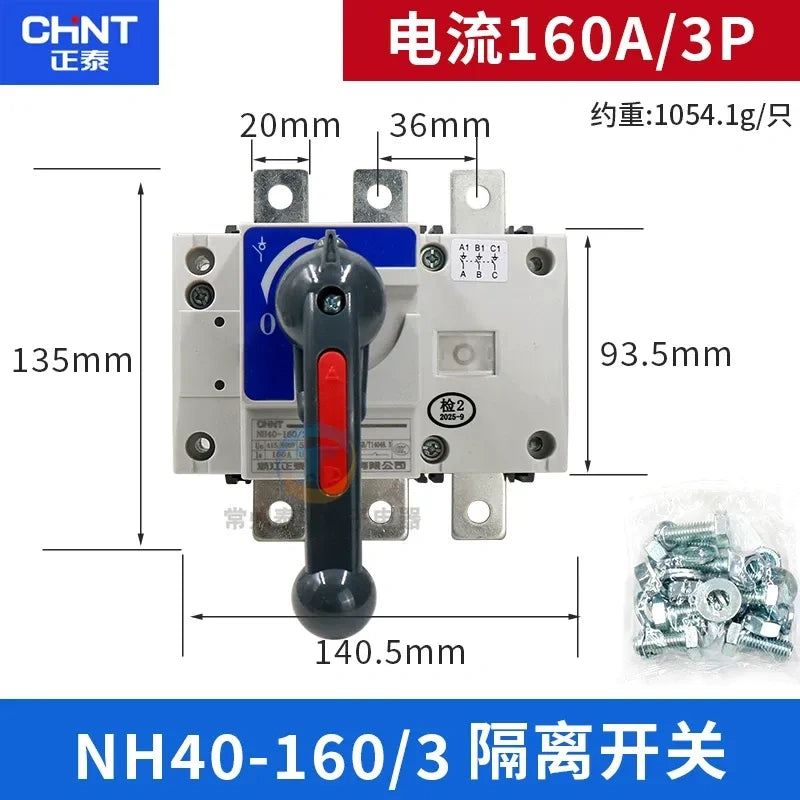

  5. NH40-160/3 160A 3P → NH40-160/3P 160A
  6. NH40-160/4 160A 4P → NH40-160/4P 160A

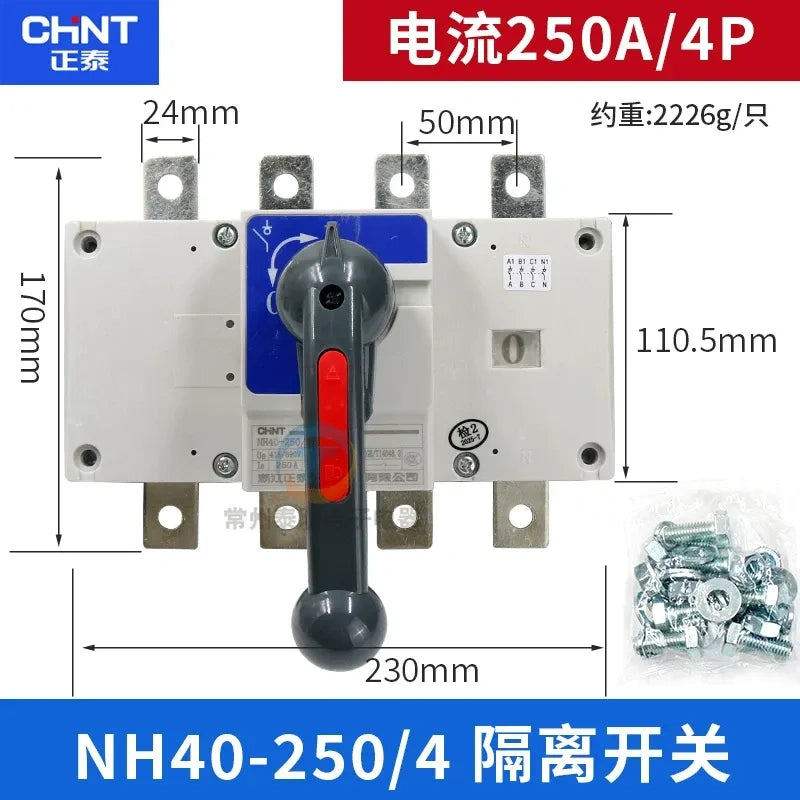

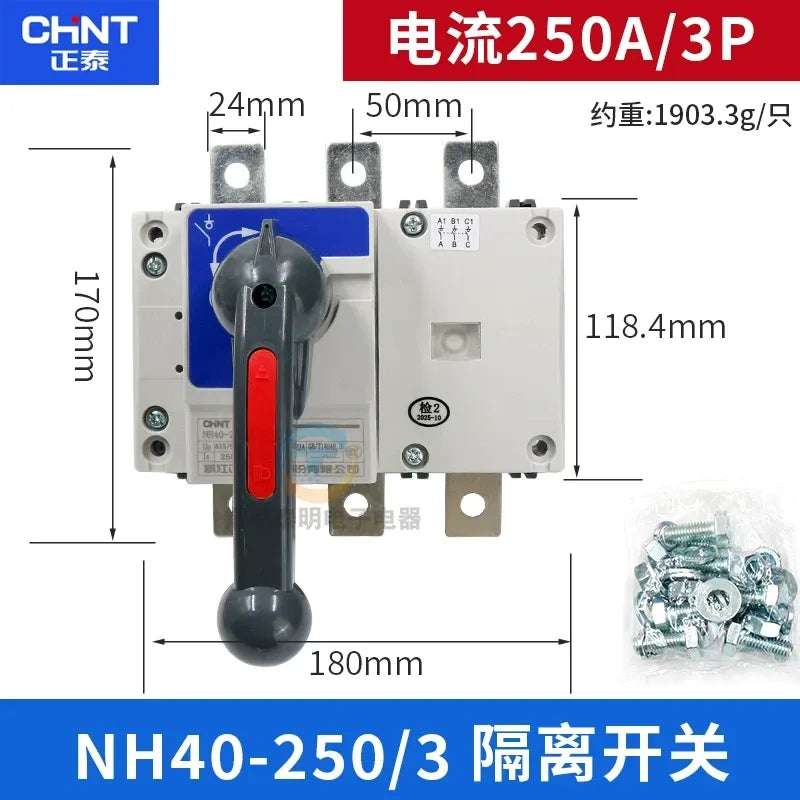

  7. NH40-250/3 250A 3P → NH40-250/3P 250A
  8. NH40-250/4 250A 4P → NH40-250/4P 250A

Core Technical Parameter

Item Specification
Brand CHINT
Model NH40-63 / NH40-100 / NH40-160 / NH40-250
Pole 3P / 4P
Rated Insulation Voltage AC690V,50Hz
Rated Current 63A/100A/160A/250A
Standard IEC60947-3,GB/T14048.3
Housing Material Flame retardant unsaturated polyester plastic 4342

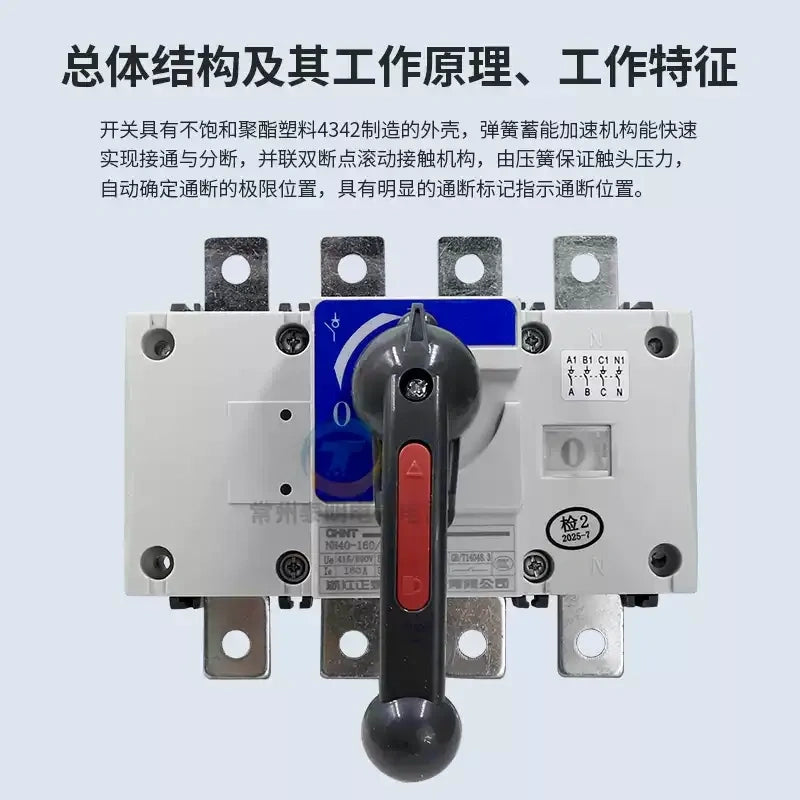

Structure Spring energy storage quick make-break + parallel double-break rolling contact design



Key Product Features

  1. Flame Retardant Housing: High strength unsaturated polyester shell, excellent insulation & fire resistance, anti-aging for long-term cabinet use.
  2. Spring Energy Storage Mechanism: Independent spring accelerated structure realizes fast on/off action regardless of manual operating speed, effectively suppress electric arc.
  3. Double Break Rolling Contact: Parallel dual-break rolling contact with compression spring to maintain stable contact pressure, reduce contact ablation and heating.
  4. Clear ON/OFF Indicator: Distinct mechanical position mark for visible open/close status to confirm safe isolation gap for maintenance.

Application Scenario

Main incoming isolation of distribution cabinet, generator power switching, commercial & factory power panel, inverter front-end isolation switch for solar PV system.
