CHINT ND16-22DS LED Indicator Light Pilot Lamp

Name: CHINT ND16-22DS LED Indicator Light Pilot Lamp
Brand: CHINT ELECRTIC
SKU: CHINT ND16-22DS LED Indicator Light Pilot Lamp Red / AC/DC 12V
Price: 15.0 NZD
Availability: InStock

$15.00 NZD

Sale Sold out

Shipping calculated at checkout.

LED Color Red Green Blue Yellow White Flashing Buzzer

Voltage AC/DC 12V AC/DC 24V AC220V AC380V

Product variants

Quantity

CHINT ND16-22DS LED Indicator Light Pilot Lamp AC/DC12V/24V/110V/220V/380V Red Green Yellow Blue White 22mm Panel Signal Indicator, Optional Buzzer Type ND16-22FS/22F

Product Overview

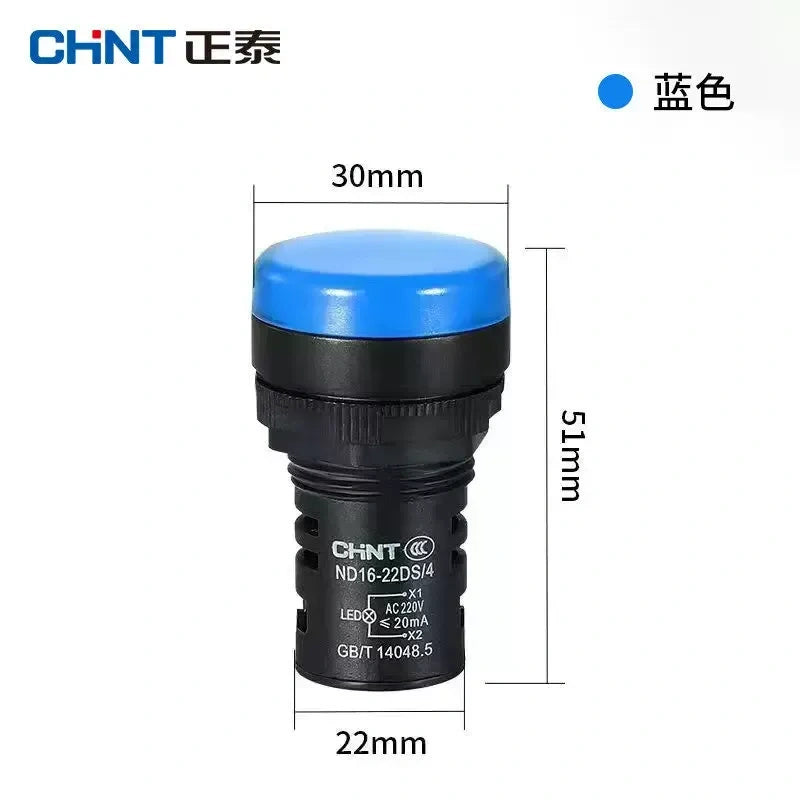

CHINT ND16 series is standard 22mm panel mounted LED signal indicator lamp, widely used for cabinet power status, equipment running/fault indication in control panel, distribution box, mechanical equipment.

Two main categories:

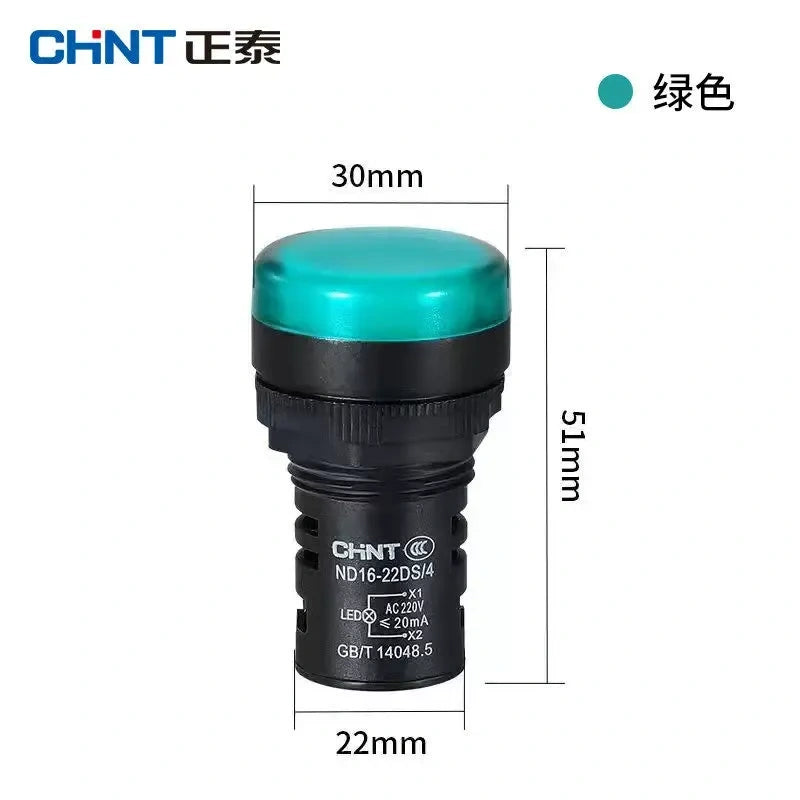

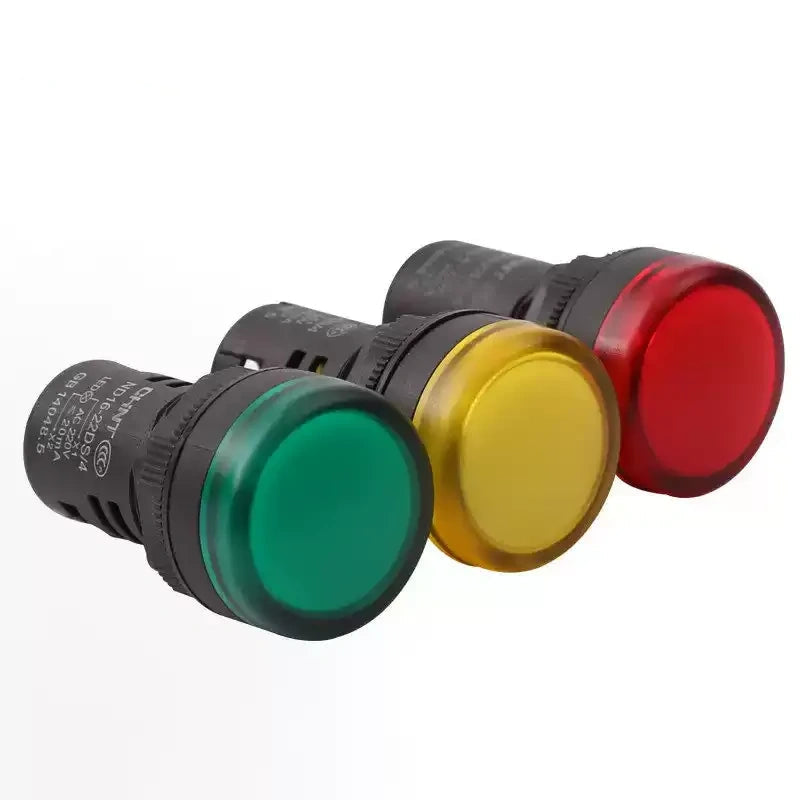

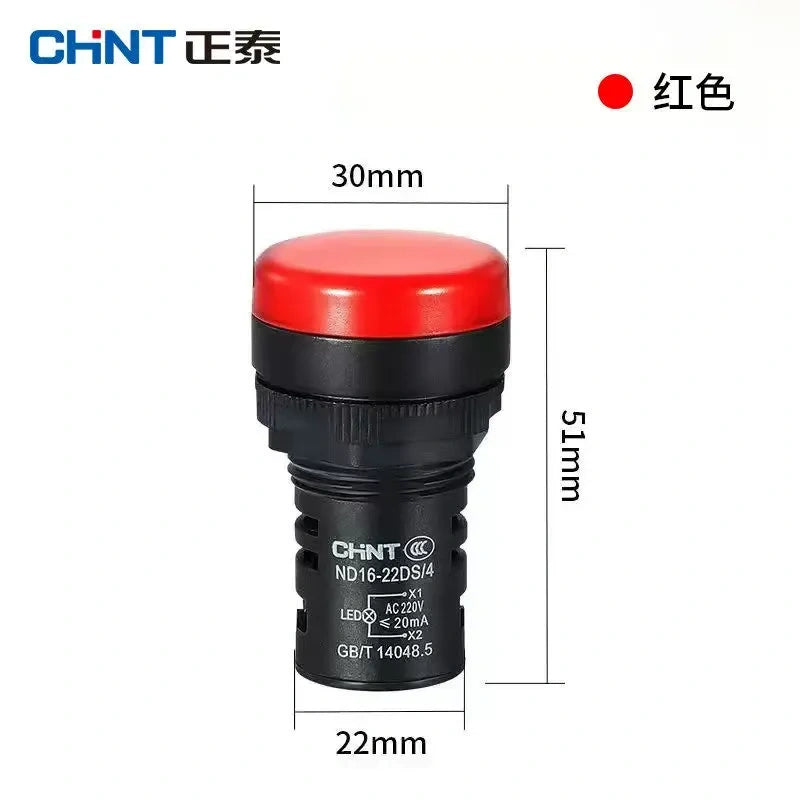

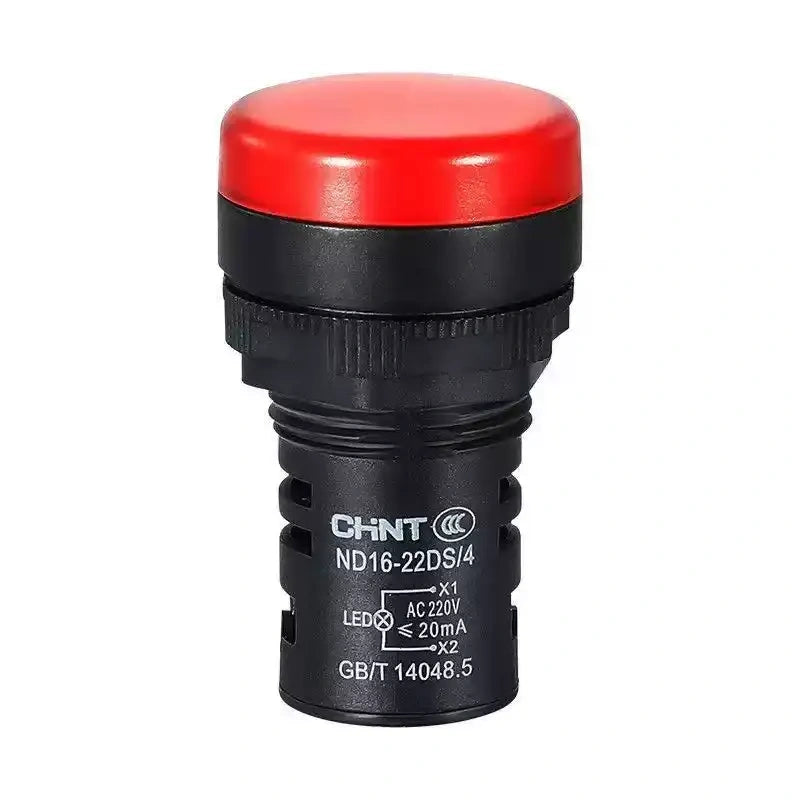

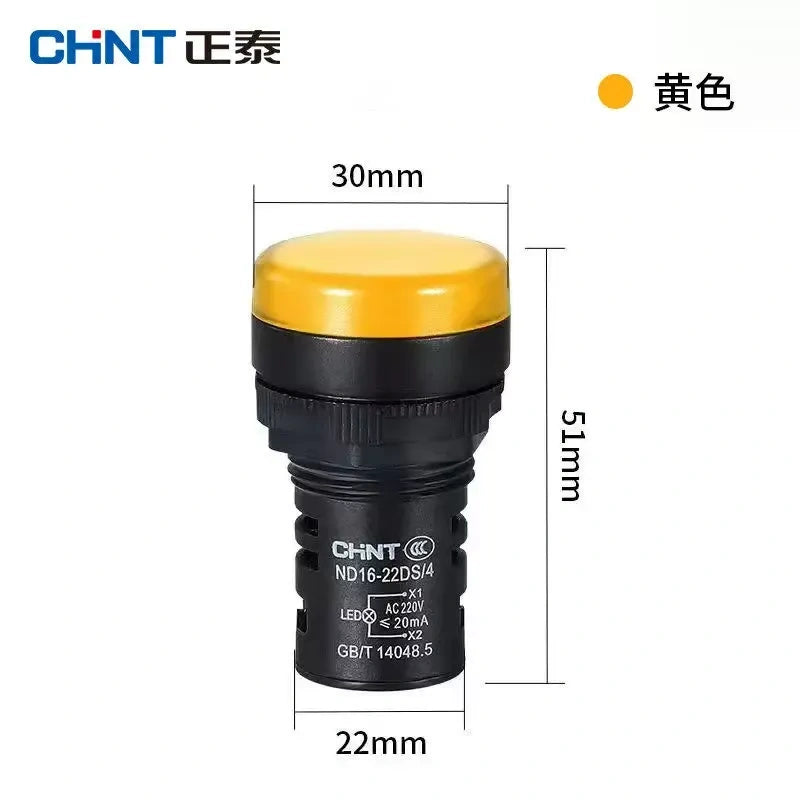

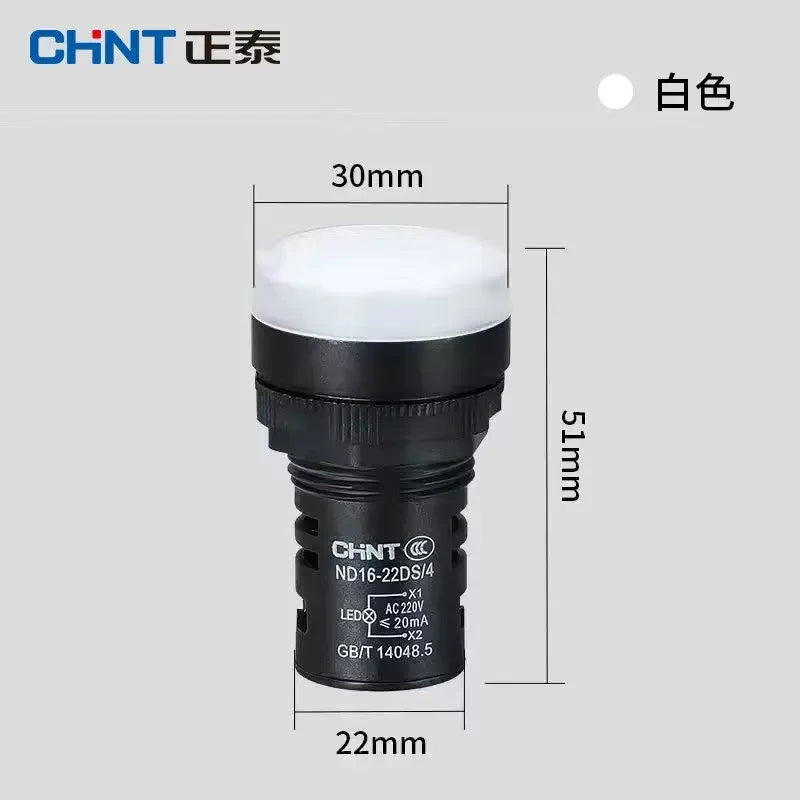

ND16-22DS: Pure LED signal indicator, available color: Red/Green/Yellow/Blue/White/Orange;

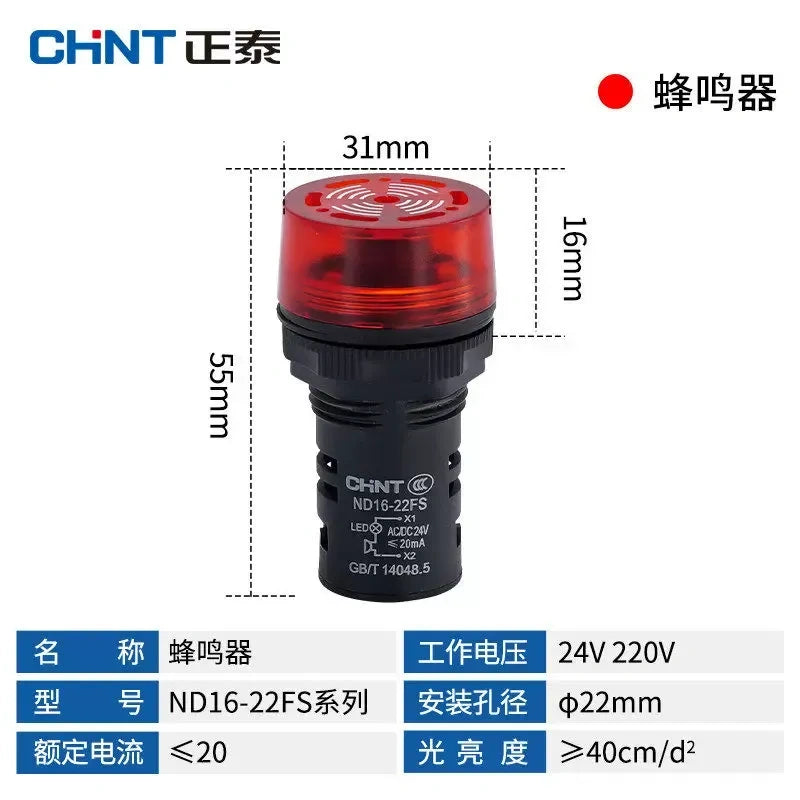

ND16-22F/FS/L/LC: Buzzer indicator (with/without flash alarm), buzzer version mainly red color;

Suffix C = IP65 dustproof & anti-interference grade.

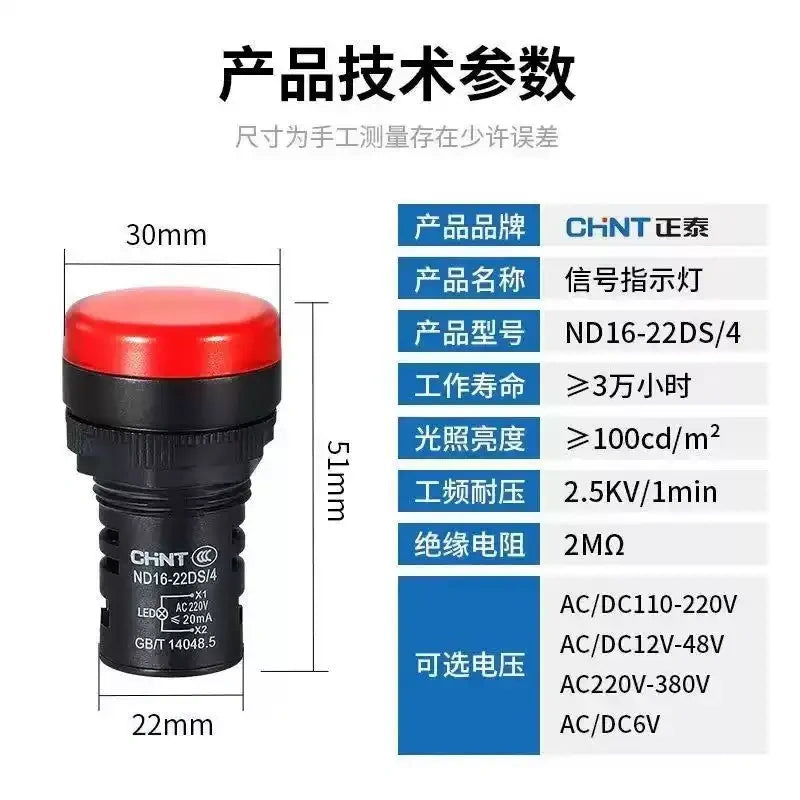

Core Technical Parameter

Item	Spec
Brand	CHINT
Model	ND16-22DS(LED Lamp) / ND16-22F/FS/L/LC(Buzzer)
Mount Hole Diameter	22mm standard panel cutout
Rated Voltage	AC/DC:12V,24V,36V,48V,110V; AC:110V,220V,380V
Working Current	＜20mA
Available Color	Red/Green/Yellow/Blue/White/Orange(Buzzer mainly Red/Black)
Working Temp	-5℃ ~ +40℃
Protection Grade	Standard IP40; Suffix C = IP65 Anti-interference & Waterproof
LED Source	High brightness long-life LED chip, low power consumption

Product Advantages

Standard 22mm Mount Size: Universal industry panel installation size, direct replacement for most brand pilot lamp.
Low Power LED Design: Working current below 20mA, energy-saving, long service life, no frequent burnout.
IP65 Optional Version: Model with suffix C reach IP65, suitable for dusty/humid workshop environment.
Multi-Voltage Complete Spec: Cover DC low voltage & AC industrial mainstream voltage for various control system.
Buzzer Optional: Continuous sound / intermittent flashing buzzer for equipment fault audible alarm.
