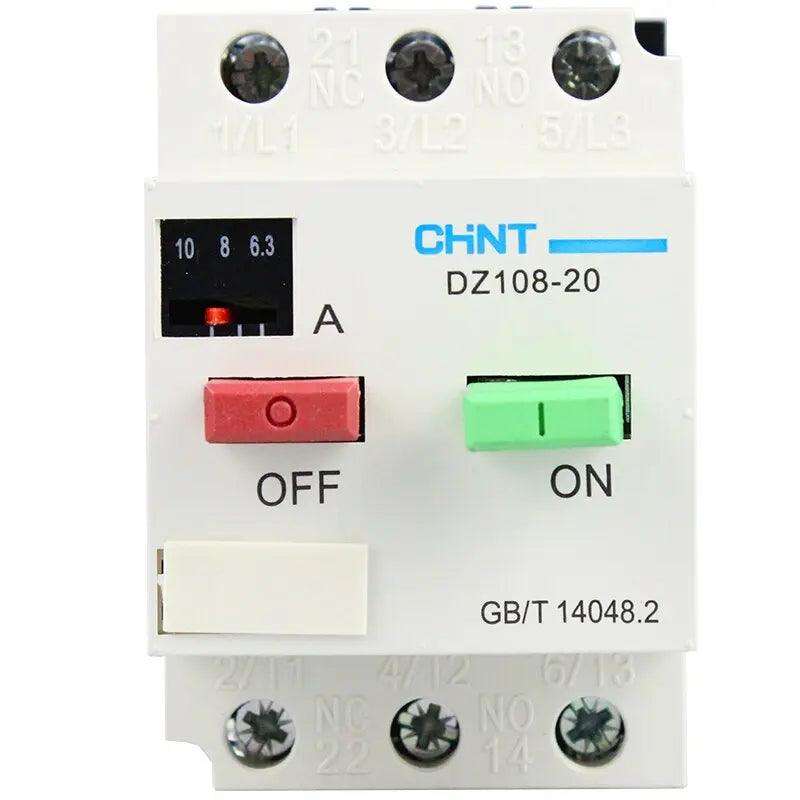

CHINT DZ108-20/211 Motor Protection Circuit Breaker

Original CHINT DZ108-20 series motor protection circuit breakers, including adjustable current ranges: 0.63-1A, 1-1.6A, 1.6-2.5A, 2-3.2A, 2.5-4A, 3.2-5A, 4-6.3A, 5-8A, 6.3-10A, 8-12.5A, 10-16A, 14-20A. These 3-pole breakers feature 1NO+1NC auxiliary contacts and are designed specifically for motor overload, short-circuit, and phase failure protection. Rated for 20A frame current with IP20 protection, they are widely used in control panels, machine tools, pumps, and industrial equipment. Certified with CCC and CE for reliable performance.

• Motor-Specific Protection: Designed to safeguard motors against overload, short-circuit, and phase failure, preventing damage to expensive equipment.
• Wide Adjustable Current Range: Available in multiple adjustable ranges from 0.63A to 20A, making it suitable for various motor power ratings.
• Reliable Auxiliary Contacts: Built-in 1NO+1NC contacts allow for easy integration with control and alarm circuits.

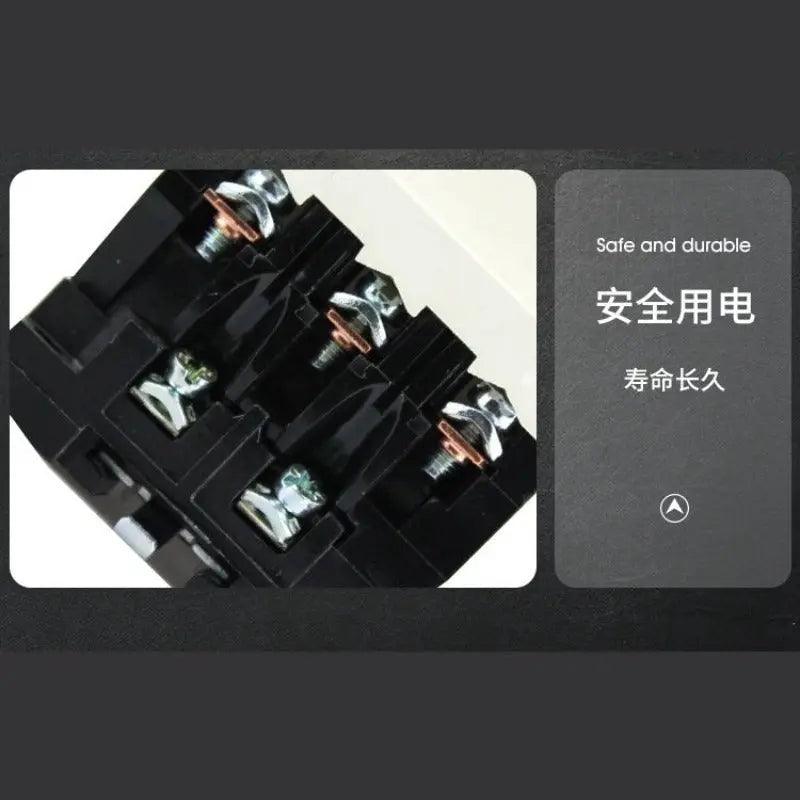

• Durable Construction: Robust plastic housing with IP20 protection ensures long-term performance in industrial environments.
• Certified Safety: CCC and CE certified, meeting international safety standards for peace of mind in commercial and industrial applications.

Specification

Attribute	Parameter Details
Brand	CHINT (正泰)
Model	DZ108-20/211
Poles	3P (3-Pole)
Adjustable Current Ranges	0.63-1A, 1-1.6A, 1.6-2.5A, 2-3.2A, 2.5-4A, 3.2-5A, 4-6.3A, 5-8A, 6.3-10A, 8-12.5A, 10-16A, 14-20A
Frame Current	20A
Auxiliary Contacts	1NO + 1NC
Frequency	50Hz
Protection Features	Overload, short-circuit, phase failure protection
Protection Grade	IP20
Wire Cross-Section	Up to 35mm²
Certifications	CCC, CE
Warranty	2 years
Application	Electric motors, pumps, machine tools, industrial control panels
