CHINT JSZ6 Power-on Delay Time Relay JSZ6-2 / JSZ6-4

$33.00 NZD
$33.00 NZD
Sale Sold out
Shipping calculated at checkout.
Model NO.
Voltage
Timing Range

CHNT JSZ6 Power-on Delay Time Relay JSZ6-2 / JSZ6-4, Replaceable with H3Y Series, Timing Range 1s~5min, AC220V DC24V Optional, Plug-in Timer Relay with/without DIN Base Socket

Product Description

Original CHNT JSZ6 series on-delay time relay, two core models: JSZ6-2(2 delay changeover contacts) & JSZ6-4(4 delay changeover contacts), fully interchangeable with H3Y industrial timer relay.

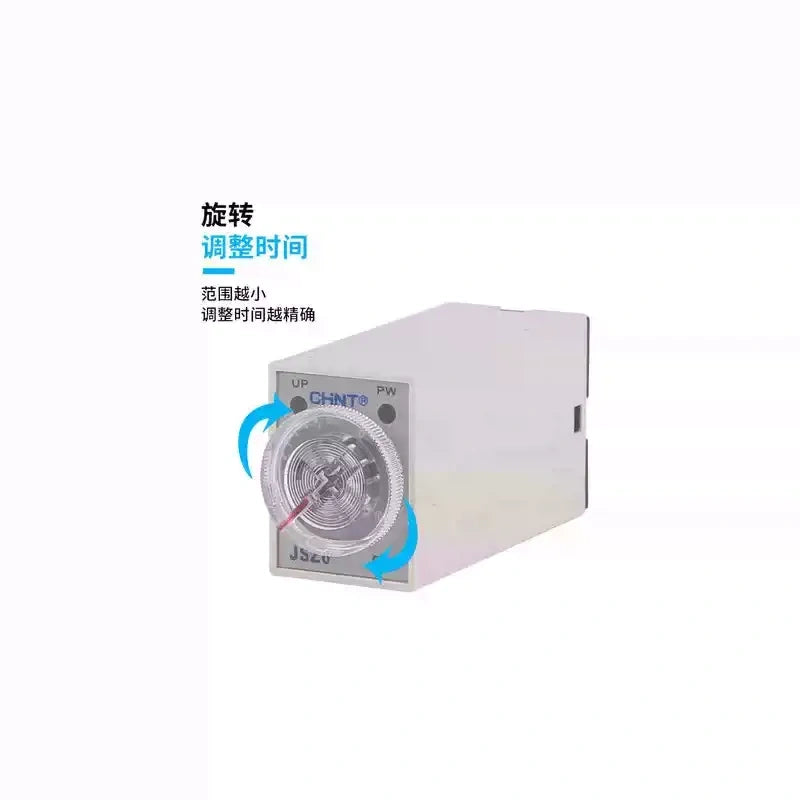

Adjustable timing ranges:1S/5S/10S/30S/60S/5Min via built-in potentiometer with timing tolerance ≤10%; standard coil voltage AC220V, customized DC24V available, extra AC36/110V optional. Two purchase options: single relay unit or relay+DIN mounting base set. Widely used for machine tool sequential control, automation equipment startup delay, pump/fan timing switch, cabinet automatic circuit delay control.

  • H3Y Drop-in Replacement: Same mounting & wiring dimension as H3Y series timer, easy direct replacement without cabinet modification.
  • Multi Timing Options: 6 preset timing specs from 1 second up to 5 minutes, fine-tune via built-in potentiometer with ≤10% high timing precision.
  • Dual Purchase Choice: Available standalone relay or complete set with DIN rail socket base for quick plug-and-play installation.
  • Wide Voltage Compatibility: Standard AC220V, customizable DC24V plus optional AC36/110V to fit global control power source.
  • Versatile Industrial Use: Ideal for machine tool automatic sequence control, water pump/fan delayed startup, automation cabinet timing switching & equipment interlock circuit.

Specification

Attribute Parameter Details
Brand CHNT 正泰
Model JSZ6-2 (2 delay changeover)、JSZ6-4 (4 delay changeover)
Working Mode Power-on Delay
Timing Range 1s,5s,10s,30s,60s,5min
Timing Setting Potentiometer adjustable, Accuracy ≤10%
Coil Voltage Standard AC220V; Custom DC24V, optional AC36V/AC110V
Contact Capacity Ith:5A
Interchangeability Direct replacement for H3Y series time relay
Operating Temp -5℃ ~ +40℃
Option Single relay / Relay + DIN base socket assembly
Application Machine tool, automation equipment, water pump, ventilation fan sequential delay control
