AC 220V Linear Actuator Reciprocating Electric Motor 6-500rpm 2-8CM 3-15CM Stroke +AC PWM Speed Controller Lineal DIY Design

Regular price $638.00 NZD
Regular price $539.00 NZD Sale price $638.00 NZD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)

SPECIFICATIONS

AC 220V Linear Actuator Reciprocating Electric Motor 6-500rpm 2-8CM 3-15CM Stroke +AC PWM Speed Controller Lineal DIY Design

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Output Power: 15W

Commutation: Brush

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: Telescopic Reciprocating Rod Motor

Rated Voltage: 220V AC/50HZ

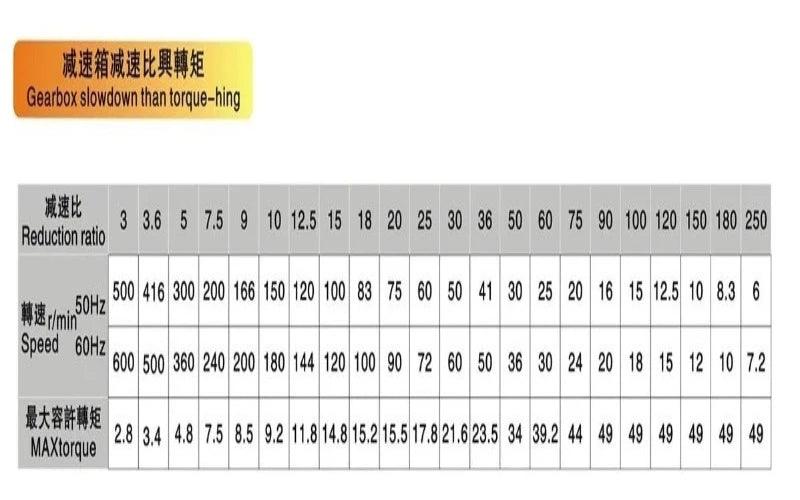

-No-Load Speed: 6-500RPM(Optional)

-Stroke ability: 30~150mm 、20-80mm Stroke can be adjusted by your requirements.

-Widely use for Shale shaker, Vibrating screen, Incense machine Squirt

machine, Spraying Machine, Pellet machine, Particle-making Experiment,

Lifespan lab testing,Sex Machine and so on.

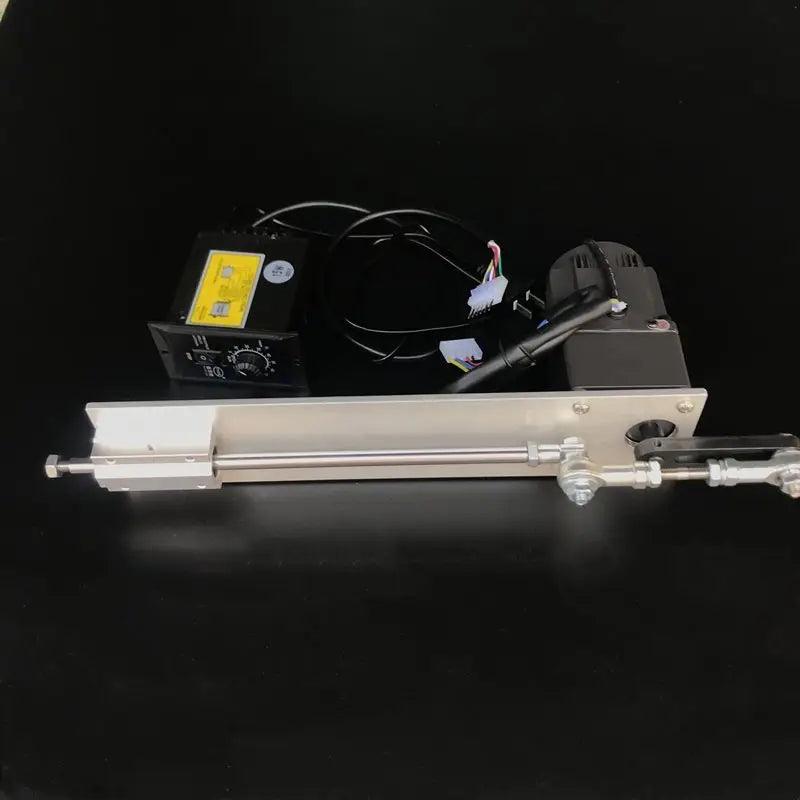

1* DIY AC Linear actuator+ 1* PWM Speed Controller

Note: Please inform us of the stroke (30~150mm 、20-80mm )

you need in the order

note or the station letter.

If you do not note, we will send 100mm stroke by default!



Features:

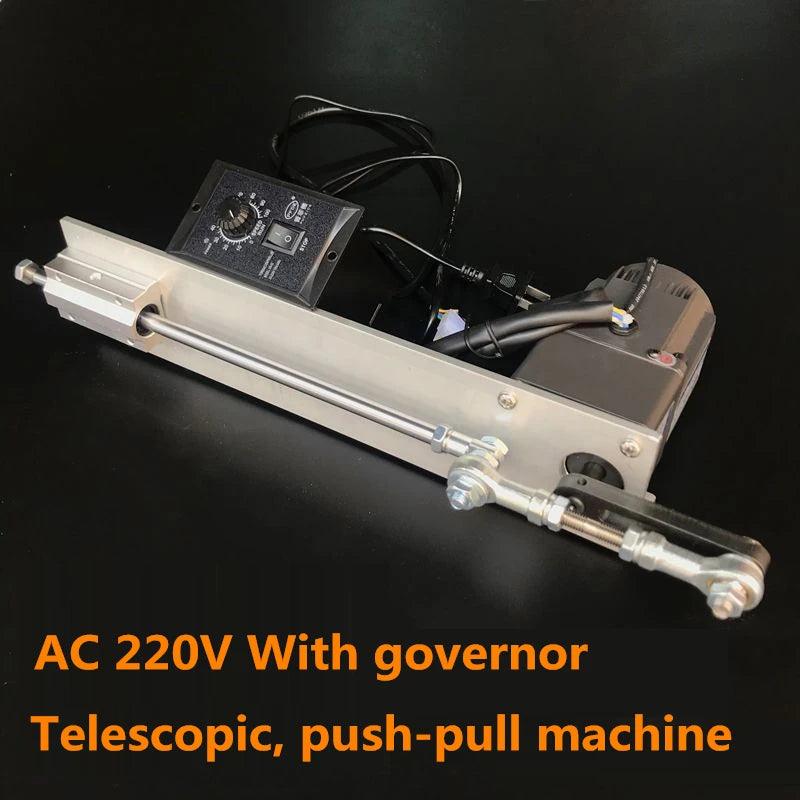

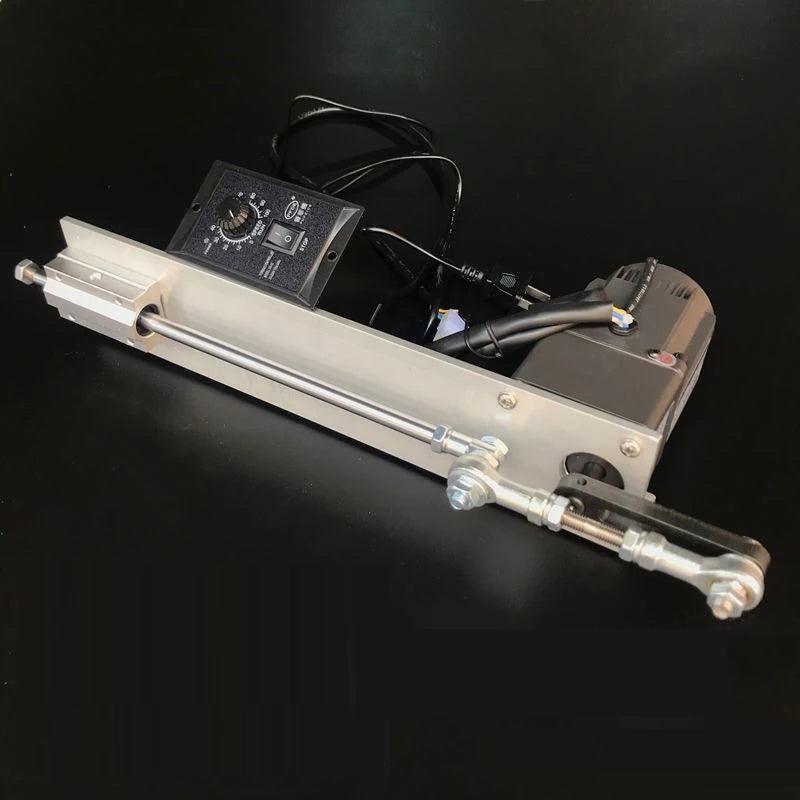

-This Linkage Mechanism is an automatic constantly reciprocating

linear actuator motor, which frequency is Variable.

-This machine output in an axle, the run speed on axis is Non-uniform.

If require speed uniform please don't bid.

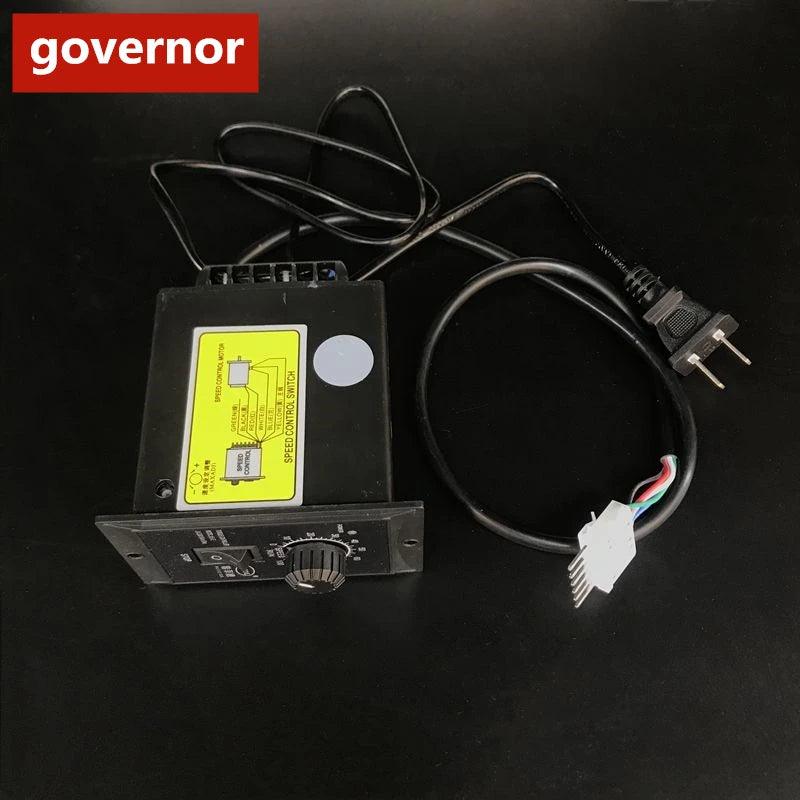

-The reciprocate speed of machine can be controlled via PWM controller,

the adjusted speed range is 0-self Speed, for example: 100rpm-0-Max

100rpm.

-The speed faster, the torque smaller, the noise louder.

If require quietly, please be careful before bid.

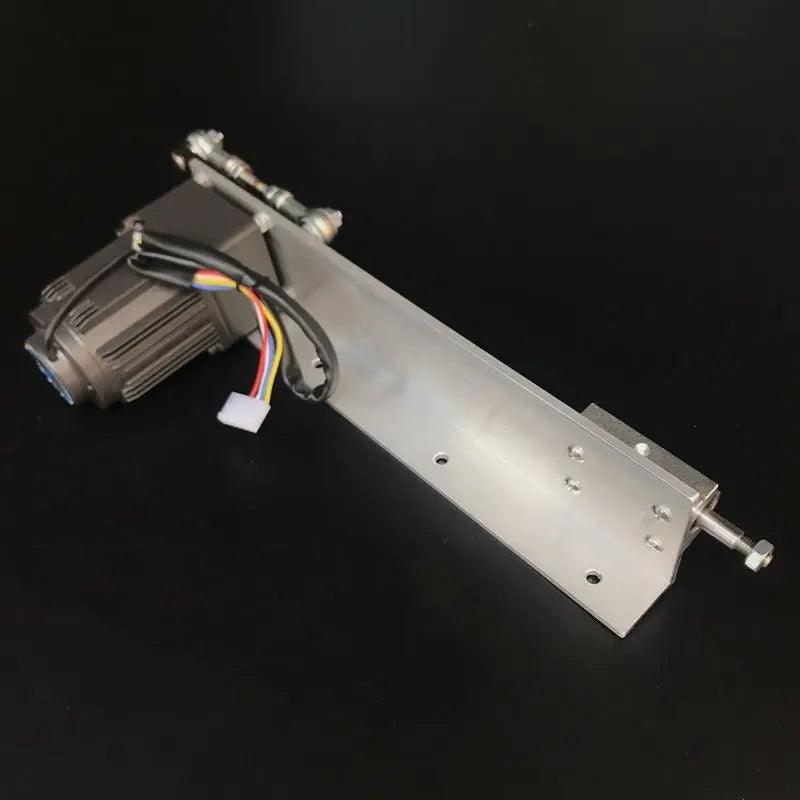

-Linear motion part is consist of sliding linear ball bearing and steel axle.

Axle need adds lubricating oil at regular intervals, in order to limited axle

temperature less than 90 degrees, and oil wetness.

-Due to rotating lump is affected by gravity, the machine

go and back speed is different.



Sweet tips:

Speed higher than 300rpm has very small force, the load larger then

maximum force will break gearbox. Clear all barriers before operating the

motor, even use your hand holding the shaft may break the motor.

Please do accord to our advices for avoid unnecessary trouble
