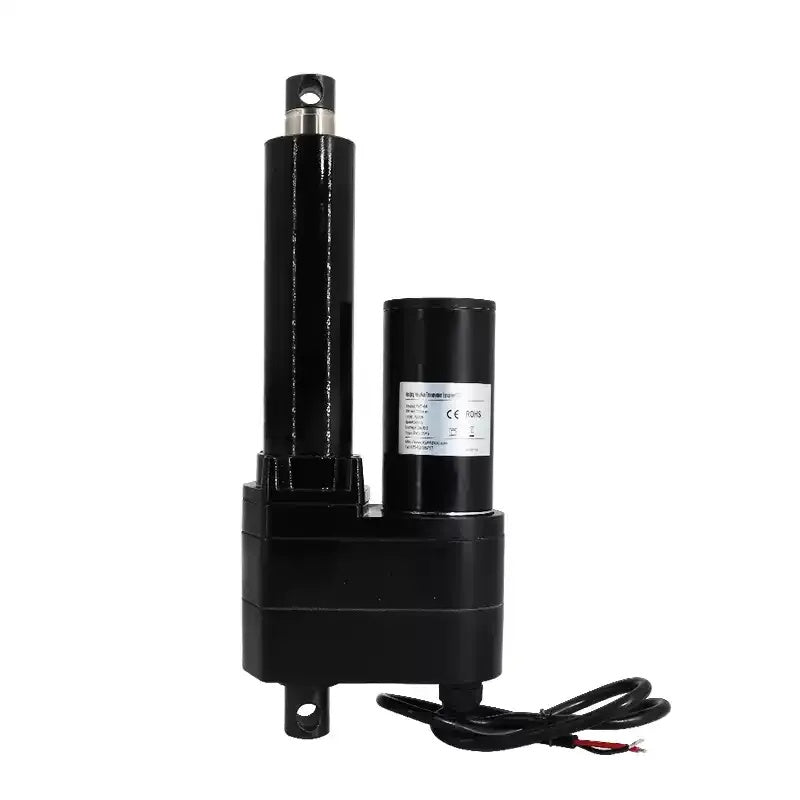

Heavy-Duty 7000N Linear Actuator IP65 Waterproof
Regular price
$304.00 NZD
Regular price
$628.00 NZD
Sale price
$304.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
7000N High Force Linear Actuator Motor, 12/24V DC, IP65 Waterproof, 30-600mm Stroke, Heavy-Duty Industrial Electric Cylinder
DC Linear Actuator, 7000N Max Thrust, IP65, 12V/24V, 50~600mm Stroke, Heavy-Duty Industrial Telescopic Rod
Product Description
The YNT-04 heavy-duty linear actuator is designed for industrial applications requiring extreme thrust and durability. With a maximum load of 7000N (700kg), IP65 waterproof rating, and wide voltage compatibility (12V/24V DC), it delivers reliable linear motion for heavy lifting and positioning tasks in harsh environments.
Key Features
- ✅ Ultra-High Thrust Performance: Delivers up to 7000N (700kg) max thrust at 6mm/s, ideal for heavy industrial machinery, vehicle modifications, and marine equipment.
- ✅ IP65 Waterproof & Dustproof: Sealed housing with strong protection against water splashes and dust, suitable for outdoor and industrial use.
- ✅ Adjustable Stroke & Speed:
- Standard stroke options from 50mm to 600mm (customizable).
- Multiple speed/load combinations: 6mm/s(7000N), 12mm/s(5000N), 16mm/s(4000N), 25mm/s(3000N), 30mm/s(1500N), 50mm/s(1000N).
- ✅ Advanced Safety & Control:
- Built-in overload clutch for automatic protection against jams and overloading.
- Upper and lower limit switches to prevent over-travel damage.
- Optional potentiometer feedback for position control and synchronization.
- ✅ Durable & Low-Noise Design:
- Heavy-duty construction with a new upgraded DC linear motor for smooth, quiet operation.
- Operating temperature range: -15°C ~ +45°C, suitable for diverse environments.
- Rated duty cycle: S2-25min (intermittent use for heavy loads).
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Heavy-Duty Linear Actuator / Industrial Electric Cylinder |
| Rated Voltage | DC 12V / 24V |
| Max Thrust | 7000N (700kg) |
| Stroke Length | 50mm~600mm (Customizable) |
| Speed Options | 6mm/s, 12mm/s, 16mm/s, 25mm/s, 30mm/s, 50mm/s |
| Protection Rating | IP65 (Waterproof & Dustproof) |
| Rated Power | 350W |
| Duty Cycle | S2-25min |
| Operating Temperature | -15°C ~ +45°C |
| Safety Features | Built-in Overload Clutch, Upper/Lower Limit Switches |
| Optional Feedback | 10KΩ Potentiometer for Position Control |
| Certification | CE Certified |
| Applications | Industrial Machinery, Vehicle Modifications, Marine Equipment, Automation |
| Control Accessories | Wireless Remote Control, 350W Power Supply (Sold Separately) |
Applications
- Heavy Industrial Machinery: Excavators, large mechanical arms, industrial lifting equipment
- Vehicle & Marine: Modified cars, boats, ships, heavy-duty vehicle components
- Automation: Industrial automation equipment, robotics, material handling systems
- Outdoor & Harsh Environments: Construction equipment, outdoor enclosures, marine applications
Wiring Notes
- Connect black wire (5) to positive (+) and red wire (4) to negative (-) for extension; reverse polarity for retraction.
- The potentiometer (green/white/red wires) provides position feedback, with resistance increasing as the actuator extends.
- Limit switches automatically stop the actuator at full extension/retraction.
If need Custom made please add note to order.
For bulk purchase please email to : [email protected]
