6V 12V 18V 24V DC Motor Controller PWM Speed Reversed CW CCW DC6V-30V 10A 200W Pause Start Governor PLC Switch Electric Motors

Regular price $38.00 NZD
Regular price $40.00 NZD Sale price $38.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

6V 12V 18V 24V DC Motor Controller PWM Speed Reversed CW CCW DC6V-30V 10A 200W Pause Start Governor PLC Switch Electric Motors

Motor Type: DC Motor

Origin: Mainland China

CCM6N DC Speed controller
1. Can adjust the low speed, low noise, can control the motor is reversing, support for PLC control, external 5V signal can be adjusted speed, this product with positive and negative indicator and power indicator
2. Input Voltage: DC 6V-30V
3. Current: Rated current 6A, maximum through current 10A, Short circuit in less than 30s
4. Power: MAX 200W
 5. Frequency: 16khz
6. PWM pulse width speed range: 0% - 100%

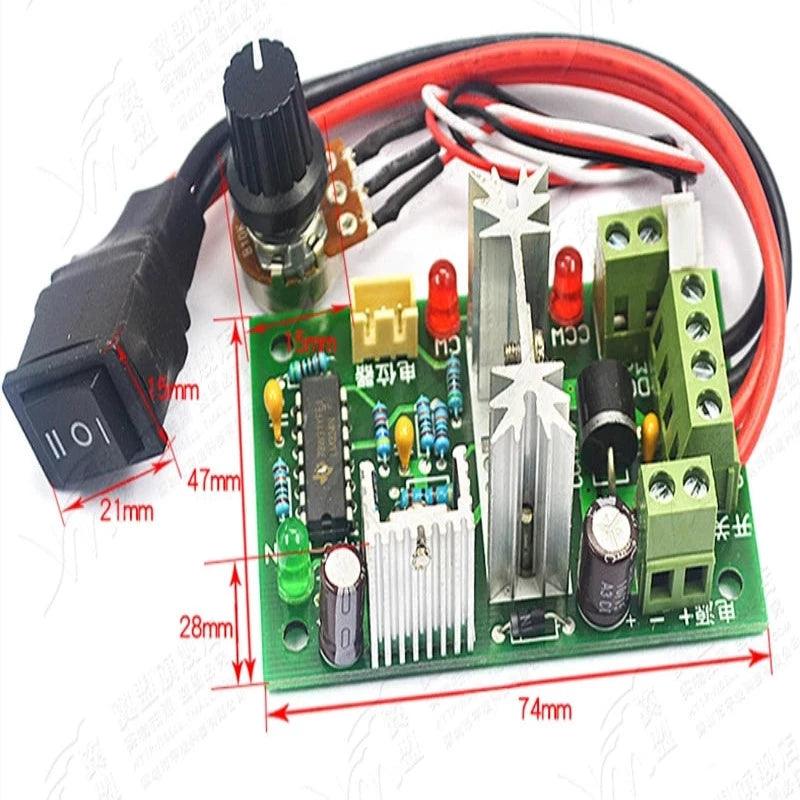

7. Size: 74 47 28mm, four positioning pitch plate edge 5mm, Positioning hole diameter 3.6mm
8. You can control an external 0-5V external voltage that can direct control of the speed of the motor, if you need a very small current 5V power supply, We can provide 100mA 5V power supply
9. All chips are imported original

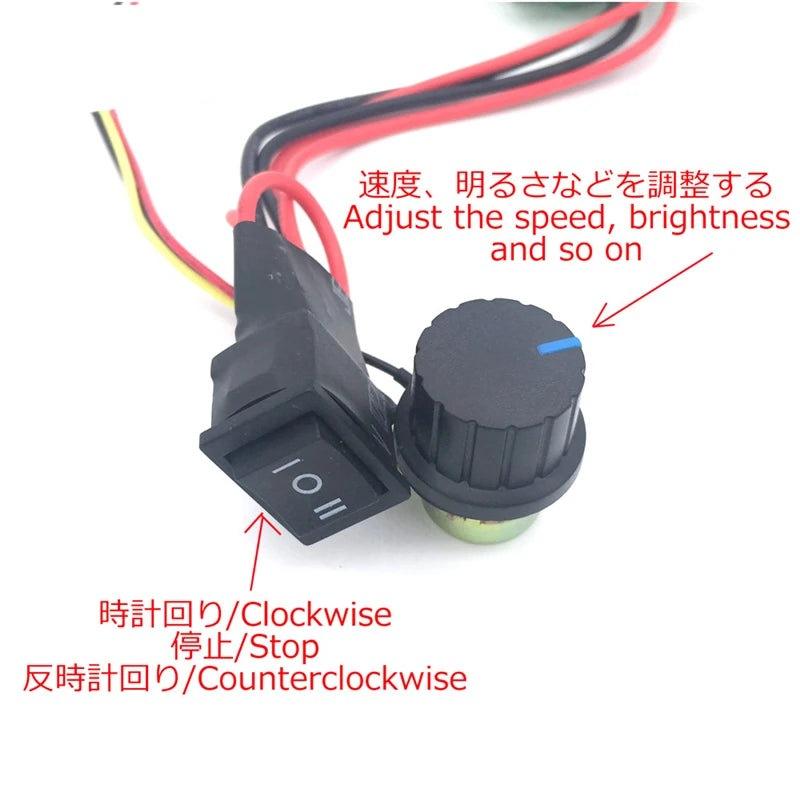

10. Control motor: Adjust Speed, CW/CCW And Stop
