6000N DC Linear Actuator 12V 24V Telescopic Rod Stroke 30mm 50mm Electric Mini Lineal Actuador 12 Volt Thrust Lift Window Opener

Regular price $451.00 NZD
Regular price $109.00 NZD Sale price $451.00 NZD
Sale Sold out
Shipping calculated at checkout.
Voltage(V)
Speed(RPM)

SPECIFICATIONS

6000N DC Linear Actuator 12V 24V Telescopic Rod Stroke 30mm 50mm Electric Mini Lineal Actuador 12 Volt Thrust Lift Window Opener

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Continuous Current(A): 6a-10A

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Torque: 6000N

Permanent magnet DC motor drive;Voltage:12V

Standard protection grade:IP54

Material: aluminum alloy

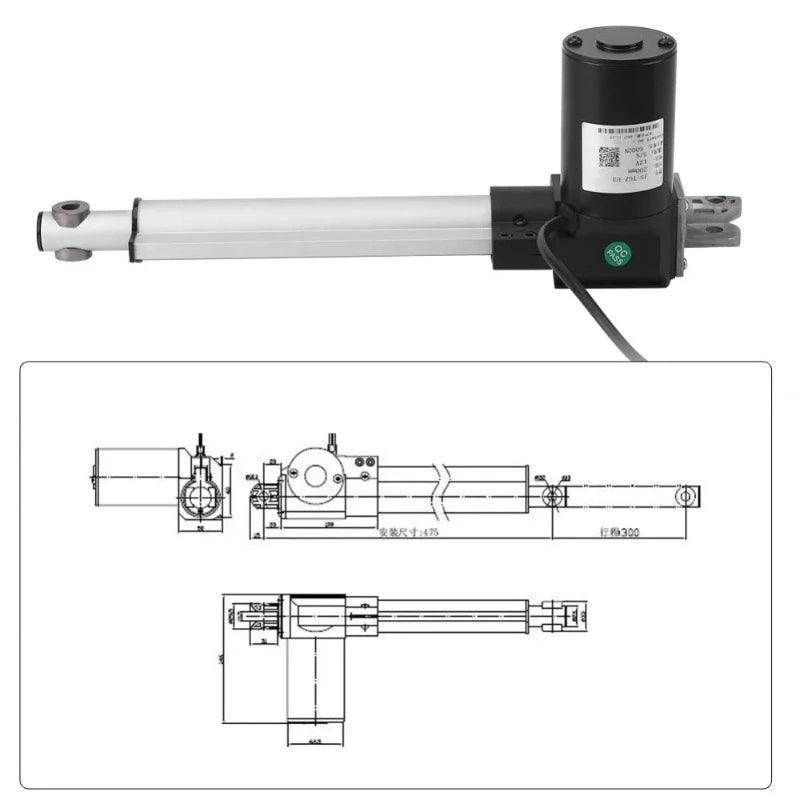

  1. Minimum installation dimensions (fully retracted around in the middle of the distance between the two holes): L1= Stroke+175 mm

  2. Maximuminstallation dimensions(fully extended around the middle of the distance of the two holes):                  L = 2xS(stroke)+175mm

  3. Ambient temperature :-26  to +65 degree

  4. Built-in limit switches(Whencompletedstroke,linear actuatorautomatically stops!)

  5. Low noise design, noise levels below 42 db

  6. Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest.            If lower load can extend work time.

Application:Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....

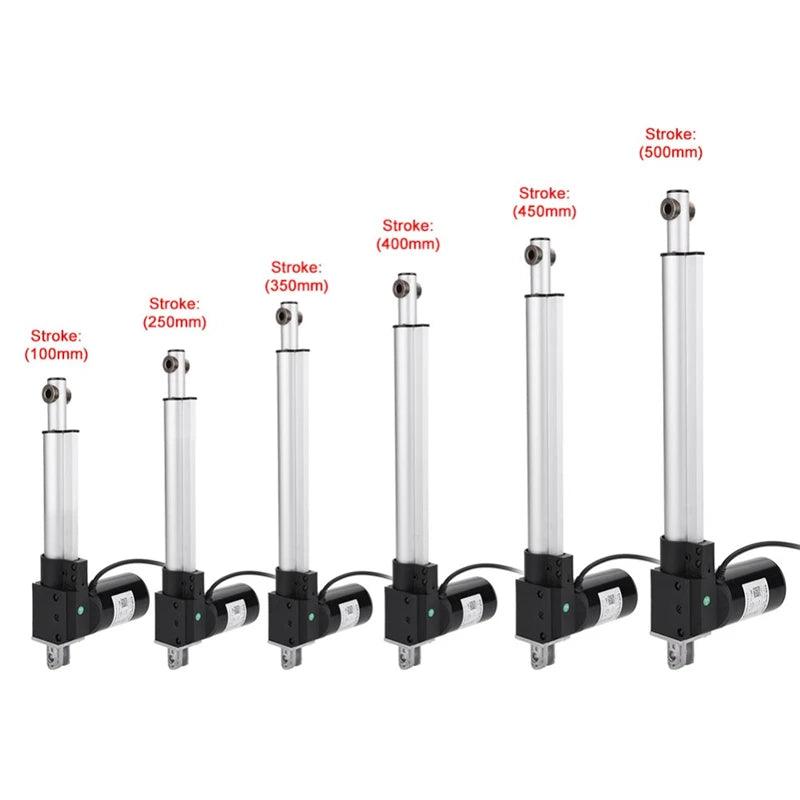

Note:If you need other voltage (DC24V 36V 48V ...) or if you need other strokes (100mm 150mm 200mm 250mm 300mm 350mm 400m 500mm550/600/650/700/750/800/850/900/950/1000mm)

we will definitely give you the best price if you need more quantity
Anyhow, pls contact me if you have any question

The self-locking force of the linear actuator is about 80%
