5V L-Type Mini Electric Linear Actuator Stroke 5MM-20MM 40N(4KG)/20N(2KG) with protection modular

$115.00 NZD

Sale Sold out

Shipping calculated at checkout.

Actuator Stroke with Protection Modular 5MM/ Speed 4mm/s 40N(4KG) 10MM/ Speed 4mm/s 40N(4KG) 15MM/ Speed 4mm/s 40N(4KG) 20MM/ Speed 4mm/s 40N(4KG) 5MM/ Speed 8mm/s 20N(2KG) 10MM/ Speed 8mm/s 20N(2KG) 15MM/ Speed 8mm/s 20N(2KG) 20MM/ Speed 8mm/s 20N(2KG)

Product variants

Quantity

Added ✓

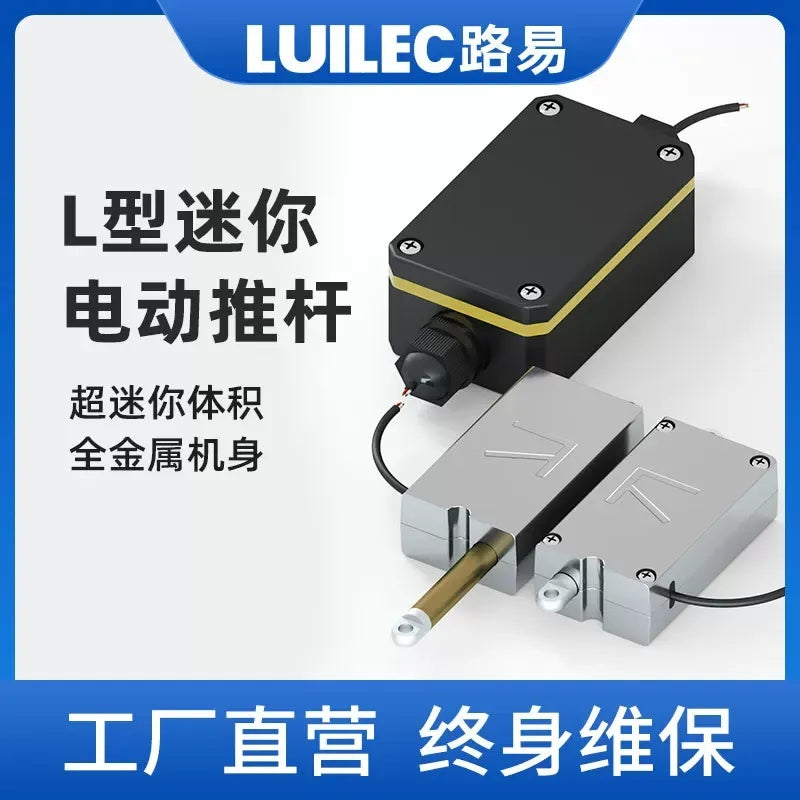

5V L-Type Mini Electric Linear Actuator, small electric actuator

4/8mm/s Speed, 20-40N Max Thrust, 5/10/15/20mm Stroke, Tiny Telescopic Push Rod Motor with Stall Protection

Specification

This L-shaped micro linear actuator is an ultra-compact telescopic motor designed for small-scale automation, robotics, and DIY projects. It operates on 5V DC with two speed options (4mm/s for high thrust, 8mm/s for faster movement) and features a maximum thrust of 40N. Available in fixed strokes of 5/10/15/20mm (customizable), it includes built-in stall protection (stops when encountering resistance) to prevent damage. The zinc alloy body and brass telescopic rod ensure durability, while low current draw (0.02A no-load) makes it ideal for battery-powered applications. Perfect for small robots, door locks, mini lifting mechanisms, and precision projects requiring compact linear motion.

DATA SHEET

Name	Parameter
Product Type	Linear Actuator / Micro Linear Actuator
Model Number	LMNTL
Rated Voltage	5V DC
Speed Range	4mm/s / 8mm/s
Max Thrust	20N / 40N
Stroke Length	5/10/15/20mm (Customizable 0-20mm)
Material	Zinc Alloy Body + Brass Telescopic Rod
Protection Features	Stall Protection (Stall Stop)
Control Module	With Protection Module Included
No-Load Current	0.02A
Operating Temperature	-26°C ~ +85°C
Duty Cycle	10% (2min ON / 18min OFF)
Application	Small Robotics, DIY Projects, Door Locks, Precision Automation
Features	Ultra-Compact, Low Power Consumption, Durable, Easy Installation

FAQs

Q1: What is the working voltage of this L-type mini linear actuator?

A1: The rated working voltage is 5V DC, low voltage design, safe for DIY and small automation projects.

Q2: What speed and thrust options are available?

A2: Two speed choices: 4mm/s and 8mm/s. Max thrust options: 20N or 40N. Lower speed version delivers larger thrust.

Q3: What stroke lengths can I get?

A3: Standard strokes: 5mm,10mm,15mm,20mm. Custom stroke within 0-20mm is supported.

Q4: What is stall protection?

A4: Built-in stall protection. The motor will automatically stop once it meets resistance or reaches the limit position, avoiding burnout and damage. It comes with a protection module.

Q5: What material is this tiny push rod made of?

A5: Main body is zinc alloy, the telescopic rod is brass. Good rigidity and long service life.

Q6: What is the no-load current?

A6: No-load current is only 0.02A, very low power draw, suitable for battery-powered devices.

Q7: What is the working temperature range?

A7: Operating temperature: -26℃ ~ +85℃, stable performance under most indoor and mild outdoor environments.

Q8: What is the duty cycle?

A8: 10% duty cycle: 2 minutes continuous working, then must rest for 18 minutes. Do not keep running continuously beyond this limit.

Q9: What applications is this mini linear actuator suitable for?

A9: Widely used for small robots, DIY automation projects, electric door locks, miniature lifting mechanisms and other precision compact linear motion equipment.
