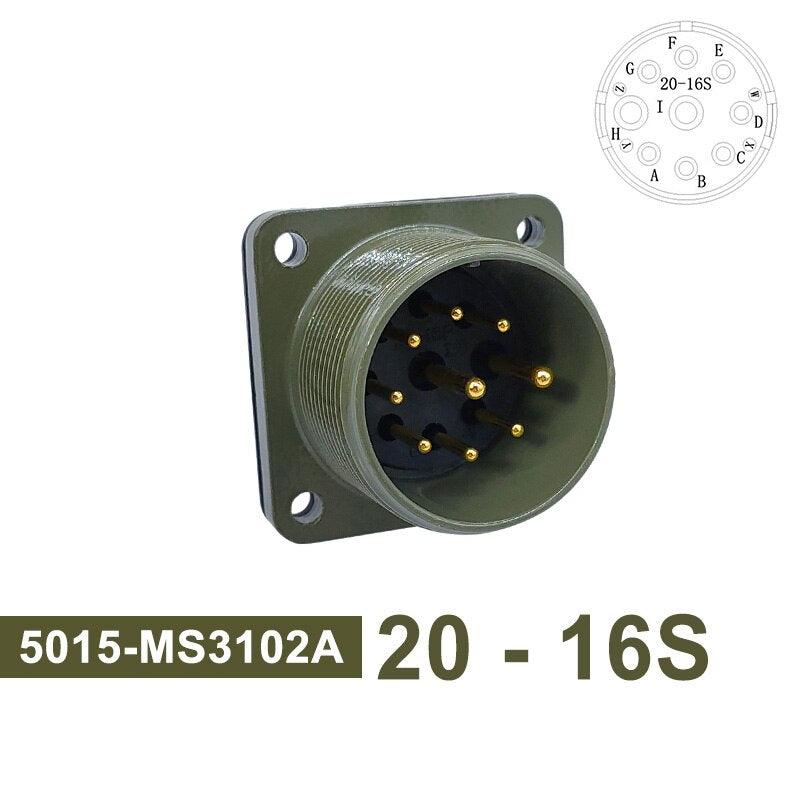

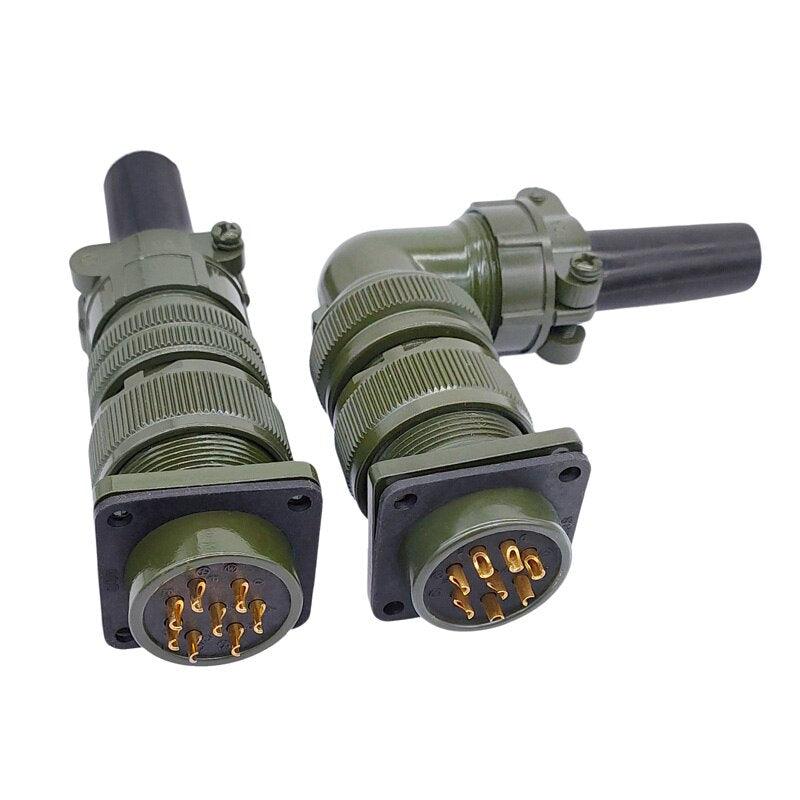

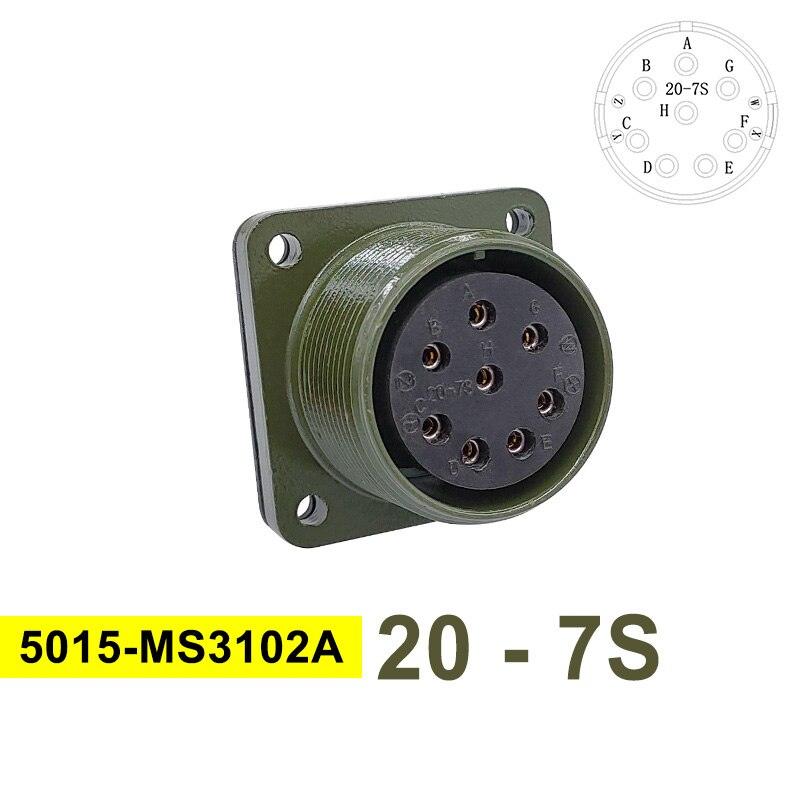

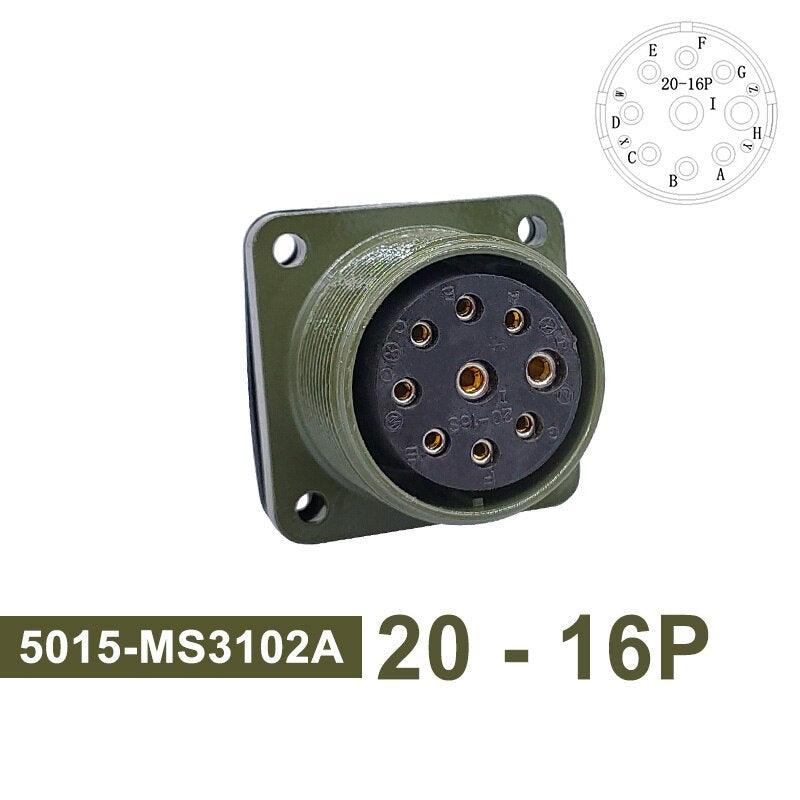

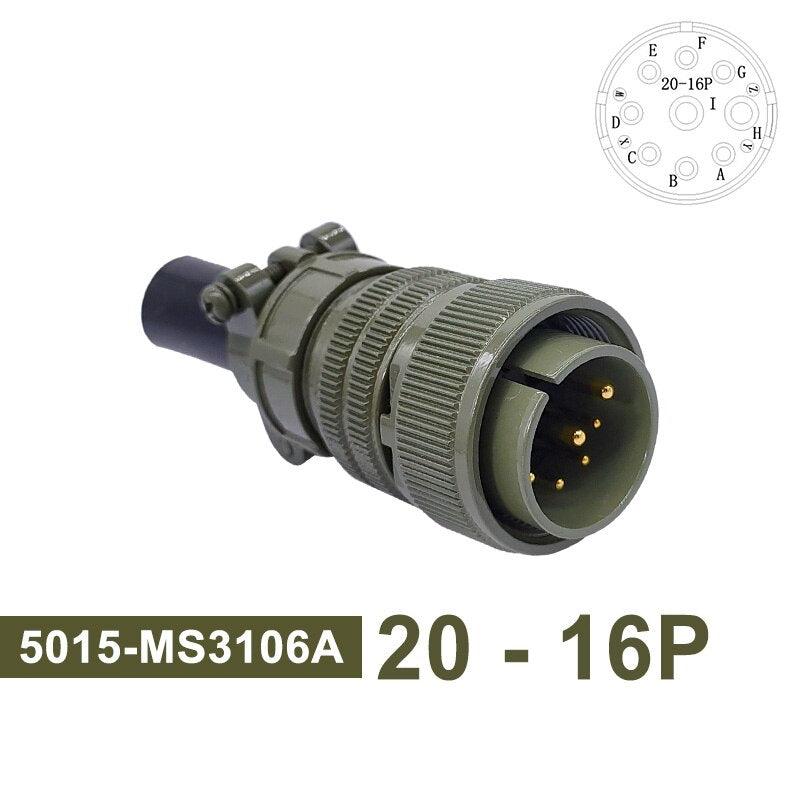

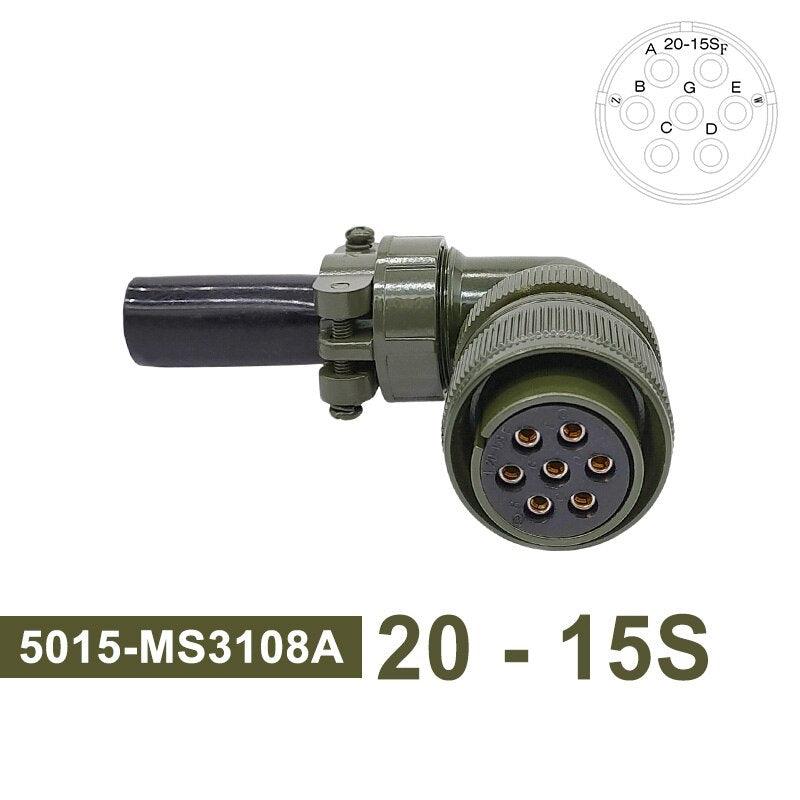

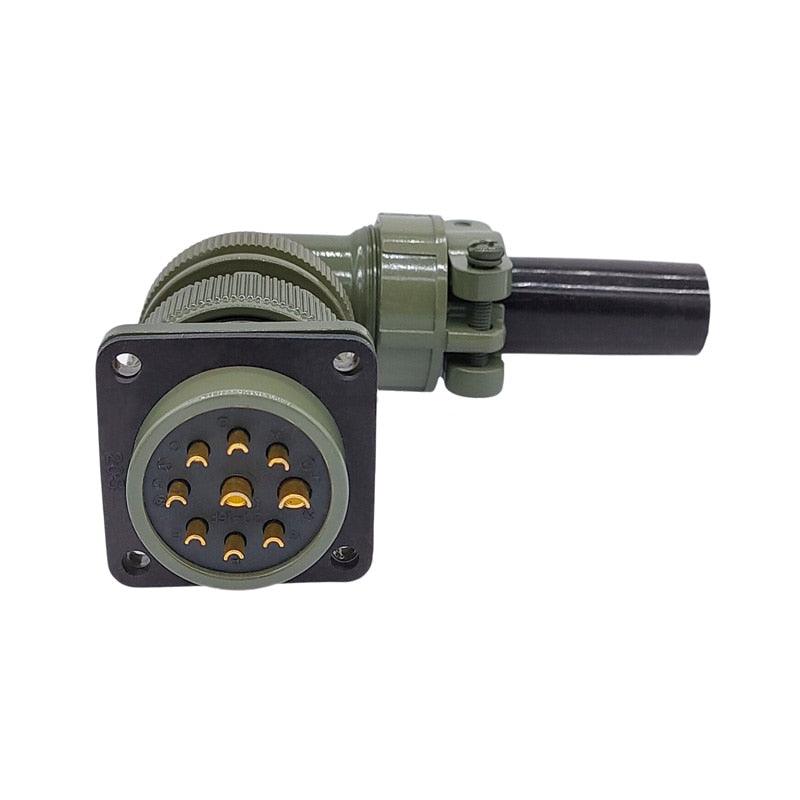

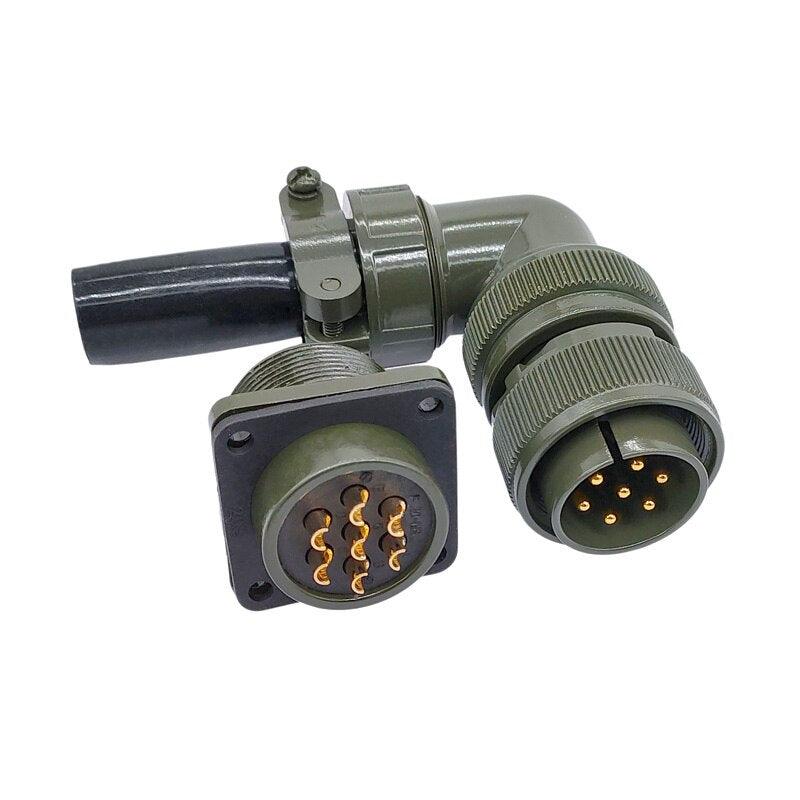

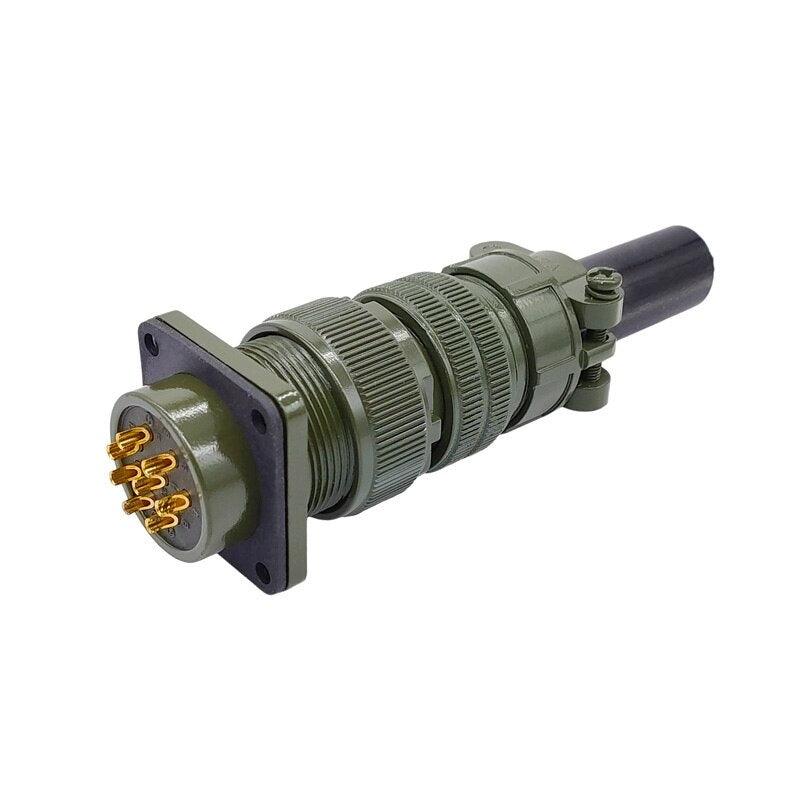

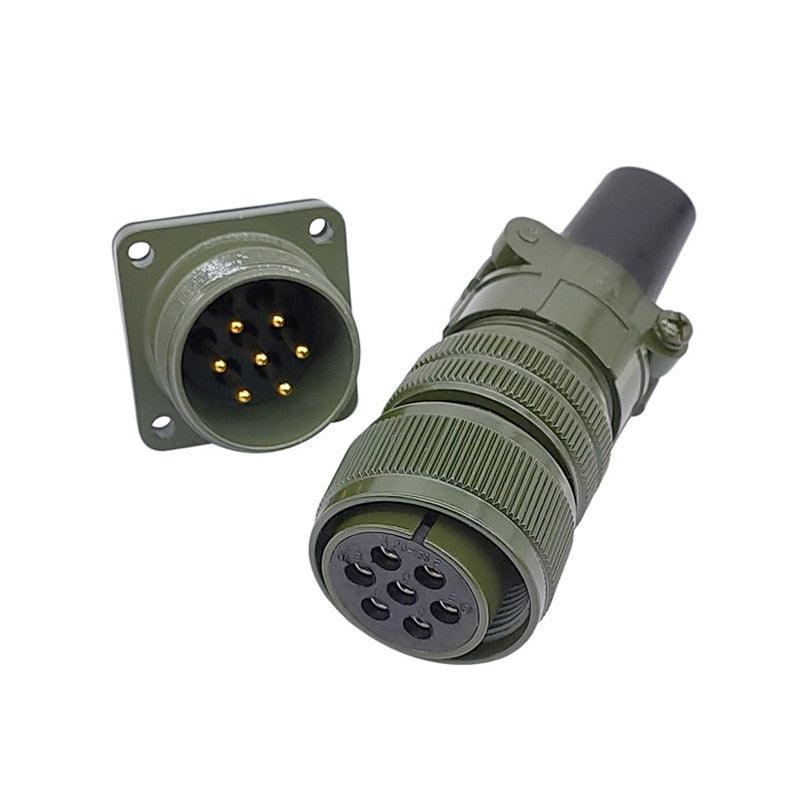

MIL-C-5015 20S Aviation Connector

$36.00 NZD
$10.00 NZD $36.00 NZD
Sale Sold out
Shipping calculated at checkout.
Number of Contacts
Contact Type
Shell Type

Product Overview


The MIL-C-5015 20S series aviation connector is a high-reliability industrial electrical connection solution, fully compliant with US Military Standard MIL-C-5015. Manufactured by Yongfeng (Feida Yongfeng), this connector covers a full range of pin counts from 2 to 17, with options for high-current (up to 46A) and multi-core signal transmission. Featuring IP67 dustproof and waterproof protection, gold/silver-plated copper contacts, and a secure threaded locking mechanism, it delivers stable power and signal transmission in harsh industrial, aerospace, and marine environments, making it ideal for heavy machinery, automation systems, and vehicle wiring.

DATA SHEET

中文属性 英文属性（工业标准） PARAMETER
产品名称 Product Name MIL-C-5015 20S Series Waterproof Multi-Core Aviation Connector
品牌 Brand Yongfeng (Feida Yongfeng)

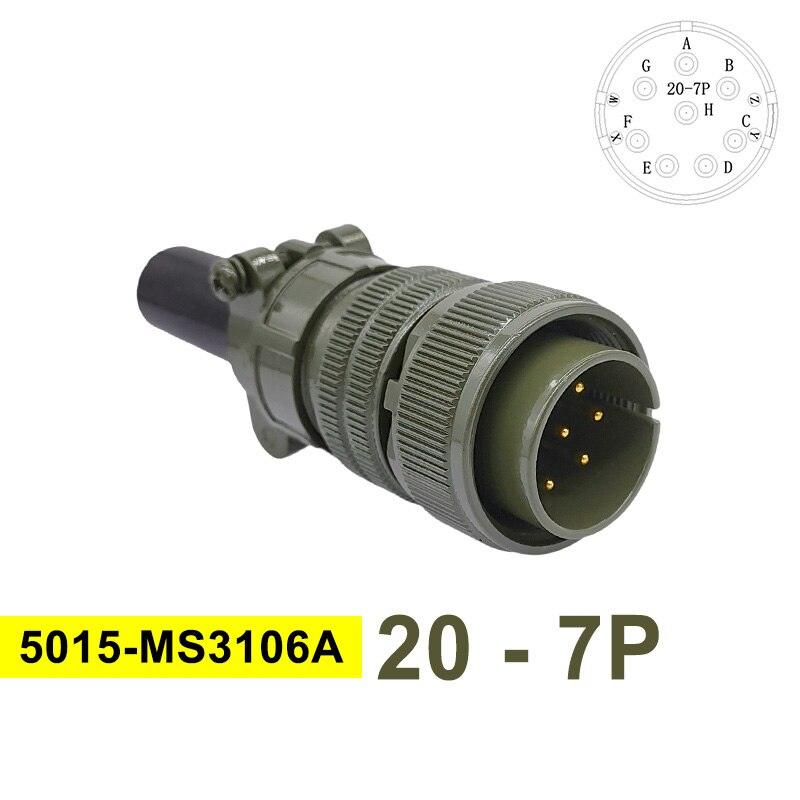

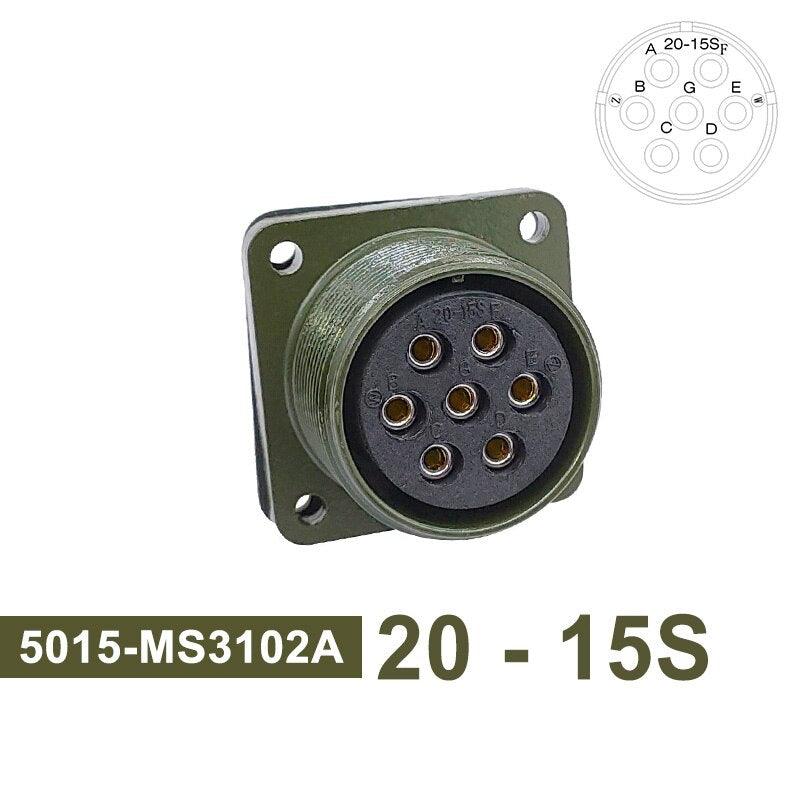

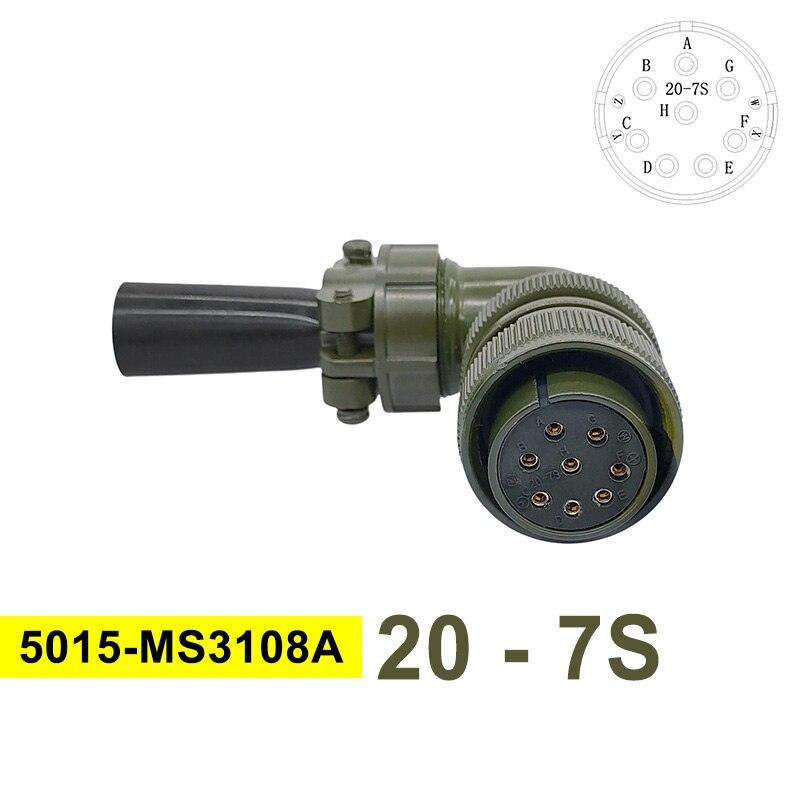

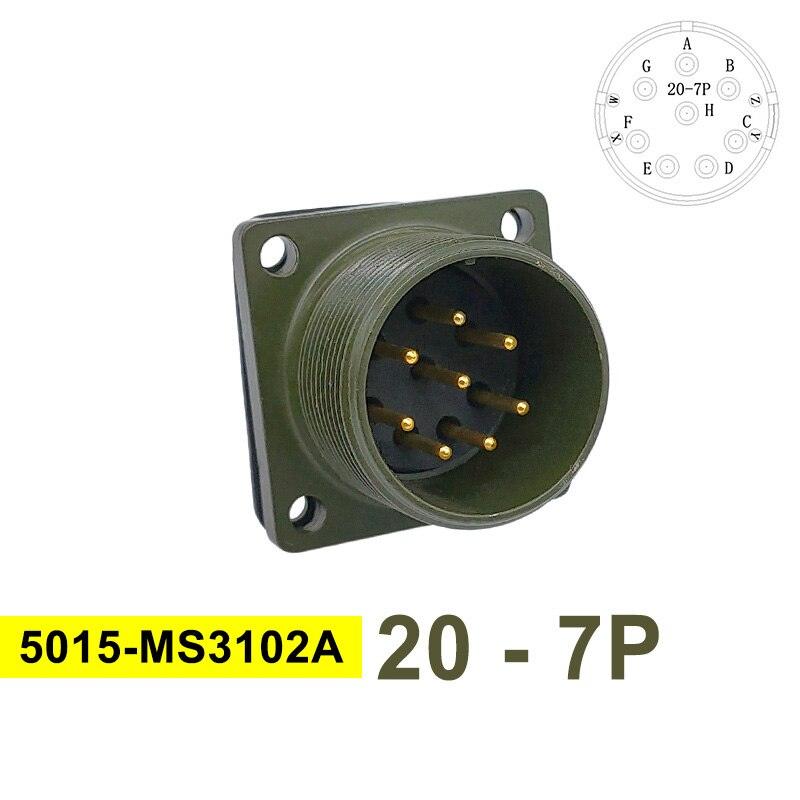

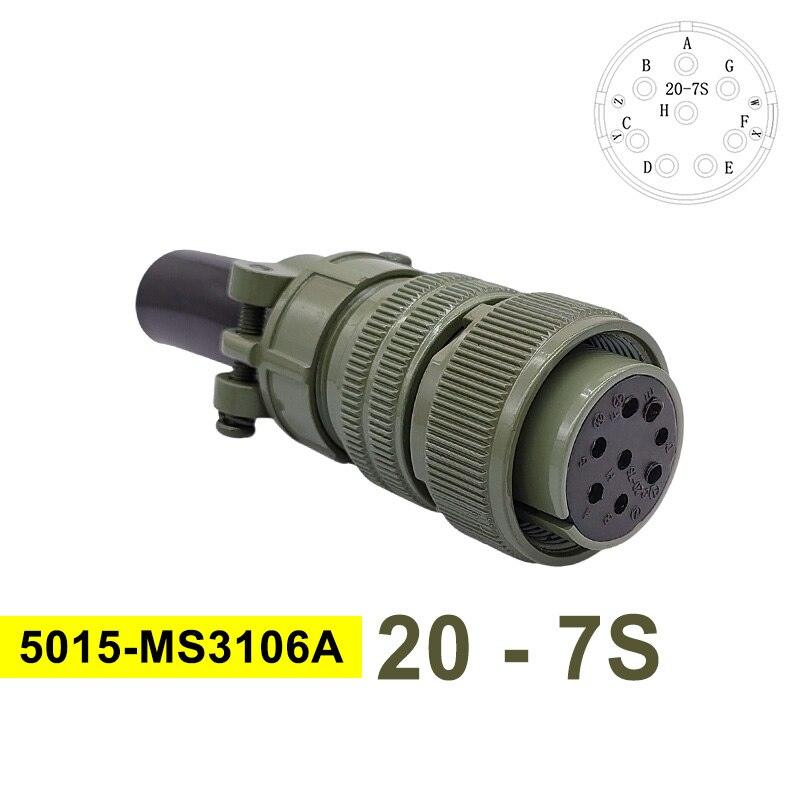

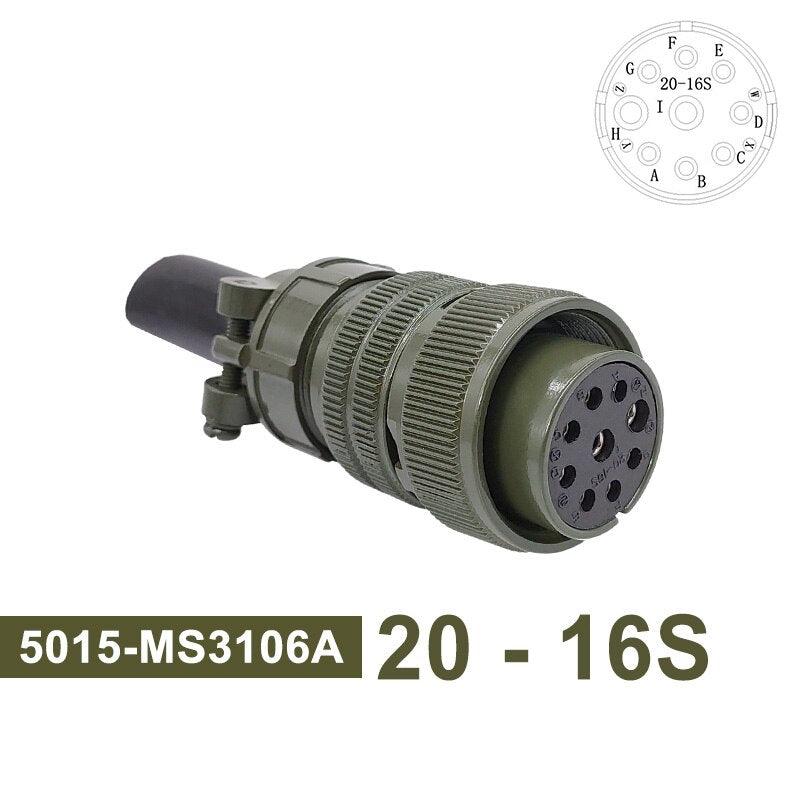

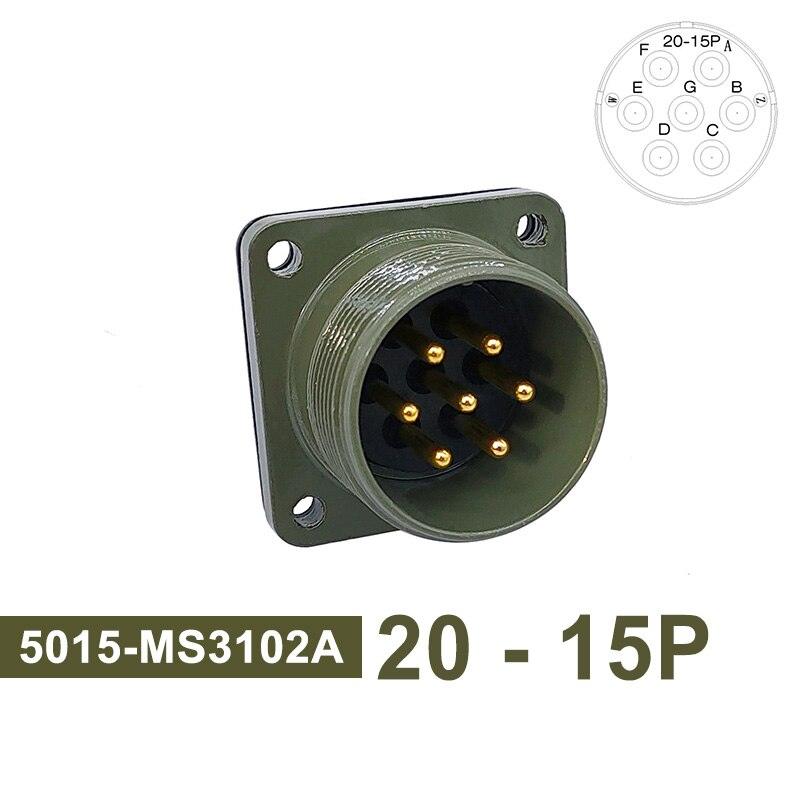

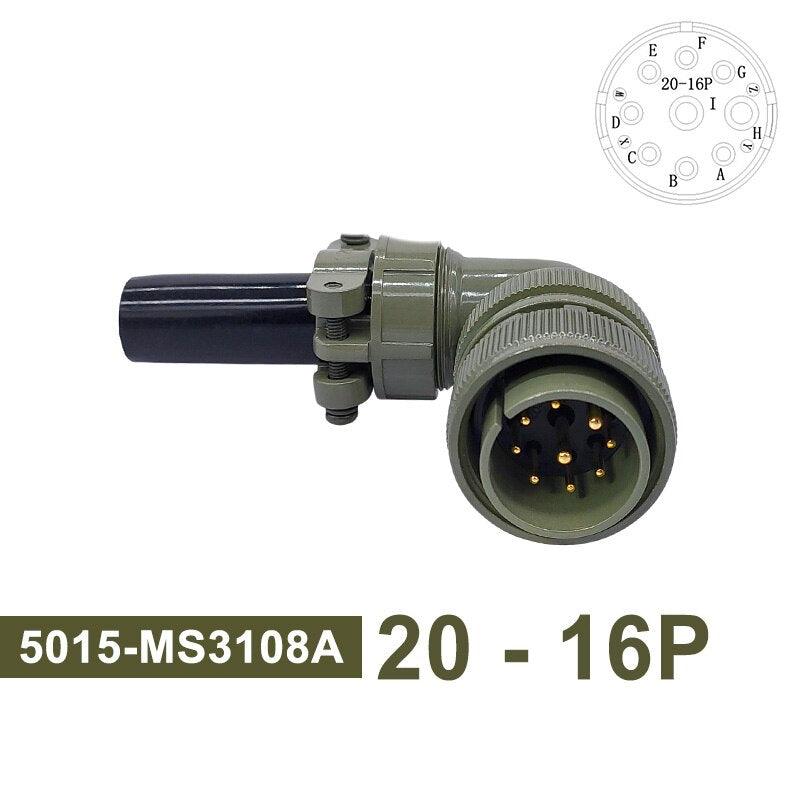

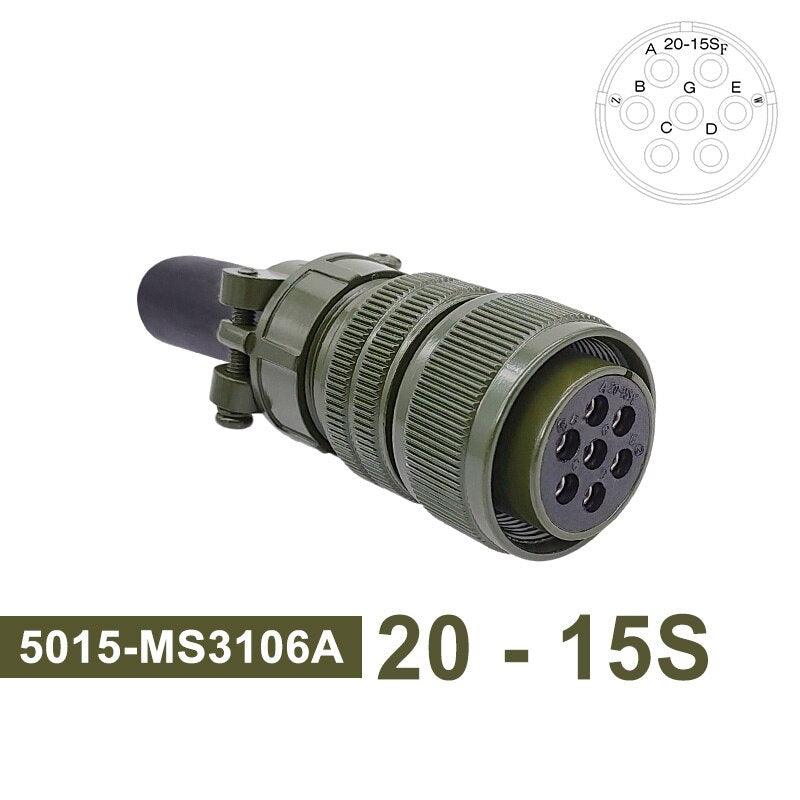

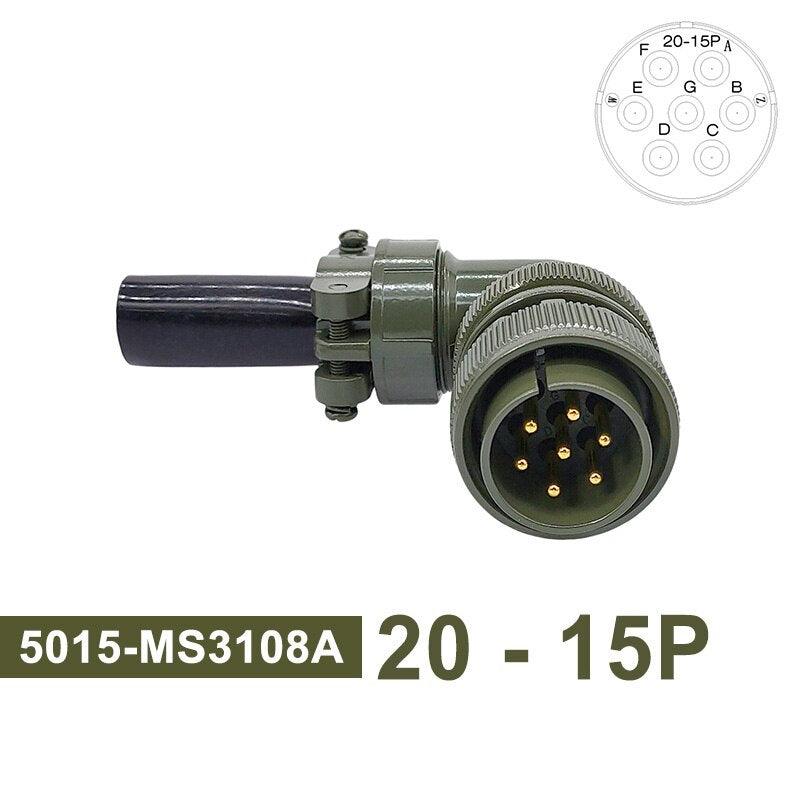

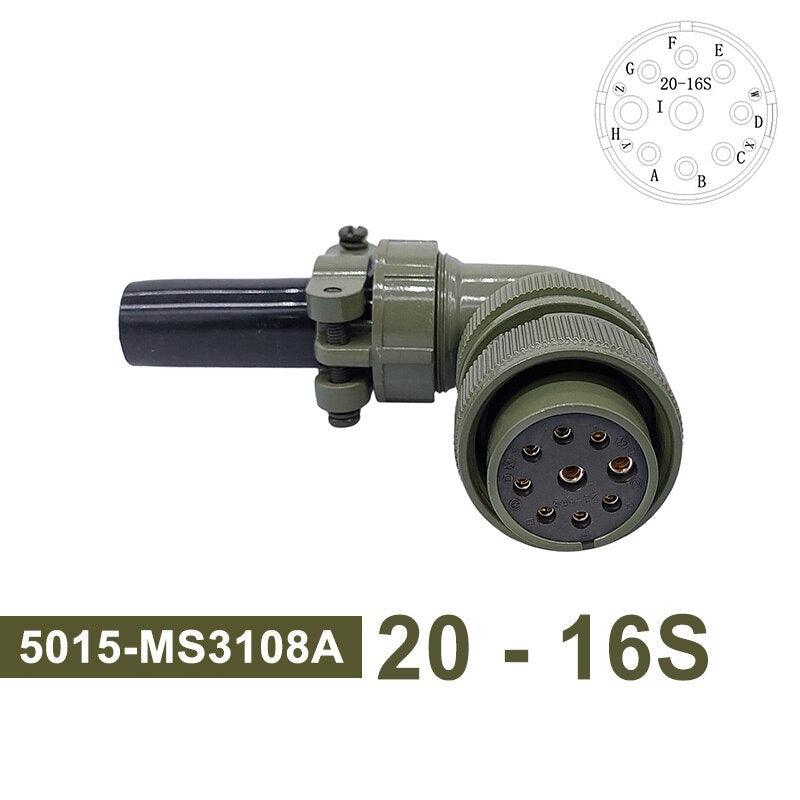

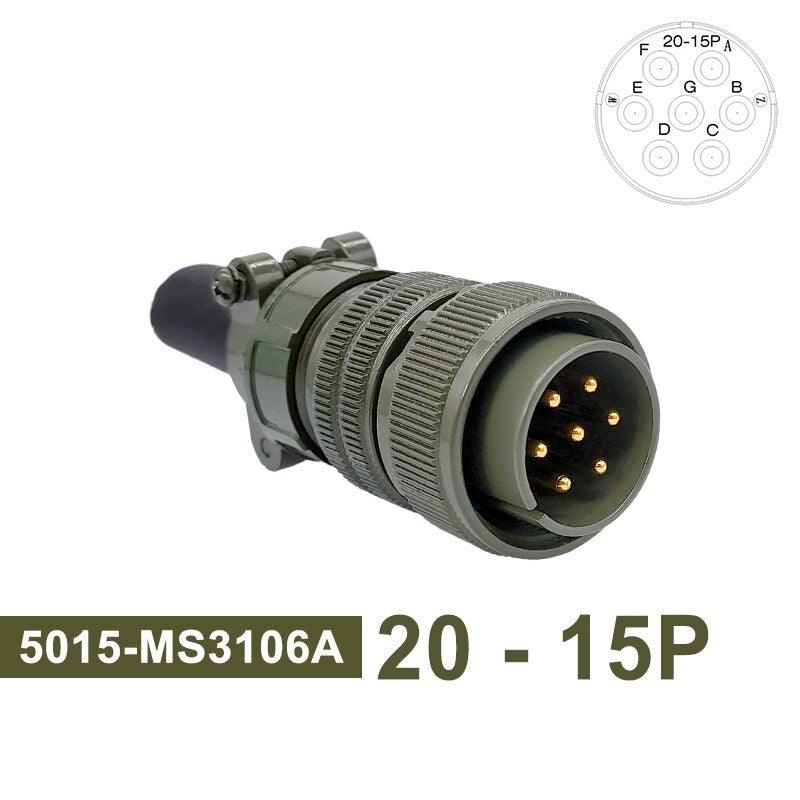

产品型号 Model Number 20-23(2P), 20-19(3P), 20-4(4P), 20-15(7P), 20-22(6P), 20-7(8P), 20-16(9P), 20-18(9P), 20-27(14P), 20-29(17P)
系列标准 Standard Series MIL-C-5015 (US Military Standard)
芯数 Pin Configuration 2, 3, 4, 6, 7, 8, 9, 14, 17 Pin
额定电流 / 电压 Rated Current/Voltage 46A/380V (2/3P), 23A/380V (4/7P/9P/18P), 15A/380V (6/8/14/17P)
防护等级 Protection Rating IP67 (Dustproof & Waterproof, Corrosion Resistant)
接插方式 Mating Type Threaded Locking (Circular Thread Interface)
接线方式 Termination Solder
插拔寿命 Mating Cycle 500 Times
工作温度 Operating Temperature -40°C ~ +70°C
外壳材质 Housing Material Aluminum Alloy
绝缘材质 Insulator Material TPU/Rubber (High Temperature Resistant, Flame Retardant)
触点材质 Contact Material Gold/Silver-Plated Copper (High Conductivity, Anti-Oxidation)
认证标准 Certification CE
应用场景 Application Industrial Automation, Aerospace, Marine, Automotive, Sensor Signal/Power Transmission

Core Features

  1. IP67 Extreme Environment Protection

    IP67-rated dustproof and waterproof design effectively blocks dust, moisture, and corrosive substances, ensuring reliable operation in outdoor, marine, and industrial environments.
  2. High-Current & Multi-Core Compatibility

    Available in 2/3-pin high-current (46A) and 4-17-pin multi-core configurations, supporting both heavy power transmission and complex signal transmission for diverse industrial needs.
  3. Premium Plated Copper Contacts

    High-purity copper contacts with gold/silver plating provide excellent electrical conductivity, low contact resistance, and superior anti-oxidation/anti-corrosion performance, ensuring stable transmission.
  4. Secure Threaded Locking Mechanism

    Reliable circular threaded connection securely fastens male and female connectors, preventing accidental disconnection in high-vibration environments (e.g., aerospace, automotive).
  5. MIL-C-5015 Standard Compliance

    Built to strict US Military Standard specifications, guaranteeing high reliability, durability, and compatibility with most industrial and military-grade wiring systems.
  6. CE Certified & Easy Installation

    CE certified for global market compliance, with simple solder termination for quick on-site installation, replacement, and maintenance.

Application Scenarios

  • Industrial Automation: CNC machinery, production lines, motor control centers, power distribution systems
  • Aerospace & Aviation: Aircraft wiring, avionics systems, aerospace equipment
  • Marine & Naval: Shipboard electrical systems, underwater equipment, corrosion-prone environments
  • Automotive & Transportation: Heavy vehicle wiring, automotive electronics, construction machinery
  • Military & Defense: Military vehicle communication systems, field equipment, weapon systems

Important Notes

  • Model Selection: Confirm the pin count, current rating, and mounting type match your wiring and installation requirements.
  • Installation: Ensure proper alignment when mating male/female connectors and tighten the thread lock firmly to prevent loosening.
  • Soldering: Use appropriate soldering techniques for the corresponding solder cup size to ensure reliable connections.
  • Environment: This connector is designed for harsh industrial environments; avoid direct exposure to strong chemicals unless specified.
