50 Pcs/lot 4 Way PV Combiner Boxes Photovoltaic Junction Box for Solar System, 3 Diodes Solar JB with Connector XH0200

Regular price $1,492.00 NZD
Regular price $1,287.00 NZD Sale price $1,492.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

50 Pcs/lot 4 Way PV Combiner Boxes Photovoltaic Junction Box for Solar System, 3 Diodes Solar JB with  Connector XH0200

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: 4 way solar panel box

Amount of Rails: 4 rail terminals

Rated Voltage: TUV 1000V DC

Rated Current: 3-20A

Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Cable Size: 4mm sq

Protection Class: Class II

Pollution Degree: 2

Pin Od: 4.0mm

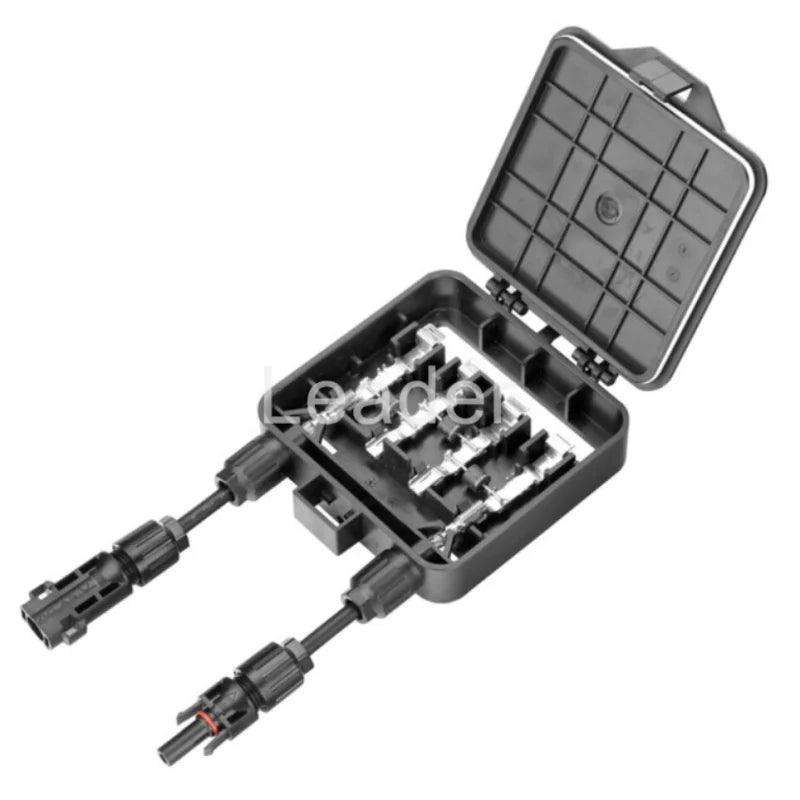

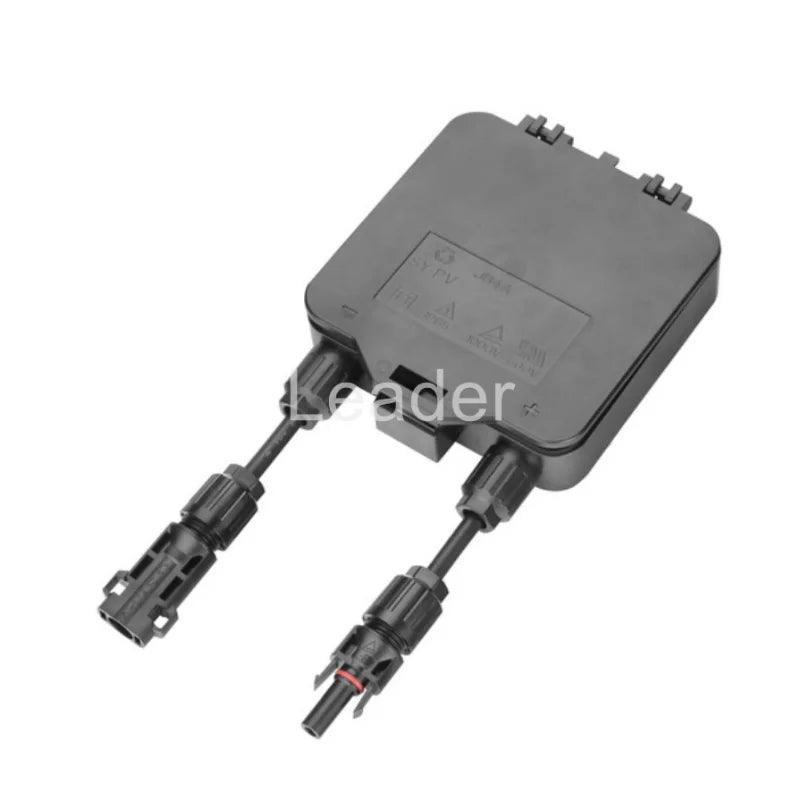

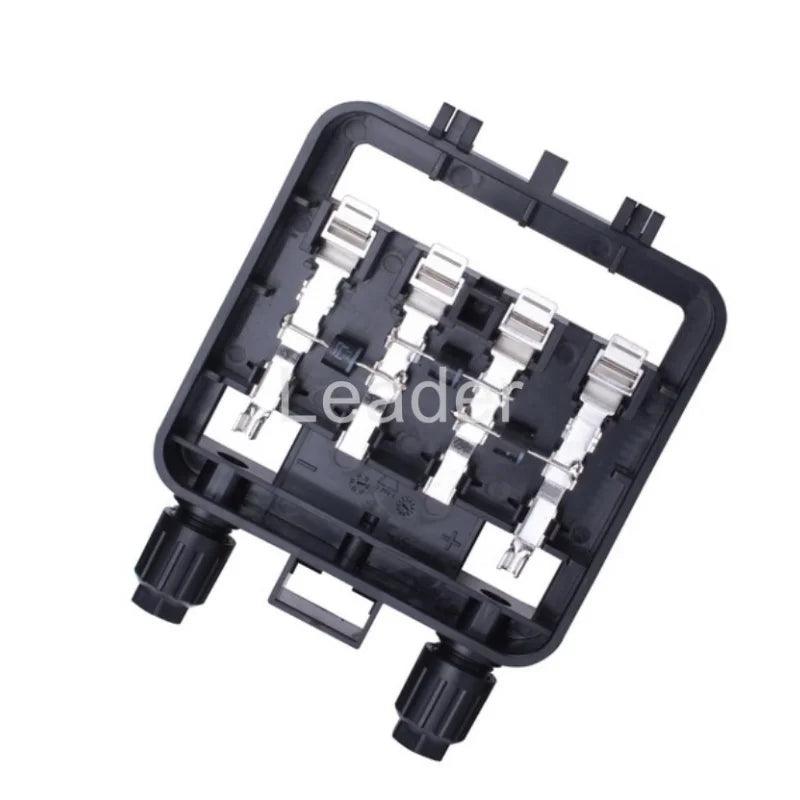

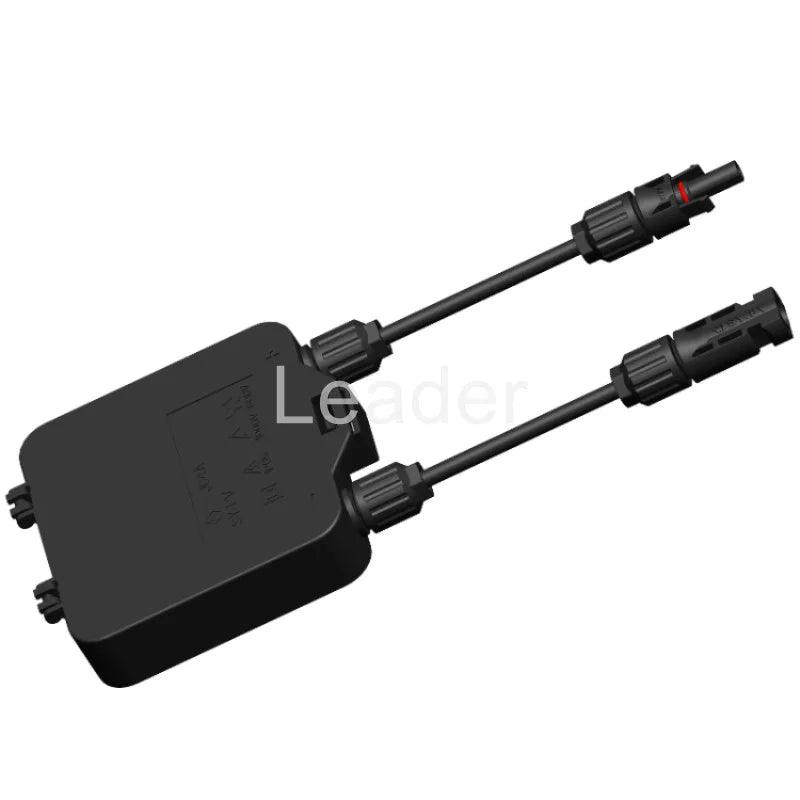

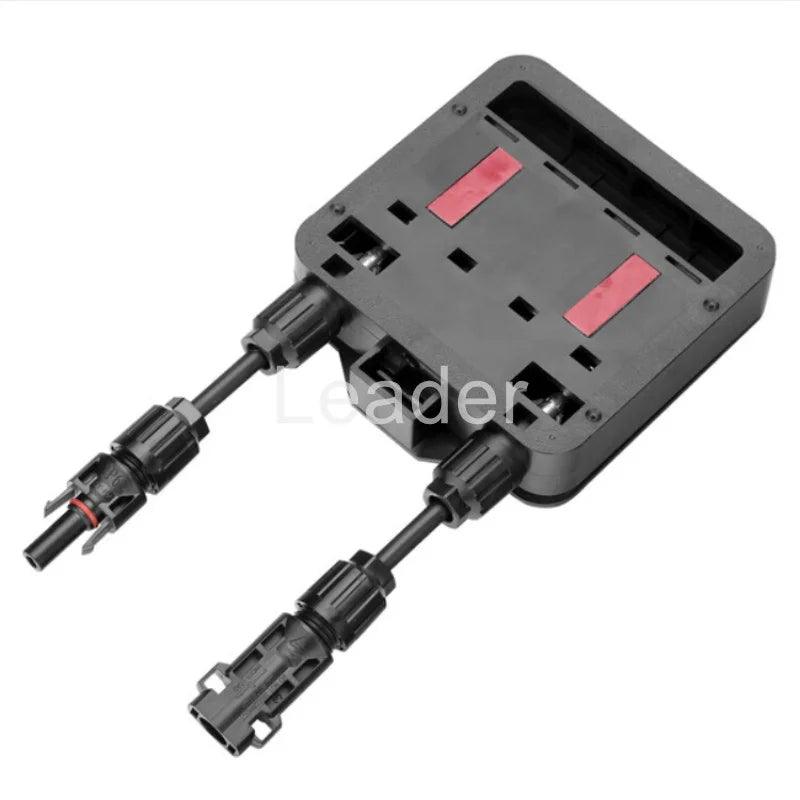

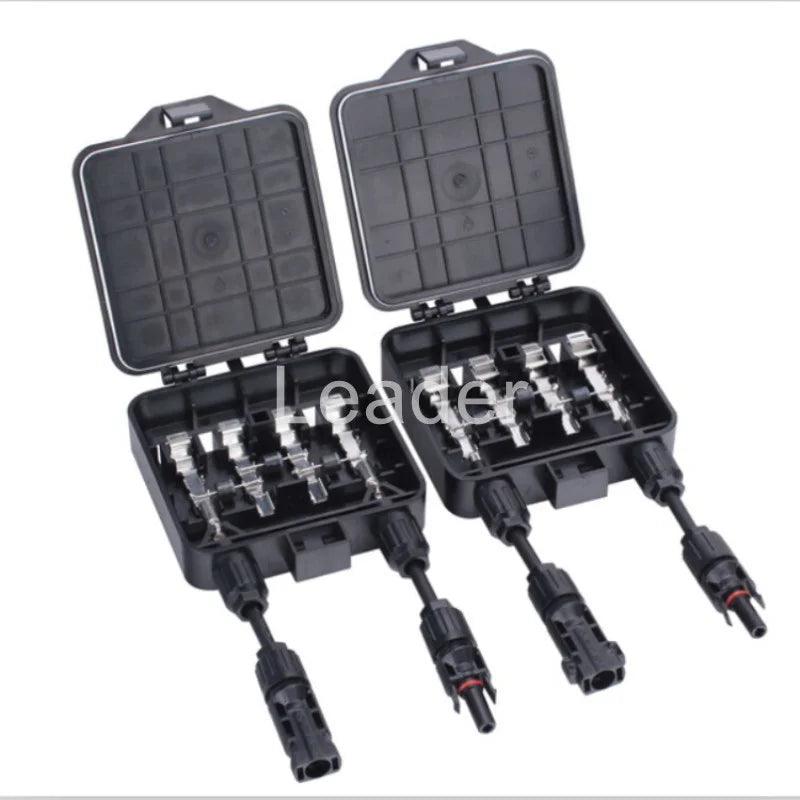

4 Way Solar Junction Box with 3 Diodes and IP67 SOLAR Connector



Production introduction:

Product No. SM-JB4A
Amount of rails 4 rail terminals
Rated Voltage TUV 1000V DC
Rating current 3-20A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin OD 4.0mm
Proof voltage TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree 2
Protection class Class II
Contact Material Copper, tin plated
Contact resistance ≤5mΩ
Protection degree IP67
Withdrawal Force ≥50N
Temperature Range -40ºC~+85ºC
Flame Class UL94V-0

JB4A (2)JB4A 4JB4A 5 (2)JB4A 5JB4A 6
