50 Pairs/Lots Solar PV Junction Box TUV Approved 2.5mm IP 67 Solar Junction Box FS0148

Regular price $1,070.00 NZD
Regular price $999.00 NZD Sale price $1,070.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

50 Pairs/Lots Solar PV Junction Box  TUV Approved 2.5mm IP 67 Solar Junction Box FS0148

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: PV Combiner Boxes

Amount of Rails: 1 Rail Terminal

Rated Voltage: TUV 1000V DC

Rating Current: 3-20A (Potting)

Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Cable Size: 2.5mm sq (1M)

Protection Class: Class II

Pollution Degree: 2

Application: Lighting, SOLAR PANEL

50 Pairs/Lots Solar PV Junction Box UL TUV Approved 2.5mm IP 67 Solar Junction Box FS0148



For more information please leave message to us, we will reply you soon, thank you!

Production introduction:

Product No. SM-JB1A
Amount of rails 1 rail terminal
Rated Voltage TUV 1000V DC
Rating current 3-20A(Potting)
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin OD 4.0mm
Proof voltage TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree 2
Protection class Class II
Contact Material Copper, tin plated
Contact resistance ≤5mΩ
Protection degree IP67
Withdrawal Force ≥50N
Temperature Range -40ºC~+85ºC
Flame Class UL94V-0

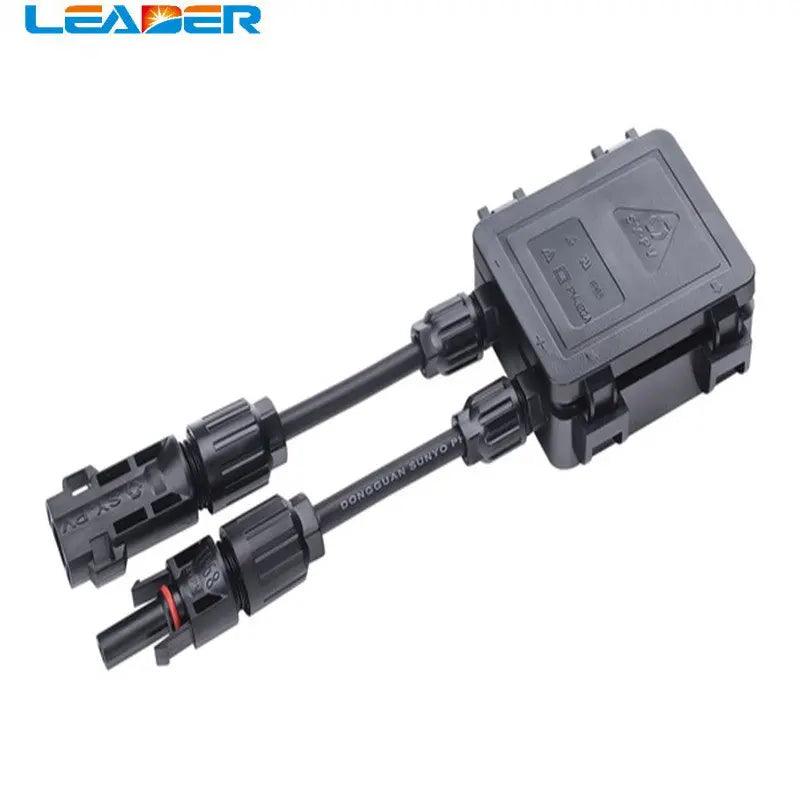

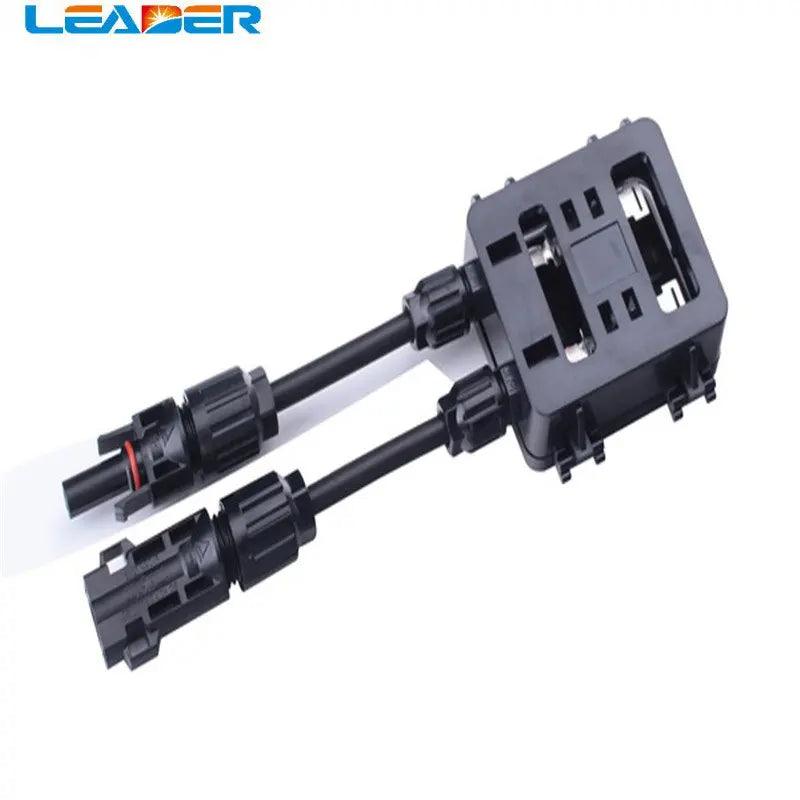

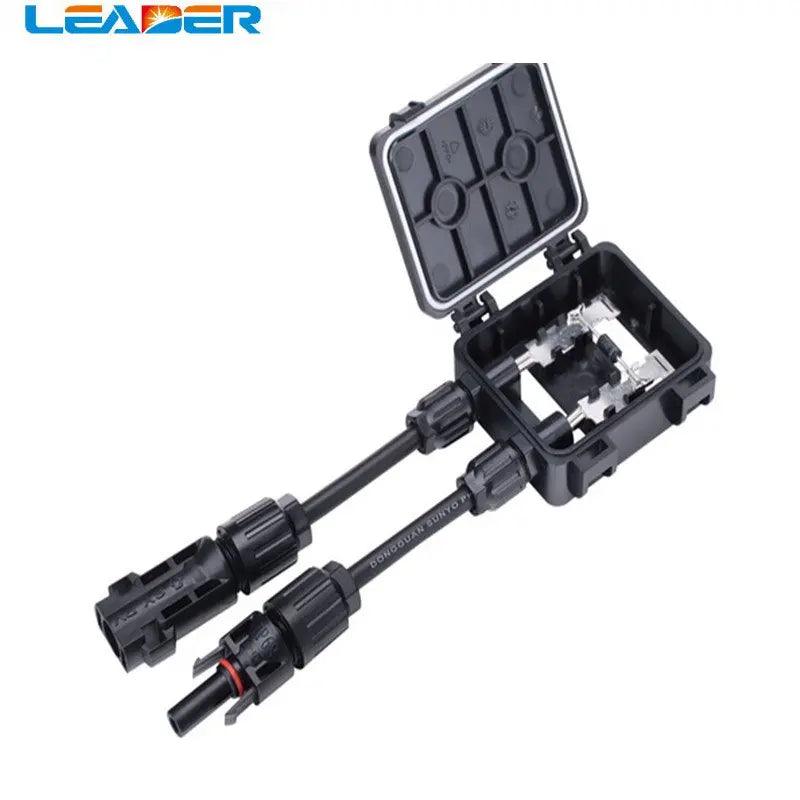

Product pictures







JB2A-0008







Compnay information:



LENDER ENERGY Company

LEADER ENERGY is a new energy enterprise,located in GUANGDONG, China,specializing in R&D,

manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;

with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems,

and by the products R&D,mold design,production,sales through-train service.With advanced technology,

our products have been authorized by TUV Rhineland,UL,CE successfully.

LEADER Company adheres to self R&D,strict detection standards and perfect detection system,

modernization management approaches and excellent talent teams,

hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.


%E4%B8%BB%E5%9B%BE1
P201512181622
P201512181622
Main products:
