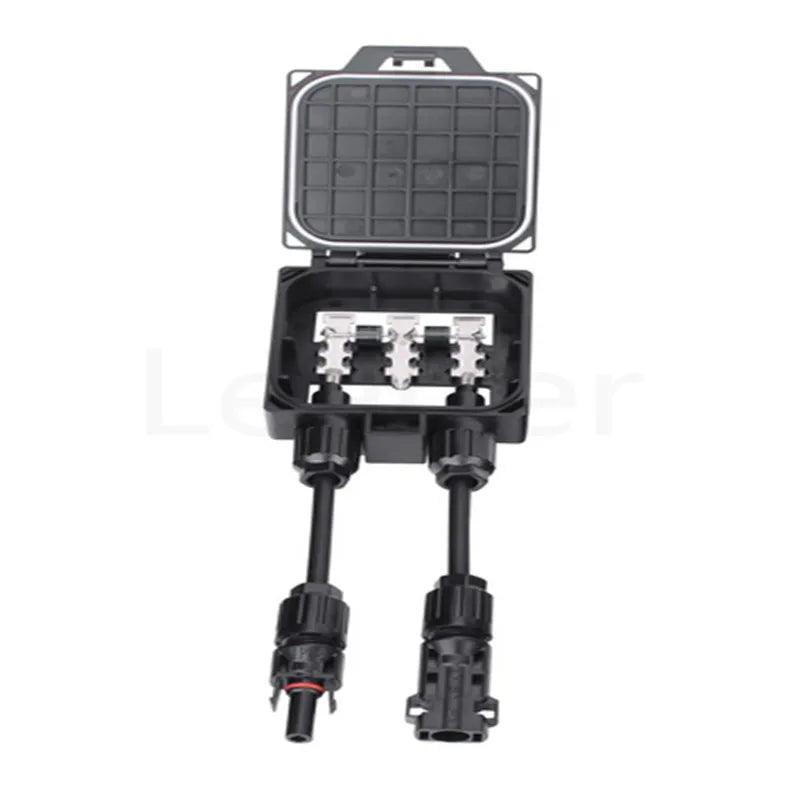

5 Pcs/lot 1000V TUV/ Approved 3 Way Soldering Solar Junction Box Outdoor Solar Junction Box with 3 Terminal Junction Box FS154

Regular price $138.00 NZD
Regular price $114.00 NZD Sale price $138.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

5 Pcs/lot 1000V TUV/ Approved 3 Way Soldering Solar Junction Box Outdoor Solar Junction Box with 3 Terminal Junction Box FS154

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: FS0154JB3A

Product NO: SY-JB3A- rails terminals

Insulation material: PPO

Rated Voltage: TUV 1000 DC/ UL 600V DC

Rated Current: 3A-20A (Potting)

Joining of Ribbon: Soldering

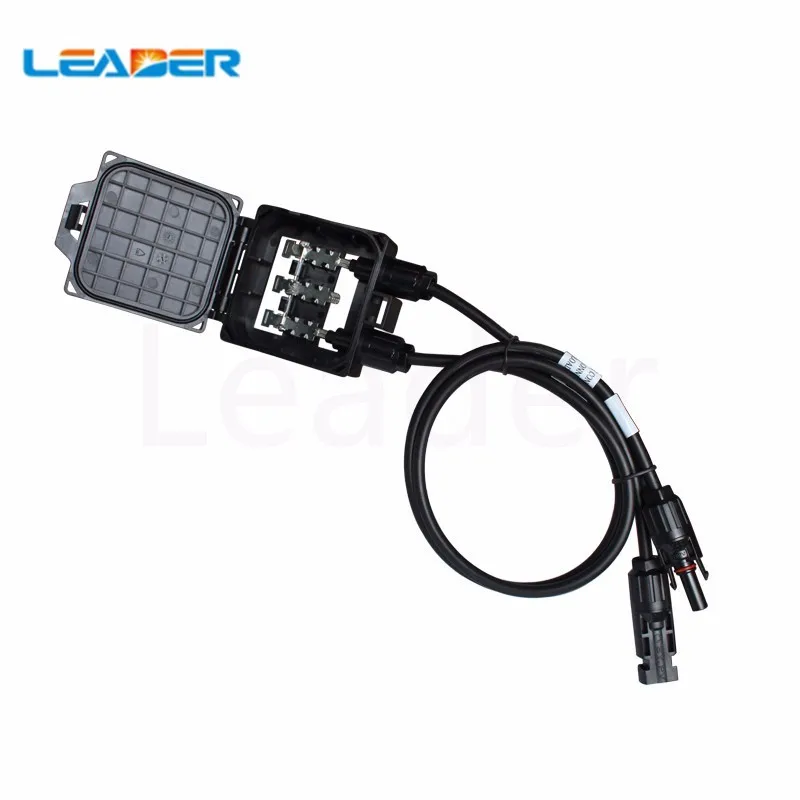

3 Way Solar Junction Box with 1M 4mm2 Cable and IP67 SOLAR Connector



Outdoor Solar Junction Box with 3 Terminal Junction Box
Product NO. SY-JB3A- rails terminals
Insulation material PPO
Rated Voltage TUV 1000 DC/ UL 600V DC
Rated Current 3A-20A (Potting)
Joining of Ribbon Soldering
Test voltage 6KV(50Hz,1Min)
Contact material copper, tin plated
Contact resistance less than 0.5 m ohm
Degree of protection IP67
Pollution Degree 2
Protection class Class II
Flame class UL94V-0
Plug Force less than 50N
Withdrawal force more than 50N
Ambient temperature range -40°C  ~ +  90°C
Pin dimension 4.0mm
Total Cable Length 90CM







LENDER ENERGY Company

LEADER ENERGY is a new energy enterprise,located in GUANGDONG, China,specializing in R&D,

manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;

with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems,

and by the products R&D,mold design,production,sales through-train service.With advanced technology,

our products have been authorized by TUV Rhineland,UL,CE successfully.

LEADER Company adheres to self R&D,strict detection standards and perfect detection system,

modernization management approaches and excellent talent teams,

hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.
1500-MW-Solar-Project-In-Thailand
Main products:
93949_93949_9394(03-31-16-45-28)


For more products information, please free contact us via Aliexpress ,

we will reply to you in 2 hours. thanks
