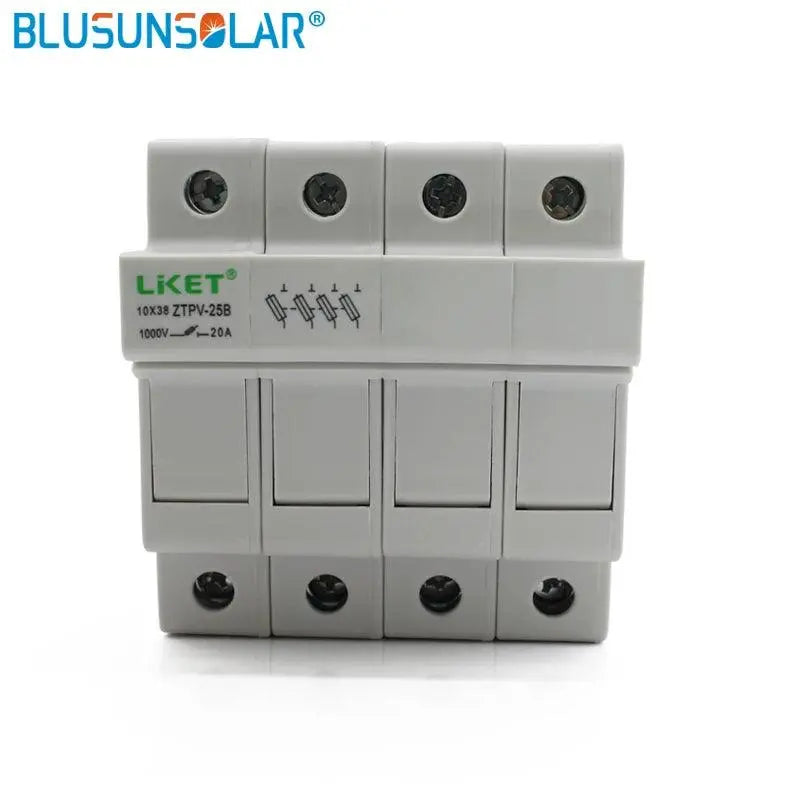

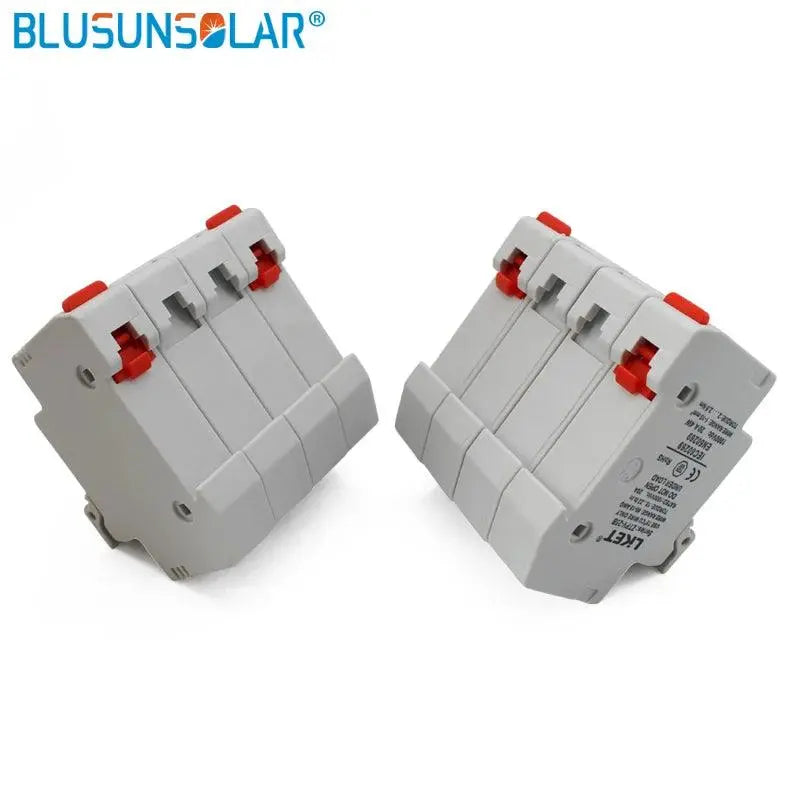

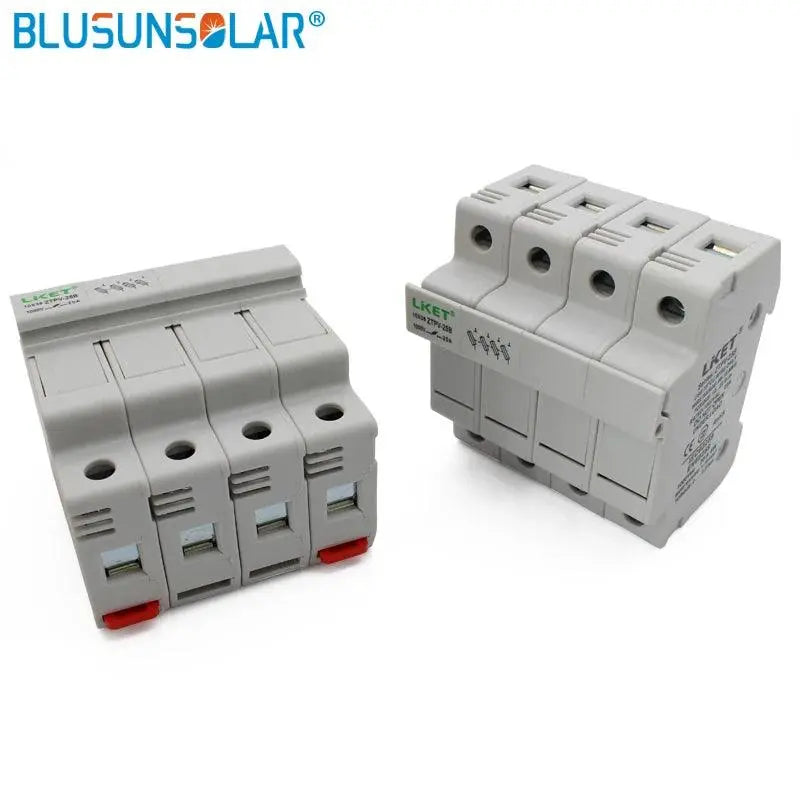

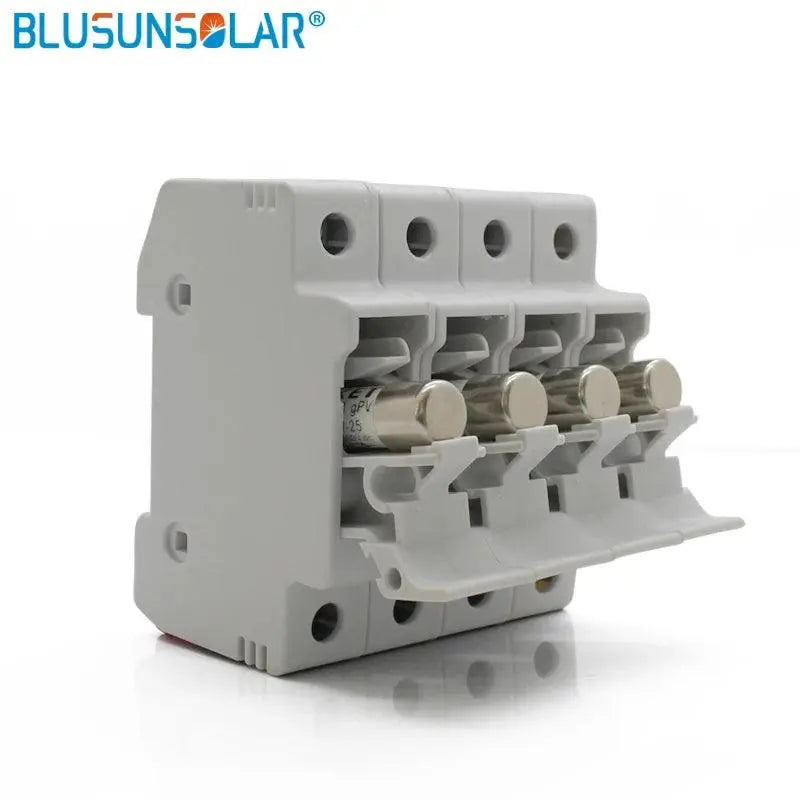

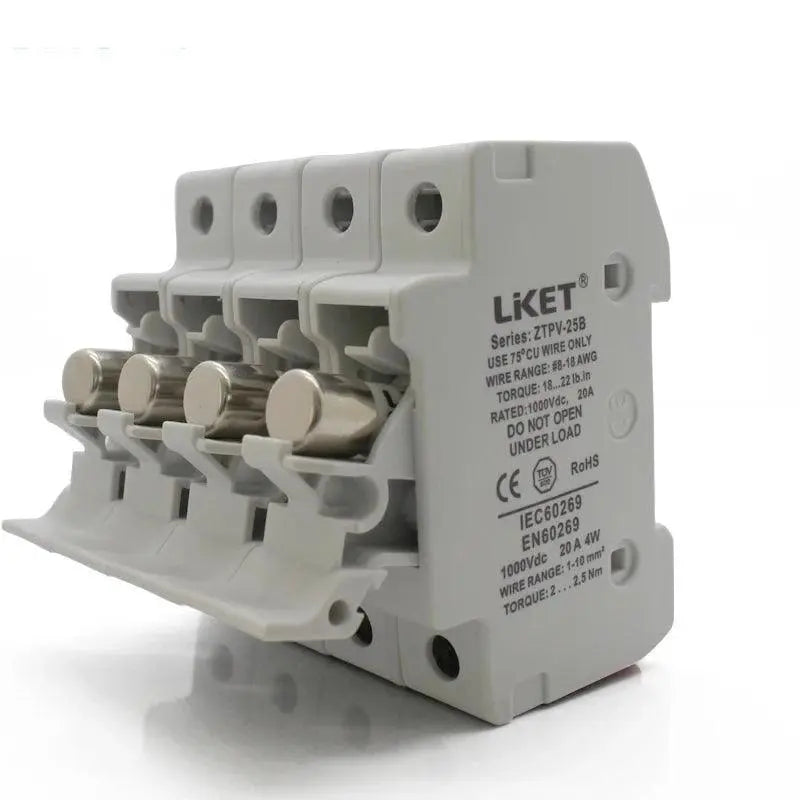

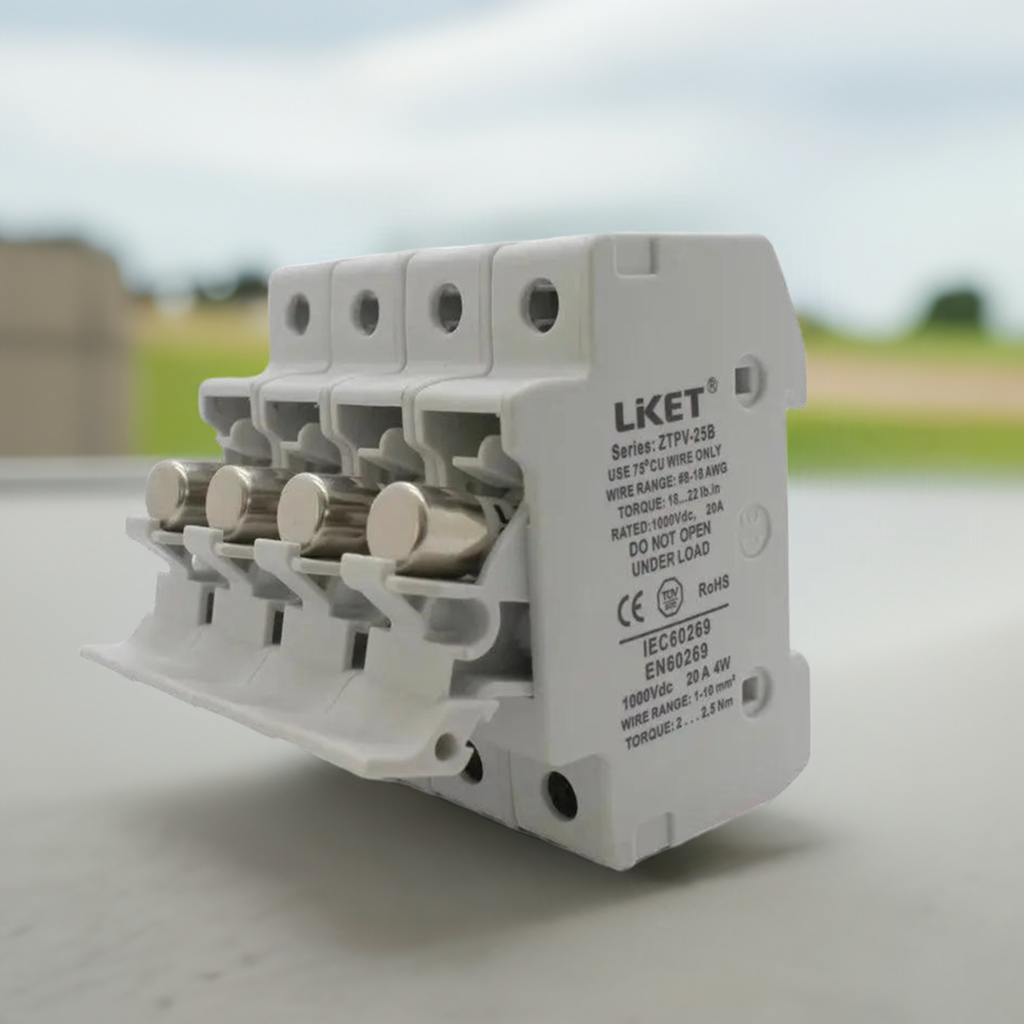

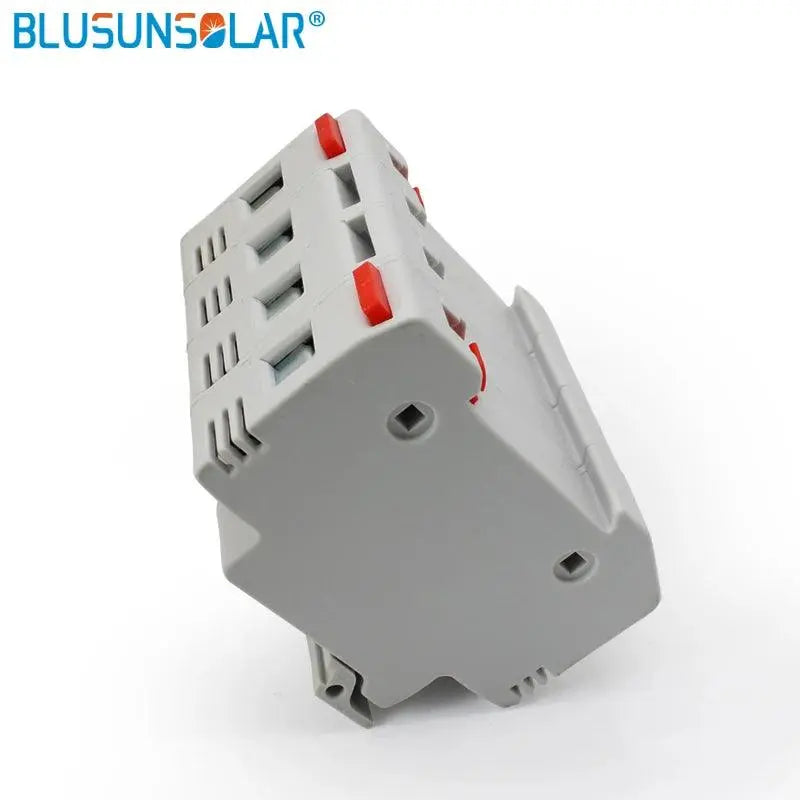

1 set Parallel 4P Fuse Holder 1000V DC Fusible 10x38 gPV, with Fuse Holder for Solar System Protection

Regular price $37.00 NZD
Regular price $25.00 NZD Sale price $37.00 NZD
Sale Sold out
Shipping calculated at checkout.
AMP

SPECIFICATIONS

1 set  Parallel 4P Fuse Holder 1000V DC Fusible 10x38 gPV, with Fuse Holder for Solar System Protection

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Safety Standards: IEC

Model Number: Fuse holder

Material: Alloy

Usage: Other

is_customized: Yes

Breaking Capacity: High

Rated voltage: DC 1000V

Rated current: 2-20A

Size: 10x38

According to: IEC 60269.6

Rated breaking capacity: 33kA

Operating class: gPV for solar protection

Wiring range: 1-10mm2

PV Solar Fuse 10/15/20/25/30A 1000V DC Fusible 10x38 gPV

4P Fuse Holderfor Solar System Protection


1 lot = 1 pec 4P fuse holder + 4 pcs fuse


Specifications:

According to: IEC 60269.6

Rated current (fuse): 2-30A

Rated current (fuse holder): 2A/3A/5A/8A/10A/12A/15A/20A/25A/30A

Rated voltage: DC1000 V

Rated breaking capacity: 33kA

Fuse size: 10x38mm

Operating class: gPV for solar protection

Wiring range: 1-10mm2
