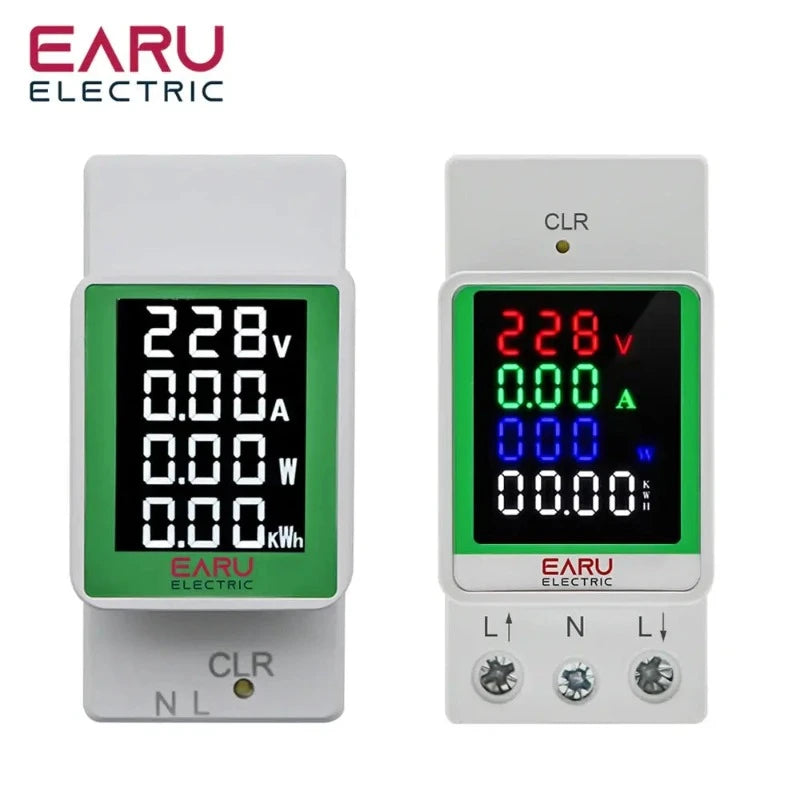

4IN1 Digital AC 110V 220V 100A Voltage Current KWH Electric Energy Monitor Meter VOLT AMP Voltmeter Aammeter Wattmeter Din Rail

Regular price $39.00 NZD
Sale price $39.00 NZD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Power Range 1: 0-25KW

Frequency: 50/60HZ

Installation: 35mm DIN Rail

Mould 1: Voltmeter

Mould 2: Ammeter

Mould 3: Wattmeter

Mould 4: Energy meter

Power Range 2: 0-30KW

Mould Name: PZEM-008

Dimensions 2: 78*34*65mm

Output Voltage 2: AC 50~300V

Brand Name: EARUELETRIC

Power Supply: AC

Model Number: EADDS-1

Display Type: Digital Only

Accuracy Class: ±1%

Dimensions: 79mm* 36mm * 67mm

Rated Voltage: 270V

Measuring Energy Range: 0-9999KWH

Phase: single phase

Max Operating Current: 80A - 99A

Output Voltage: AC80-270V

Origin: Mainland China

Certification: CE

DIY Supplies: ELECTRICAL

Choice: yes

semi_Choice: yes

Specifications:

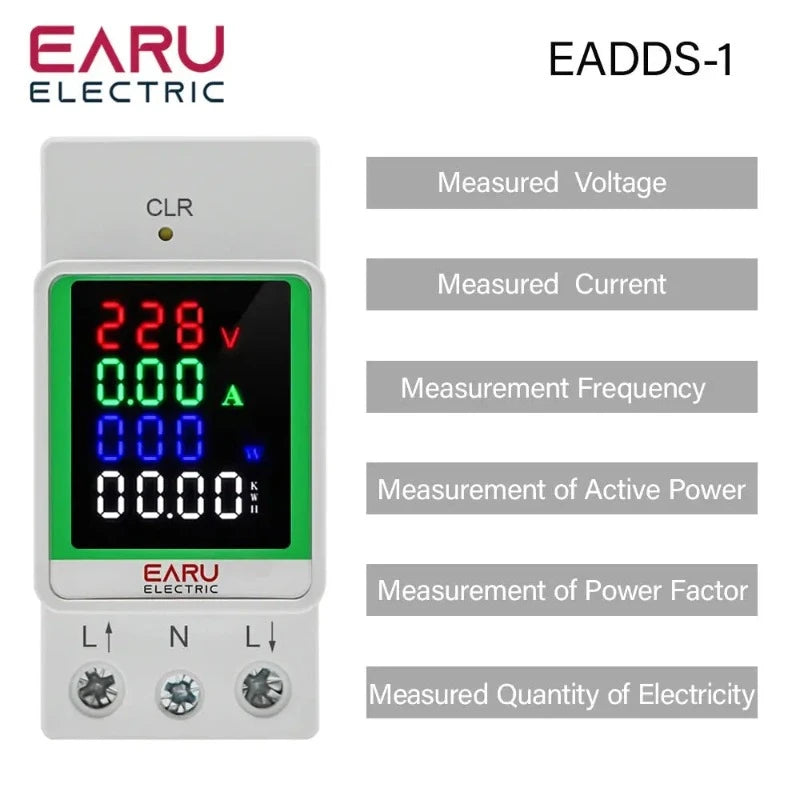

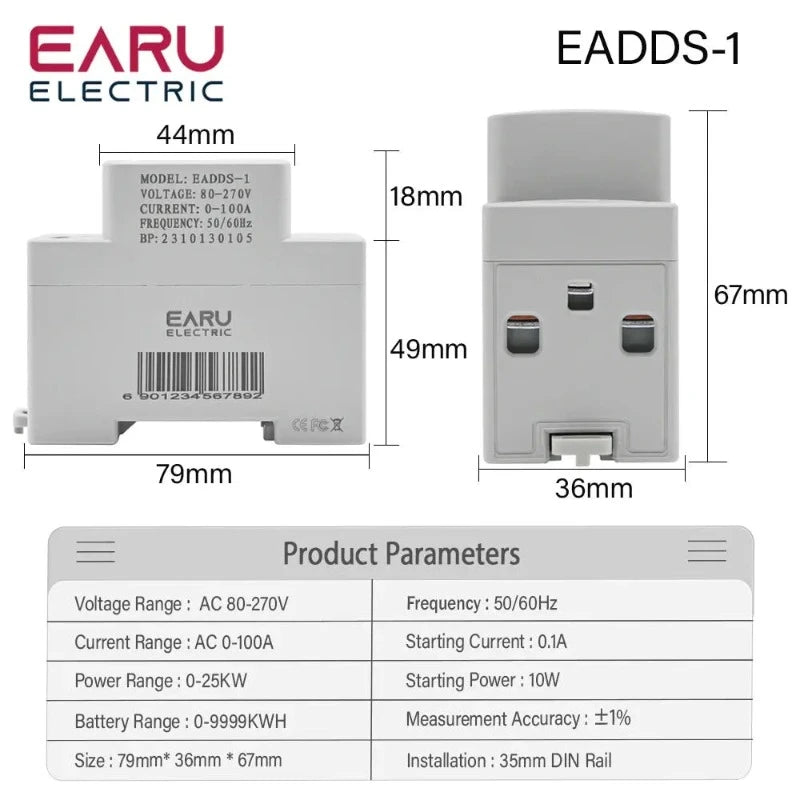

EADDS-1

Voltage measurement ranges: AC80V-270V, ±1%

Current measurement ranges: AC 0-100A, ±1%

Starting test current: 0. 1A

Active power measurement ranges: 0-25KW, ±1%

Starting test power: 10W

Energy measurement ranges: 0-9999KWH, ±1%

Item size: 79 * 36 * 67mm / 3.11 * 1.42 * 2.64in


Other Function

1. Optional RS485 communication interface

2. Press and hold the CLR key for 10 seconds to reset the electrical energy

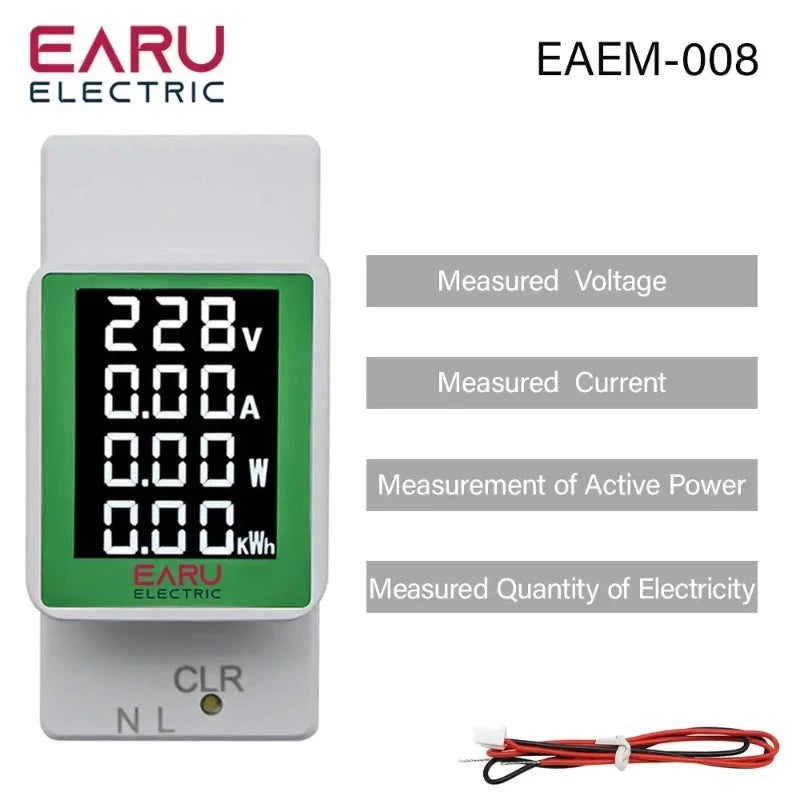

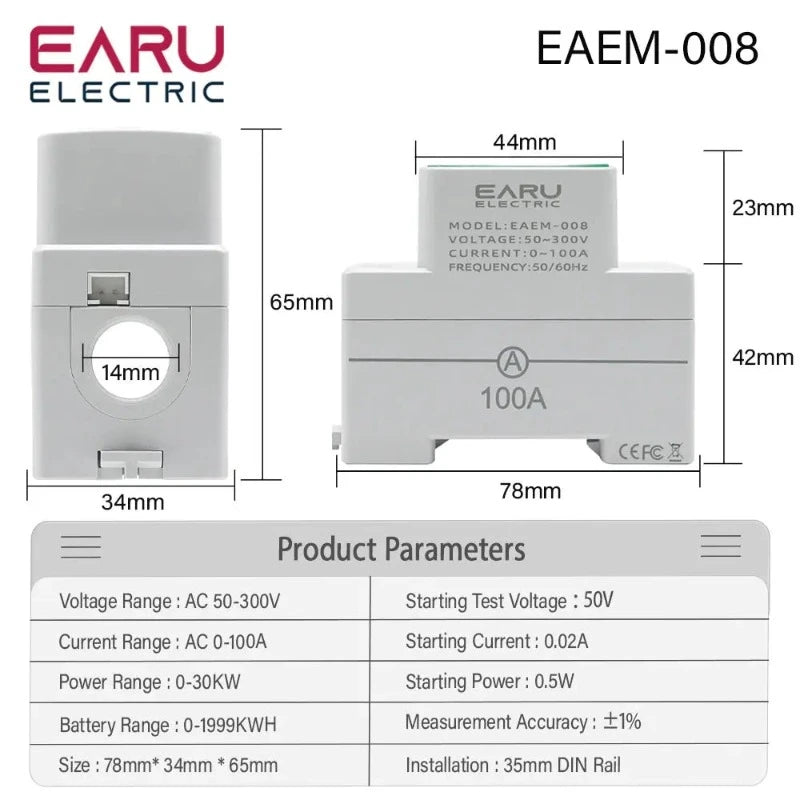

PZEM-008

Voltage measurement ranges: AC50V-300V, ±1%

Current measurement ranges: AC 0-100A, ±1%

Starting test current: 0. 02A

Active power measurement ranges: 0-30KW, ±1%

Starting test power: 0.5W

Energy measurement ranges: 0-1999KWH, ±1%

Item size: 78 * 34 * 65mm


Other Function
1.Backlight control
The backlight can be turned on or off by short press the key
2.Reset energy
Long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy, otherwise after 3 seconds it will stop flashing and the energy will not
be reset.
3.Data Storage
When the power off, the energy data and backlight status can be saved.
