3429PE Photoelectric Encoder DC Motor| 6-24V
Regular price
$47.00 NZD
Regular price
Sale price
$47.00 NZD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
6V 5000RPM Photoelectric Encoder Motor, AB Dual-Phase, for Smart Balance Cars
24V 10000RPM DC Encoder Motor, 448 CPR, for Camera Jib Arms
Product Overview

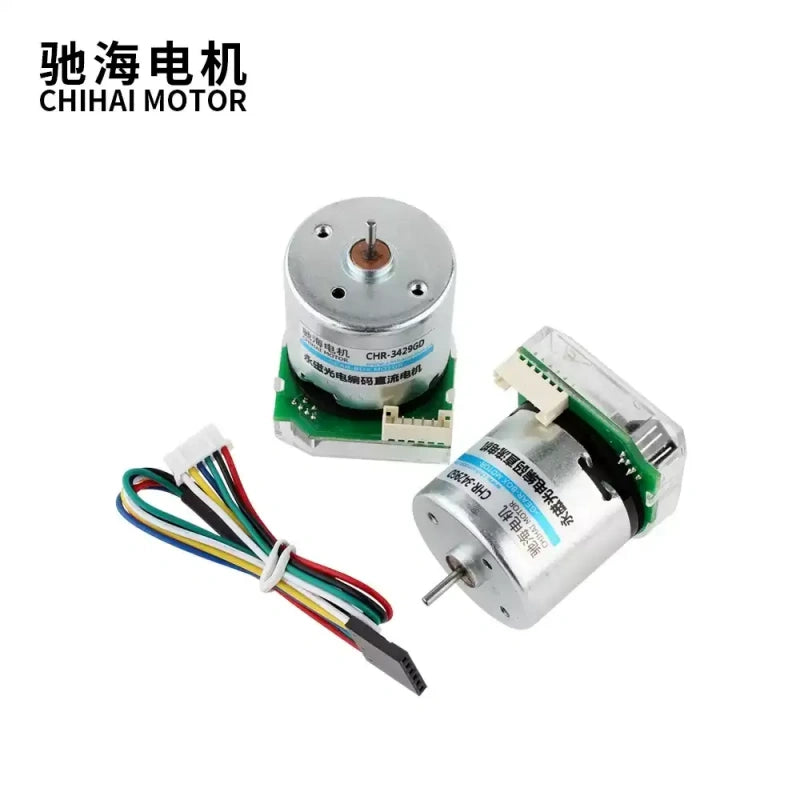

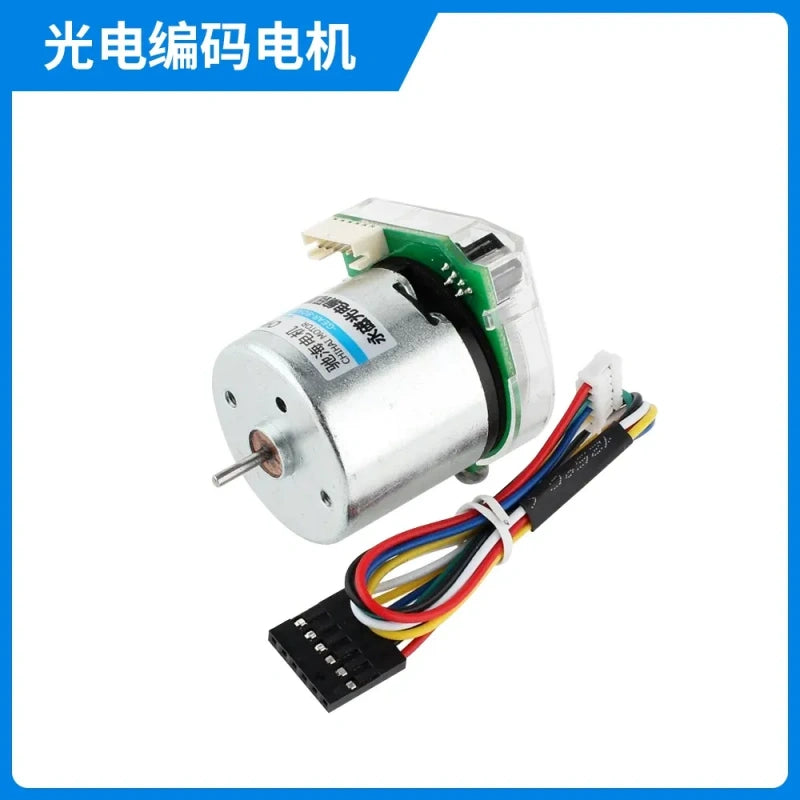

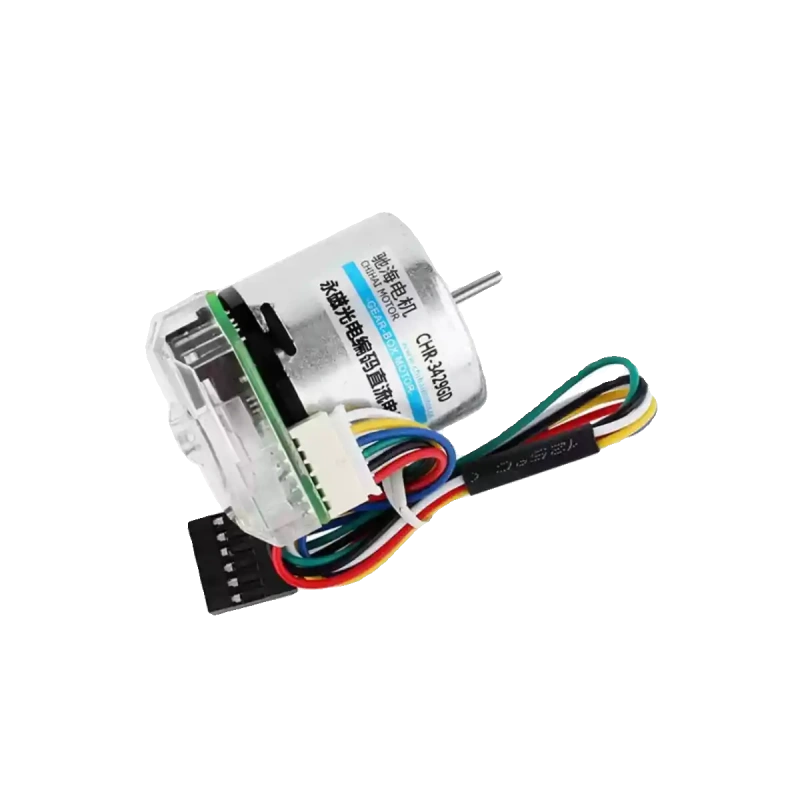

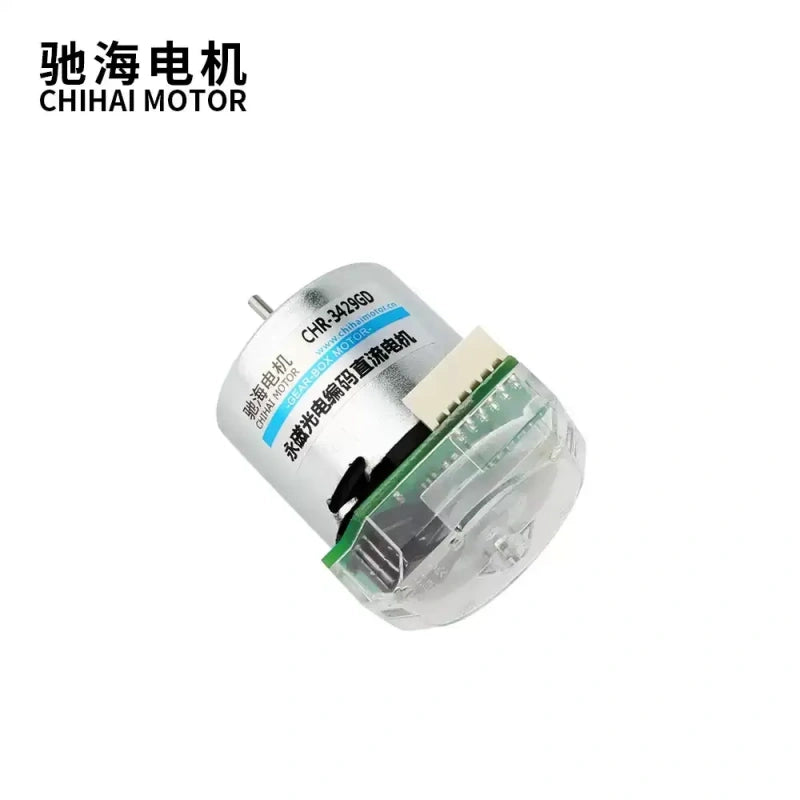

The CHR-3429PE DC motor with photoelectric encoder is a precision motor designed for applications requiring closed-loop speed control and position feedback. Featuring an AB dual-phase incremental magnetic Hall encoder, this motor provides accurate speed and position data, making it ideal for smart robots, balance cars, and camera jib systems.
Key Features
- High-Resolution Encoder: Built-in AB dual-phase incremental magnetic Hall encoder with 448 CPR (counts per revolution), compatible with STM32 and other microcontrollers with hardware encoder interfaces.
- Multiple Voltage & Speed Options: Choose from DC 6V (5000 RPM), 12V (5000/10000 RPM), or 24V (10000 RPM) to match your project requirements.
- Wide Operating Voltage: Supports DC 6-24V operation, with optimized performance at 12V and 24V.
- Robust Design: 2mm diameter, 11.5mm long round shaft for reliable power transmission.

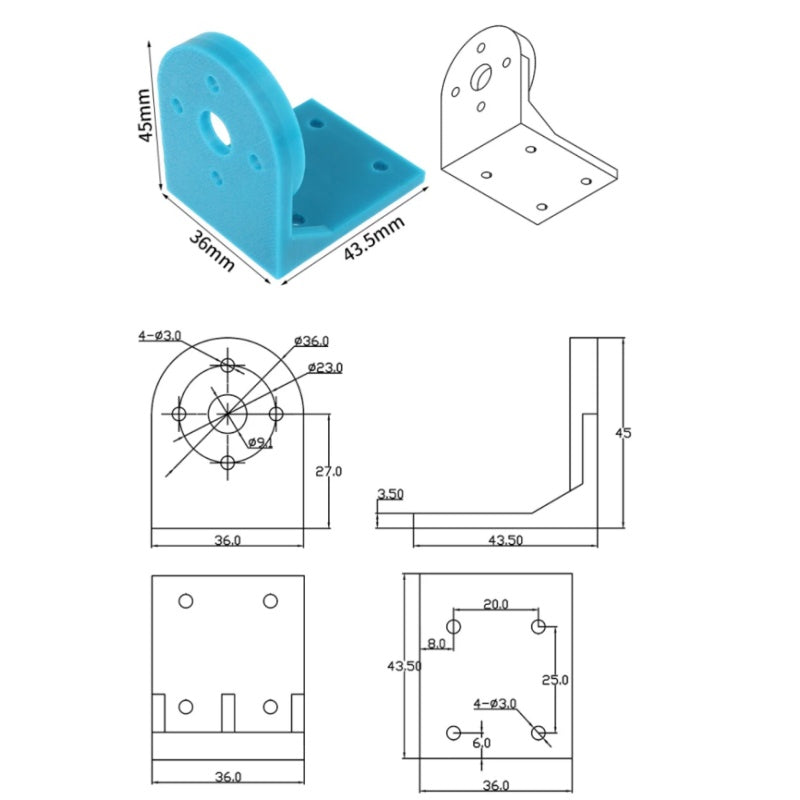

- Optional Mounting Bracket: Available with a bracket for easy installation in fixed applications.
Specifications (CHR-3429PE)
- Model: CHR-3429PE
- Brand: ChiHai Motor
- Rated Voltage: DC 6V / 12V / 24V (6-24V compatible)
- Motor Type: DC Motor with Photoelectric Encoder
- Encoder Type: AB Dual-Phase Incremental Magnetic Hall Encoder
- Base CPR: 448 CPR (Counts Per Revolution)
- Encoder Supply Voltage: DC 3.3V / 5.0V
- Encoder Response Frequency: 25-60 KHz

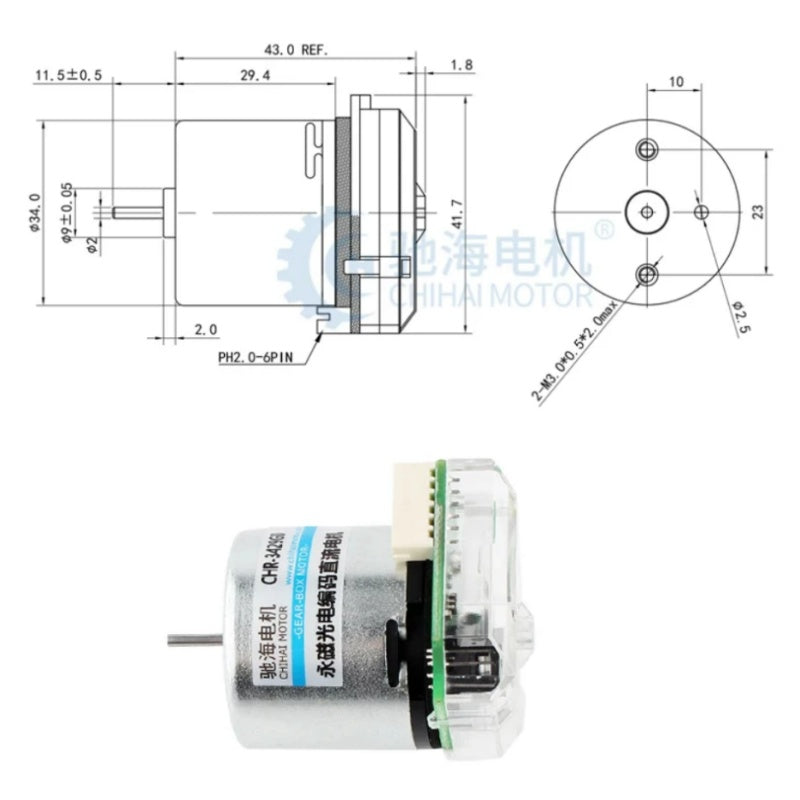

- Output Shaft: 2mm round shaft, 11.5mm length
- Weight: Approx. 95g
- Operating Temperature: 0-85℃
- Connector Type: PH2.0-6PIN (Dupont/XH2.54 headers included)
Available Configurations
- Photoelectric Encoder Motor Only

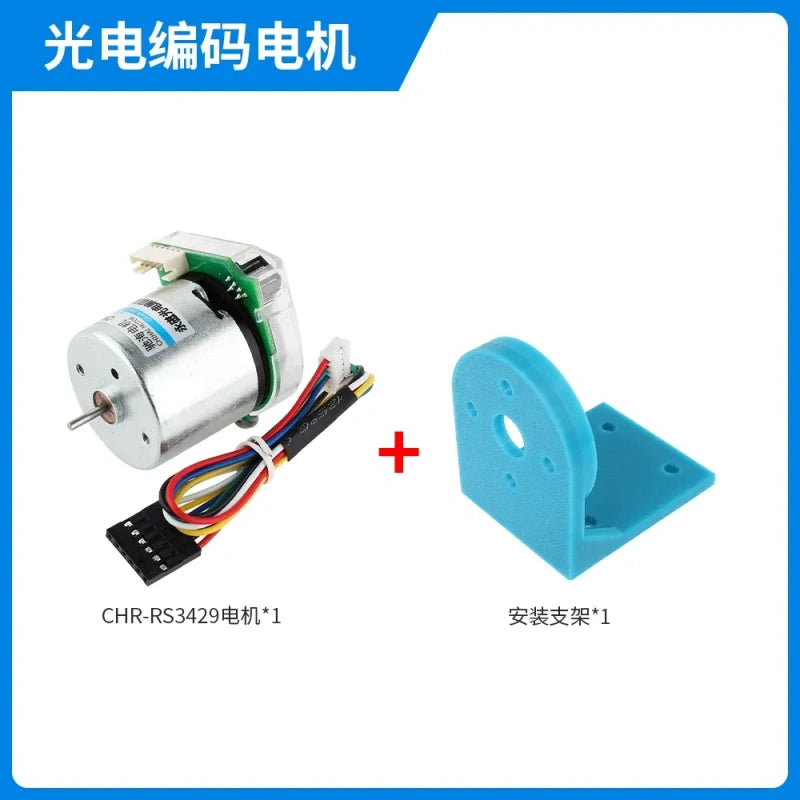

- Photoelectric Encoder Motor + Mounting Bracket
Applications
Perfect for smart self-balancing two-wheelers, line-tracking robots, smart home appliances, robotic arms, camera jib arms, electric paper cutters, and other projects requiring precise speed control.

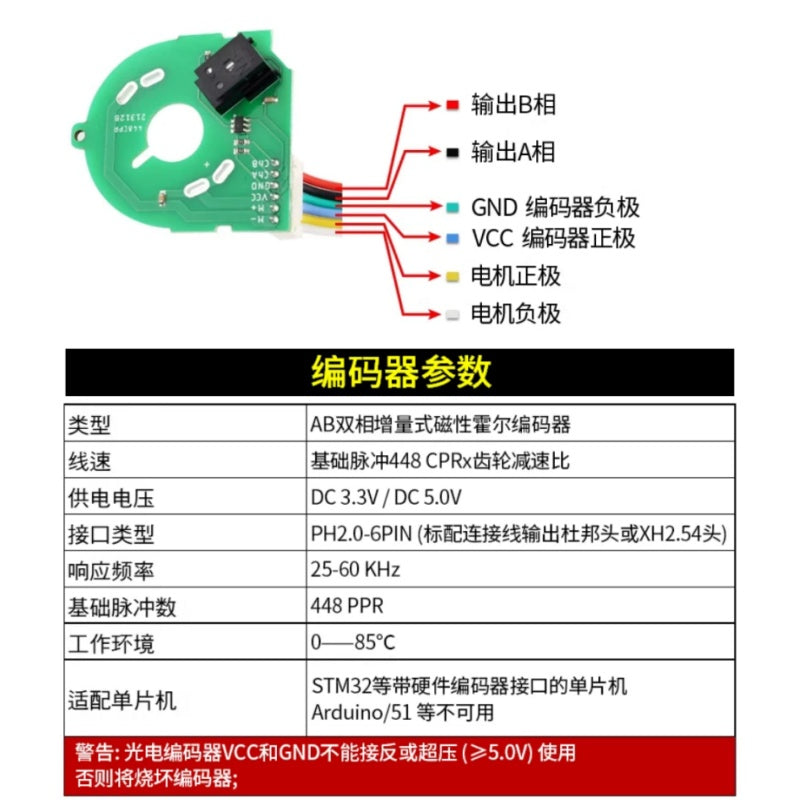

Important Notes: The encoder's VCC and GND must not be reversed or overvolted (≥5.0V), as this will damage the encoder. Arduino/51 microcontrollers without hardware encoder interfaces are not recommended for use with this motor.
DATA SHEET
| Attribute | Value |
|---|---|
| Product Type | DC Motor with Encoder / Photoelectric Encoder Motor |
| Model | CHR-3429PE |
| Brand | ChiHai Motor |
| Rated Voltage | DC 6V / 12V / 24V (6-24V compatible) |
| Encoder Type | AB Dual-Phase Incremental Magnetic Hall Encoder |
| Encoder CPR | 448 CPR |
| Encoder Supply Voltage | DC 3.3V / 5.0V |
| Output Shaft | 2mm round shaft, 11.5mm length |
| Weight | Approx. 95g |
| Compatible Microcontrollers | STM32 (hardware encoder interface required) |
| Applications | Smart Balance Cars, Line-Tracking Robots, Camera Jib Arms, Robotic Arms |
