25 sets Kit in box 6p 7p 8p 9p 10 pin 2.54mm Pitch Terminal / Housing / Pin Header Connector Wire Connectors Adaptor XH Kits

$10.00 NZD
$12.00 NZD $10.00 NZD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

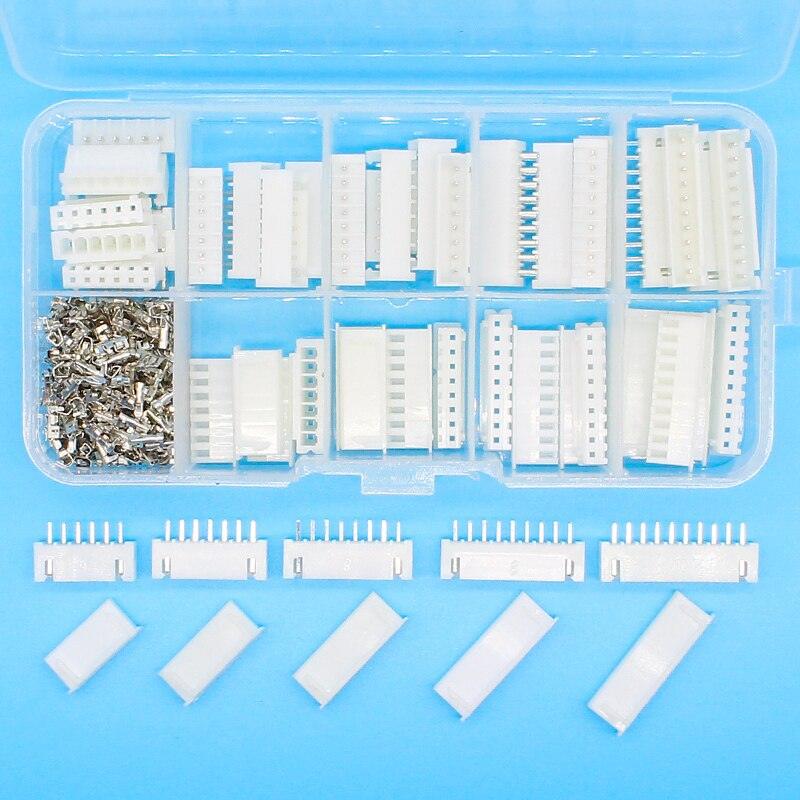

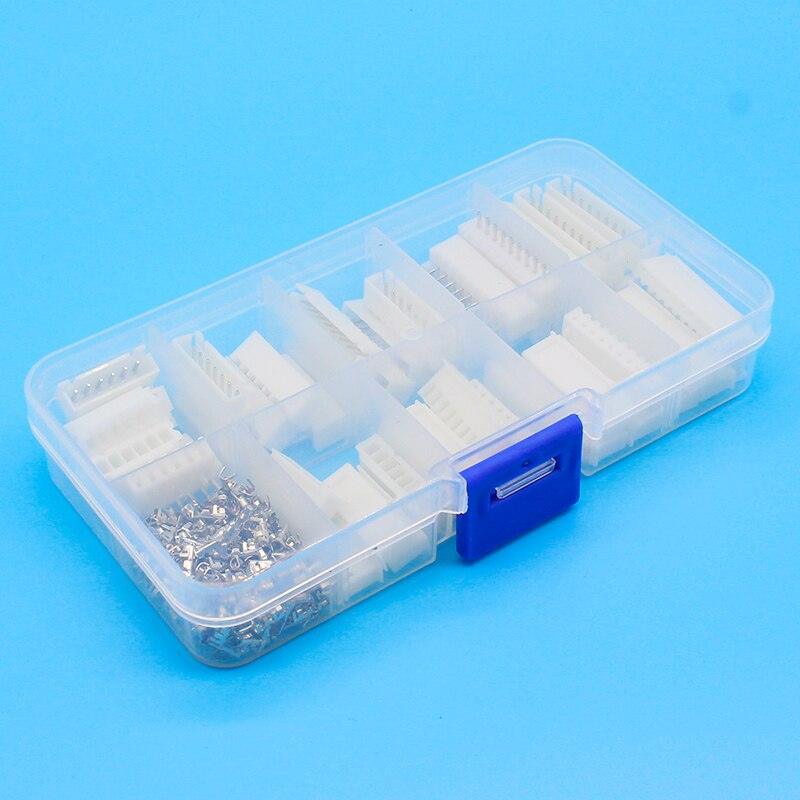

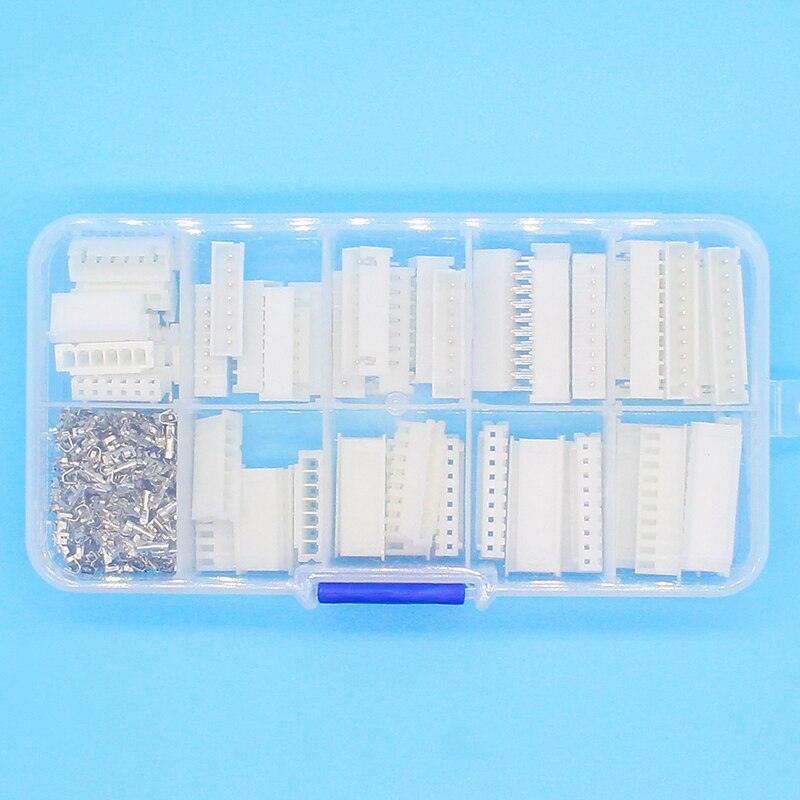

25 sets Kit in box 6p 7p 8p 9p 10 pin 2.54mm Pitch Terminal / Housing / Pin Header Connector Wire Connectors Adaptor XH Kits

Model Number: xh2.54mm

Certification: CE

Brand Name: ELECAPITAL

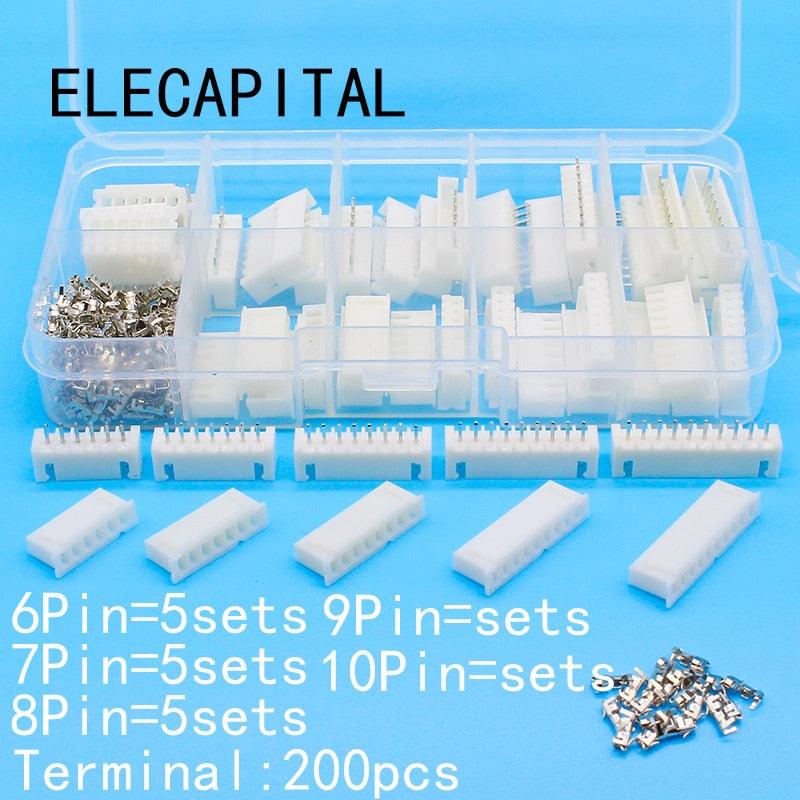

Package:
6pin = 5 sets
7pin = 5 sets
8pin = 5 sets
9pin = 5 sets
10pin = 5 sets

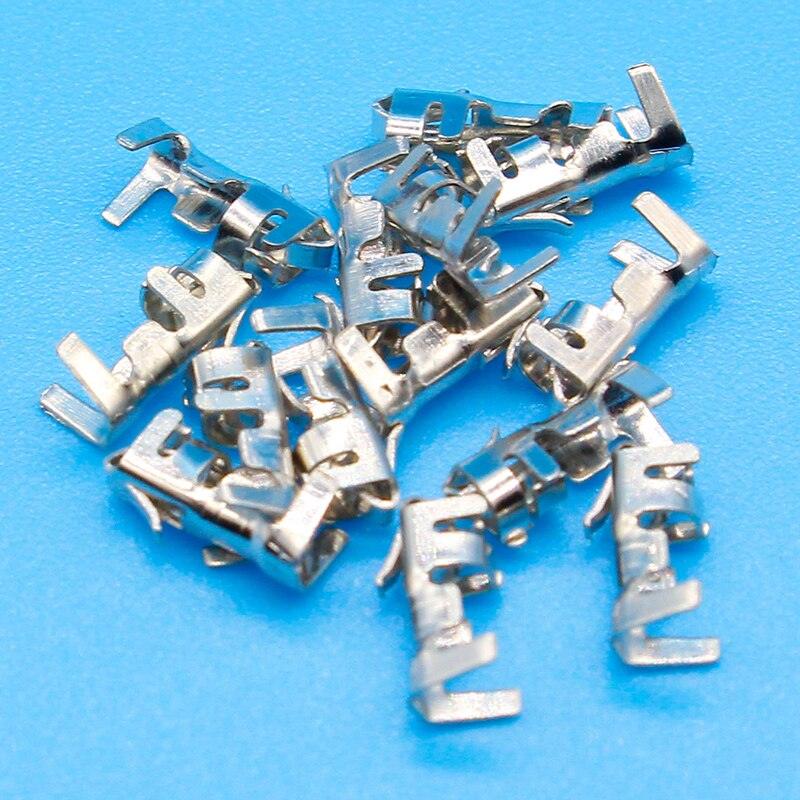

Pin Connector Terminal :200 pcs(  Please allow 5% deviation  )

Specifications :
Pitch:2.54mm
Current Rating: 1A AC, DC
Voltage Rating: 125V AC, DC
Temperature Range: -25 deg C ~ +85 deg C
Insulation Resistance: 100M Omega Min.
Withstanding Voltage: 500V AC/minute
Wire Range : AWG#24~#32
Insulation O.D. : 1.00mm ( Max.)
