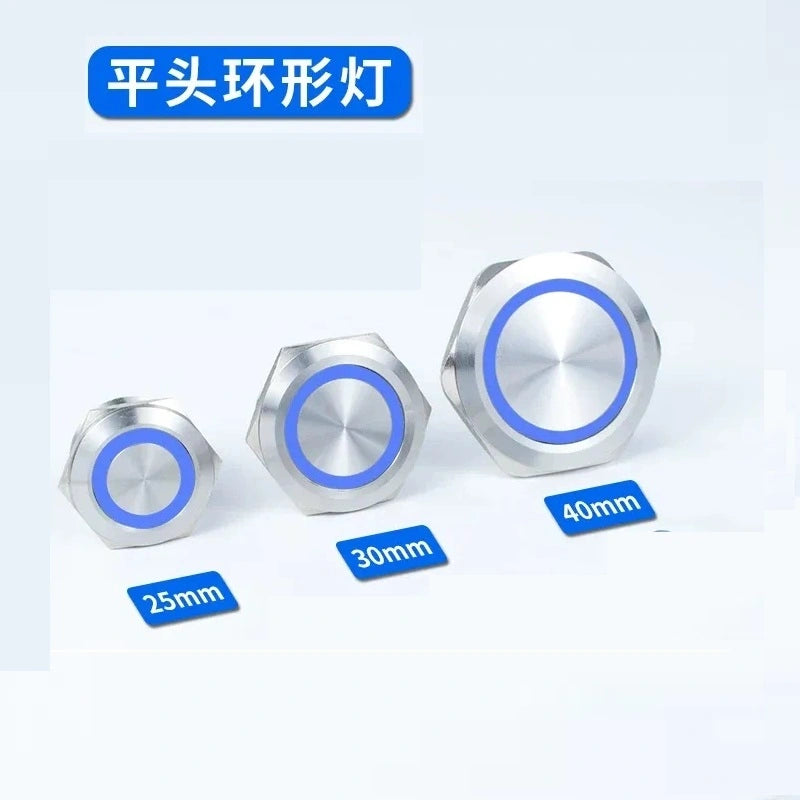

  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with blue ring led light
  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with green power led light

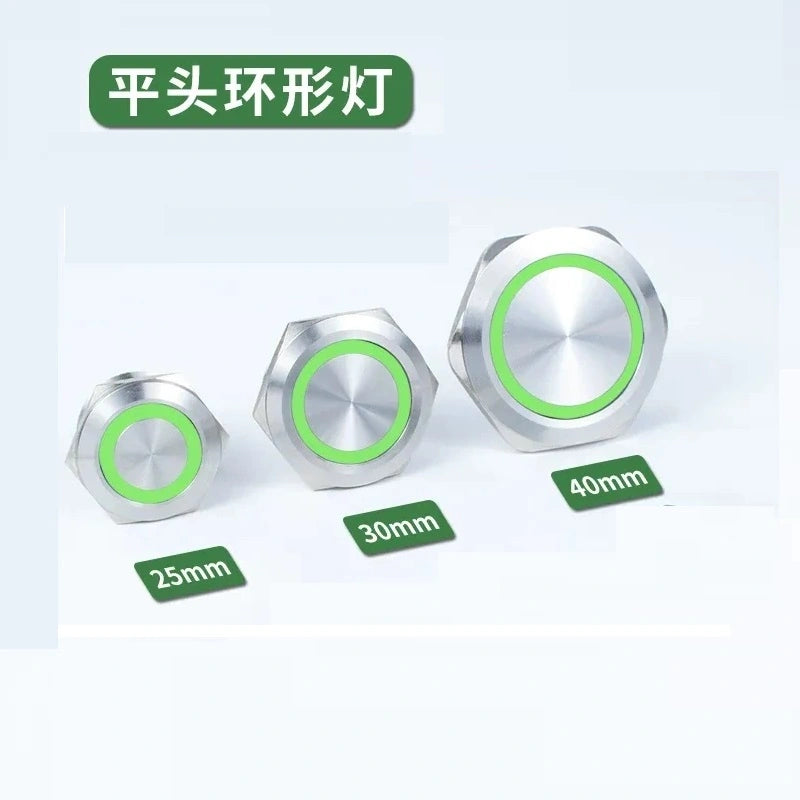

  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with green ring led light

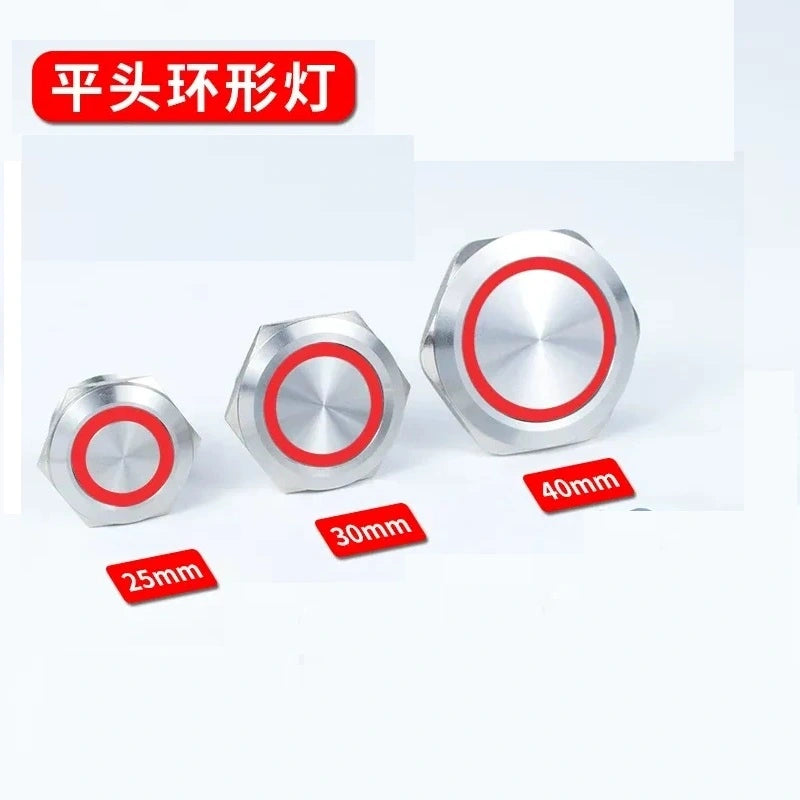

  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with red ring led light
  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with white power led light
  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with white ring led light
  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with yellow power led light
  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with yellow ring led light
  • 25mm latching switch,30mm momentary button,40mm power symbol button,ip65 waterproof metal switch,nickel‑plated brass button,large size push button with red power led light
1 18

electrical center b2c

25/30/40mm 1NO1NC Metal Push Button Switch

$28.00 NZD
$28.00 NZD
Sale Sold out
Shipping calculated at checkout.
Button Mounting Size
Button Color-
Voltage&Operation Mode

IP65 Waterproof 25/30/40mm Nickel‑Plated Metal Push Button, 1NO+1NC Dual Contact, LED Indicator, Custom Logo Available

Product Description


This heavy‑duty 1NO1NC metal push button switch features 1 normally open + 1 normally closed dual contact design, rated for 5A current, supporting both momentary (self‑resetting) and latching (self‑locking) functions.

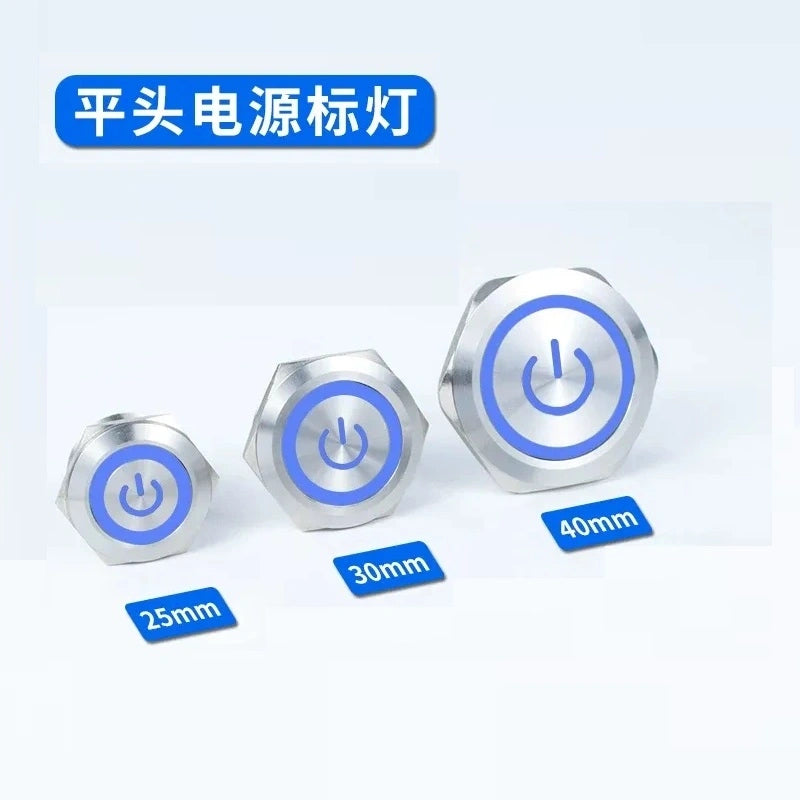

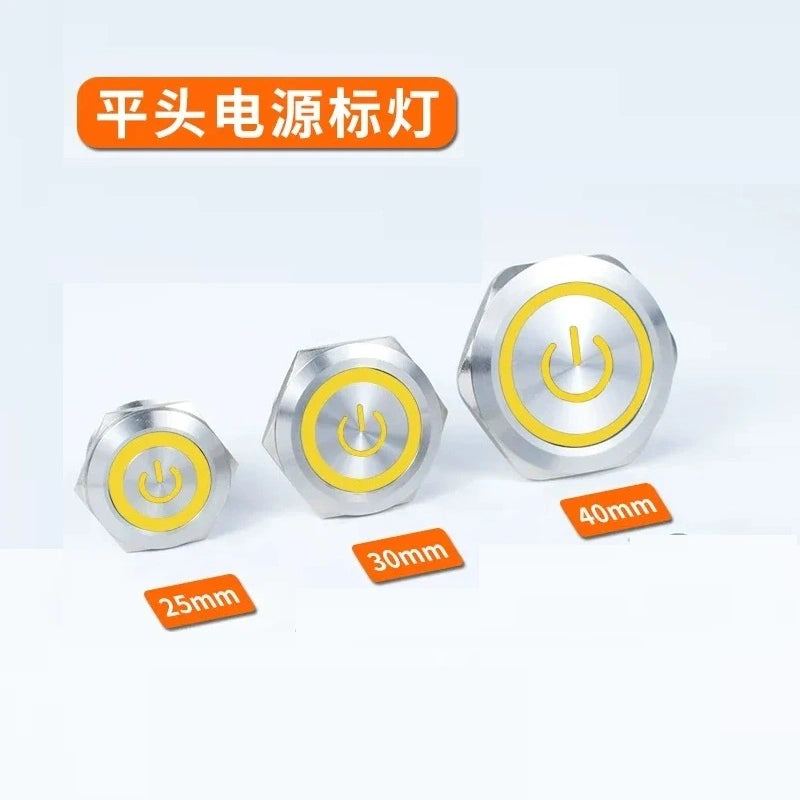

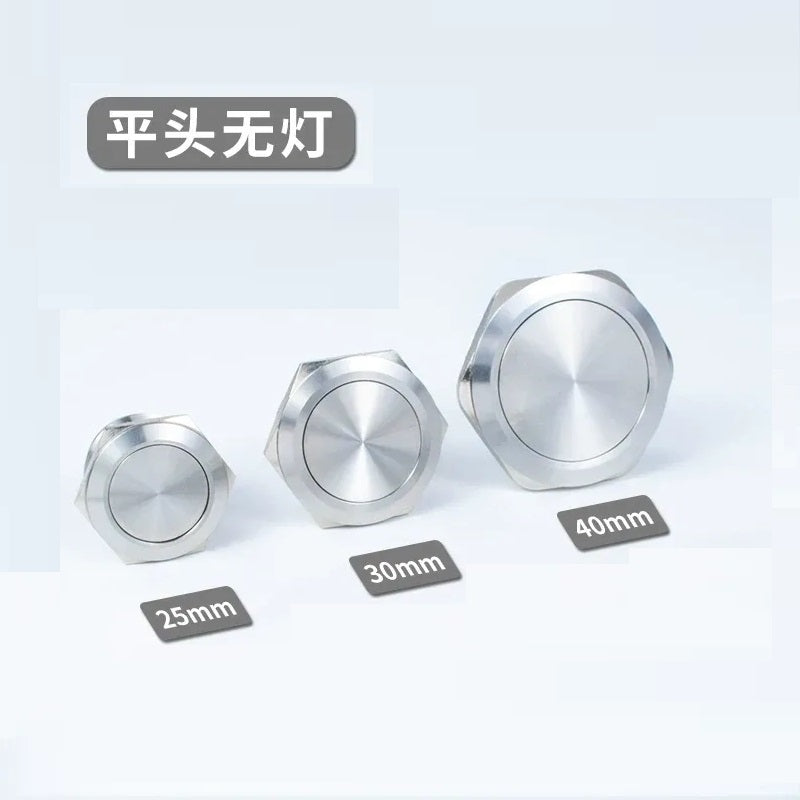

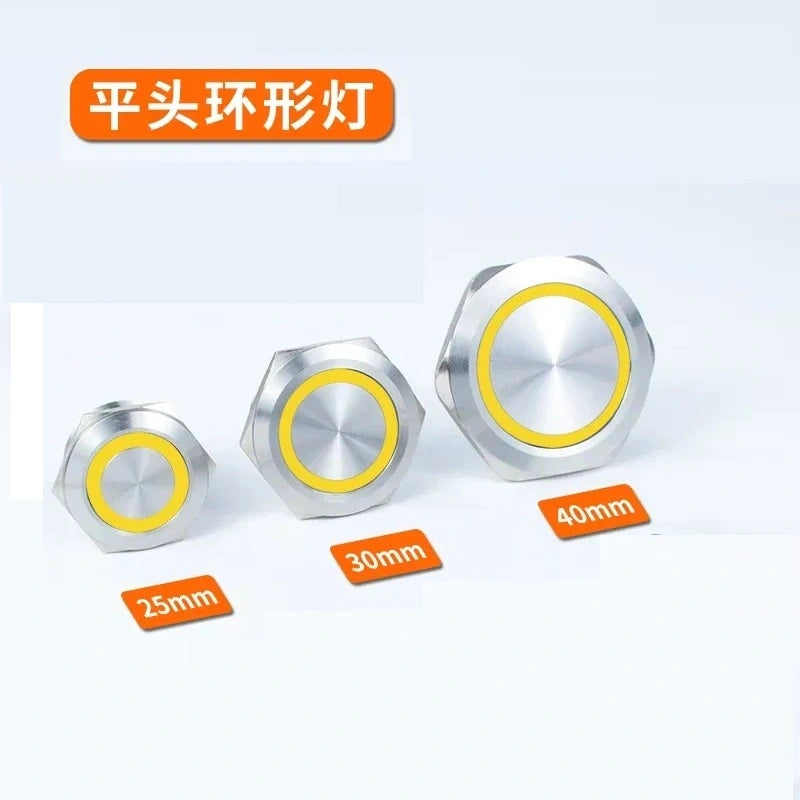

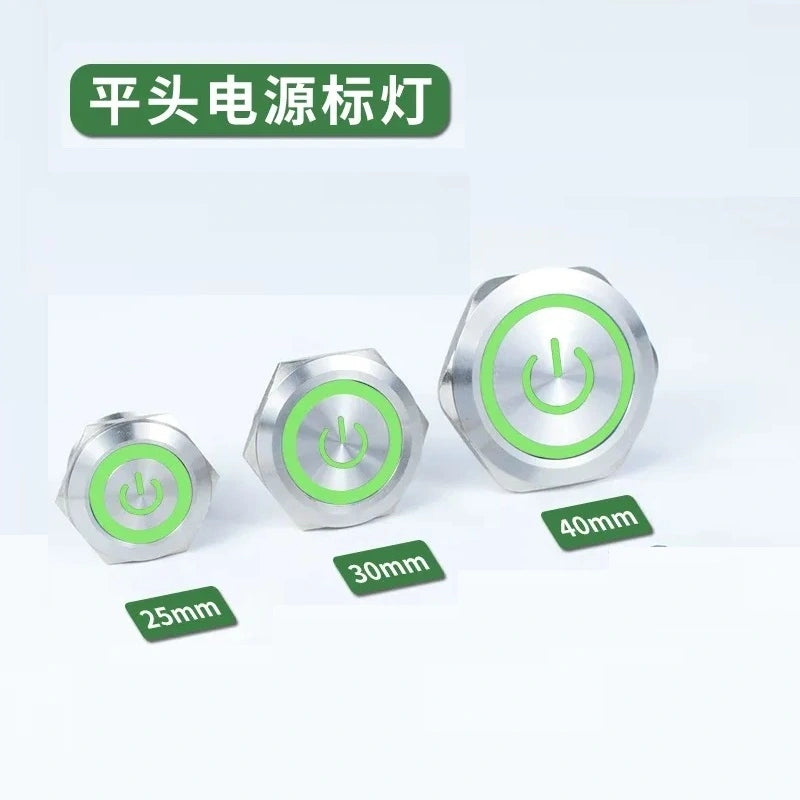

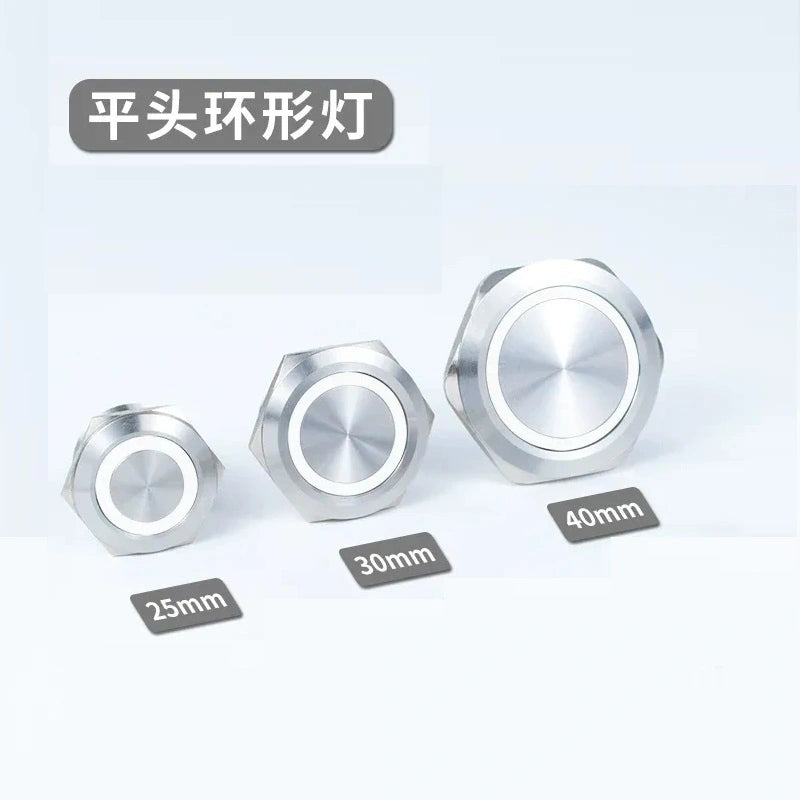

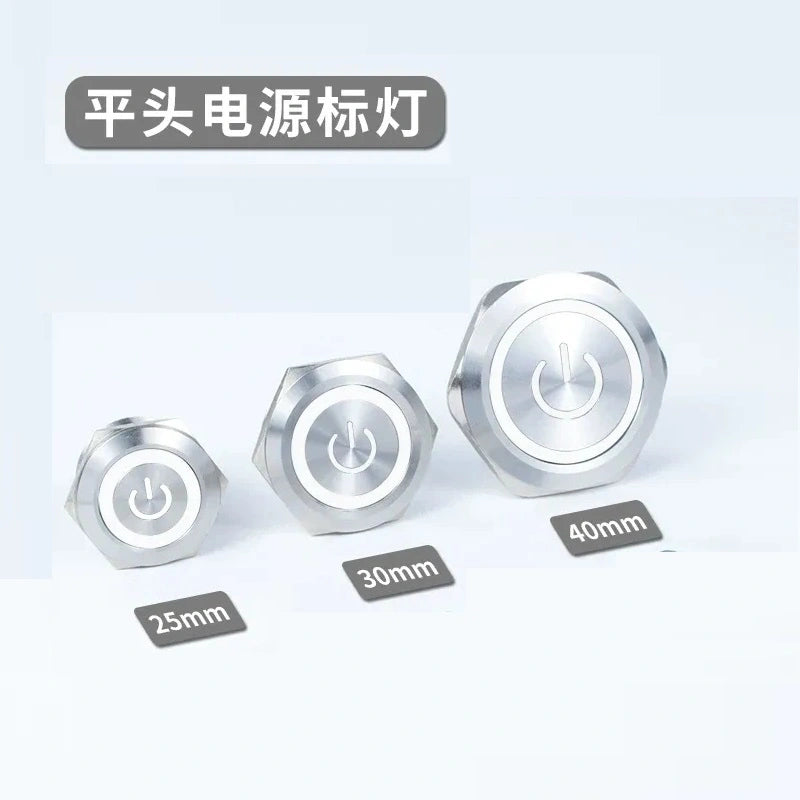

Available in large sizes: 25mm, 30mm, 40mm, with optional LED lighting including no‑light, ring light and power symbol light in red/blue/green/yellow/white. 3‑6V, 12‑24V and 220V wide‑range voltage are compatible.

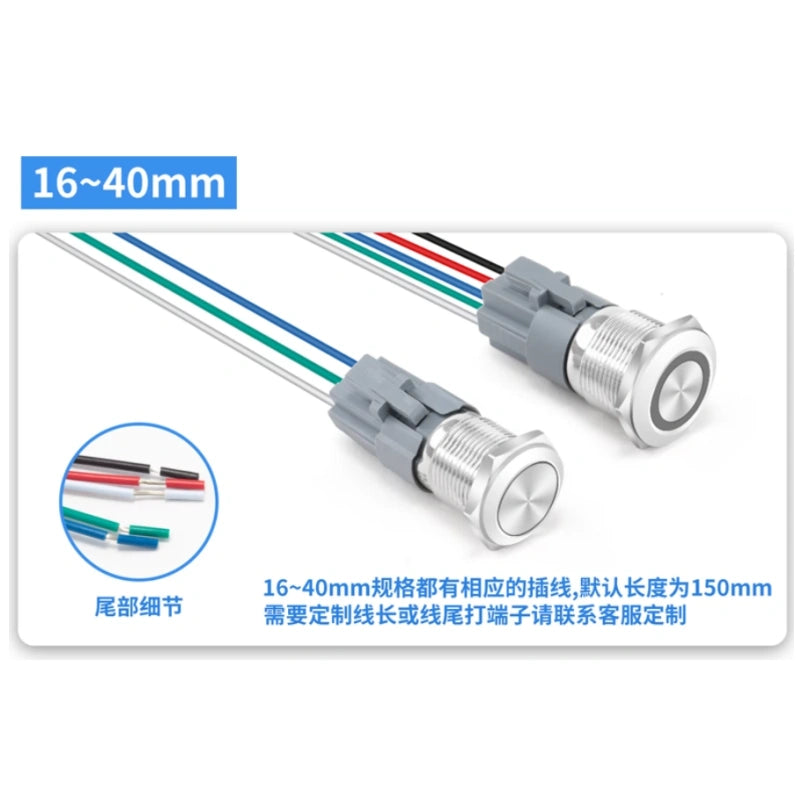

Made of durable nickel‑plated brass, with IP65 waterproof and dustproof performance. High‑head style and custom‑pattern customization are available on request. Matching plug‑in socket is provided for quick solder‑free wiring.

Perfect for industrial control panels, heavy‑duty machinery, power equipment, automotive modification and DIY circuit control.

Key Features


✅ 1NO+1NC Dual Contact: 1 normally open & 1 normally closed, flexible circuit control

✅ 5A High‑Current Rating: Stable performance for heavy‑duty power applications

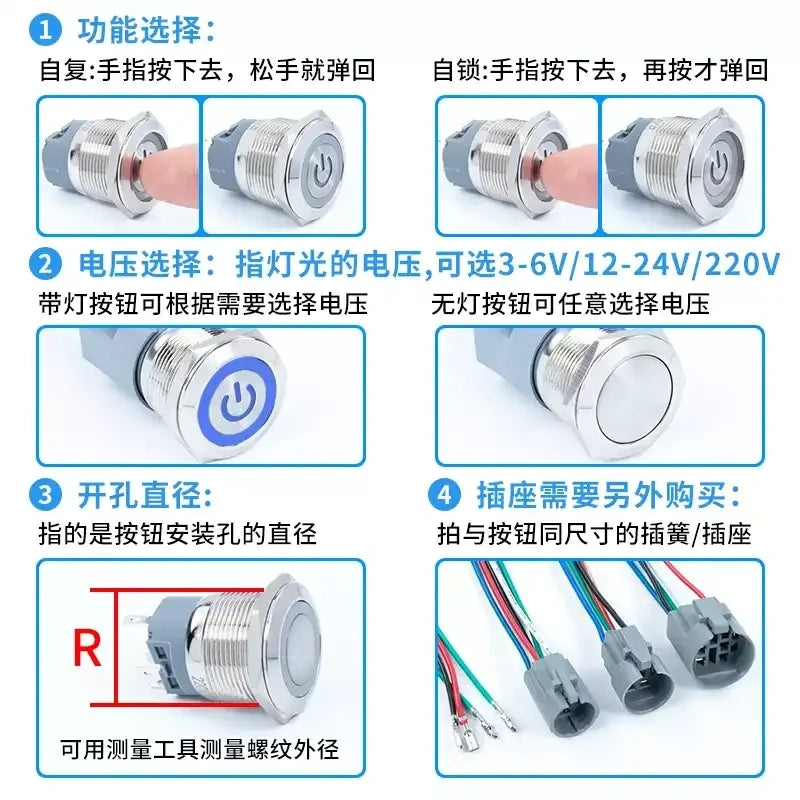

✅ Dual Operation Modes: Momentary (press‑on release‑off) / Latching (press‑on press‑off)

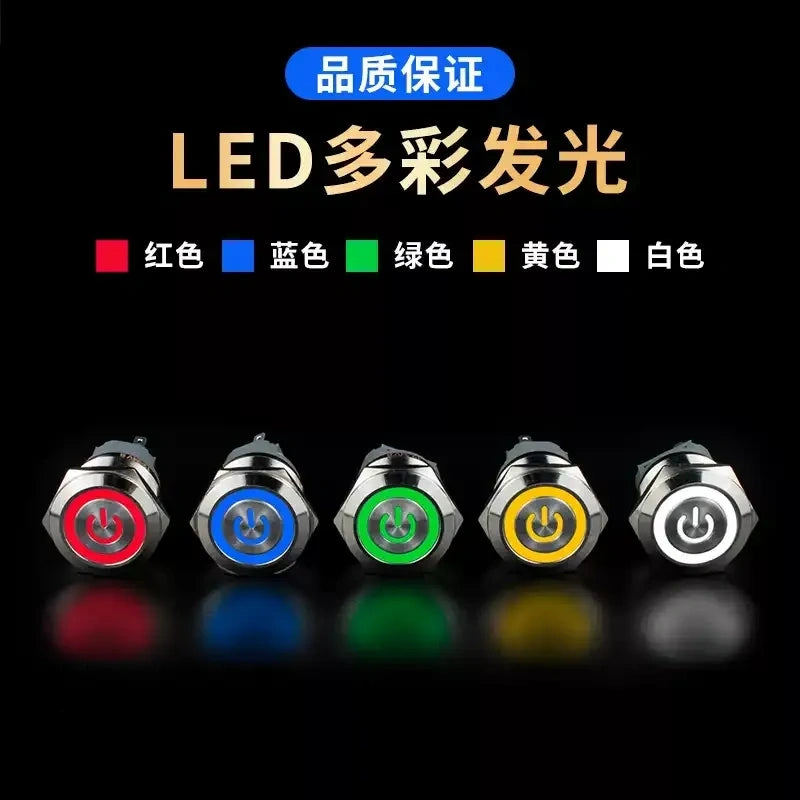

✅ Rich LED Options: No‑light / Ring Light / Power Symbol Light in 5 colors

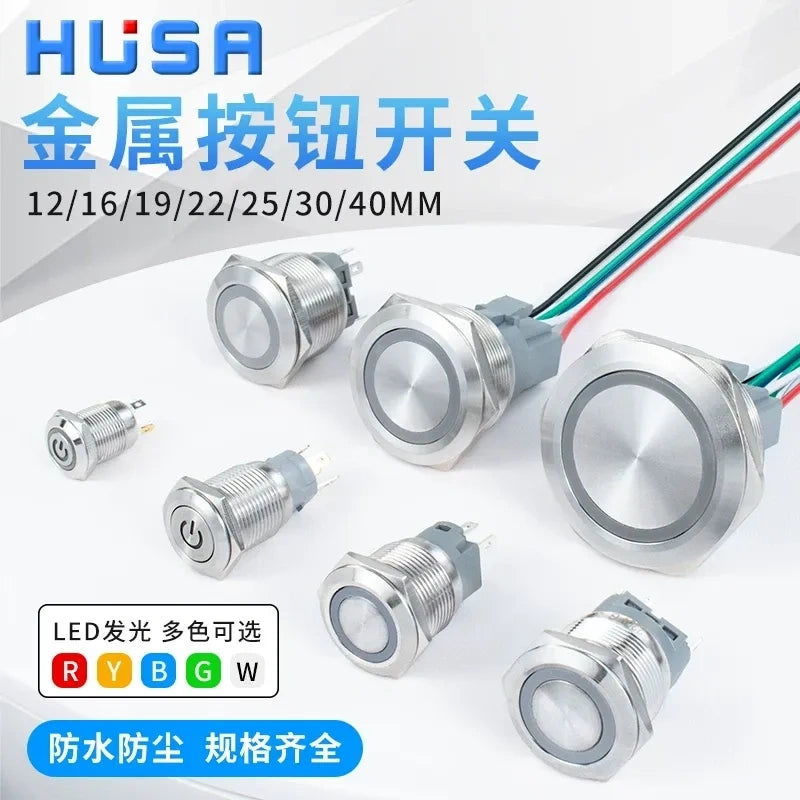

✅ Large‑Size Selection: 25mm, 30mm, 40mm for easy operation

✅ IP65 Waterproof & Dustproof: Sealed design adapts to harsh environments

✅ Customizable Service: High‑head style & custom‑pattern available

✅ Plug‑in Socket Included: Fast and convenient installation

Specification

Attribute English Value
Product Type Metal Push Button Switch
Mounting Size 25mm, 30mm, 40mm
Contact Configuration 1NO+1NC (1 Normally Open + 1 Normally Closed)
Rated Current 5A
Operation Mode Momentary (Self‑Resetting), Latching (Self‑Locking)

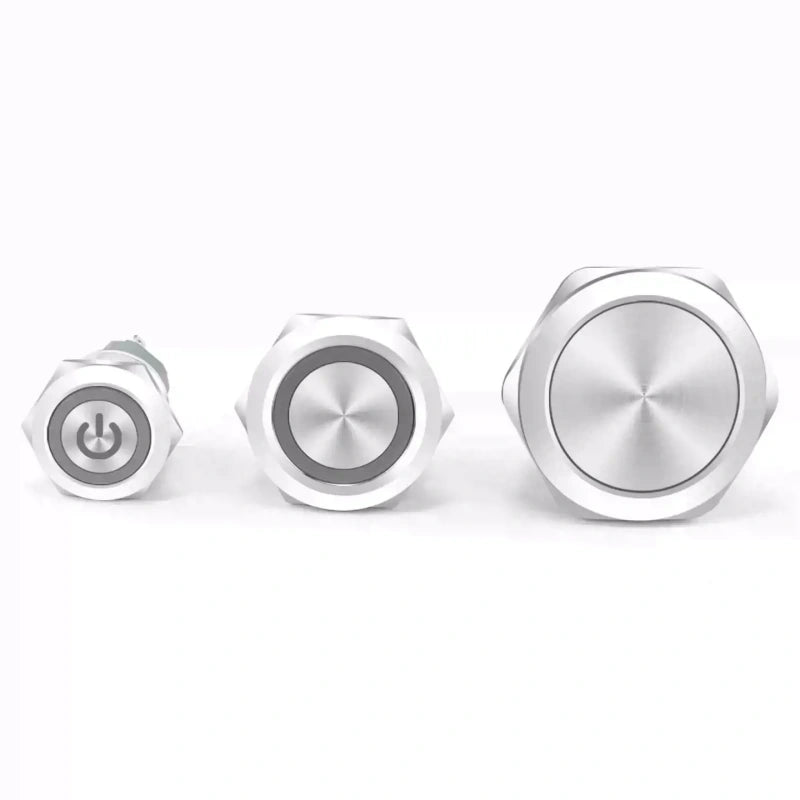

LED Style No‑Light, Ring Light, Power Symbol Light
LED Color Red, Blue, Green, Yellow, White
Voltage 3‑6V, 12‑24V, 220V
Waterproof Grade IP65
Housing Material Nickel‑Plated Brass
Custom Option High‑Head Style, Custom Pattern
Accessory Matching Plug‑in Socket
Application Industrial Control, Heavy‑Duty Machinery, Power Equipment, Auto Modification

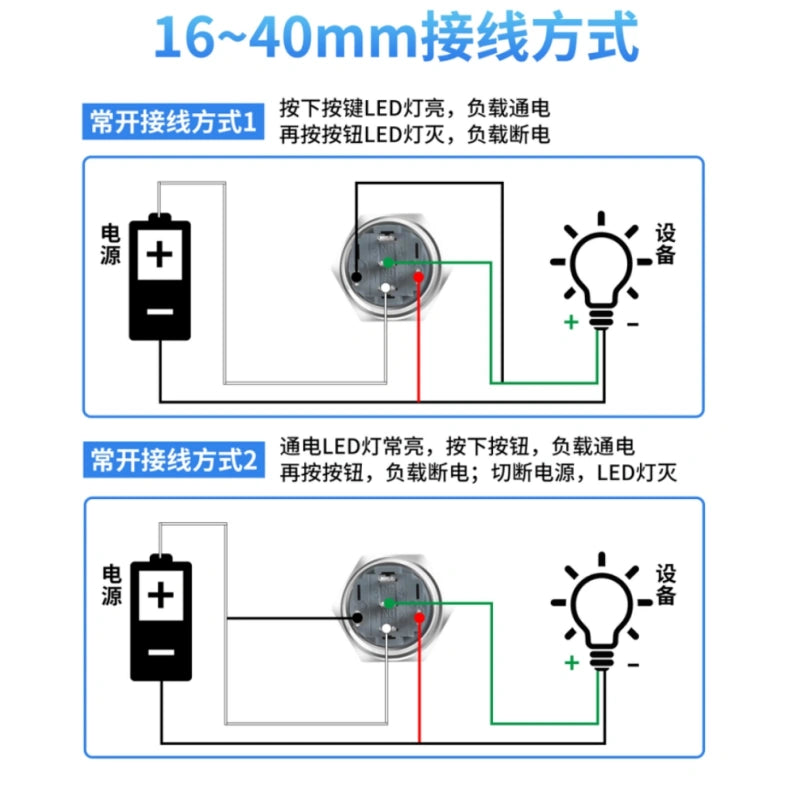

Dimension & Wiring Diagram
