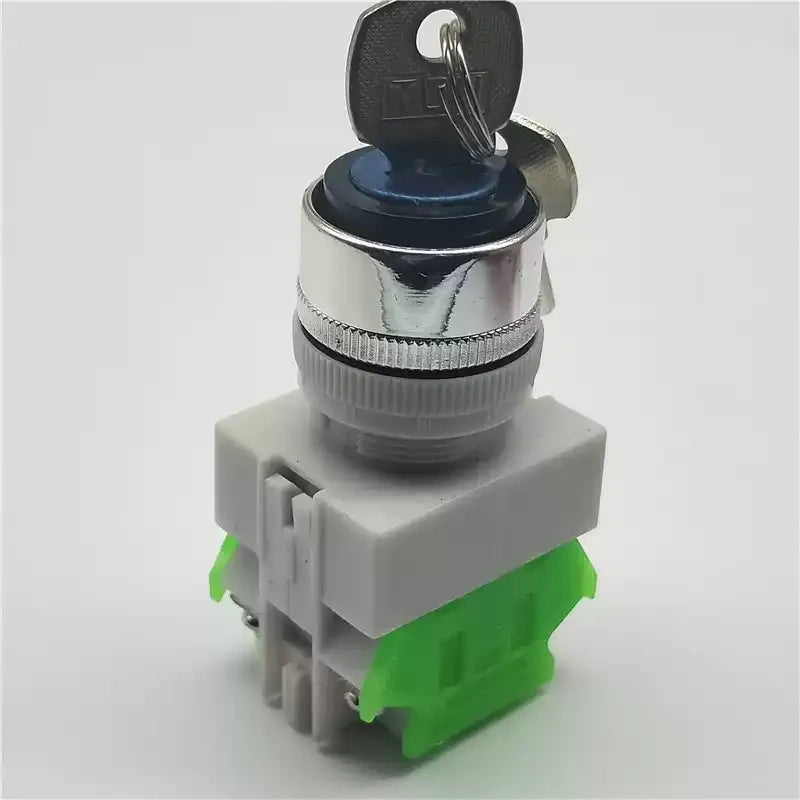

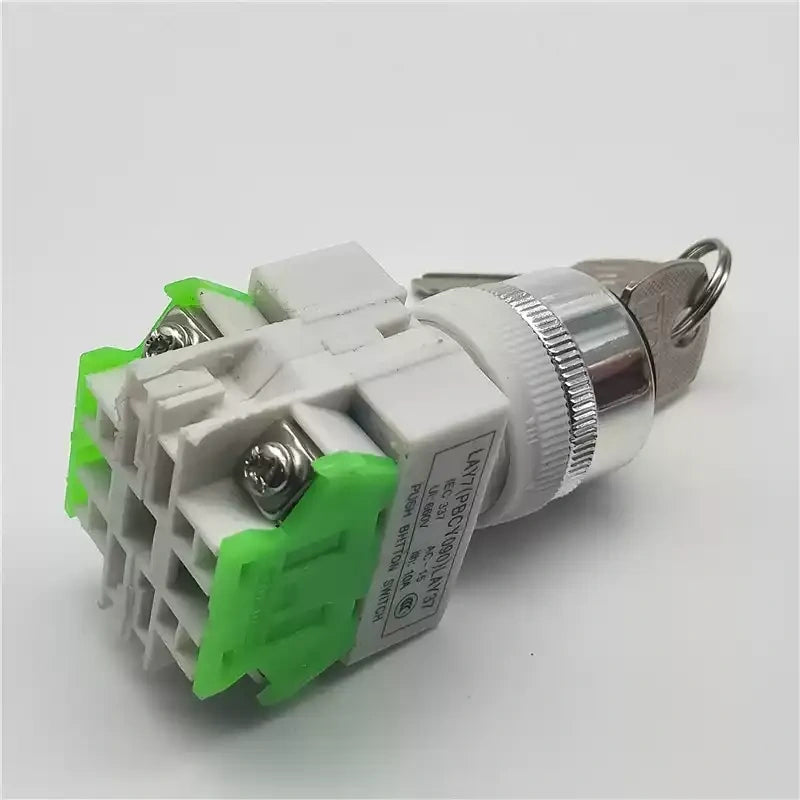

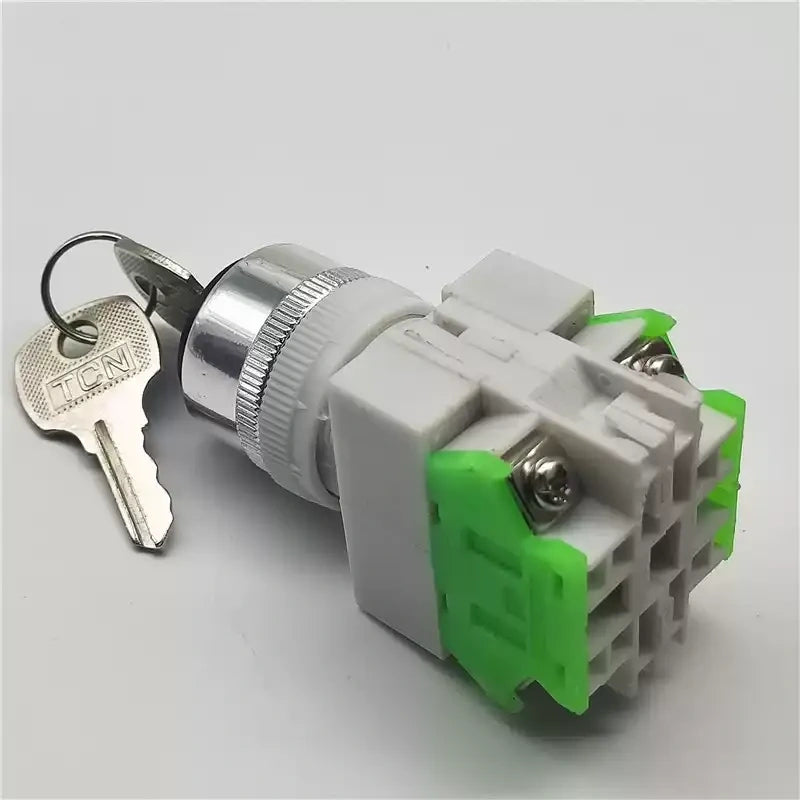

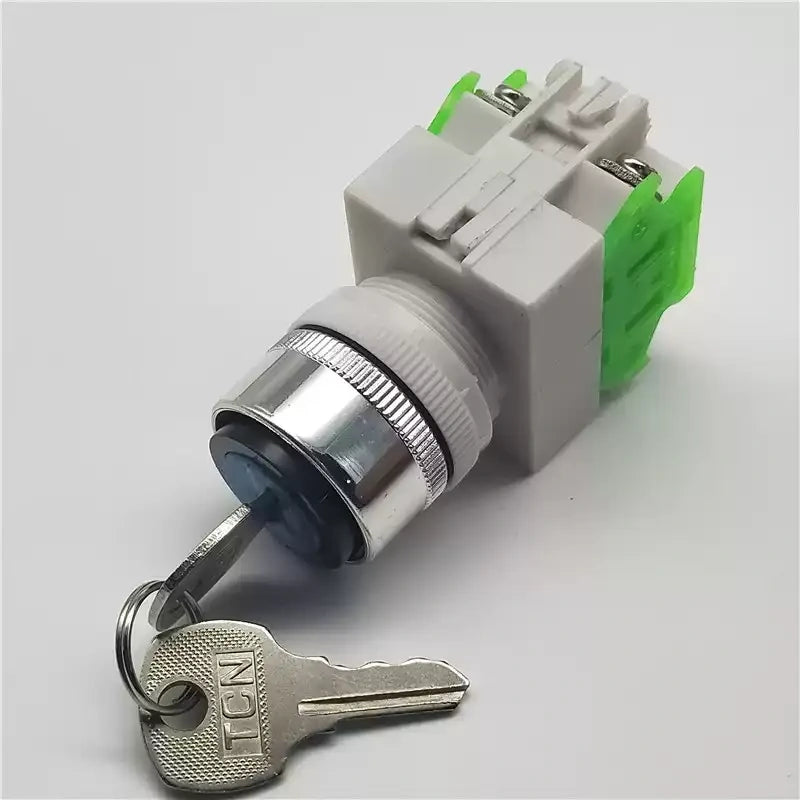

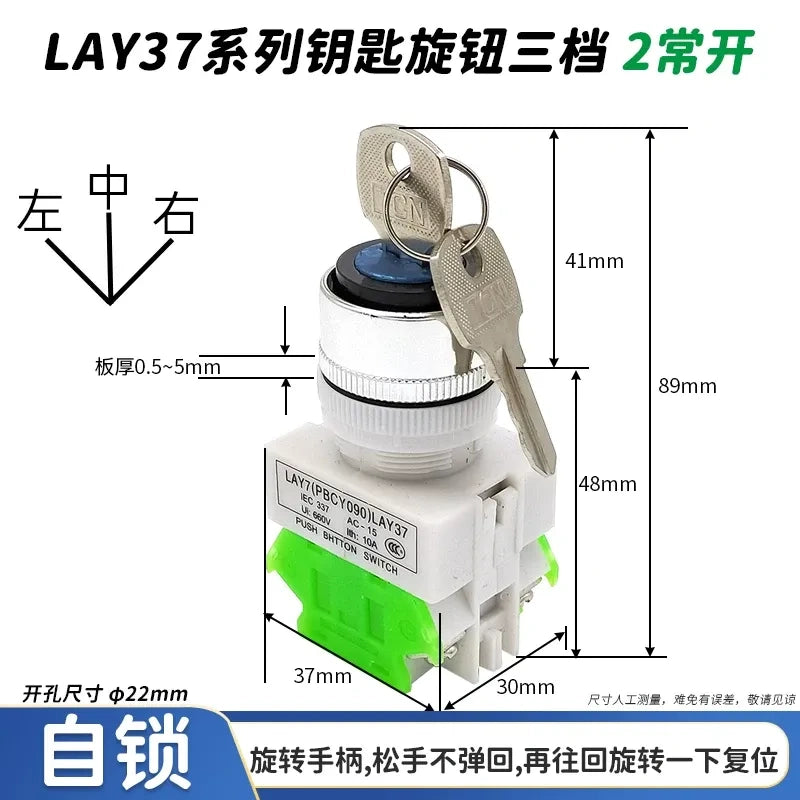

22mm Key Selector Switch LAY7 / LAY37 Series (LAY37-11Y2, LAY37-20Y3)
Overview
This is a 22mm key-operated rotary selector switch, widely used in industrial control panels for equipment start/stop, mode selection, and safety locking.
- Compatible Series: LAY7 / LAY37 (interchangeable design)
- Mounting Hole: 22mm standard panel cutout
- Rated Current/Voltage: 10A / 660V (AC-15)
- Protection Class: IP40
- Key Features: Key-operated design (prevents unauthorized operation), self-locking/self-reset options, flame-retardant housing.
Specification
| 属性项 | 内容 |
|---|---|
brand |
Electrical center B2C |
model_series |
LAY37 / LAY7 |
product_type |
Industrial Control Switches > Rotary & Key Selector Switches |
mounting_hole_diameter |
22mm (standard panel cutout) |
rated_voltage |
660V AC max, 24V/110V/220V common |
rated_current |
10A (thermal current), 5A (resistive load) |
contact_resistance |
≤20mΩ |
insulation_resistance |
≥20MΩ |
protection_class |
IP40 (front panel) |
housing_material |
Flame-retardant engineering plastic |
contact_material |
Silver alloy |
mechanical_life |
≥500,000 operations |
working_temperature |
-20℃ ~ +55℃ |
2. Main Models & Contact Configurations
| Model | Positions | Contact Configuration | Operation Type | Application |
|---|---|---|---|---|

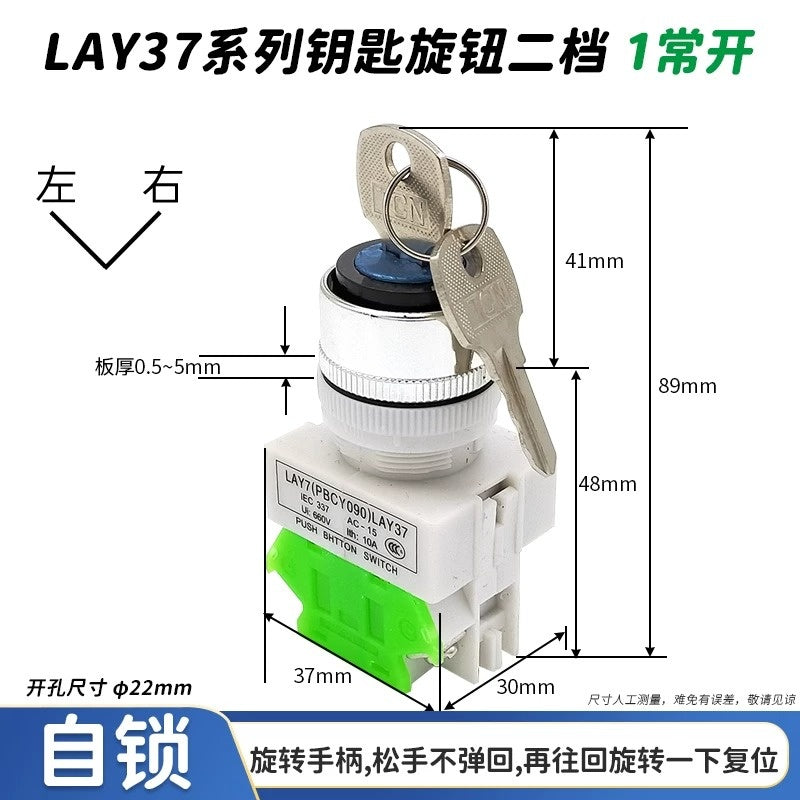

| LAY37-10Y2 | 2-position | 1NO (1 Normally Open) | Self-locking | Simple ON/OFF control |
| LAY37-11Y2 | 2-position | 1NO + 1NC (1 Open 1 Closed) | Self-locking | Switching between two circuits |

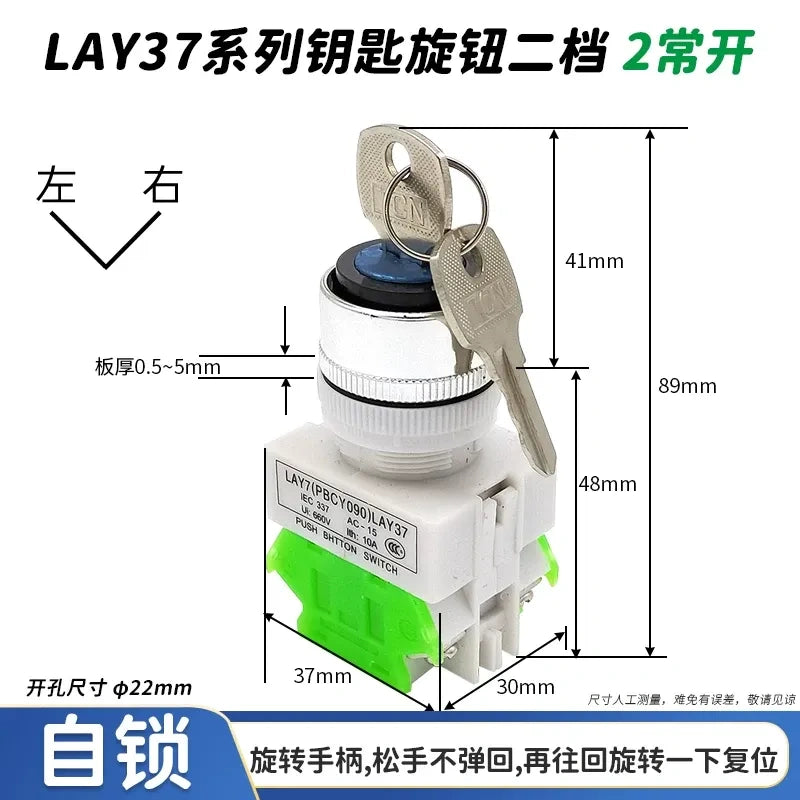

| LAY37-20Y2 | 2-position | 2NO (2 Normally Open) | Self-locking | Dual-circuit simultaneous control |
| LAY37-20Y3 | 3-position | 2NO (2 Normally Open) | Self-locking | Left/center/right 3-mode selection |

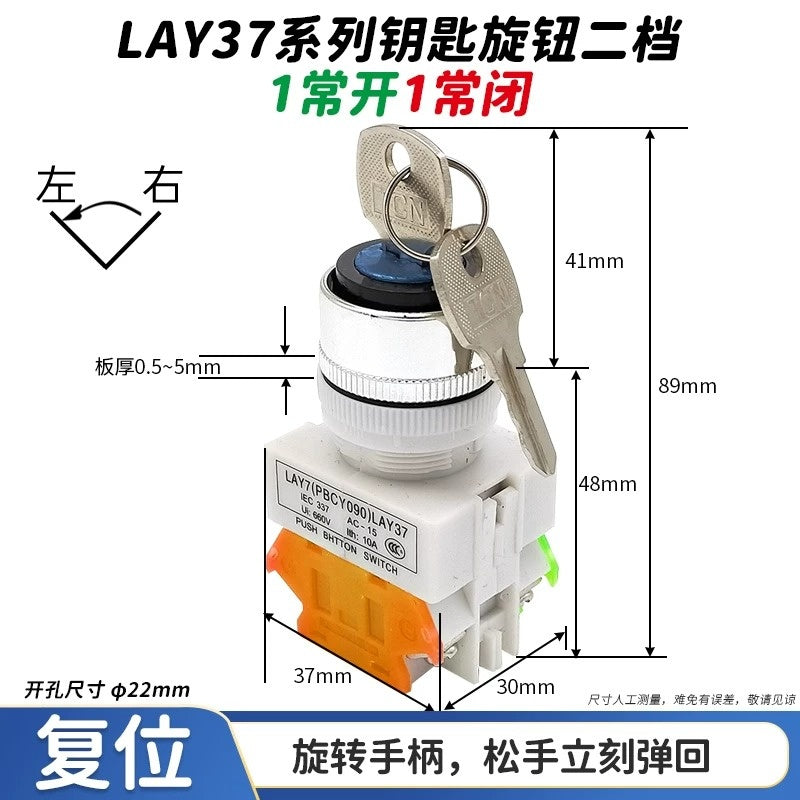

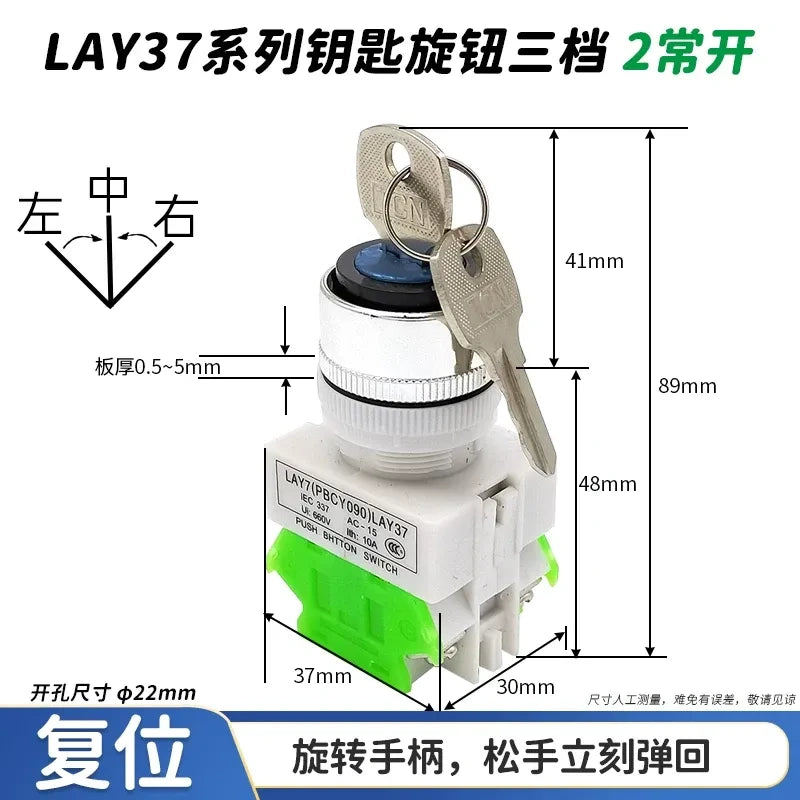

| LAY37-11Y22 | 2-position | 1NO + 1NC | Self-reset (spring return) | Momentary switching, failsafe applications |
| LAY37-20Y33 | 3-position | 2NO (2 Normally Open) | Self-reset (return to center) | Temporary mode selection, safety interlocks |
3. Functional Descriptions (from your diagram)
-
2-position self-locking (1NO+1NC):
Default state: One side ON, one side OFF. When rotated, the other side turns ON and the original side turns OFF. Stays in the new position.
-
2-position self-locking (2NO):
Default state: Both circuits OFF. When rotated, both circuits turn ON. When rotated back, both turn OFF.
-
3-position self-locking (2NO):
Default state: Both circuits OFF (center position). Rotate left: left circuit ON. Rotate right: right circuit ON. Stays in the new position.
-
Self-reset versions:
The key automatically returns to the default position when released (center position for 3-position, original position for 2-position).
4. Application Scenarios
- Industrial machinery control panels
- Elevator control cabinets
- HVAC equipment control
- Power distribution panels
- Equipment safety interlock systems
