220V AC Motor 200W Single Phase High Speed 1400rpm 2800rpm Electric Motor Speed Controller Reversed For High-End Smart Devices

Regular price $599.00 NZD
Regular price $459.00 NZD Sale price $599.00 NZD
Sale Sold out
Shipping calculated at checkout.
Speed

SPECIFICATIONS

220V AC Motor 200W Single Phase High Speed 1400rpm 2800rpm Electric Motor Speed Controller Reversed For High-End Smart Devices

Brand Name: HYSMOTOR

Certification: ROHS

Efficiency: IE 1

AC Voltage: 208-230 / 240 V

Origin: Mainland China

Phase: Single-phase

Protect Feature: Drip-proof

Certification: RoHS

Model Number: 6m200gn-cc

Output Power: 200W

Type: Induction Motor

Application

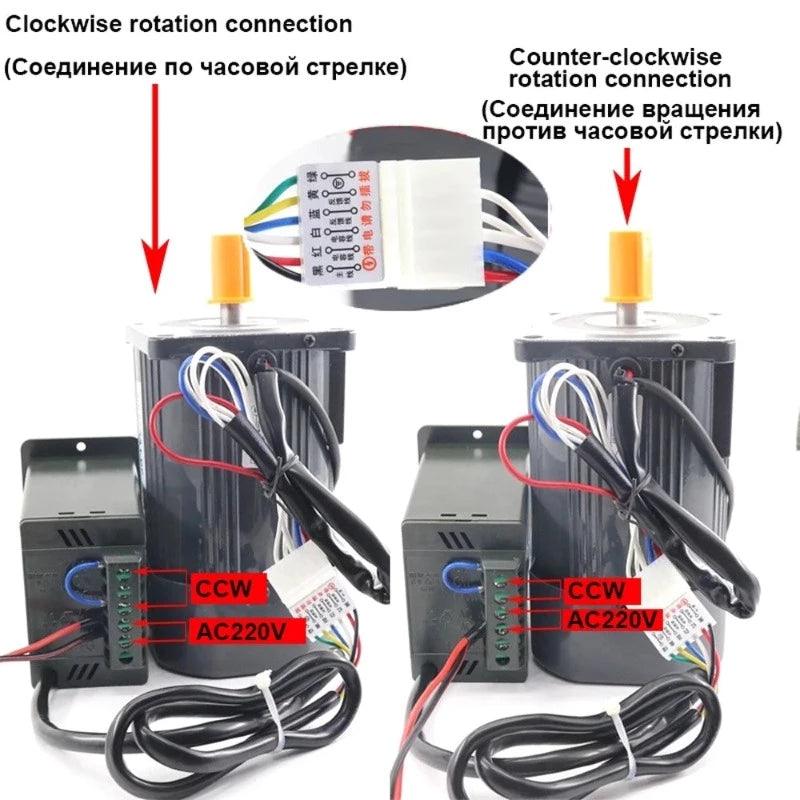

Motor and speed controller connection method

If you don't understand it, you can contact us.
Thanks

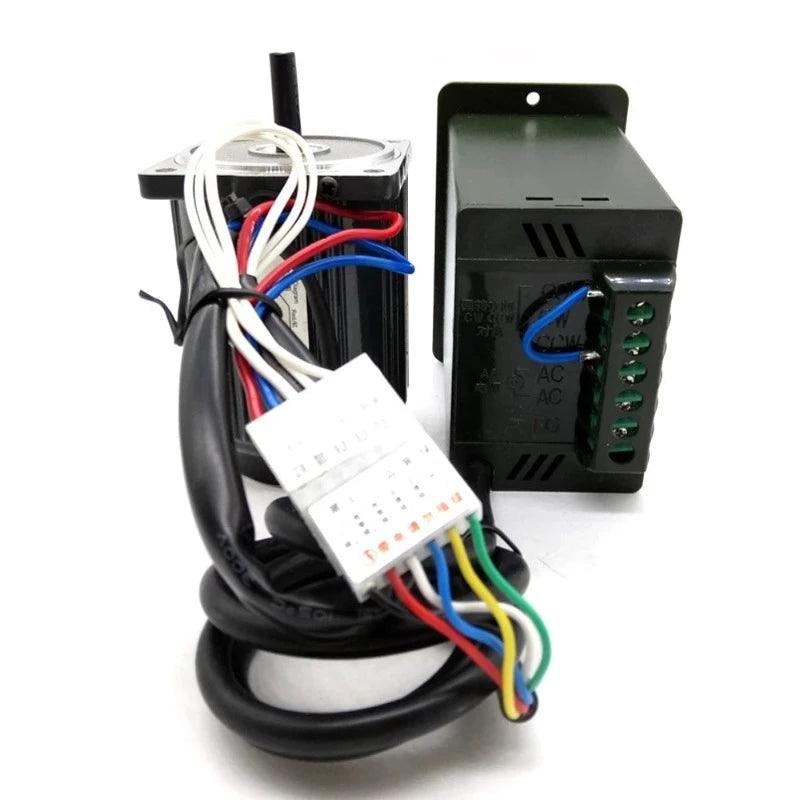

The following is the picture of the motor

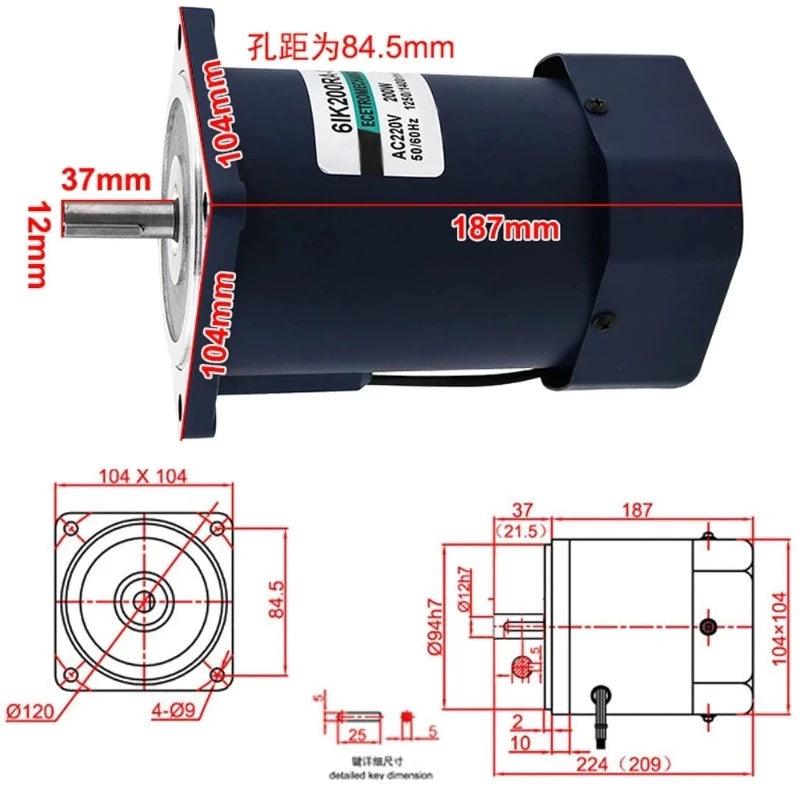

The size is for reference only the measurement will be slightly different,please pay attention before buying

The following is a description of the quality materials and structures of this motor.

1. Imported high-quality double ball bearing increases the load force of the motor and reduces friction. The seal of this bearing is strong and the lubricating oil is prevented from flowing out.

2. The motor is internally designed with a small fan to quickly dissipate heat from the motor and extend the life of the motor.

3. The inner part of the motor is made of pure copper coil. It is more conductive, resistant to temperature and prolongs the life of the motor.

The following is the parameter table of the motor

Friendly reminder

Your project load should not exceed rated torque of the motor, otherwise the life of the motor will be reduced

Introduction of the motor

1. Name of the motor: 2M06GN-CC 220v single phase AC motor with speed controller

2. Rated voltage : 220V

3. You can choose the no load speed have : 1400rpm or 2800rpm

Note 1 : The speed plus and minus 10% fluctuation

Note 2 : If you choose 220v 1400rpm, If your country's frequency is 50Hz, after the motor is connected to the power supply, the output speed is 1400rpm ; If your country's frequency is 60Hz, after the motor is connected to the power supply, the output speed is 1700rpm

4. Power : 6W

5. This motor has a speed controller

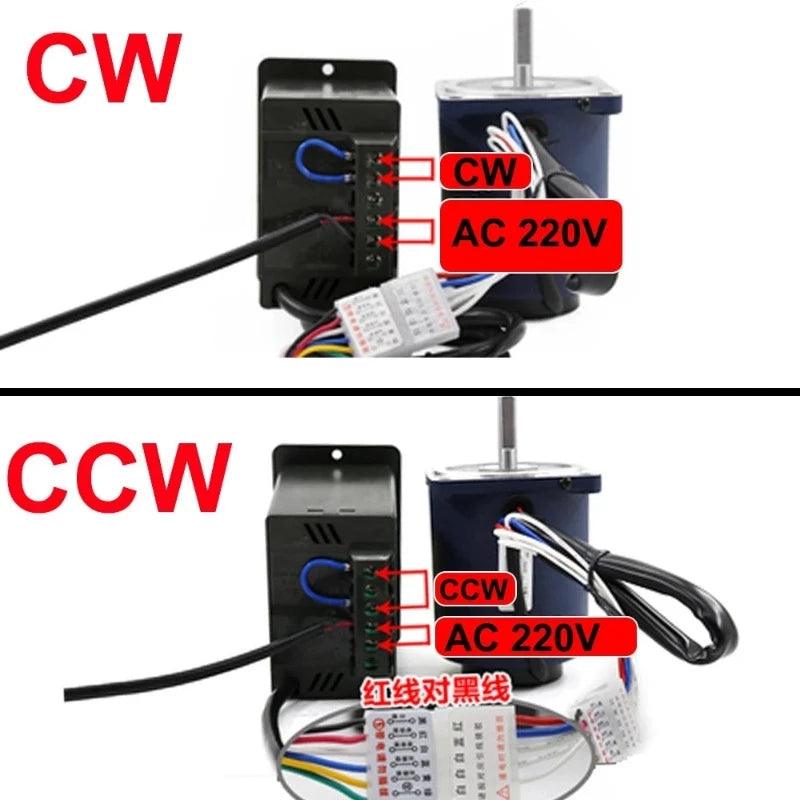

Its function can control the speed of the motor and rotate clockwise or counterclockwise

6. Direction of rotation of the motor: CW Or CCW, Support Reversed; The direction of rotation of the motor can be controlled by a speed controller

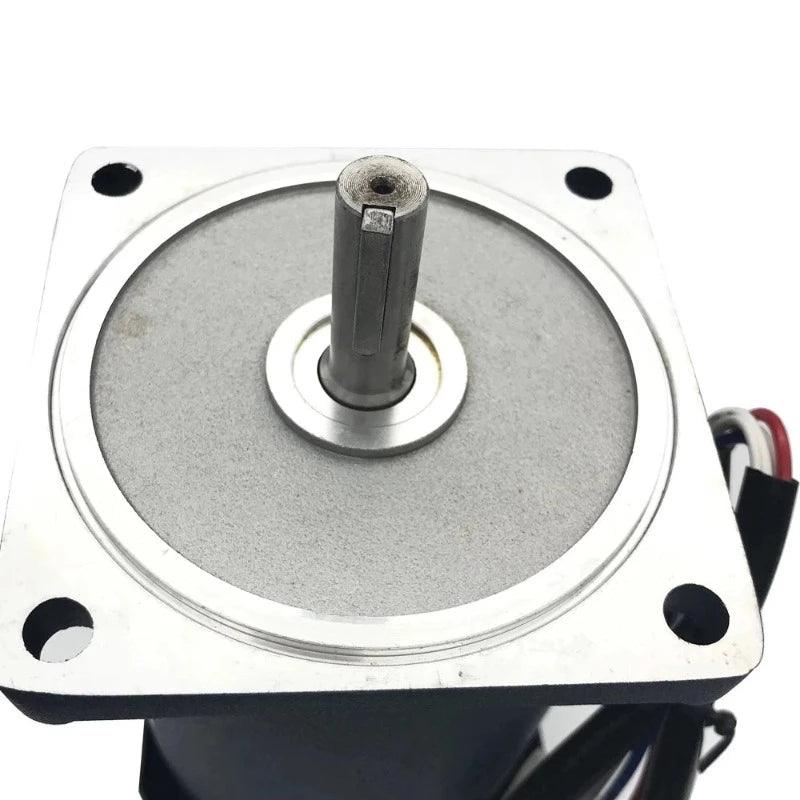

7. The shaft shape of the motor : D type, please refer to the size chart below for all dimensions of the motor.

8. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination.

9. Low noise

10. In normal use, the motor has a life of more than 5,000 hours and support continuous operation for 24 hours

11. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.
For example, Production line ; Automatic washing machine ; Household appliances ; Smart device etc.
