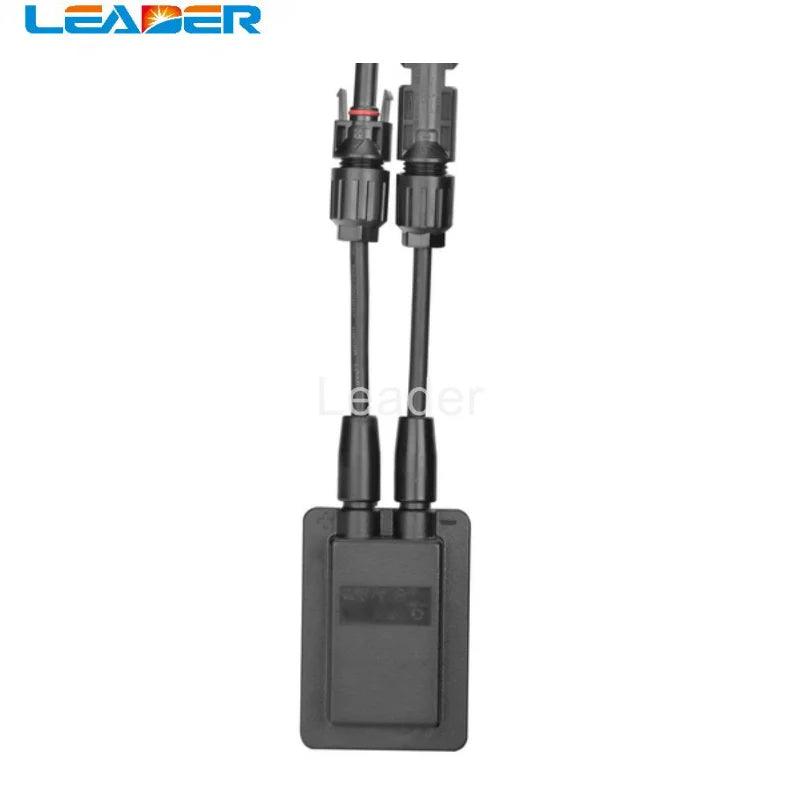

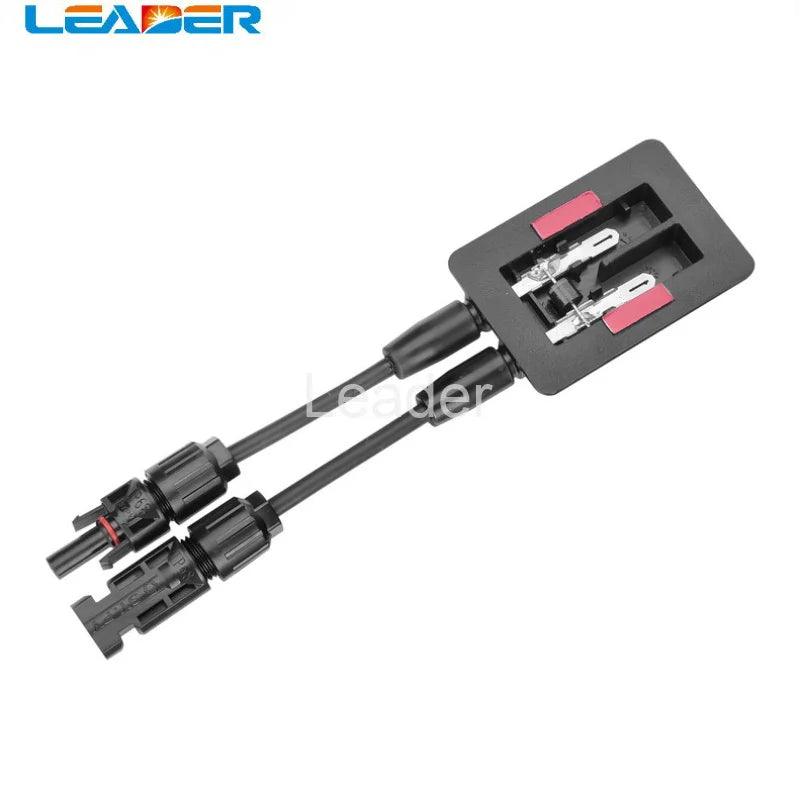

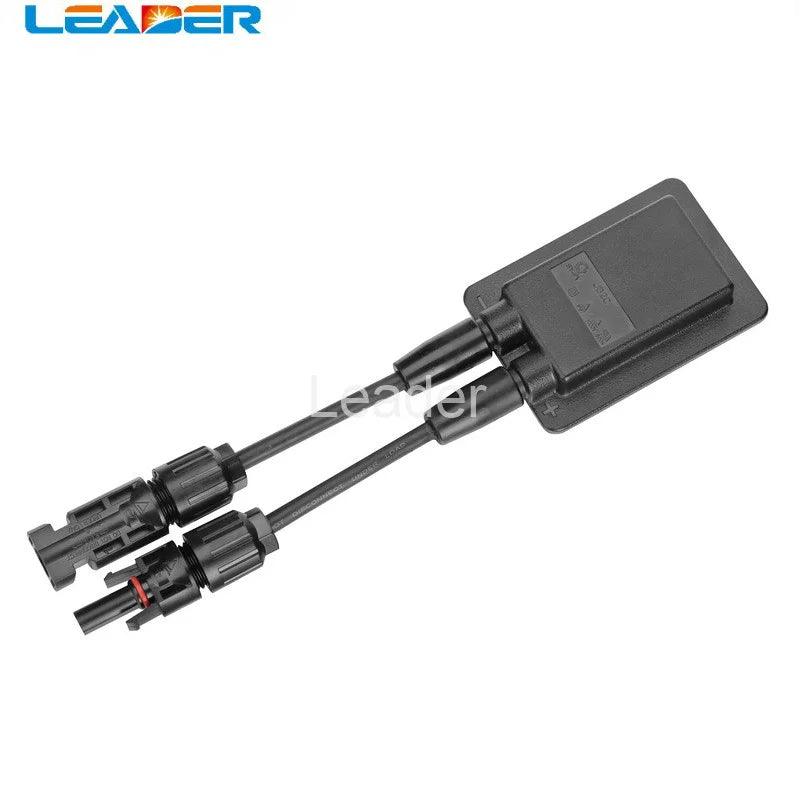

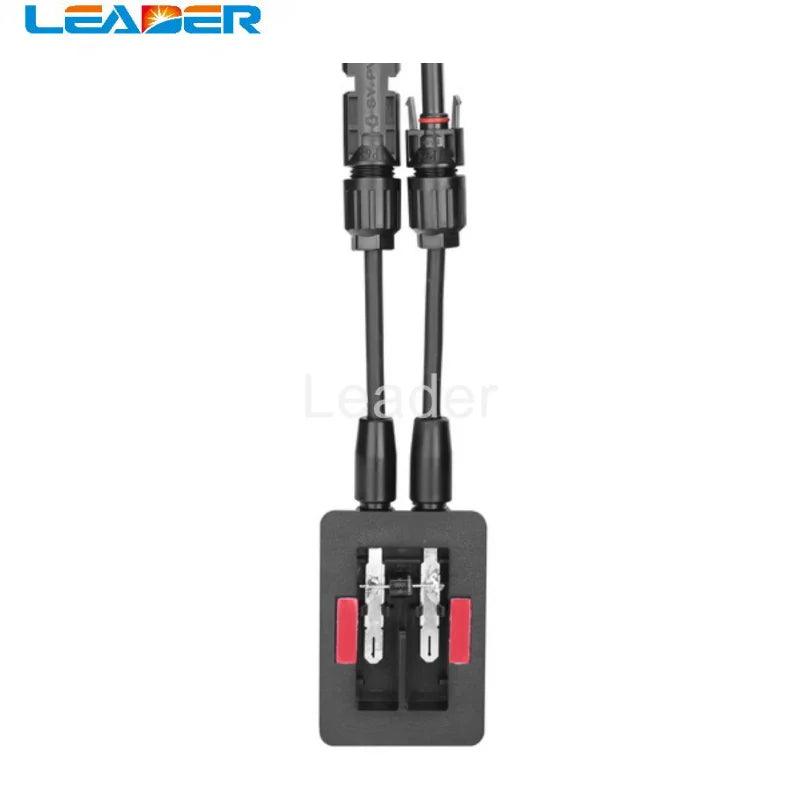

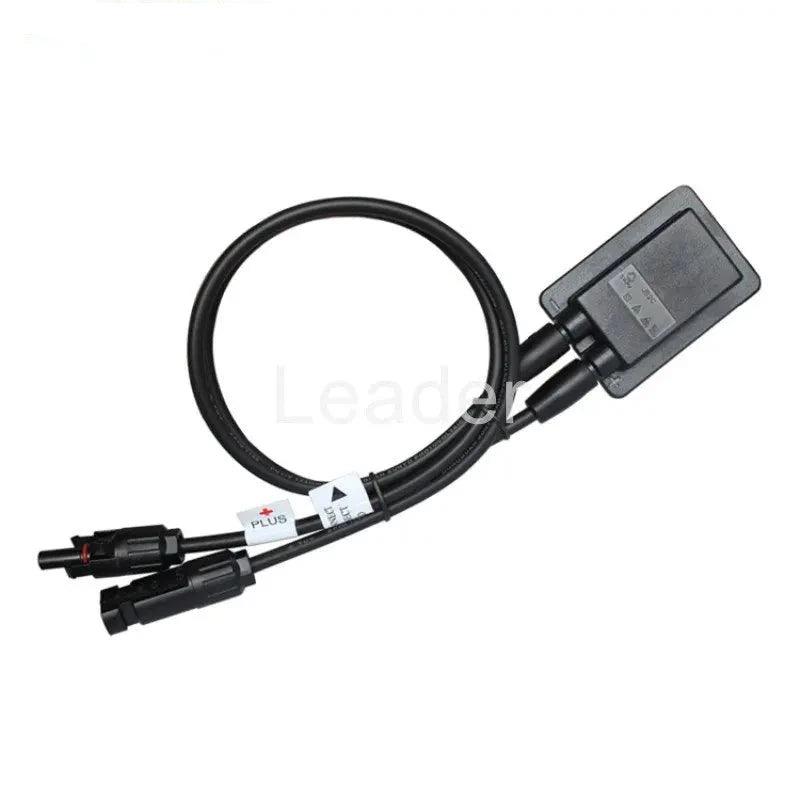

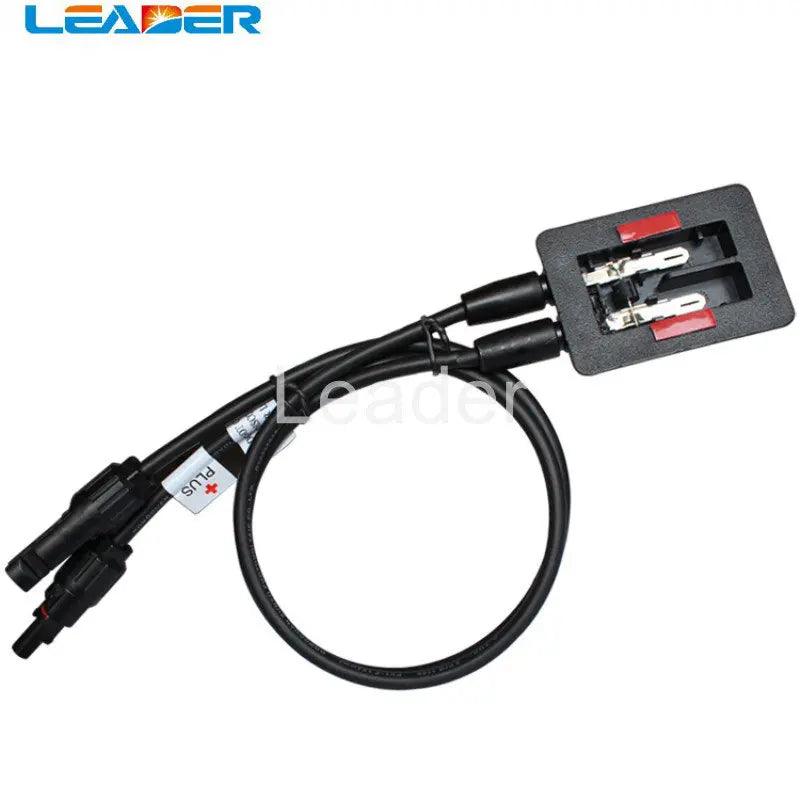

20 Pcs/lot Hot Sale Solar Boxes 2 Rail PV Junction Box Solar JB with 2.5mm2 Cable and IP67 Solar Panel Conenctor FS0152

Regular price $413.00 NZD
Regular price $348.00 NZD Sale price $413.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

20 Pcs/lot Hot Sale Solar Boxes 2 Rail PV Junction Box Solar JB with 2.5mm2 Cable and IP67 Solar Panel Conenctor FS0152

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: 2 Rail PV Junction Box

Amount of Rails: 2 rail terminals

Rated Voltage: TUV 1000V DC

Rated Current: 3-20A

Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Cable Size: 2.5mm sq (1M)

Protection Class: Class II

Pollution Degree: 2

Pin Od: 4.0mm

2 Way Solar Junction Box with 1M 2.5mm2 Cable and IP67 SOLAR Connector



Production introduction:

Product No. SM-JB2C
Amount of rails 2 rail terminals
Rated Voltage TUV 1000V DC
Rating current 3-20A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin OD 4.0mm
Proof voltage TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree 2
Protection class Class II
Contact Material Copper, tin plated
Contact resistance ≤5mΩ
Protection degree IP67
Withdrawal Force ≥50N
Temperature Range -40ºC~+85ºC
Flame Class UL94V-0

JB2C 2JB2C 3JB2C 5JB2CJB2C 3 (2)
