2 Pcs/lot Top Quality 4 Way PV Junction Box Combiner Boxes for Solar Energy System, 3 Diodes Solar JB with Connector XH0200

$78.00 NZD
$59.00 NZD $78.00 NZD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

2 Pcs/lot Top Quality 4 Way PV Junction Box Combiner Boxes for Solar Energy System, 3 Diodes Solar JB with  Connector XH0200

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: 4 way solar pv junction box

Amount of Rails: 4 rail terminals

Rated Voltage: TUV 1000V DC

Rated Current: 3-20A

Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Cable Size: 4mm sq

Protection Class: Class II

Pollution Degree: 2

Pin Od: 4.0mm

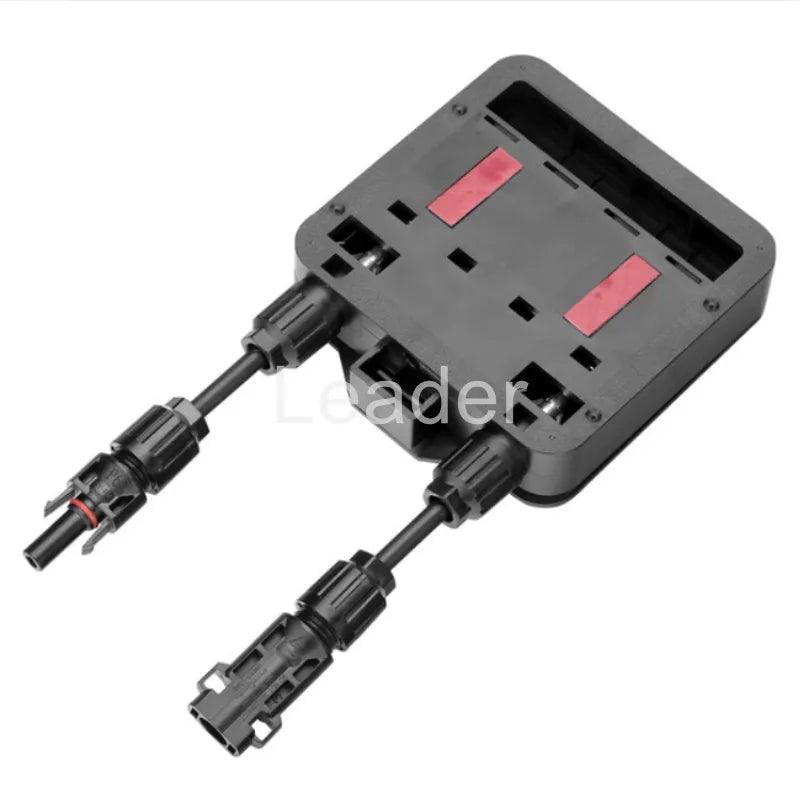

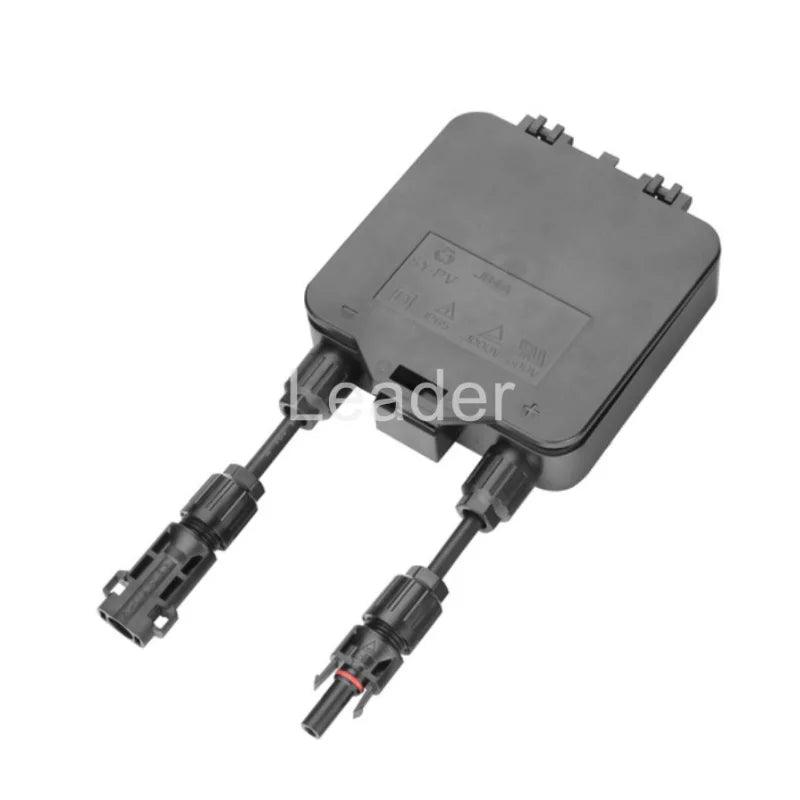

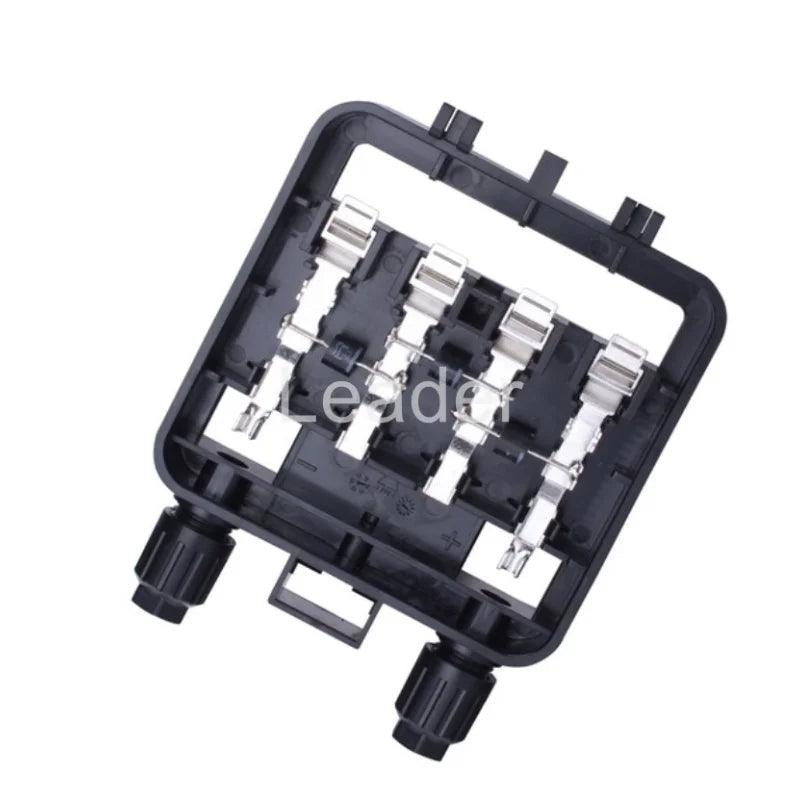

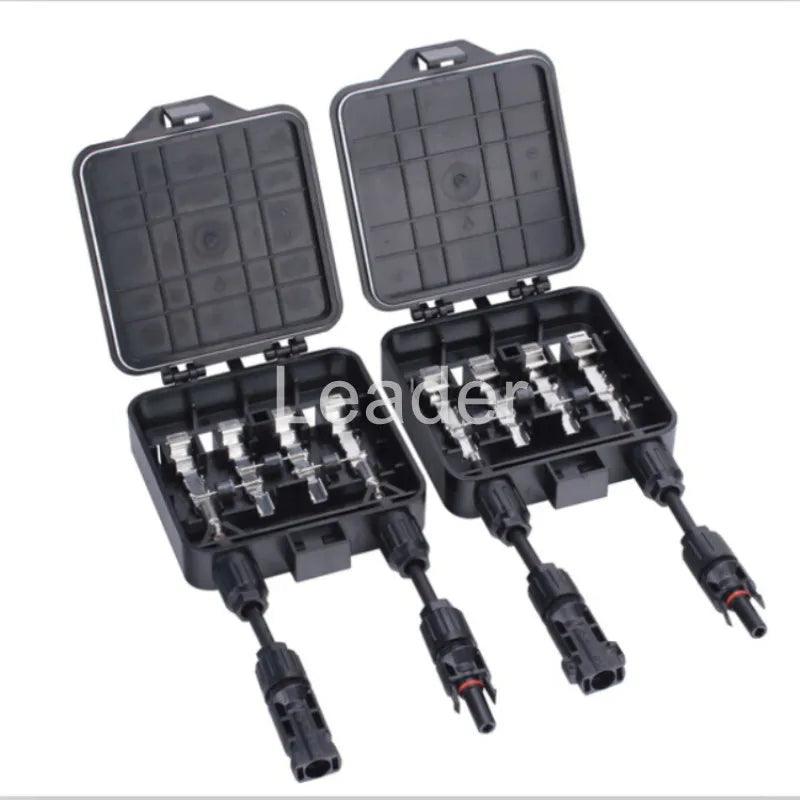

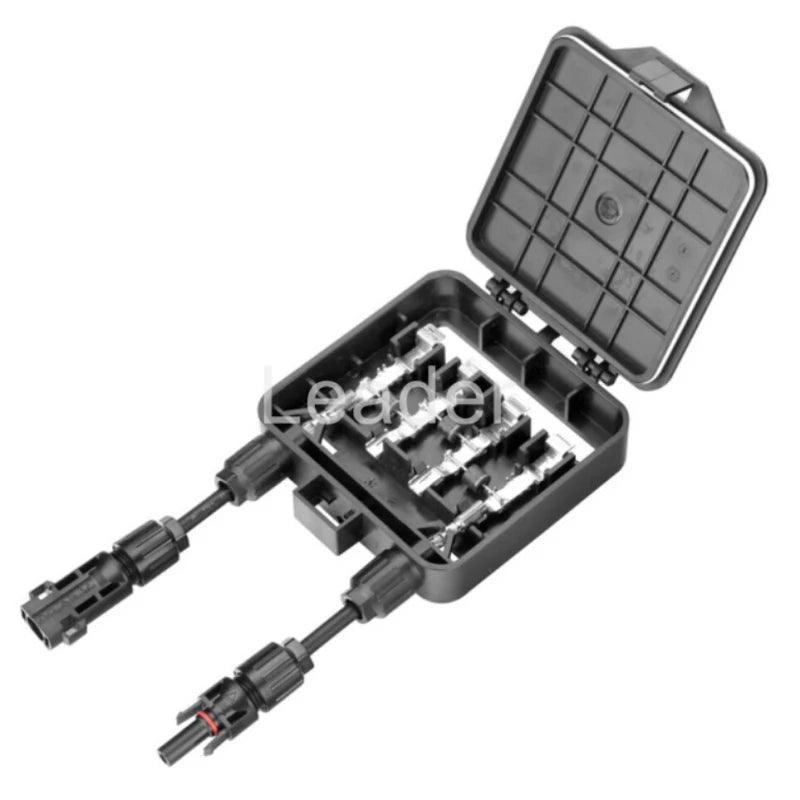

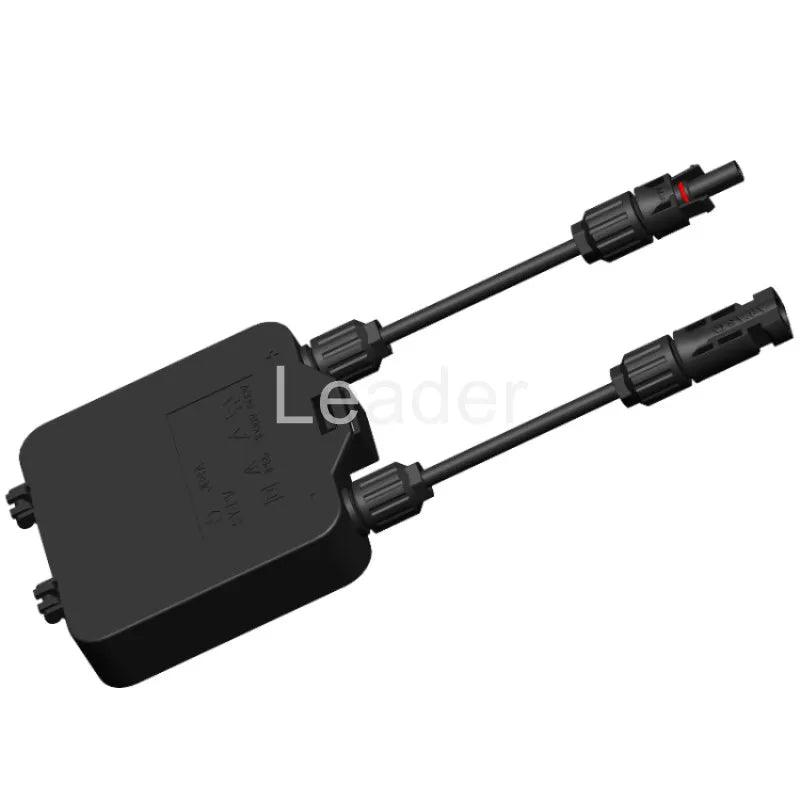

4 Way Solar Junction Box with 3 Diodes and IP67 SOLAR Connector



Production introduction:

Product No. SM-JB4A
Amount of rails 4 rail terminals
Rated Voltage TUV 1000V DC
Rating current 3-20A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin OD 4.0mm
Proof voltage TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree 2
Protection class Class II
Contact Material Copper, tin plated
Contact resistance ≤5mΩ
Protection degree IP67
Withdrawal Force ≥50N
Temperature Range -40ºC~+85ºC
Flame Class UL94V-0

SY-JB4B-1SY-JB4B-2IMG_2319_IMG_2431_IMG_2505_SOLAR connector (72)



Compnay information:

LENDER ENERGY Company

LEADER ENERGY is a new energy enterprise,located in GUANGDONG, China,specializing in R&D,

manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;

with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems,

and by the products R&D,mold design,production,sales through-train service.With advanced technology,

our products have been authorized by TUV Rhineland,UL,CE successfully.

LEADER Company adheres to self R&D,strict detection standards and perfect detection system,

modernization management approaches and excellent talent teams,

hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.

Main products:






For more products information, please free contact us via Aliexpress ,

we will reply to you in 2 hours. thanks
