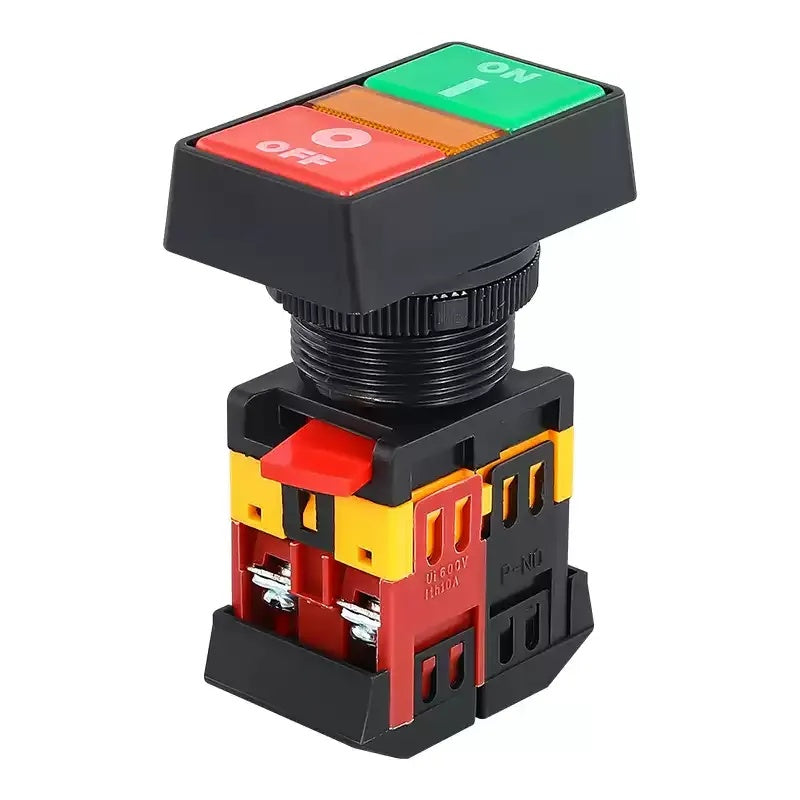

Dual Push Button Switch with LED

$18.00 NZD
$12.00 NZD $18.00 NZD
Sale Sold out
Shipping calculated at checkout.
Mode NO.
Voltage

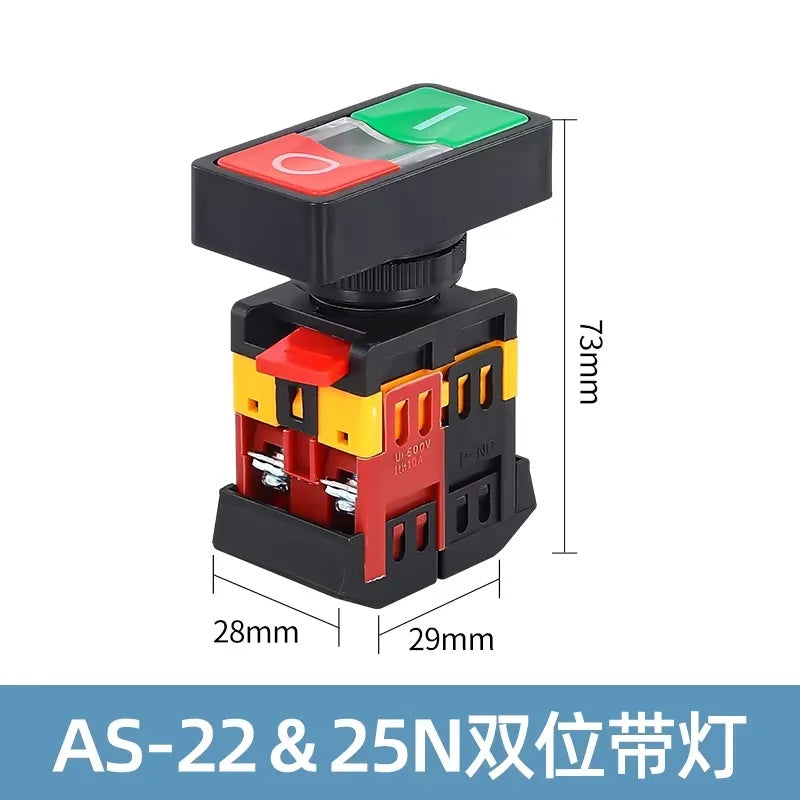

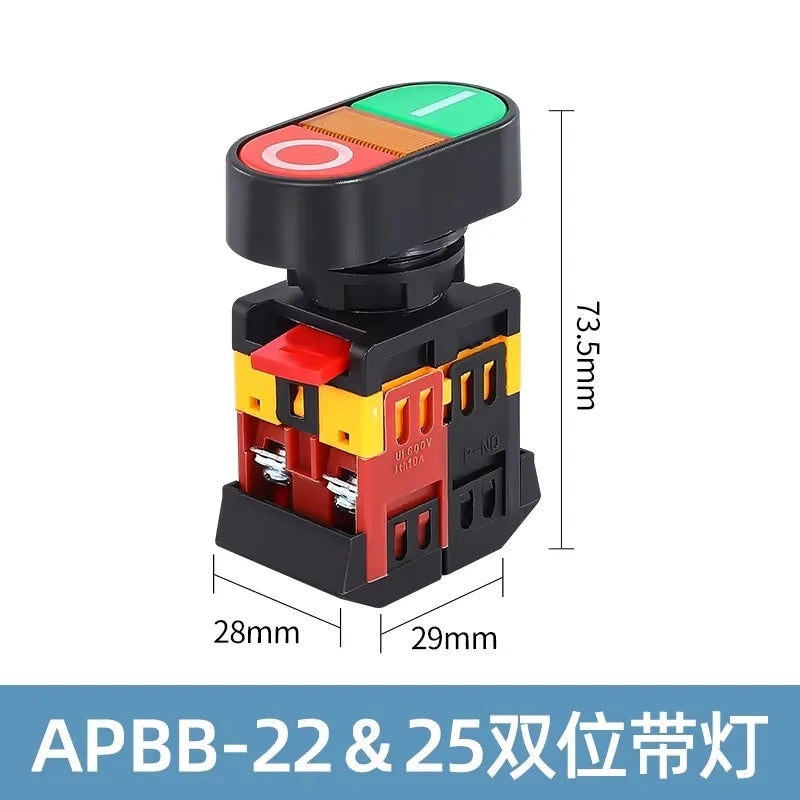

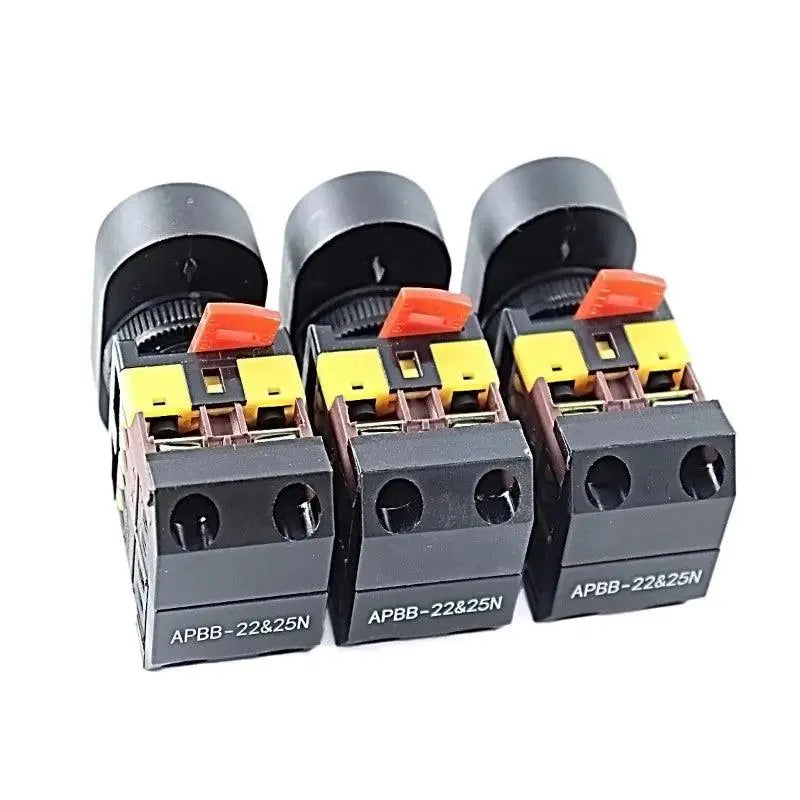

  • APBB-22&25N / AS-22&25N：Dual LED Push Button Switch 22mm/25mm, 10A Momentary, Start/Stop

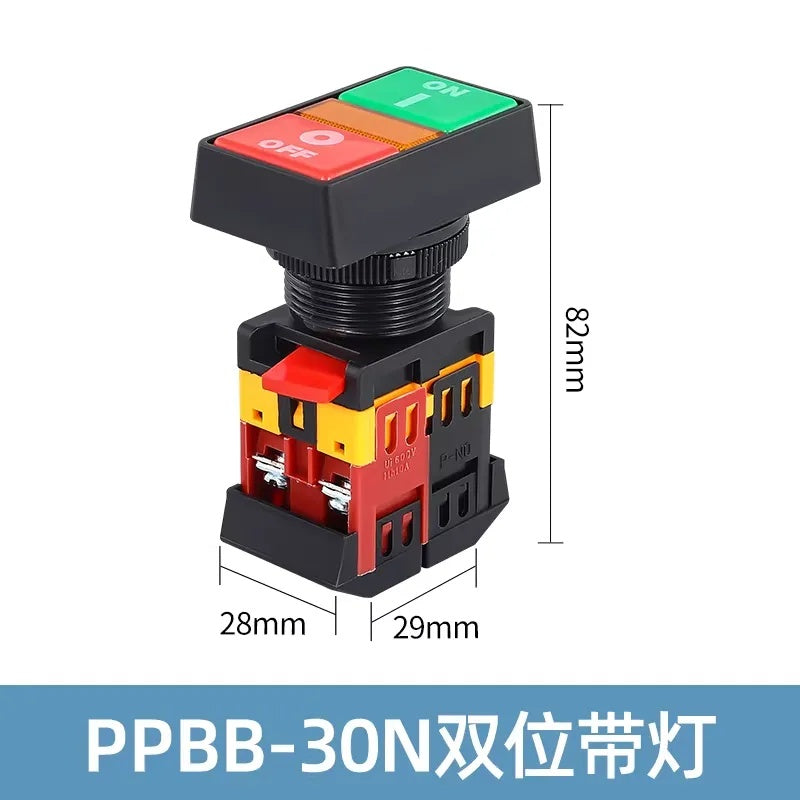

  • PPBB-30N：Dual LED Push Button Switch 30mm, 10A Momentary, Start/Stop

Product Overview


This dual-position push button switch with built-in LED indicator is a high-performance momentary (self-reset) start/stop switch, designed for industrial control, automation equipment, and mechanical operation. Available in 22mm/25mm and 30mm mounting sizes, it features 10A high-current load capacity, flame-retardant housing, and long service life, making it ideal for reliable start/stop control in various industrial and commercial scenarios.



中文属性 英文属性（AI / 平台标准） 属性值（英文）
产品名称 Product Name Dual Position Push Button Switch with LED Indicator
产品型号 Model Number APBB-22&25N, AS-22&25N, PPBB-30N
开孔尺寸 Mounting Hole Size 22mm/25mm (APBB/AS), 30mm (PPBB)
额定电流 Rated Current 10A
触点形式 Contact Configuration SPST (1NO+1NC, Momentary)
操作结构 Operation Type Momentary (Self-Reset)
带灯功能 LED Indicator Built-in LED, Power-on Light
机械寿命 Mechanical Life 5,000,000 Cycles
电气寿命 Electrical Life 600,000 Cycles
耐压等级 Dielectric Strength 2KV/5s
外壳材质 Housing Material Flame-Retardant, High-Temperature Resistant
触点材质 Contact Material High-Conductivity, High-Current Load
防护特性 Protection Features Impact-Resistant, Oxidation-Resistant, Wear-Resistant
适用场景 Application Industrial Control, Start/Stop Switch, Automation Equipment



Core Features

  1. Dual-Button Design with LED Indicator

    Built-in LED indicator lights up when powered on, clearly showing the working status. Dual start/stop buttons for intuitive operation, compatible with 22mm/25mm/30mm universal mounting holes.
  2. High-Current Load Capacity

    Premium high-conductivity contacts support 10A rated current, with strong overload resistance and long electrical life (600,000 cycles), ensuring stable performance in high-load industrial environments.
  3. Durable & Safe Construction

    Flame-retardant, high-temperature resistant housing with self-extinguishing property, impact and oxidation resistant. Wear-resistant button head prevents scratches, ensuring long-term durability.
  4. Momentary Self-Reset Operation

    Standard momentary (self-reset) action, automatically returns to the original position after release, perfect for start/stop control of motors, machinery, and automation systems.
  5. Long Service Life & High Reliability

    5,000,000 mechanical life cycles and 600,000 electrical life cycles, with 2KV/5s dielectric strength, meeting industrial-grade reliability standards.

Application Scenarios

  • Industrial control panels, mechanical equipment start/stop switches
  • Automation equipment, conveyor systems, production lines
  • DIY projects, electrical control boxes, vehicle modification
  • Commercial equipment, access control, and other momentary control needs
