1530 Linear Stepper Motor, 2-Phase 4-Wire, M3 Screw Shaft, 30mm Stroke for Micro Applications
Product Overview

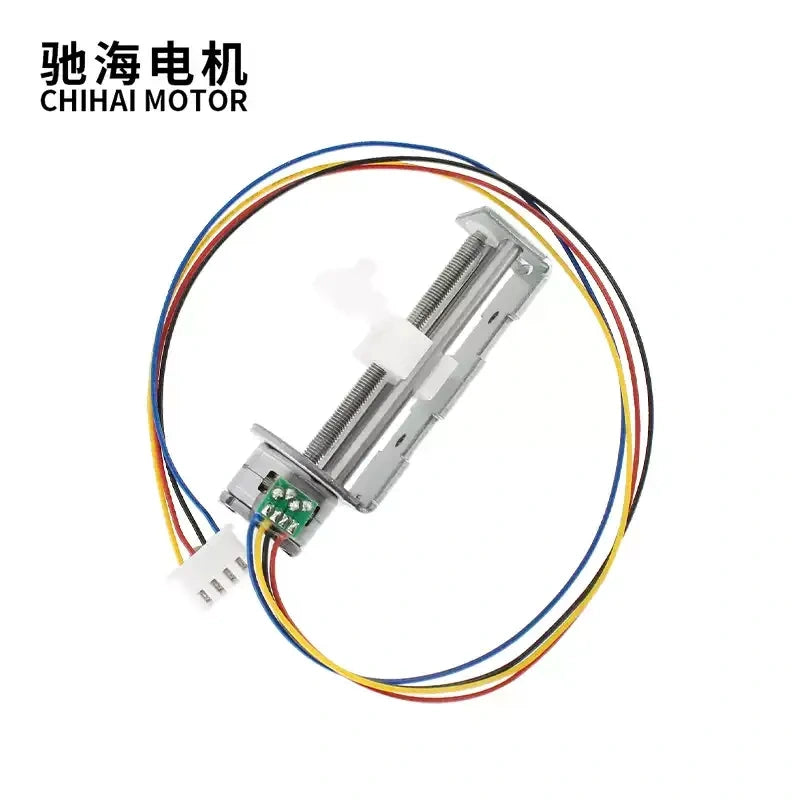

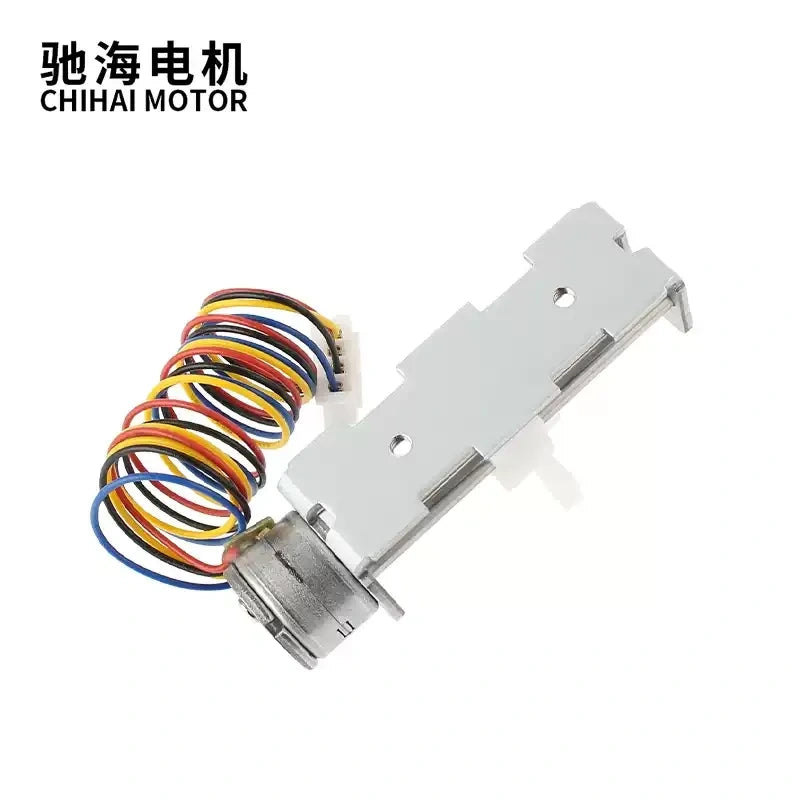

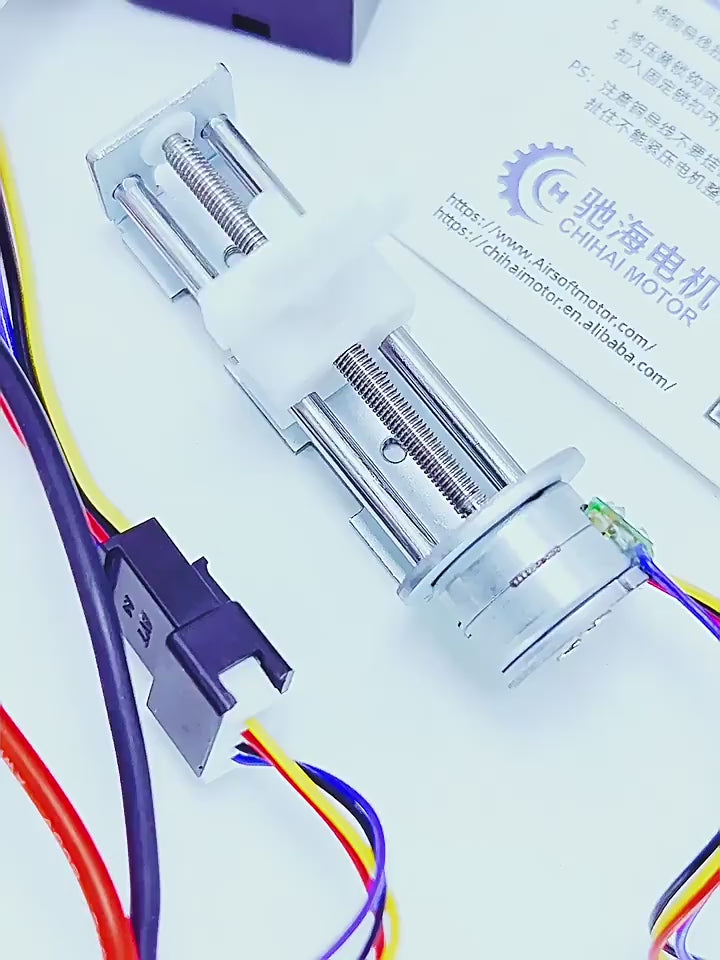

The CHS-SM1530-M3 linear stepper motor is a compact permanent magnet linear actuator designed for precision linear motion. With a built-in lead screw and slider, it delivers smooth, controlled reciprocating movement, ideal for micro 3D printers, engravers, and automation equipment.
Key Features

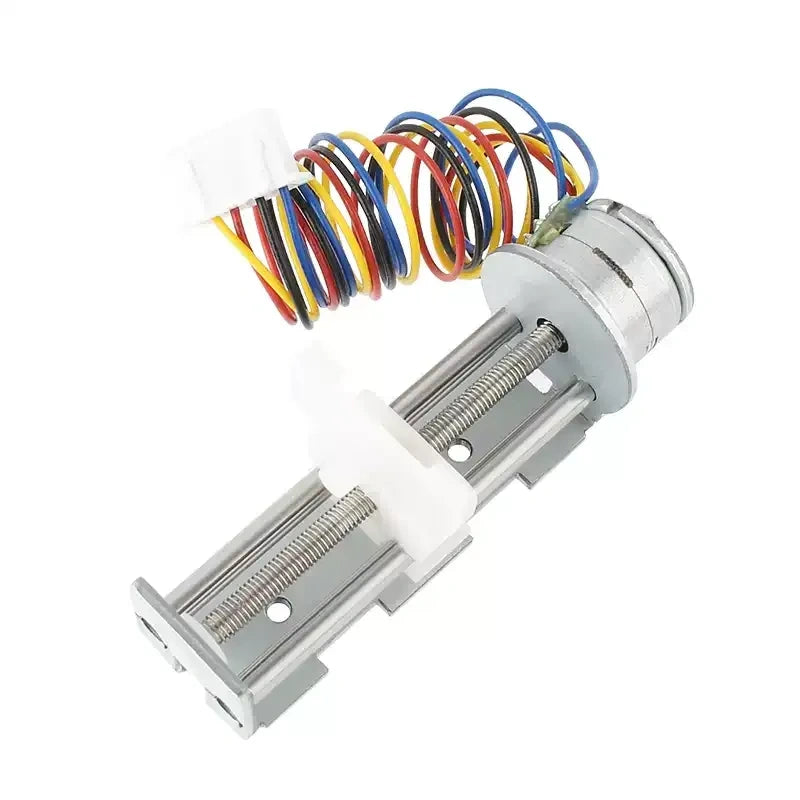

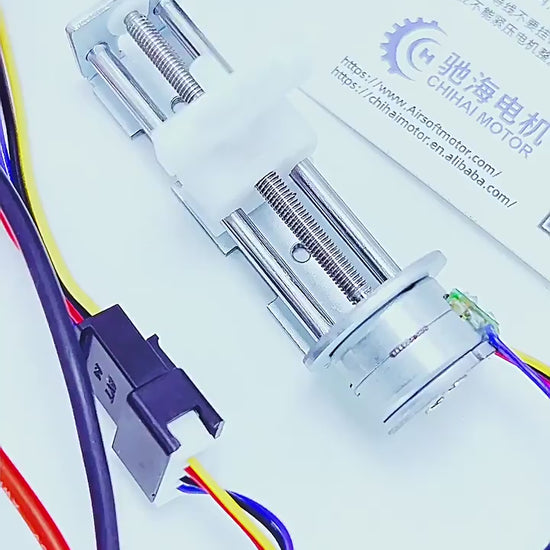

- Integrated Linear Design: Features an M3×P0.5 lead screw with a plastic slider bracket, providing a 30mm effective linear stroke for direct reciprocating motion without additional mechanisms.
- Precision Stepper Control: 2-phase 4-wire bipolar drive with a 18° step angle, compatible with common stepper drivers (e.g., L6219) and PLC control systems for accurate positioning.
- Compact & Reliable: 15×14.5×60mm dimensions, lightweight (approx. 31g), and durable construction suitable for small-scale automation projects.
- Versatile Applications: Perfect for micro linear slides, 3D printers, engraving machines, smart storage devices, and other applications requiring precise linear movement.
Specifications (CHS-SM1530-M3*P0.5)
- Model: CHS-SM1530-M3*P0.5
- Brand: ChiHai Motor
- Rated Voltage: DC 6V (Driver IC: L6219)
- Motor Type: 2-Phase Bipolar Permanent Magnet Linear Stepper Motor
- Phase Current: 400mA/Phase (at 1000PPS)
- Phase Resistance: 15±10% Ω/Phase (20℃)
- Step Angle: 18°/Step

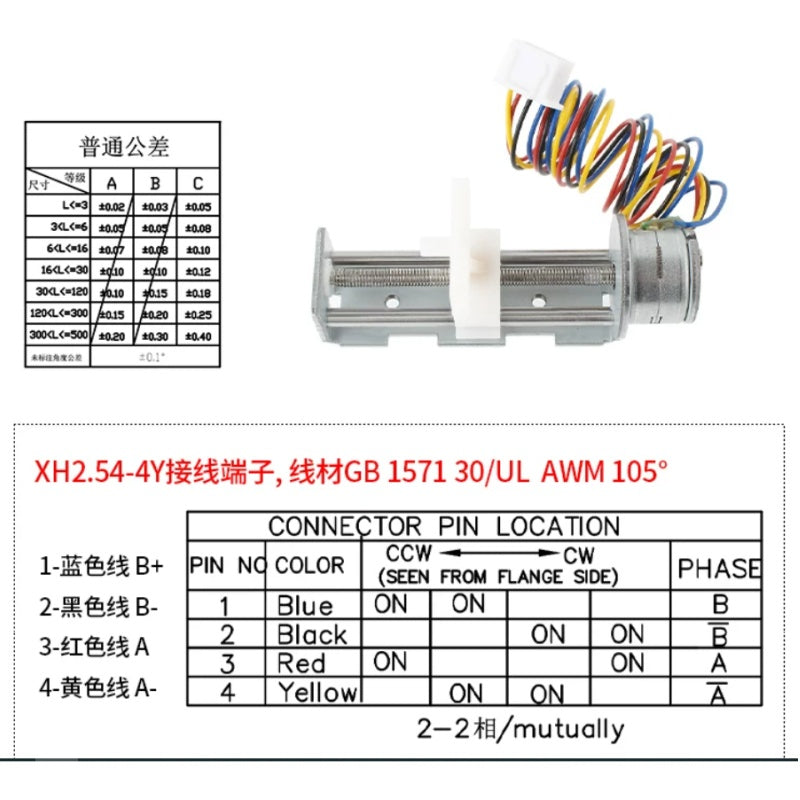

- Excitation Mode: 2-2 Phase Excitation
- Drive Mode: Bipolar Drive
- Lead Screw: M3×P0.5
- Stroke: 30mm
- Pull-out Torque: >200g at 500pps
- Max Response Pulse Rate: >1200pps
- Max Self-start Pulse Rate: >900pps
- Insulation Class: Class E
- Insulation Strength: 100V AC for 1 second
- Insulation Resistance: 50MΩ at DC 500V
- Operating Temperature: -0 ~ +55℃

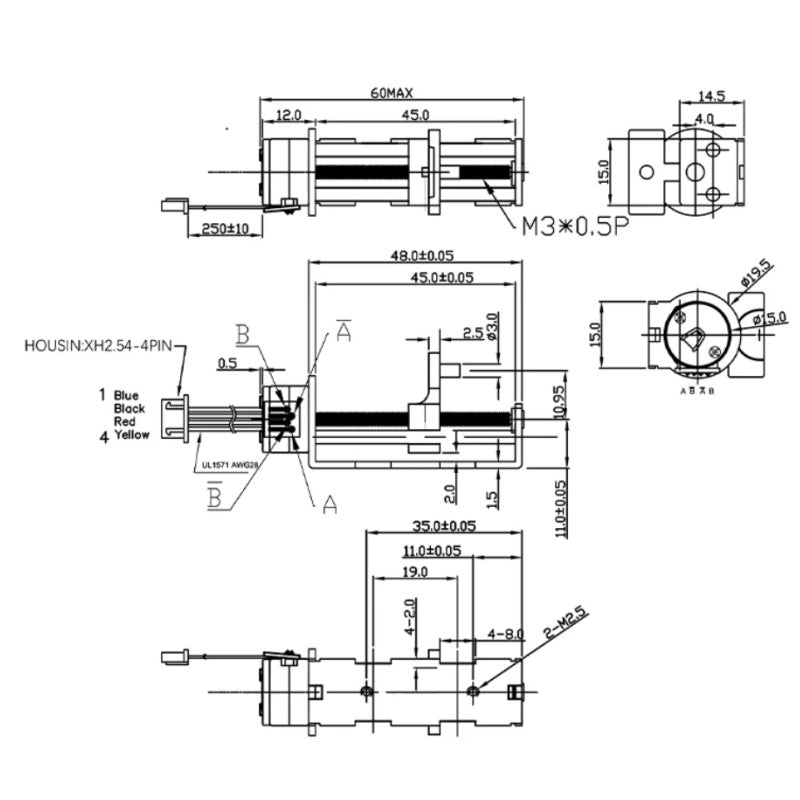

- Dimensions: 15×14.5×60mm
- Weight: Approx. 31g
Available Configurations

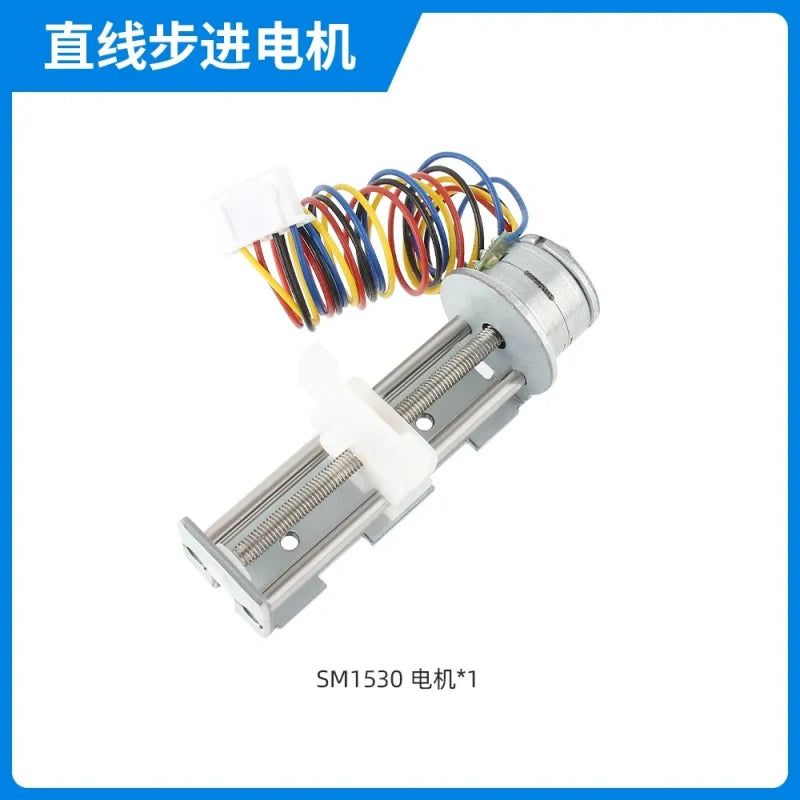

- Linear Stepper Motor Only

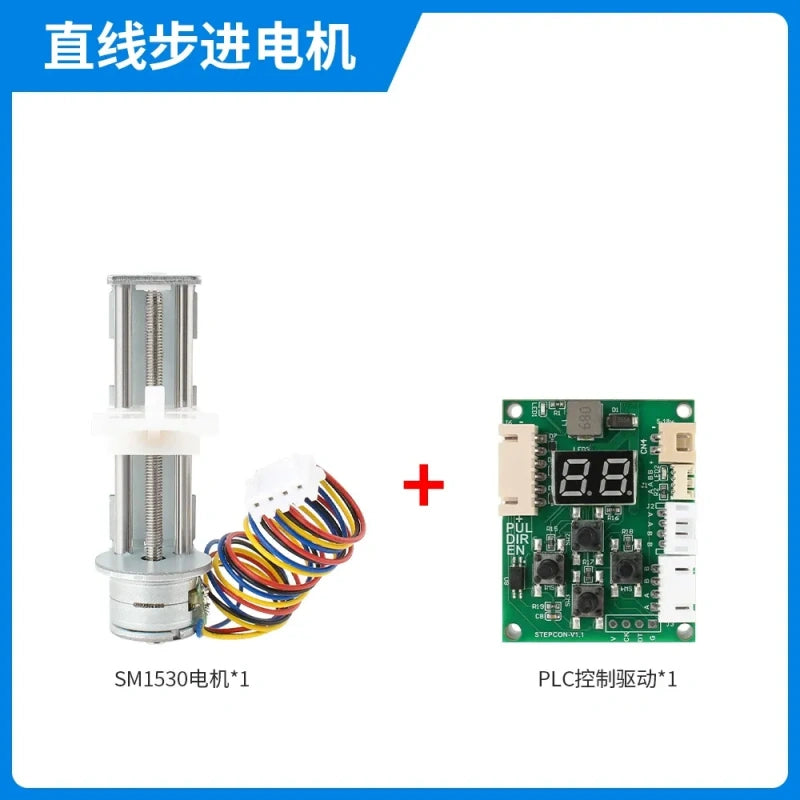

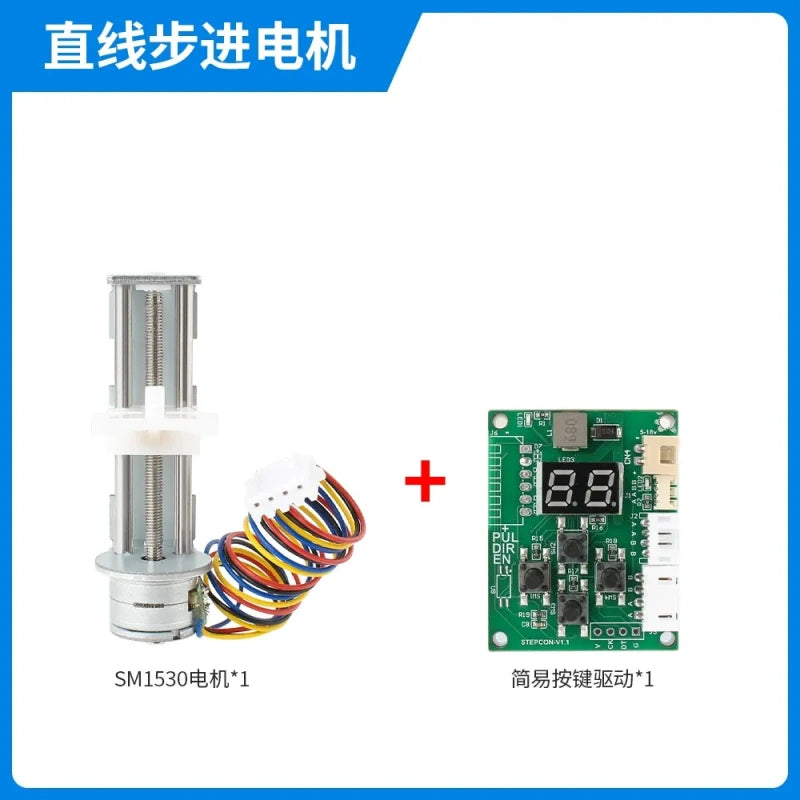

- Motor + Standard Stepper Driver
- Motor + PLC Control Driver
DATA SHEET
| Attribute | Value |
|---|---|
| Product Type | Linear Stepper Motor / Linear Actuator |
| Model | CHS-SM1530-M3*P0.5 (1530 Motor) |
| Brand | ChiHai Motor |
| Rated Voltage | DC 6V |
| Motor Type | 2-Phase Bipolar Permanent Magnet Stepper Motor |
| Drive Mode | 2-Phase 4-Wire Bipolar Drive |
| Step Angle | 18°/Step |
| Lead Screw | M3×P0.5 |
| Stroke | 30mm |
| Phase Current | 400mA/Phase |
| Phase Resistance | 15±10% Ω/Phase |
| Dimensions | 15×14.5×60mm |
| Weight | Approx. 31g |
| Included Accessories | Plastic Slider Bracket |
| Compatible Drivers | L6219, Standard Stepper Drivers, PLC Control Systems |
| Applications | Micro 3D Printers, Engravers, Automation Equipment, Linear Slides |
