10 Sets 100% Aluminum Z Mounting Type Solar Panel Roof Mounting Bracket for Carvan Roof

Regular price $220.00 NZD
Regular price $140.00 NZD Sale price $220.00 NZD
Sale Sold out
Shipping calculated at checkout.
Ships From

SPECIFICATIONS

10 Sets 100% Aluminum Z Mounting Type Solar Panel Roof Mounting Bracket for Carvan Roof

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Material: Other

DIY Supplies: ELECTRICAL

Standard or Nonstandard: Standard

is_customized: Yes

Certification: CE

Model Number: Bracket

Structure: Other

Usage: Other

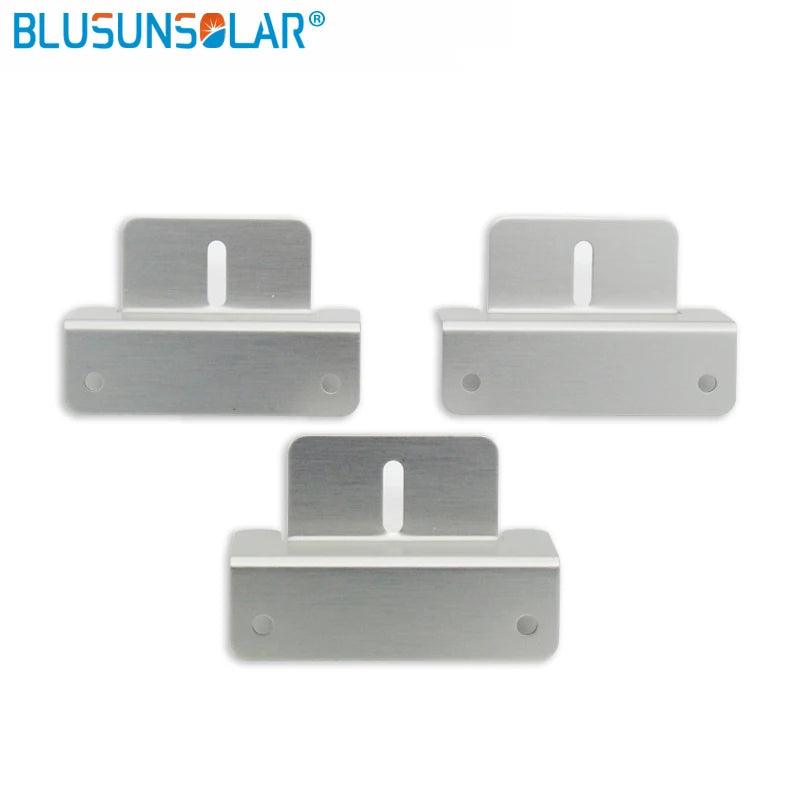

Dimension: 48(L)x38(D)x27(H)mm

Z-Style Material: Aluminum

screws Material: stainless steel

use for: solar panel mounting

Size: Standard


Pay attention please

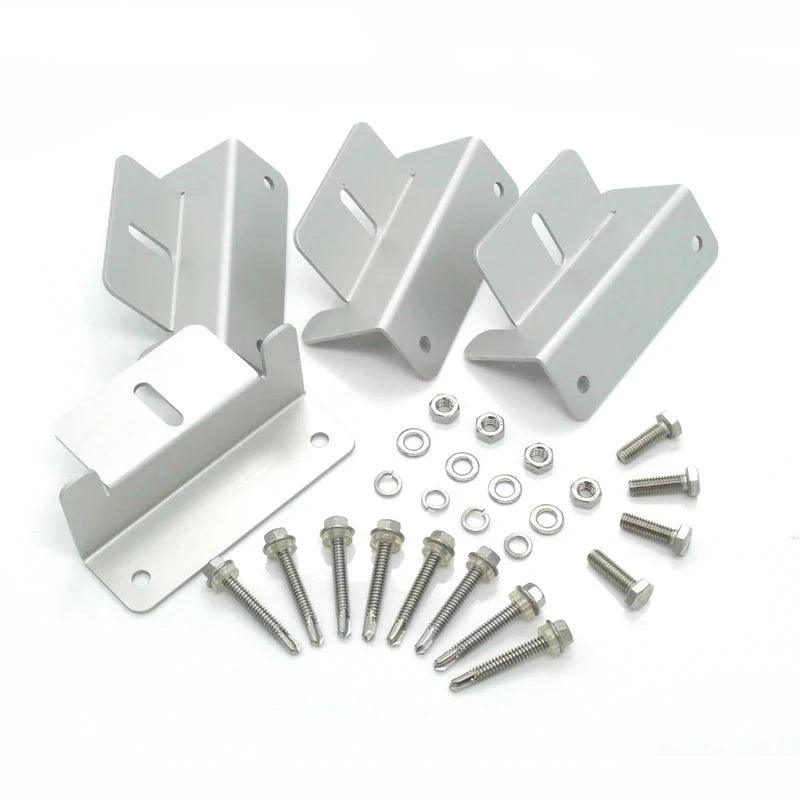

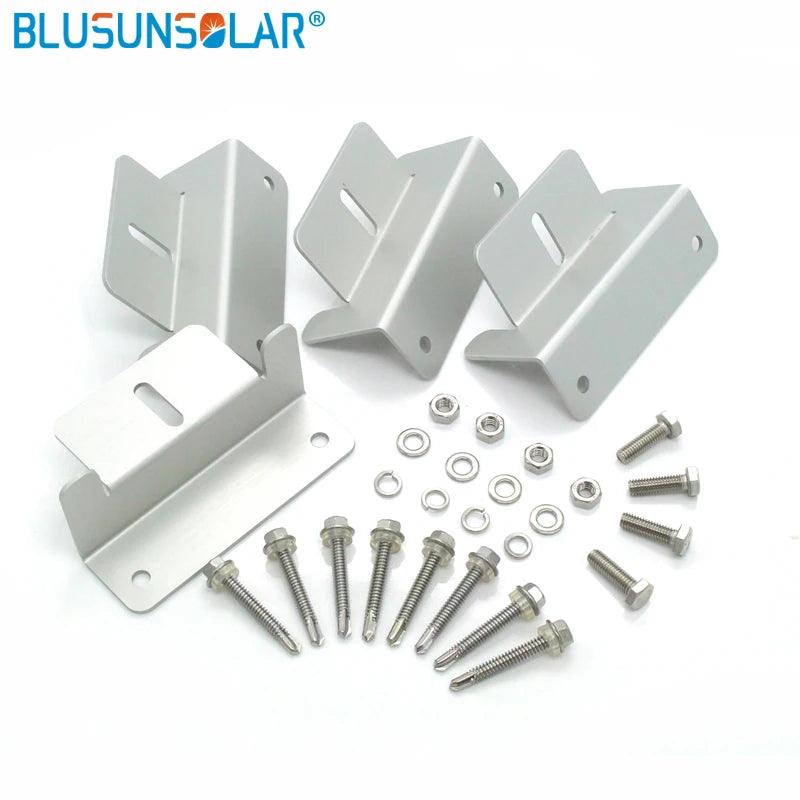

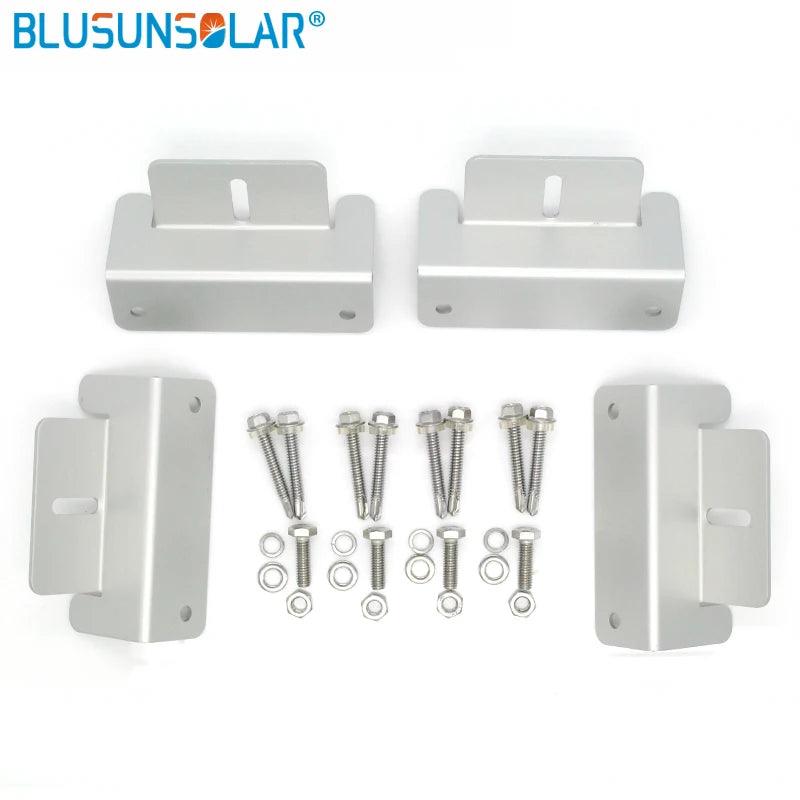

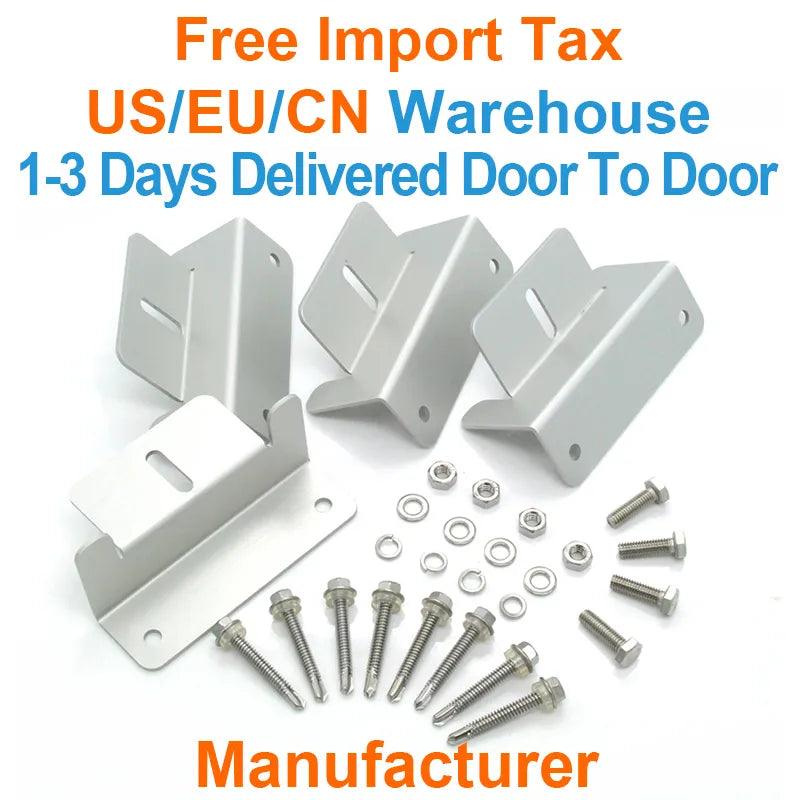

1.pack includes(10 set)

  • 40pcs Aluminum Caravan brackets

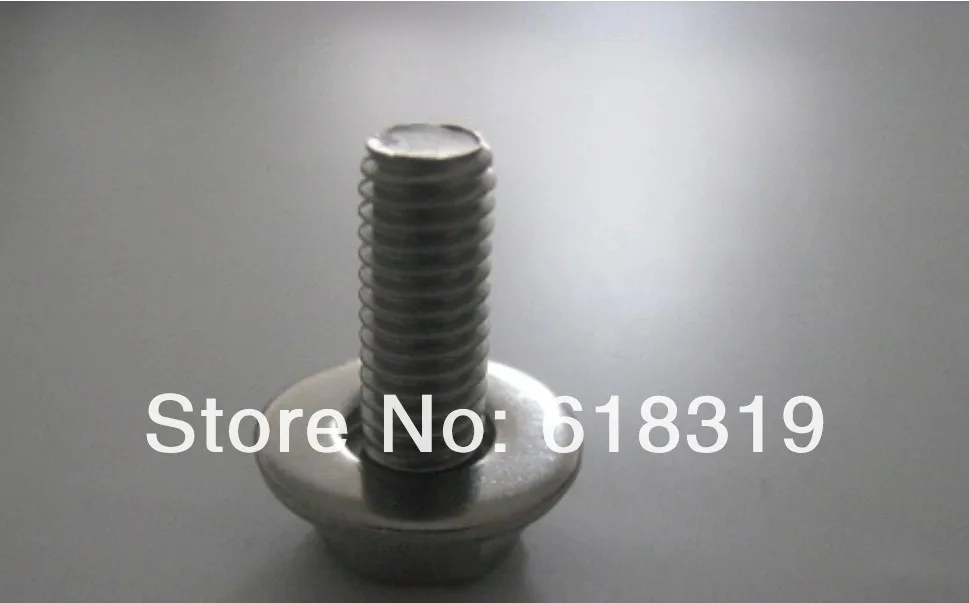

  • 40pcs Bolt M6x16

  • 40pcs Nut M6

  • 80pcs wood screws

  • 40pcs Lock washer

  • 40pcs Washer

Install Manuel:


Step 1:Put the solar panel on the horizontal plane with the face side down,take out a 1 pc of bolt M6*16 and a washer.


Step 2:Insert the bolt to the panel frame hole from below then put down the caravan bracket with the bolt through the hole.


Step 3:Fitted the lock washer in then spin and tighten the nut M6.

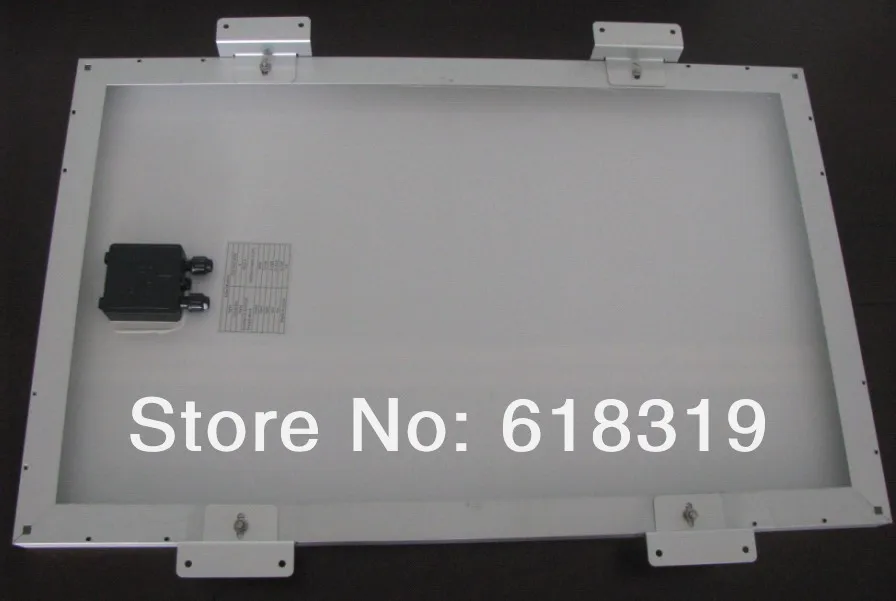

Step 4:Mount the caravan brackets into the other panel frame holes in the same way.



Step 5 :Gently move the panel to the carvan roof,mark the exact place where you want the panel to be mounted.

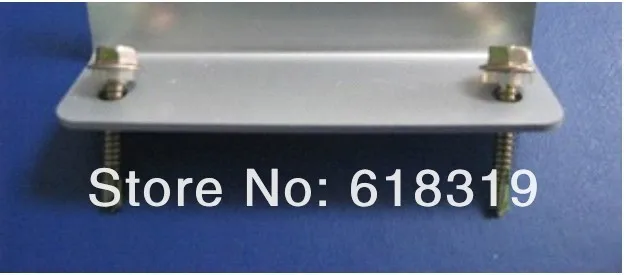

Step 6 :Fixing the aluminum bracket to the marked palce by carefully drilling through the bracket hole with the wood screw.



Step 7:Carefully mount the other wood screws in the same way.

For more information please leave message to us, we will reply you soon, thank you!
