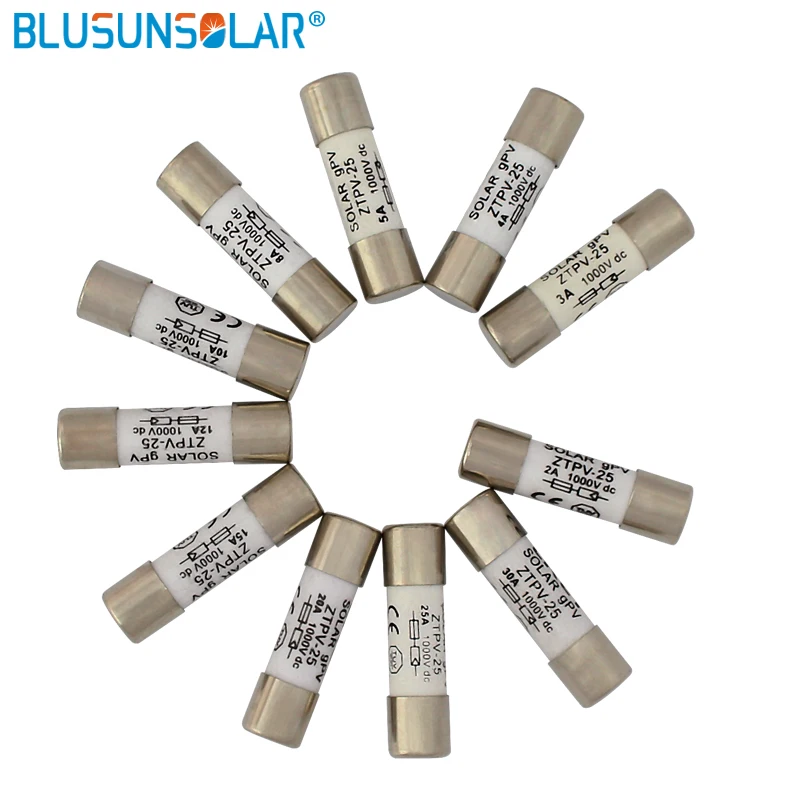

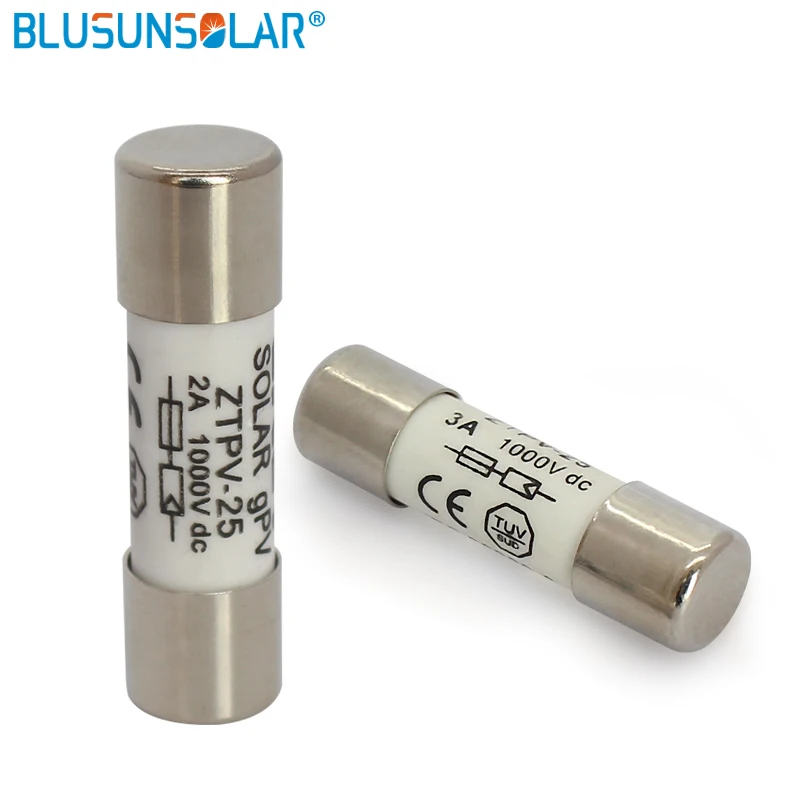

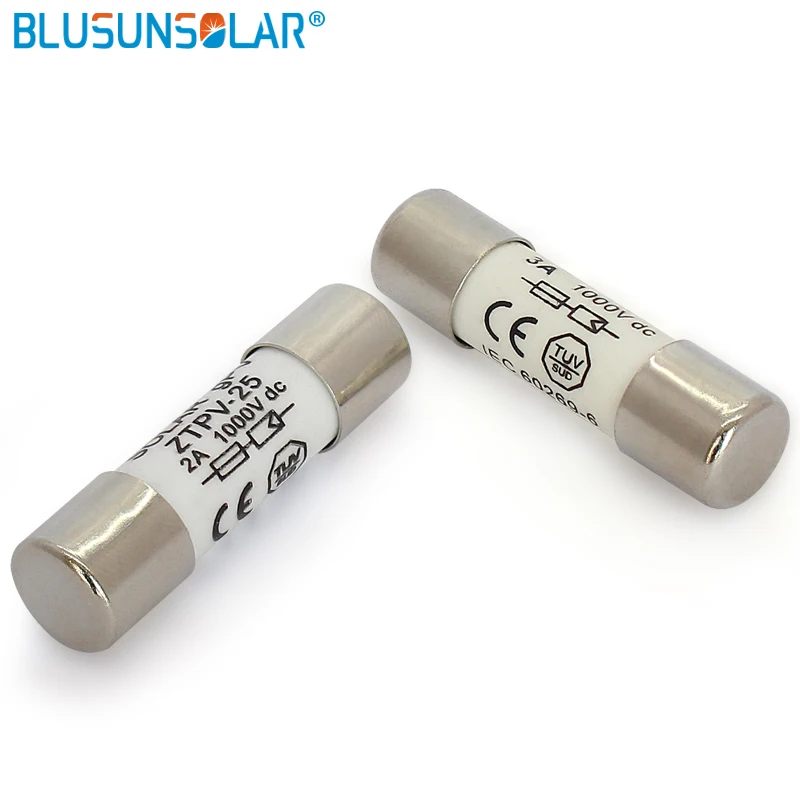

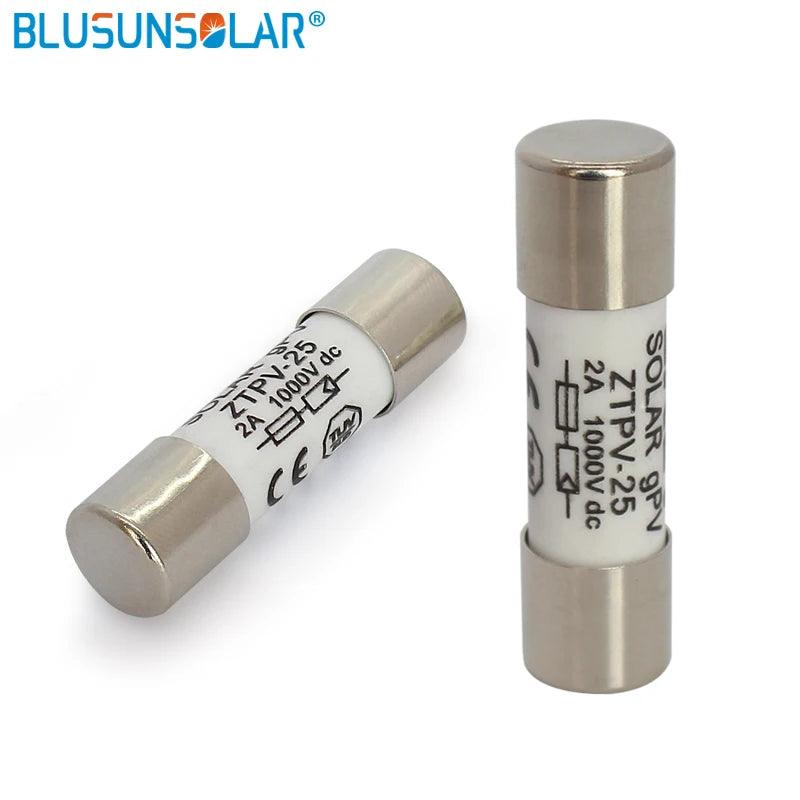

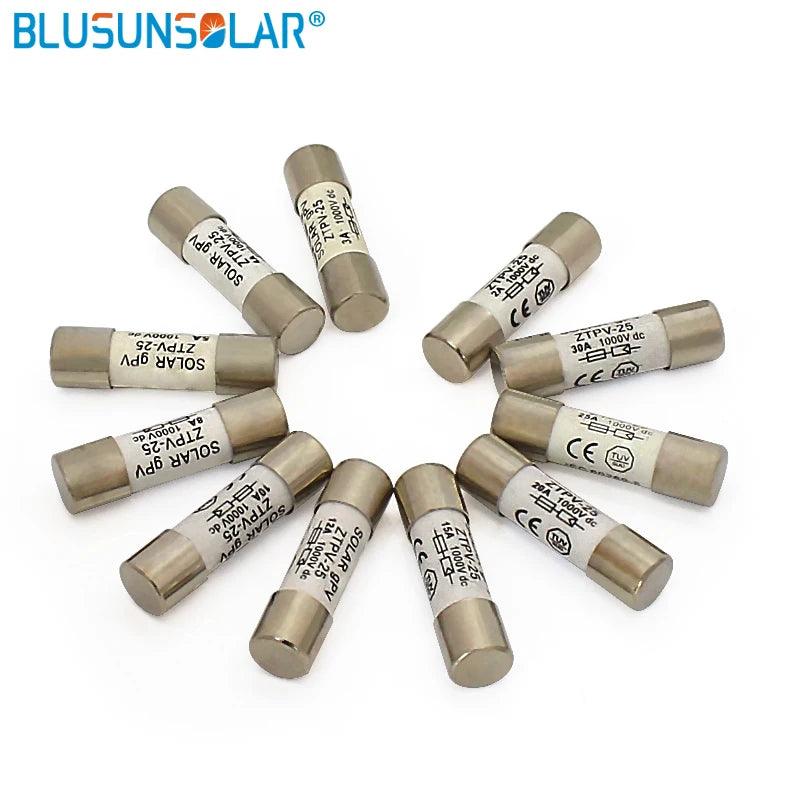

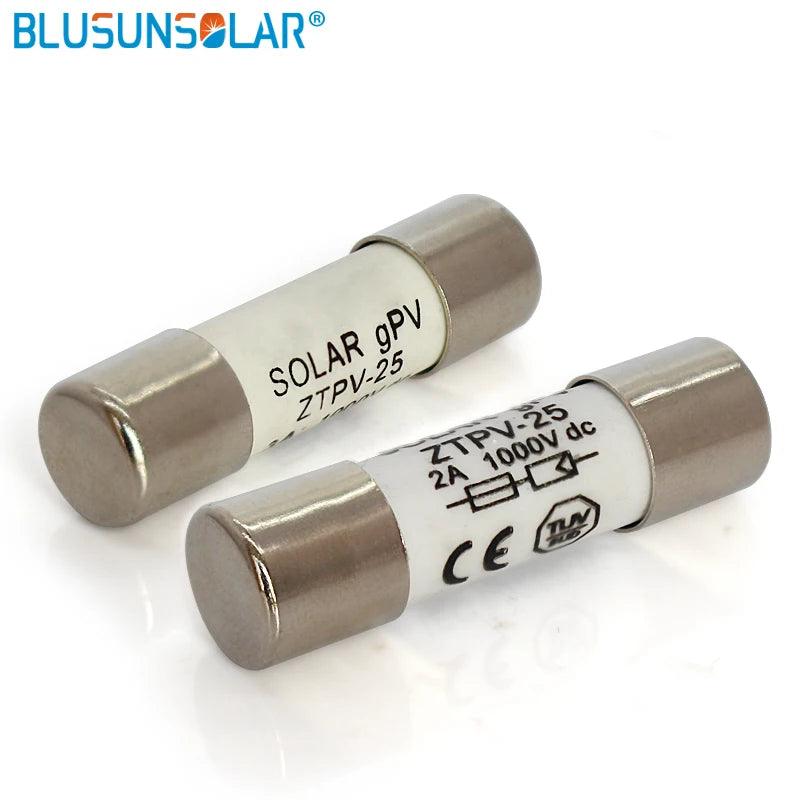

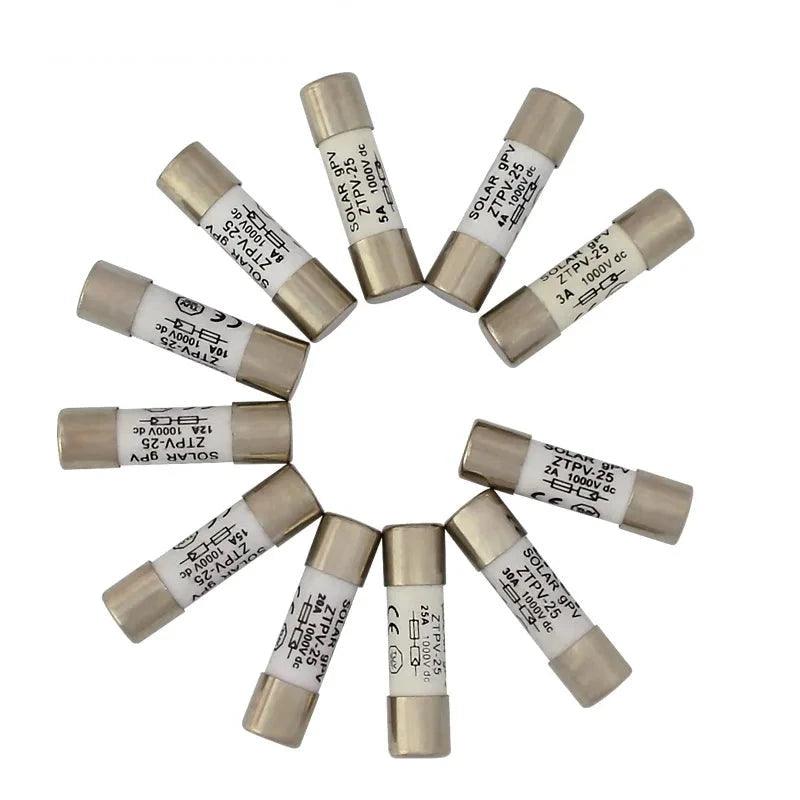

10 Pcs Lot 1000V 10*38MM 10A 12A 15A 20A 30A DC PV Solar Fuse Metal Alloys for Solar Power System Protection BX0234

Regular price $34.00 NZD
Regular price $25.00 NZD Sale price $34.00 NZD
Sale Sold out
Shipping calculated at checkout.
AMP

SPECIFICATIONS

10 Pcs Lot 1000V 10*38MM 10A 12A 15A 20A 30A DC PV Solar Fuse Metal Alloys for Solar Power System Protection BX0234

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Safety Standards: Other

Certification: CE

Model Number: Solar PV Fuse

Material: Alloy

Usage: Other

is_customized: Yes

Breaking Capacity: High

Rated voltage: DC 1000V

Rated current: 2-30A

Size: 10x38

According to: IEC 60269.6

Rated breaking capacity: 33kA

Operating class: gPV for solar protection

10 pieces pv fuse for solar system 2A-30A 1000V DC

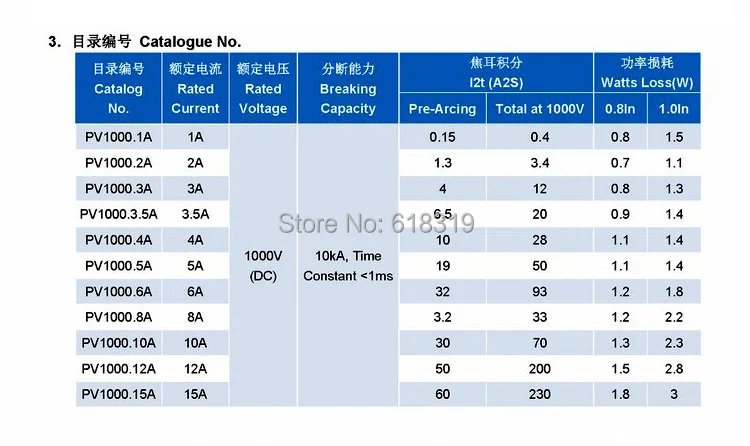

Product description:

Rate voltage: 1000 VDC

Rate current: 1A-30A

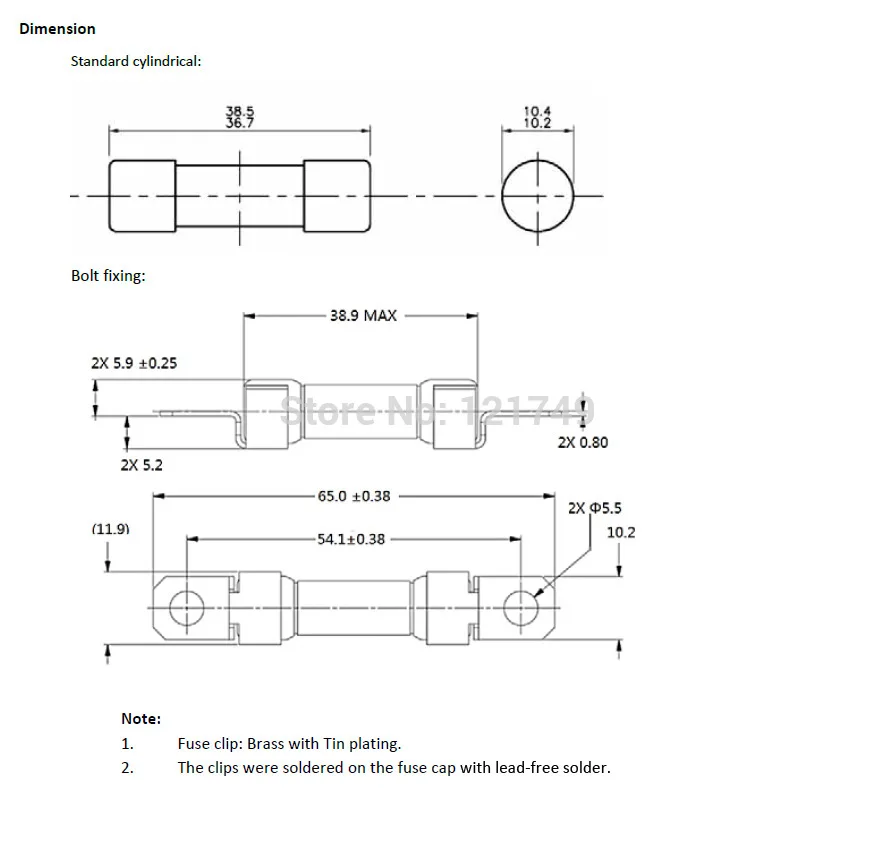

Size: 10x38 (mm)

Features and Benefits

1. Meets UL photovaltaic standards, based on UL 2579, 1000 VDC Max.

2. Rated current 1-30A ratings available

3. Breaking capacity: 10,000A

4. Multiple installation options are available: fuse clips, fuse blocks and Multi-pole global modular fuse holders assembly kit

Pictures:
