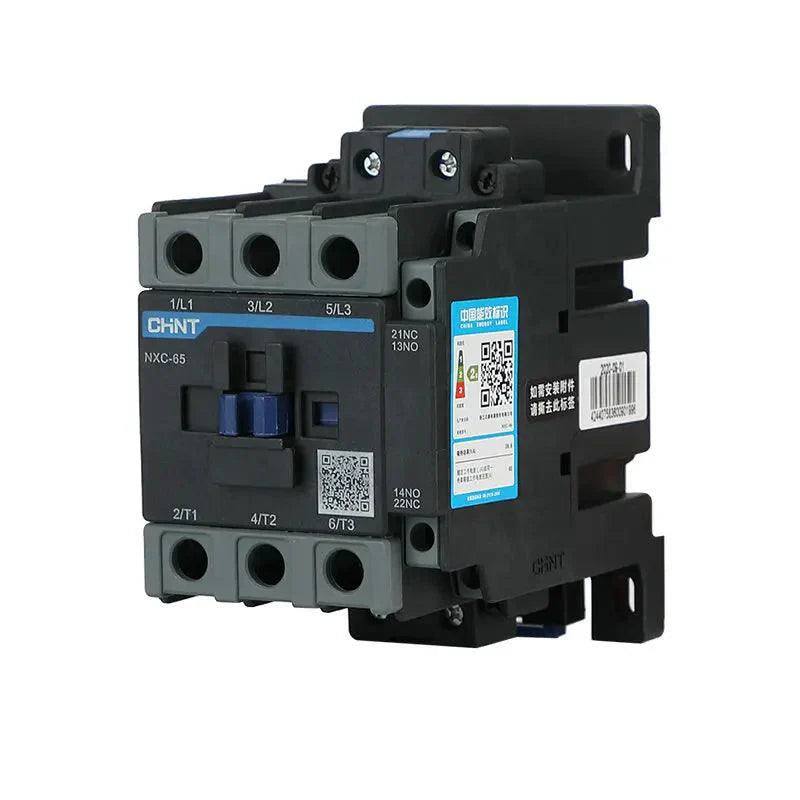

In the field of industrial electrical control and power distribution, AC contactors are the "core switches" that connect and disconnect power circuits, playing a crucial role in ensuring the safe and stable operation of electrical equipment. Among numerous AC contactor models, the CHINT NXC 09-160 Series stands out with its industrial-grade reliability, wide current range, and flexible compatibility. It covers current specifications from 9A to 160A, suitable for light to heavy industrial loads, and is widely used in motor control, power distribution, and automation systems.
Many electrical engineers, factory maintenance personnel, and cross-border e-commerce sellers often have questions when selecting: What scenarios are suitable for the CHINT NXC 09-160 Series? How to choose the right current specification (09A/12A/18A...160A) for different equipment? This blog will focus on the application scenarios of the CHINT NXC 09-160 Series, combined with model interpretation, parameter highlights, and selection tips, to help you fully grasp its application scope and select the most suitable model for your needs.
I. First Understand the Model: Decode CHINT NXC 09-160 Series Naming Logic
Before exploring application scenarios, it is essential to understand the model meaning of the CHINT NXC 09-160 Series. Its naming is concise and standardized, and you can quickly judge the core specifications at a glance, avoiding blind selection.
Naming Rule: Brand + Series + Current Range + Core Features
-
CHINT: The brand name, a well-known global manufacturer of low-voltage electrical appliances, ensuring product quality and after-sales support;
-
NXC: The series name, representing CHINT’s high-performance modular AC contactor, designed for industrial and commercial high-reliability scenarios;
-
09-160: The current range covered by the series, from 9A (NXC-09) to 160A (NXC-160), with multiple specifications in between (12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A, 115A) to meet different load requirements;
-
Supplementary Note: The series supports 3-pole and 4-pole versions, with coil voltages available in AC 24V, 36V, 110V, 220V, 380V, 415V (50/60Hz), compatible with global power systems.
Key Summary: The CHINT NXC 09-160 Series is a modular AC contactor with a wide current range, covering light, medium, and heavy industrial loads. The core difference between different models lies in the rated current, which directly determines the load capacity it can carry.
II. Core Advantages: Why the CHINT NXC 09-160 Series is Widely Used?
The wide application of the CHINT NXC 09-160 Series is closely related to its outstanding performance advantages. These advantages enable it to adapt to harsh industrial environments and meet the diverse needs of different scenarios:
-
Wide Current Coverage: 9A-160A full range, one series meets multiple load requirements, reducing inventory pressure for enterprises and sellers;
-
High Reliability: Industrial-grade flame-retardant shell, strong anti-interference performance, and high breaking capacity, ensuring stable operation in high-temperature, high-humidity, and dusty environments;
-
Low Energy Consumption & Low Noise: Optimized magnetic circuit design, low coil power consumption, quiet operation, and reduced energy waste;
-
Modular Design: Easy assembly with auxiliary contacts, interlocks, and timers, flexible expansion, and convenient maintenance;
-
Long Service Life: Up to millions of mechanical operations, strong wear resistance, reducing equipment replacement frequency and maintenance costs;
-
Global Compatibility: Multiple coil voltages and standard mounting dimensions, suitable for power systems in various countries and regions, easy to replace and install.
III. Scenario-based Application: Where to Use CHINT NXC 09-160 Series?
The core of selecting the CHINT NXC 09-160 Series is to match the rated current with the actual load. Below, we classify the application scenarios according to the current range, combining specific equipment and usage requirements, to help you quickly find the suitable model.
1. Light Load Scenarios (NXC-09 ~ NXC-25: 9A-25A)
This range of models is suitable for light-load electrical equipment with small power, mainly used in commercial, residential, and light industrial scenarios, focusing on stable control and energy saving.
-
Typical Applications:
-
Lighting systems: Control of LED lights, fluorescent lights, and incandescent lights in shopping malls, office buildings, and residential communities;
-
Small motors: Control of small fans, exhaust fans, water pumps (below 1.5kW), and ventilation equipment in households and small workshops;
-
Heating loads: Control of small electric heaters, water heaters, and electric ovens (small power);
-
Auxiliary control: Auxiliary circuit control in power distribution cabinets, and control of small electrical components in automation equipment.
-
-
Selection Tips: For light loads, select the model with a rated current 1.2-1.5 times the load current to reserve a safety margin. For example, a 1kW small water pump (rated current about 4.5A) can choose NXC-09 or NXC-12.
2. Medium Load Scenarios (NXC-32 ~ NXC-65: 32A-65A)
This range of models is the most widely used, suitable for medium-power industrial equipment and commercial electrical systems, balancing load capacity and cost-effectiveness.
-
Typical Applications:
-
Motor control: Control of water pumps, fans, air compressors (1.5kW-30kW), and conveyor belts in workshops and factories;
-
HVAC systems: Control of air conditioners (central air conditioning units, industrial air conditioners), ventilation fans, and air handling units;
-
Commercial equipment: Control of refrigerators, freezers, vending machines, and large-scale catering equipment in supermarkets and restaurants;
-
Power distribution: Main switches and branch switches in small and medium-sized power distribution cabinets, suitable for commercial buildings and small factories.
-
-
Selection Tips: For medium-power motors, the rated current of the contactor should be 1.5-2 times the motor rated current to cope with the starting current impact. For example, a 10kW three-phase motor (rated current about 20A) can choose NXC-32 or NXC-40.
3. Heavy Load Scenarios (NXC-80 ~ NXC-160: 80A-160A)
This range of models is designed for heavy industrial loads, with high breaking capacity and strong load-bearing capacity, suitable for large-scale equipment and high-power power distribution scenarios.
-
Typical Applications:
-
Heavy-duty motor control: Control of large air compressors, water pumps, fans (30kW-75kW), and industrial machinery (such as crushers, mixers) in large factories;
-
Power distribution systems: Main switches in large power distribution cabinets, power supply control for production lines, and power distribution in workshops;
-
Industrial automation: Control of large-scale conveyor systems, assembly lines, and heavy-duty electrical equipment in manufacturing workshops;
-
High-power heating equipment: Control of industrial electric furnaces, heating furnaces, and large-scale water heaters.
-
-
Selection Tips: For heavy loads and high-power motors, the rated current of the contactor should be 2-2.5 times the motor rated current to ensure stable operation under high load and frequent starting. For example, a 50kW three-phase motor (rated current about 100A) can choose NXC-115 or NXC-160.
Special Note: The CHINT NXC 09-160 Series is mainly used for AC circuits (50/60Hz), suitable for three-phase motor control and power distribution. For DC load control, it is recommended to select a dedicated DC contactor to avoid equipment damage.
IV. Selection Pitfall Avoidance Skills: 3 Key Points to Avoid Mistakes
When selecting the CHINT NXC 09-160 Series, many people only focus on the rated current and ignore other key factors, leading to contactor burnout, poor contact, or inability to meet the use requirements. Here are 3 core skills to help you avoid pitfalls:
Skill 1: Match the Rated Current with the Load, Reserve a Safety Margin
The rated current of the contactor must be greater than the actual load current, and a 20%-100% safety margin should be reserved (the larger the load fluctuation, the larger the margin). For motors, the starting current is 3-5 times the rated current, so it is necessary to select a contactor with sufficient current capacity to withstand the starting impact. Do not choose a contactor with a rated current equal to or less than the load current to avoid overheating and burnout.
Skill 2: Match the Coil Voltage with the Control System
The CHINT NXC 09-160 Series has multiple coil voltage options. When selecting, it must match the voltage of the control circuit (such as the voltage of the relay and controller). For example, if the control circuit is 220V, select a contactor with an AC 220V coil; if the control circuit is 24V, select an AC 24V coil. Voltage mismatch will cause the contactor to fail to pull in or burn out the coil.
Skill 3: Choose 3-Pole or 4-Pole According to the Wiring Requirement
The 3-pole version is suitable for three-phase motor control and three-phase power distribution (only controlling the three-phase live wire); the 4-pole version adds a neutral wire control, suitable for scenarios that need to control the neutral wire (such as lighting systems, equipment with neutral wire protection). Choose the appropriate pole number according to the actual wiring needs to avoid incorrect wiring.
V. Summary: The CHINT NXC 09-160 Series – A Versatile Choice for Industrial Control
The CHINT NXC 09-160 Series AC Contactor, with its wide current range, high reliability, and flexible compatibility, covers almost all industrial, commercial, and residential electrical control scenarios from light load to heavy load. Its modular design and long service life not only reduce maintenance costs for enterprises but also bring convenience to selection and replacement for engineers and sellers.
To sum up, the selection of the CHINT NXC 09-160 Series follows a simple logic: "determine the load current → select the corresponding current specification → match the coil voltage and pole number → reserve a safety margin". As long as you follow this logic, you can avoid selection mistakes and make the contactor play a stable role in the electrical system.
If you are not sure which current specification or coil voltage to choose for your specific equipment (such as motors, lighting, or power distribution cabinets), welcome to leave a comment below, tell us your load power and usage scenario, and we will help you accurately recommend the most suitable model~
