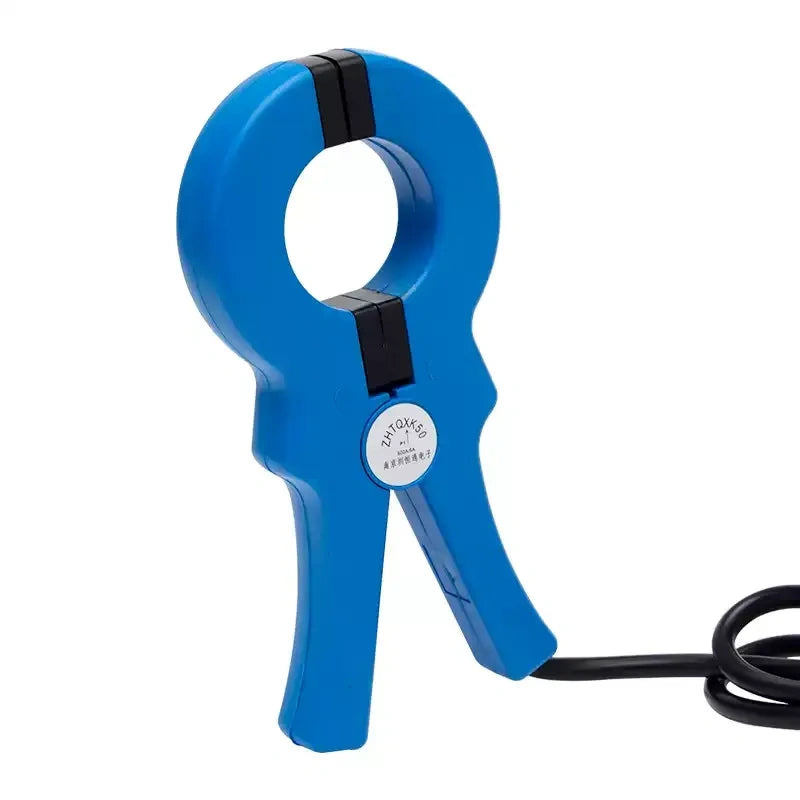

ZHTQXK50 Split-Core Clamp-On Current Transformer

Dhs. 280.00 AED
Dhs. 296.00 AED Dhs. 280.00 AED
Sale Sold out
Shipping calculated at checkout.
Transformation Ratio
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

ZHTQXK50 Openable Clamp-On Current Transformer, 50:5 to 1000:5 Transformation Ratio, High Precision 0.5%, 400Hz Bandwidth, Split-Core AC Current Sensor

The ZHTQXK50 split-core clamp-on current transformers are high-precision openable sensors designed for non-intrusive AC current measurement, ideal for applications where cables cannot be disconnected. With ratios from 50/5 to 1000/5 and 0.5% accuracy, they deliver reliable performance for industrial power monitoring and energy metering.

✨ Key Features

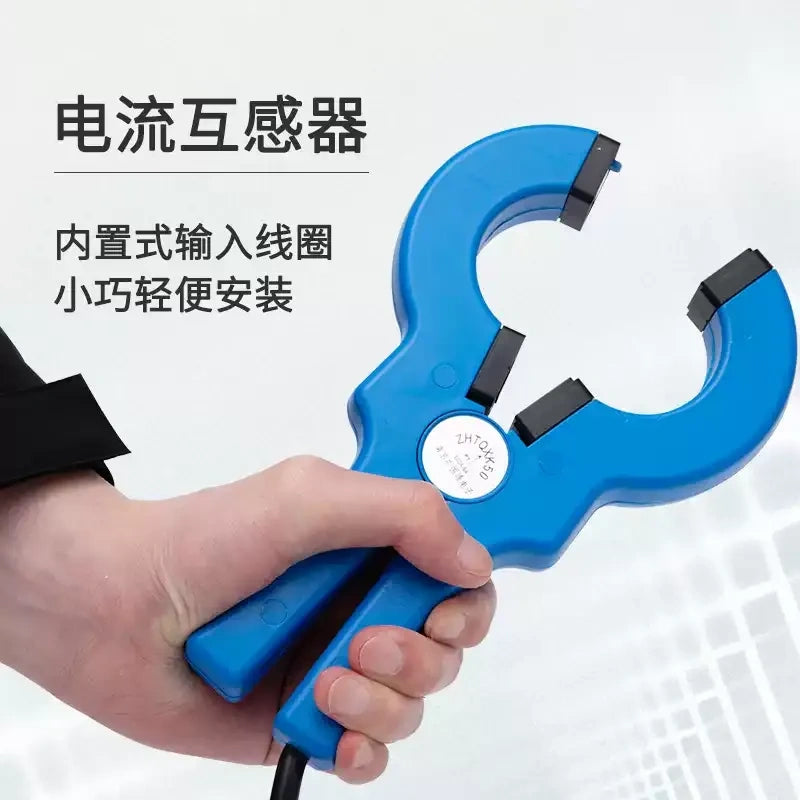

✅ Split-Core Clamp-On Design: No need to cut cables, easy installation for live circuits.

✅ Wide Ratio Range: 50/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 700/5, 800/5, 1000/5 ratios available, custom ratios supported.

✅ High Precision & Stability: 0.5% accuracy, low phase difference, 400Hz bandwidth for industrial frequency applications.

✅ Durable Construction: Flame-retardant ABS housing (UL94-V0), high-grade silicon steel core, and QA-155 enameled copper winding for low loss and long life.

✅ Reliable Safety: 3.5kV/1min withstand voltage, ≥500MΩ insulation resistance, built-in surge protection.

✅ Flexible Output: Standard 1m shielded RVV cable, customizable output options available.

📊 Technical Specifications

Parameter Details
Product Model ZHTQXK50
Type Split-Core Clamp-On Current Transformer
Transformation Ratio 50/5 ~ 1000/5 (customizable)
Rated Primary Current 25A ~ 1000A (AC)
Rated Secondary Current 5A
Accuracy Class 0.5%
Operating Frequency 400Hz

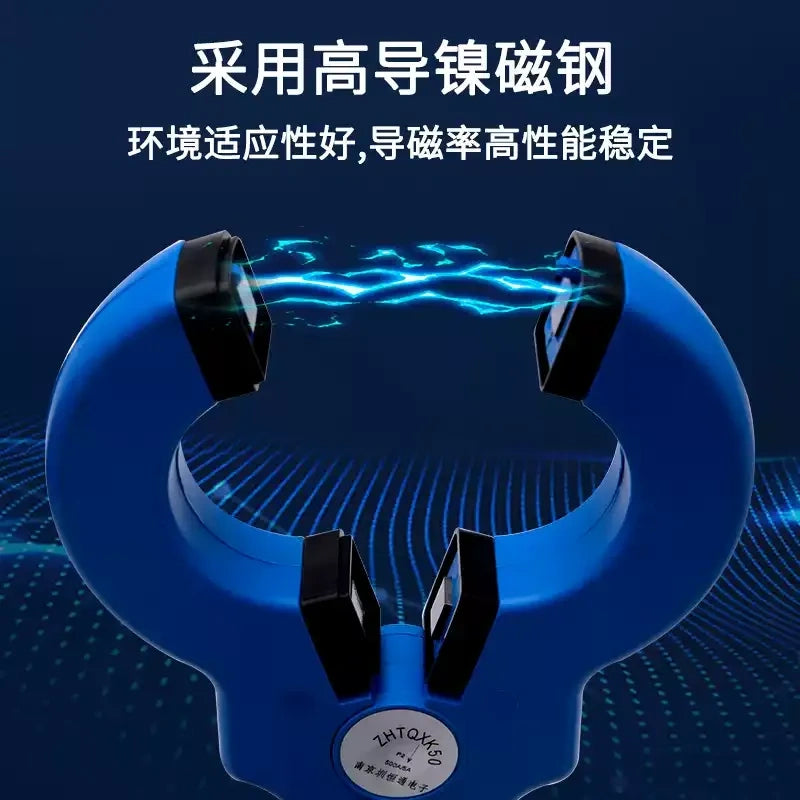

Core Material Silicon Steel Sheet
Winding Material QA-155 Enameled Copper Wire

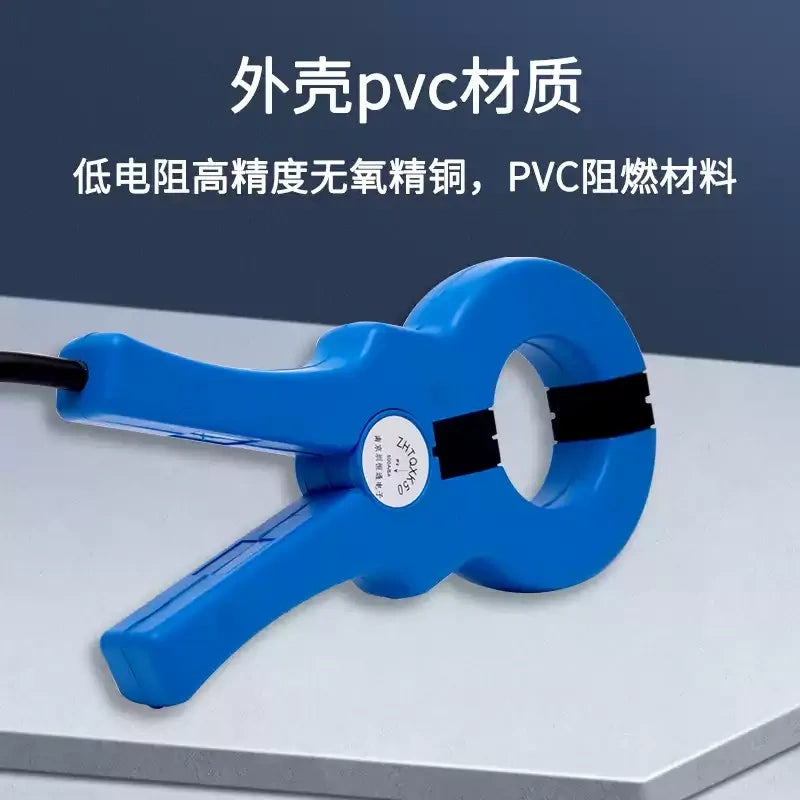

Housing Material Flame-Retardant ABS (UL94-V0)
Insulation Resistance ≥500MΩ
Withstand Voltage 3.5kV/50Hz/1min
Output Cable 1m RVV2×0.3 shielded cable (customizable)
Weight <500g
Application Industrial Power Monitoring, Energy Metering, Electrical Safety Inspection



🛠️ Applications


  • Industrial control and automation systems
  • Power distribution cabinet current monitoring
  • Electrical safety testing and maintenance
  • Renewable energy power monitoring
  • Building energy management systems
