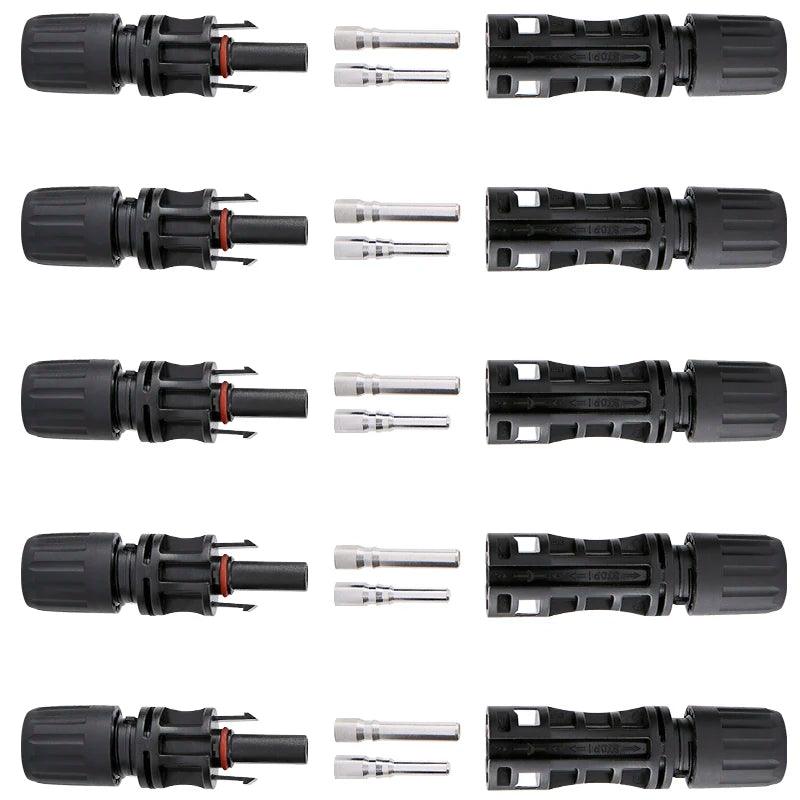

Wholesale DC Photovoltaic Connector male and female Solar Panel PV Connectors 1500V/60A used for Solar Cable 6mm2/8mm2/10mm2
Regular price
Dhs. 113.00 AED
Regular price
Dhs. 126.00 AED
Sale price
Dhs. 113.00 AED
Unit price
per
Shipping calculated at checkout.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي
Couldn't load pickup availability
SPECIFICATIONS
Wholesale DC Photovoltaic Connector male and female Solar Panel PV Connectors 1500V/60A used for Solar Cable 6mm2/8mm2/10mm2
Brand Name: PVMC
Origin: Mainland China
Model Number: 1500V60A
Rated voltage:: 1000V DC
Degree of waterproof:: IP67
Flammability rating:: UL94-V0
Suitable cable:: 6m㎡--10m㎡
Rated current:: 60A
Wholesale DC Photovoltaic Connector male and female Solar Panel PV Connectors 1500V/60A used for Solar Cable 6mm2/8mm2/10mm2
Specifications
* Rated current: 60A
* Rated voltage: 1500V DC
* Degree of waterproof: IP67
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 6m㎡--10m㎡
* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃～ +85℃
* Connection: Clamp
