Split-Core Current Transformer | OPCT Series | 1000:1~5000:1 Ratio

Dhs. 63.00 AED
Dhs. 27.00 AED Dhs. 63.00 AED
Sale Sold out
Shipping calculated at checkout.
Model NO.
Free Shipping Above 200 AED
شحن مجاني عند طلبك أكثر من 200 درهم إماراتي

OPCT Split-Core Current Transformer, 0.5 Class Precision, 1000/1~5000/1 Transformation Ratio, 10/16/24/35mm Hole, Clamp-On AC Current Sensor with Optional RJ12 Output

The OPCT series split-core (open/closed) current transformers are high-precision clamp-on sensors designed for AC current metering and monitoring, ideal for applications where cables cannot be disconnected. With 0.5 class accuracy and ratios from 1000:1 to 5000:1, they deliver reliable performance for power grids, EV chargers, and 5G base stations.

✨ Key Features


✅ Split-Core Design: No need to cut cables, easy installation with clamp-on mechanism.

✅ Multiple Ratios & Apertures: Ratios: 1000:1/2000:1/3000:1/4000:1/5000:1; Apertures: 10mm/16mm/24mm/35mm.

✅ High Precision: 0.5% accuracy, 0.3~0.5% linearity error, suitable for high-frequency (up to 200kHz) metering.

✅ Premium Materials: Ferrite core with mirror-polished contact surfaces for low loss; high-quality enameled copper winding for durability.

✅ Safety & Reliability: Built-in transient suppression diodes (anti-open circuit design), UL94-V0 flame-retardant housing, 2kV/1min withstand voltage.

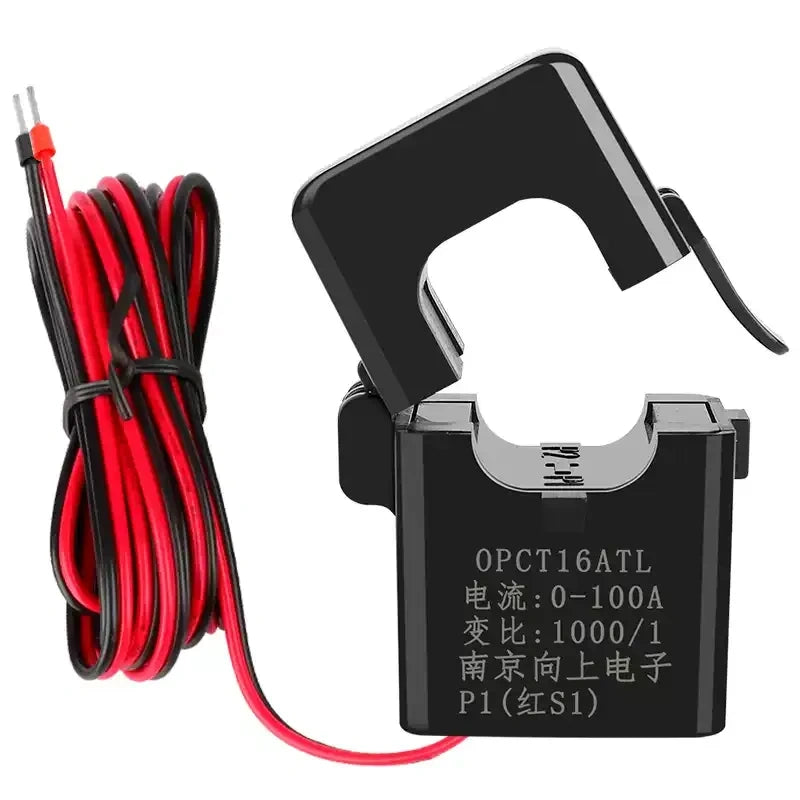

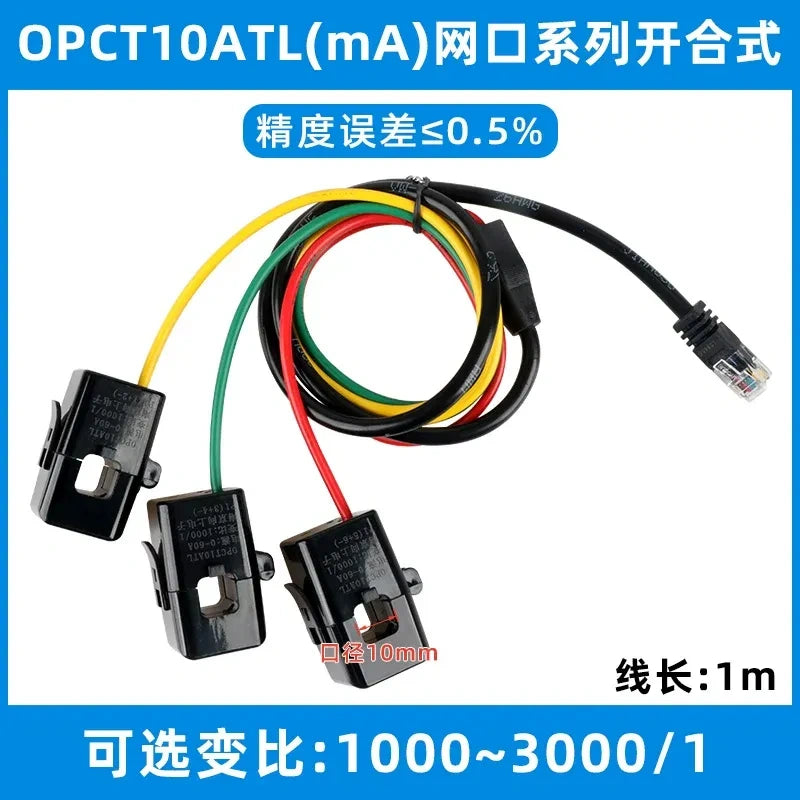

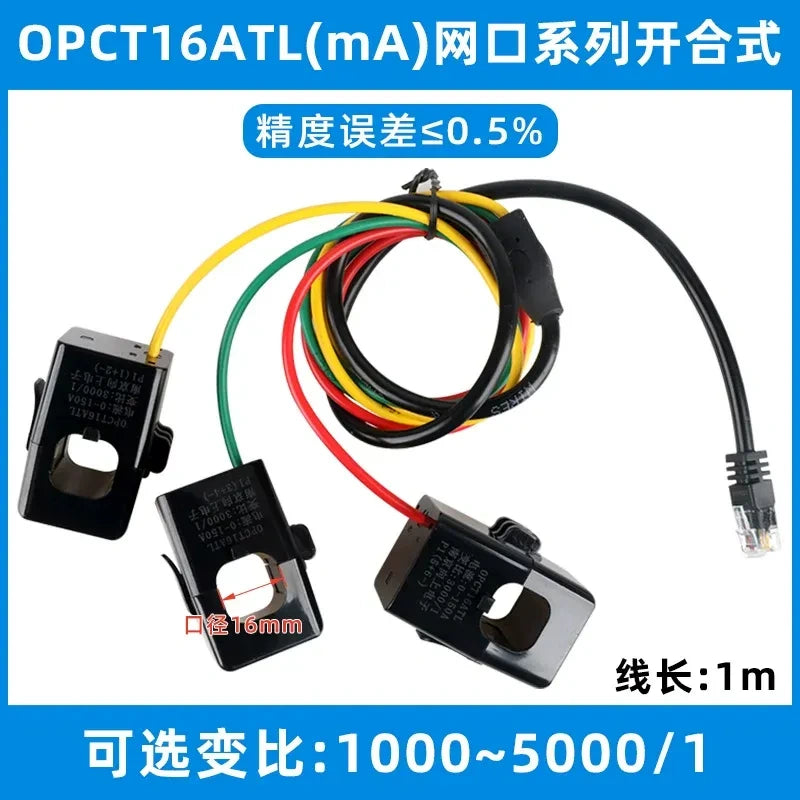

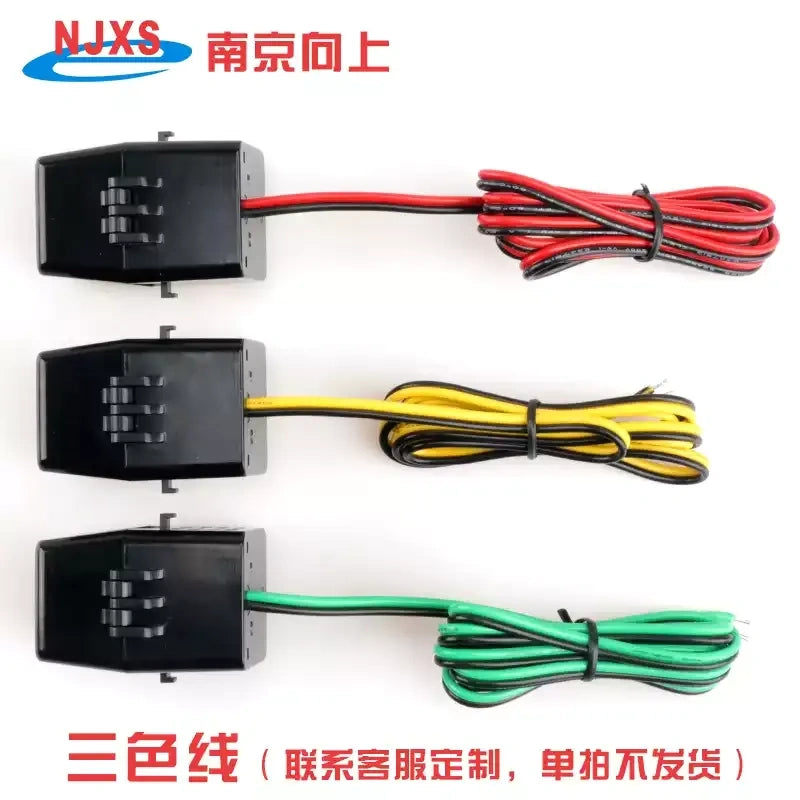

✅ Flexible Output: Standard red/black leads or RJ12 network port (3-in-1) output options.

✅ Wide Operating Range: 50Hz~200kHz frequency, -30℃~+70℃ operating temperature, suitable for harsh environments.

📊 Technical Specifications

Parameter Details

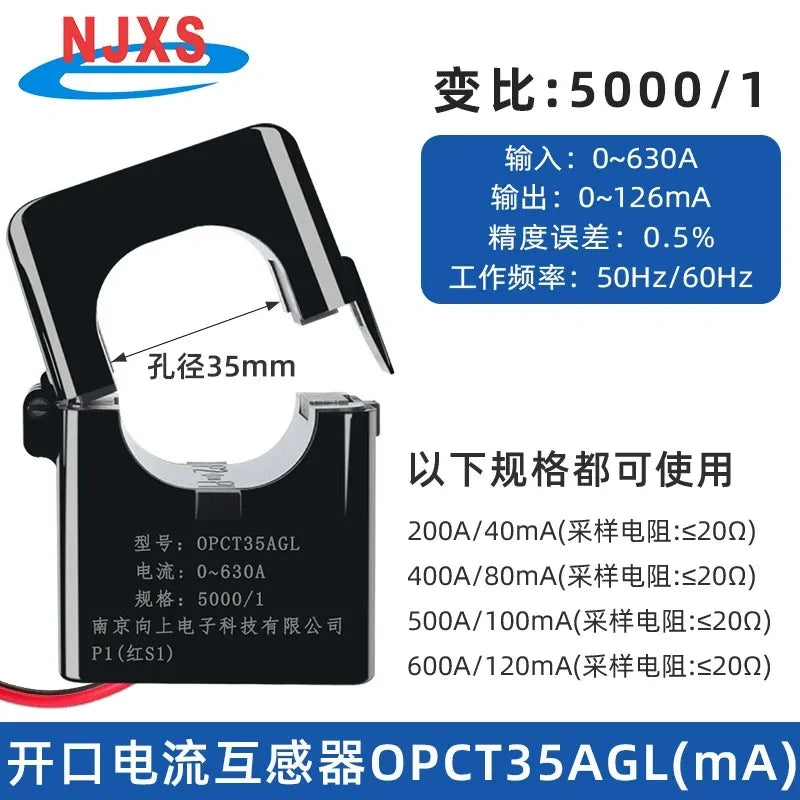

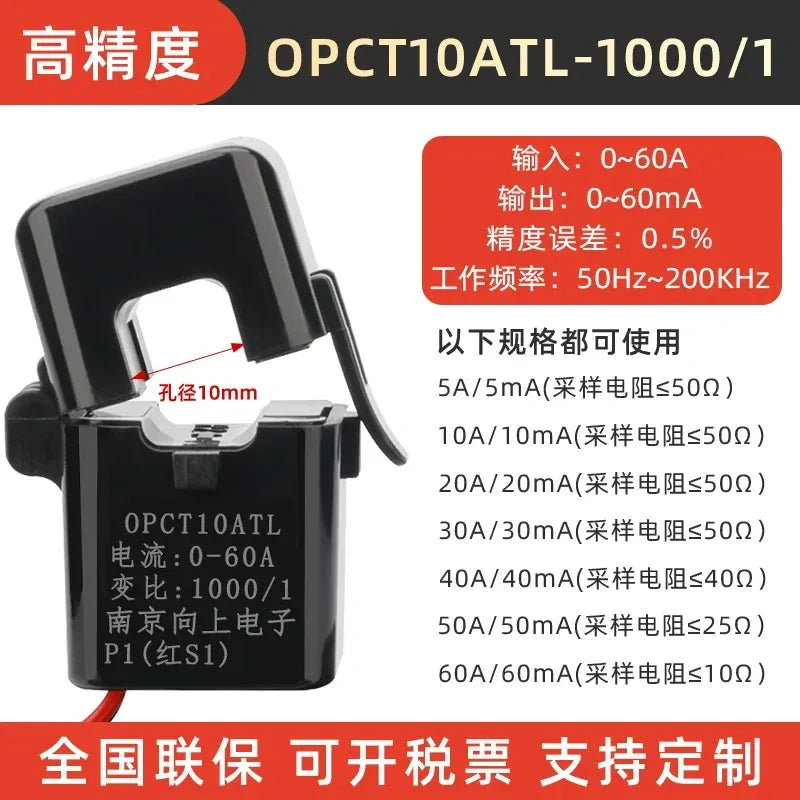

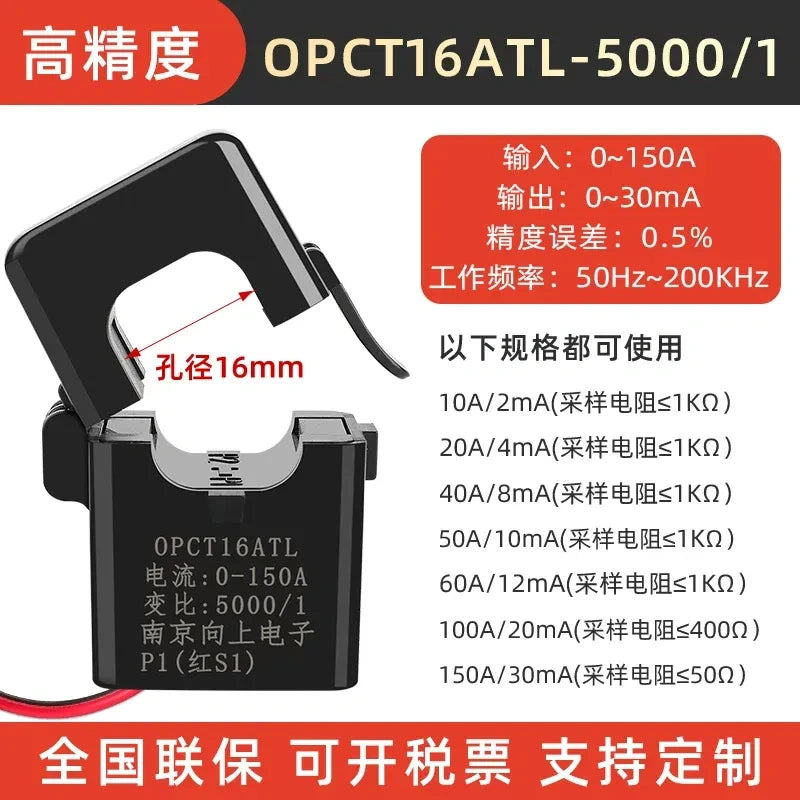

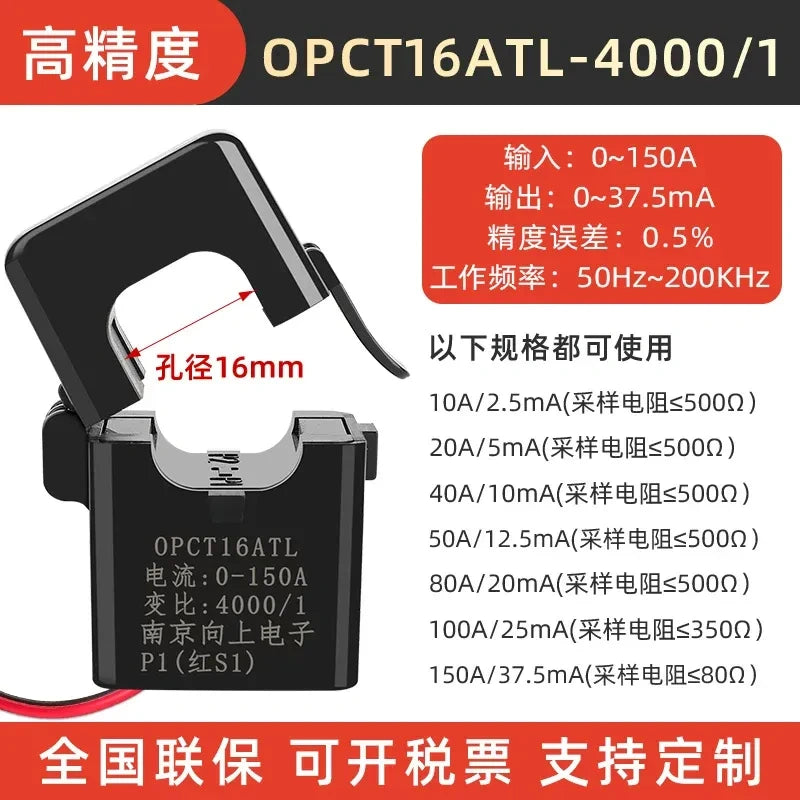

Model Series OPCT10ATL/OPCT16ATL/OPCT24AGL/OPCT35AGL
Type Split-Core (Clamp-On) Current Transformer
Transformation Ratio 1000:1 / 2000:1 / 3000:1 / 4000:1 / 5000:1
Rated Input Current 0~60A / 0~80A / 0~100A (varies by model)
Rated Output Current 2.5mA / 5mA / 26.66mA (AC)
Accuracy Class 0.5 Class
Operating Frequency 50Hz ~ 200kHz
Aperture Size 10mm / 16mm / 24mm / 35mm
Insulation Resistance ≥500MΩ / ≥1000MΩ
Withstand Voltage 2kV/50Hz/1min
Operating Temperature -30℃ ~ +70℃
Housing Material Flame-Retardant ABS (UL94-V0)

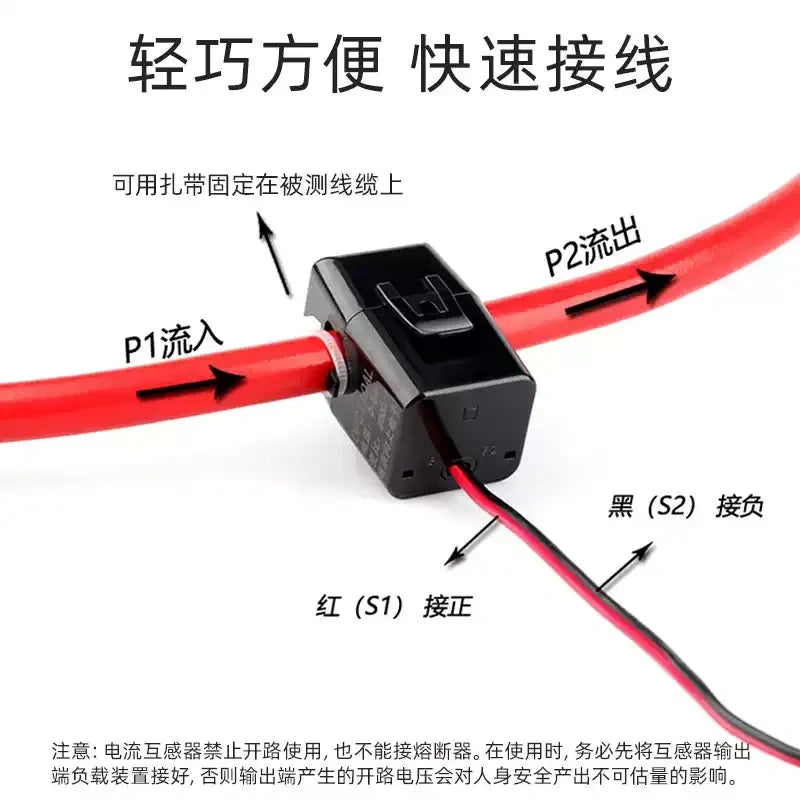

Installation Clamp-On, Dual Cable Tie Fixation
Applications Power Grid Renovation, EV Chargers, 5G Base Stations, Industrial Monitoring



🛠️ Applications


  • Electric vehicle charging pile current monitoring
  • Power grid renovation and smart metering projects
  • 5G communication base station load monitoring
  • Industrial automation and energy management systems
  • Building electrical safety monitoring

OPCT16AL DATA SHEET DOWNLOAD
