Name: SP20 IP68 Gold‑Plated Aviation Connector 2‑3‑4‑5‑7‑9‑12Pin, Docking / Rear Nut / Flange Mount / Square Mount
Brand: electrical center b2c
SKU: SP20 IP68 Gold‑Plated Waterproof Aviation Connector 2 pin / Docking type
Price: 51.0 AED
Availability: InStock

sp20 aviation connector,sp20 ip68 waterproof connector

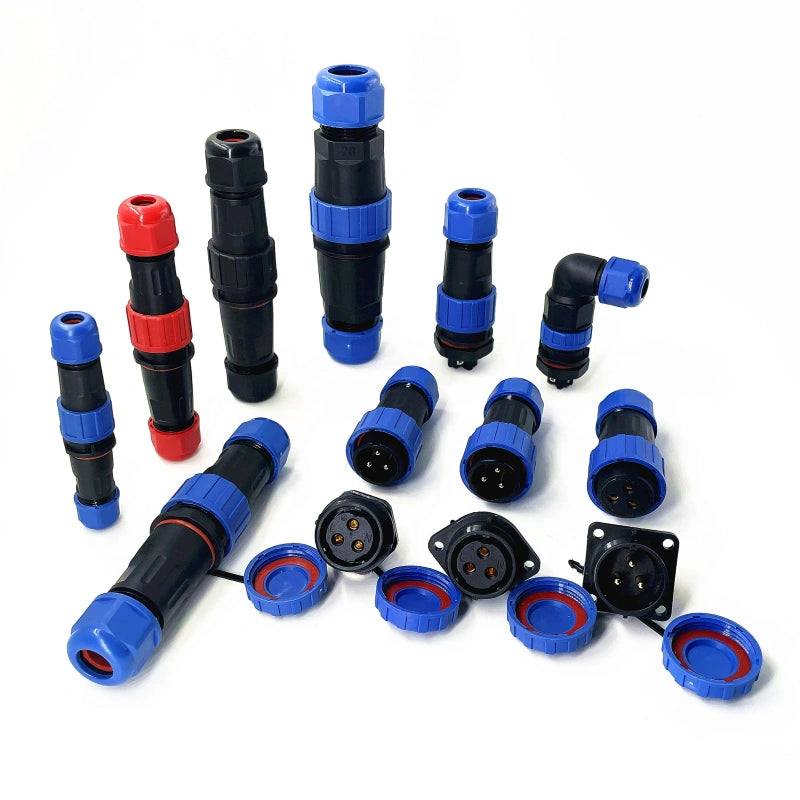

SP20 IP68 Male Female Waterproof Aviation Connector, Solder‑in Gold‑Plated Pins, Multi‑Mount Style Butt‑joint, Rear Nut, Flange Panel Mount, 2‑12Pins Circular Cable Joint

Product Overview

SP20 circular IP68 waterproof aviation connector adopts screw‑thread locking structure. Contact pins are brass gold‑plated, excellent conductivity, anti‑corrosion and anti‑oxidation. Three installation types: butt‑joint, rear nut mounting, flange panel mounting. Solder wiring method, stable connection. IP68 protection grade for wet and harsh outdoor environments.

Main Technical Parameters

Model: SP20
Pin Count: 2P,3P,4P,5P,7P,9P,12P
Mount Type: Butt‑joint / Rear Nut / Flange Panel Mount
Connection Method: Solder
Housing Material: PA66 Flame‑retardant Nylon
Insulator: PPS, high temperature resistant up to 260℃
Contact: Brass gold‑plated
Insulation Resistance: 2000MΩ
IP Rating: IP68
Operating Temperature:‑25℃ ~ +110℃
Mating Cycles:＞500 times
Cable Outer Diameter: 3‑7mm / 6‑12mm two options

Current & Wire Gauge Specification

Pin Number	Max Current	Suitable Wire Cross‑section
2P/3P/4P/5P	25A	0.2‑2.5mm²
7P	10A	0.2‑1.5mm²
9P/12P	5A	0.2‑1mm²

0.2‑2.5mm² ≈24‑14AWG；0.2‑1.5mm²≈24‑16AWG；0.2‑1mm²≈24‑18AWG

Structure Feature

Solid gold‑plated pins: anti‑oxidation, durable plug‑pull
Tail locking claw: lock cable firmly, waterproof dust‑proof
Anti‑fall off anti‑twist ring: prevent loosening
Waterproof sealing rubber ring: reliable IP68 water‑proof performance

Application Scenarios

Outdoor LED lighting, industrial sensors, solar equipment, marine wiring, surveillance camera, automation control device, garden lamp, outdoor power wiring projects.

Note: Adopt rosin solder for soldering. If solder paste is used, clean contacts with alcohol after welding.

Specification

Attribute	Value
Product Name	SP20 IP68 Gold‑Plated Waterproof Aviation Connector
Model	SP20
Connector Type	Circular Aviation Plug & Socket
Mount Style	Butt‑joint, Rear Nut, Flange Panel Mount
Pin Options	2P,3P,4P,5P,7P,9P,12P
Contact Material	Brass Gold‑Plated
Housing Material	PA66 Flame‑retardant Nylon
Insulator Material	PPS(260℃ High Temperature Resistance)
Wiring Method	Solder connection
IP Rating	IP68
Insulation Resistance	2000 MΩ
Operating Temperature	-25℃ ~ +110℃
Mating Cycles	＞500 times
Applicable Cable OD	3‑7mm,6‑12mm
Google Product Category	Business & Industrial > Industrial Automation > Connectors > Circular Connectors
Weight	65‑95g / set
Application	LED Light, Sensor, Solar, Marine, Surveillance, Outdoor Automation
